Ergotron HX Series HX ARM WITH VERY HEAVY DUTY PIVOT DESK (WHITE), FOR 1000R 57" MONITORS. Mounting: Clamp, Maximum weight capacity: 17 kg, Maximum screen size: 144.8 cm (57"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 100 x 100 mm. Height adjustment, Tilt angle range: 5 – 20°. Product colour: White
Enable immersive viewing experiences and take back your desk space. Our best-selling HX Monitor Arm is now available with a very heavy-duty tilt pivot, giving gamers and office professionals the freedom to move and position ultra-wide curved displays 9.1″–13.8” (23–35 cm) deep and 28.7–37.5 lbs (13–17 kg), like the Samsung® 57″ Odyssey G9 Gaming Monitor.
note: Other variations of the Samsung G9 are compatible with the standard HX Arm or the HX Arm with HD Pivot. Check your display’s weight and depth to ascertain which mount is appropriate.
Mounting
Maximum weight capacity: 17 kg
Number of displays supported: 1
Maximum weight capacity (per display): 17 kg
Maximum weight capacity (per curved/ultra-wide display): 17 kg
Maximum screen size: 144.8 cm (57″)
Mounting: Clamp
Feature: Suitable for TV
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 6.6 cm
Ergonomics
Feature: Height adjustment

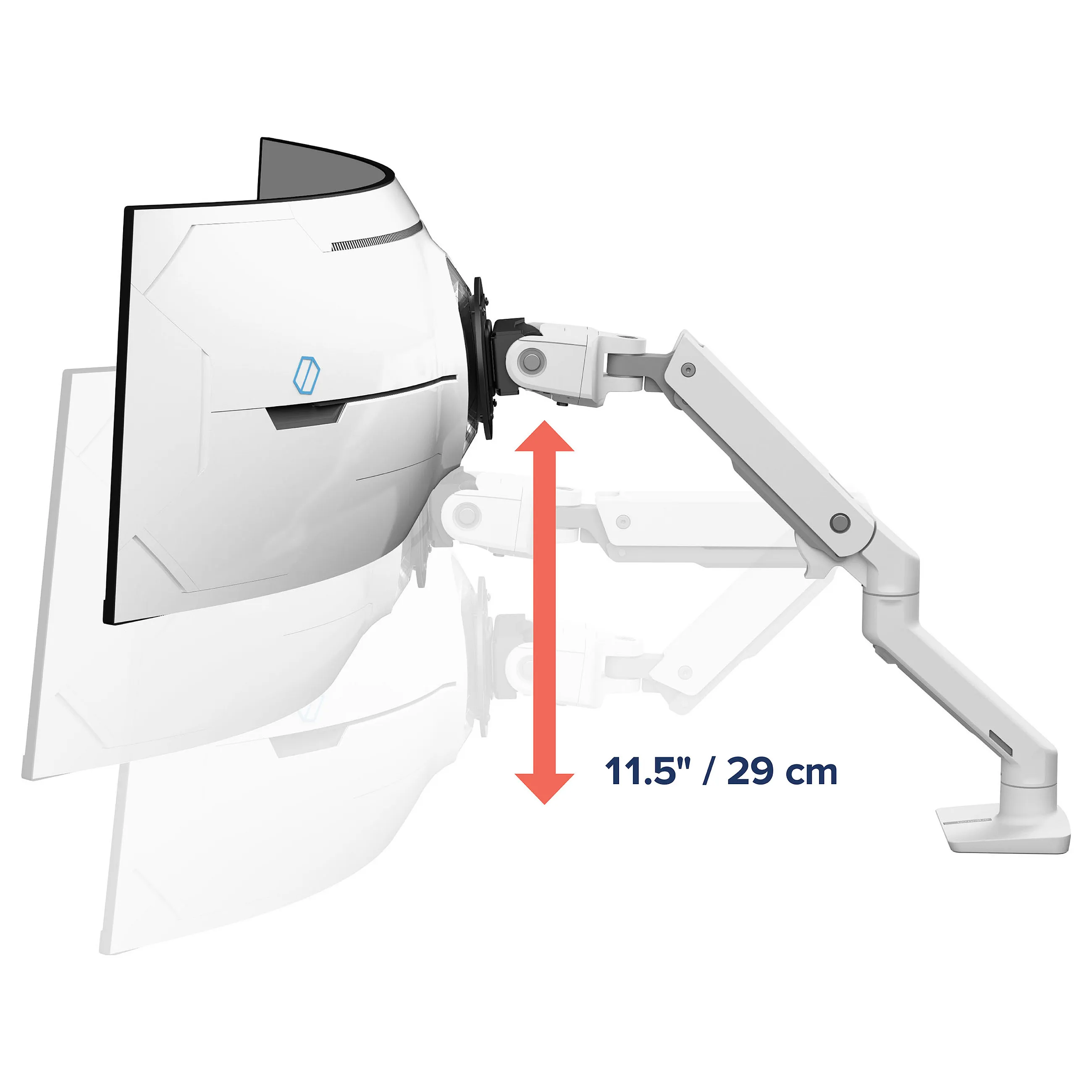

Height adjustment range: 0 – 292 mm
Feature: Adjustable depth
Feature: Tilt adjustment
Tilt angle range: 5 – 20°
Feature: Swivelling
Feature: Rotating
Angle of rotation: 20°
Pan range: 0 – 180°
Number of arms: 1
Feature: Cable management
Design
Product colour: White
Orientation: Landscape
Feature: Easy to install
Weight & dimensions
Weight: 8.1 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 342 mm
Package depth: 525 mm
Package height: 198 mm
Package weight: 10.3 kg
Package type: Box
Packaging content
Feature: Clamp included
Feature: VESA mount included
Feature: Mounting kit

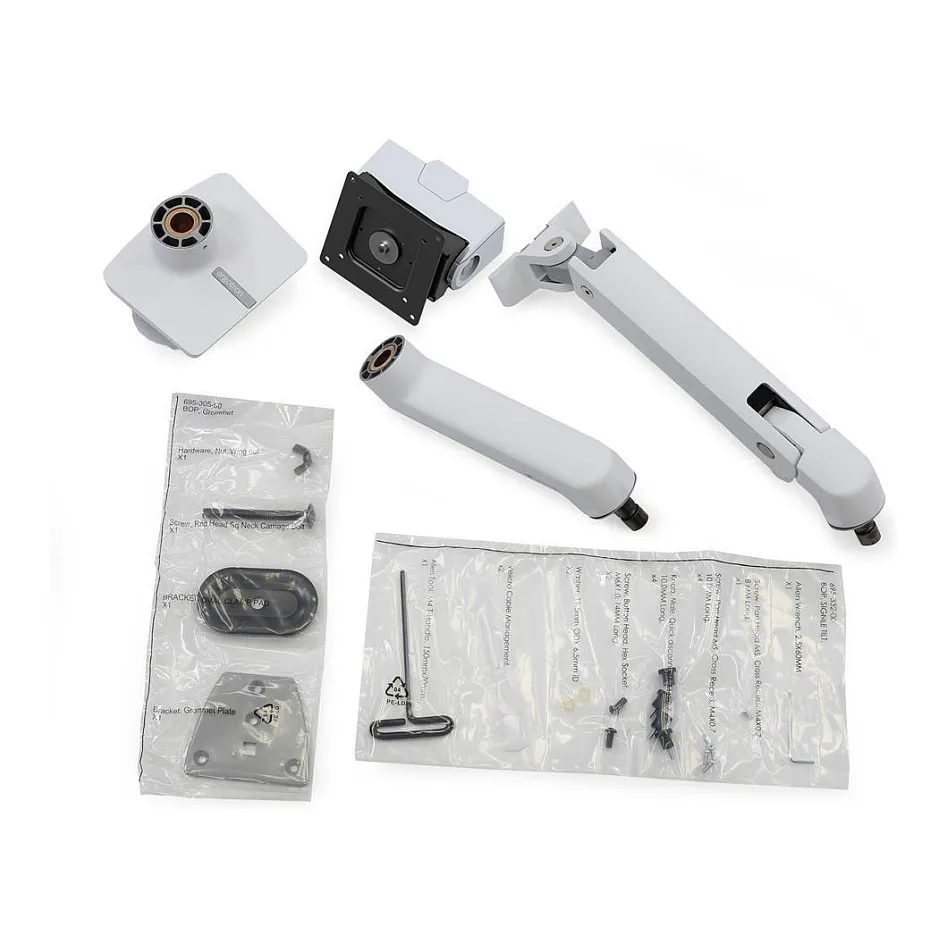

Packaging content: HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware
Logistics data
Country of origin: China
Maximum weight capacity: 17 kg
Number of displays supported: 1
Maximum weight capacity (per display): 17 kg
Maximum weight capacity (per curved/ultra-wide display): 17 kg
Maximum screen size: 144.8 cm (57″)
Mounting: Clamp
Feature: Suitable for TV
Mounting type: Desk
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 100 x 100 mm
Panel mounting interface: 75 x 75,100 x 100 mm
Desk thickness (min): 1 cm
Desk thickness (max): 6.6 cm
Ergonomics
Feature: Height adjustment
Height adjustment range: 0 – 292 mm
Feature: Adjustable depth
Feature: Tilt adjustment
Tilt angle range: 5 – 20°
Feature: Swivelling
Feature: Rotating
Angle of rotation: 20°
Pan range: 0 – 180°
Number of arms: 1
Feature: Cable management
Design
Product colour: White
Orientation: Landscape
Feature: Easy to install
Weight & dimensions
Weight: 8.1 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 342 mm
Package depth: 525 mm
Package height: 198 mm
Package weight: 10.3 kg
Package type: Box
Packaging content
Feature: Clamp included
Feature: VESA mount included
Feature: Mounting kit
Packaging content: HX Arm, Very Heavy-Duty Tilt Pivot, extension, desk clamp, grommet mount, mounting hardware
Logistics data
Country of origin: China
