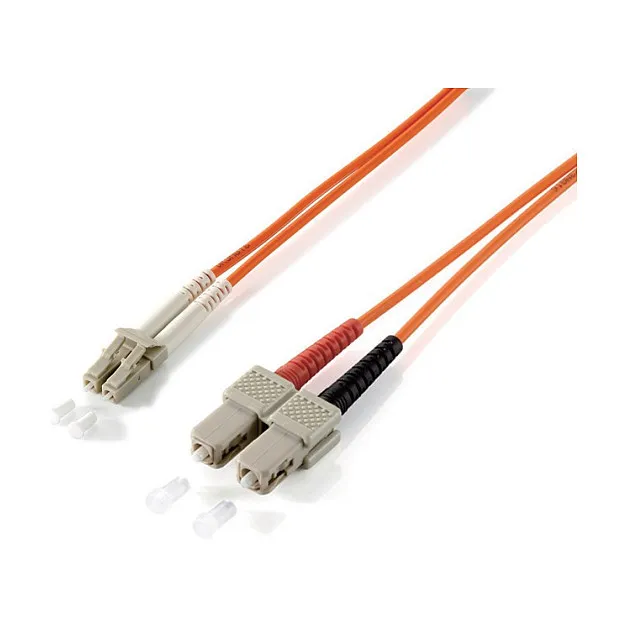

Equip LC/SС 62.5/125μm 1.0m. Cable length: 1 m, Fibre optic type: OM1, Connector 1: LC, Connector 2: SC, Core diameter: 62.5 µm, Full duplex
The equip® Optical Fiber Patch Cord is made of superior materials to ensure an end-face geometry connection with lower return loss and insertion loss. The Fiber Optic Patch Cord series comes with a comprehensive collection of lengths and connectors to fulfill your demand for the deployment.
– LC / SC connection
– Connector: ceramic-ferrule
– Cladding: low smoke and zero halogen
– Cable specification: I-VH 2 x 1E (singlemode) / I-VH 2 x 1G (multimode)
– Each cable packed with measure protocol
– REACH compliance
Features
Cable length: 1 m
Fibre optic type: OM1
Connector 1: LC
Connector 2: SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Orange
Feature: Full duplex
Core diameter: 62.5 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.5 dB
Jacket material: Low smoke zero halogen (LSZH)
Certificates
Compliance certificates: REACH, RoHS
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Logistics data
Harmonized System (HS) code: 85447000
Other features
Core / cladding diameter: 62.5/125 µm
Cable length: 1 m
Fibre optic type: OM1
Connector 1: LC
Connector 2: SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Orange
Feature: Full duplex
Core diameter: 62.5 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.5 dB
Jacket material: Low smoke zero halogen (LSZH)
Certificates
Compliance certificates: REACH, RoHS
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -40 – 80 °C
Logistics data
Harmonized System (HS) code: 85447000
Other features
Core / cladding diameter: 62.5/125 µm
