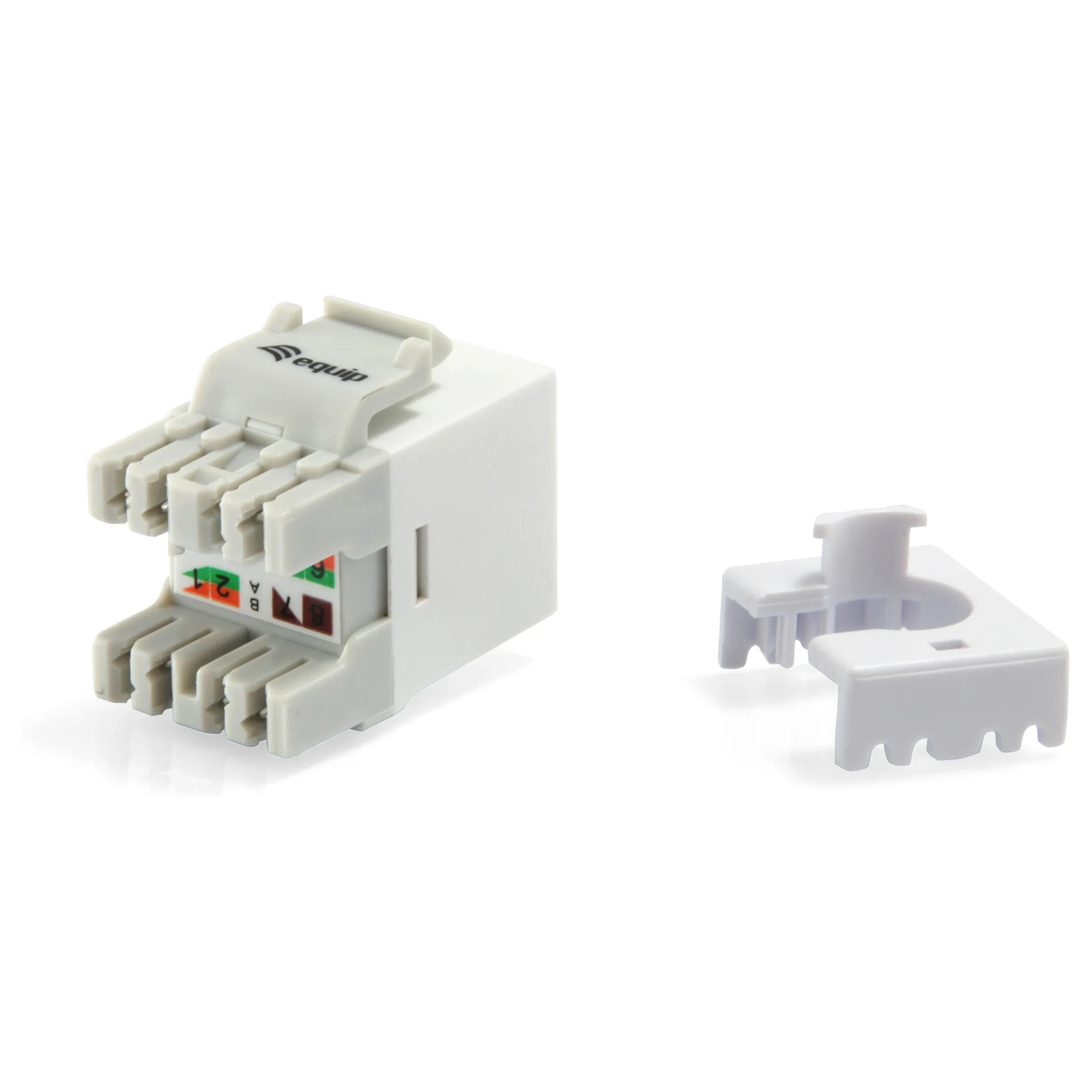

Equip Cat.6 Unshielded Keystone Jack LSA, Slim Type, White. Construction type: Flat, Product colour: White, Connector 1: RJ-45. Width: 18 mm, Depth: 24.5 mm, Height: 41 mm. Package width: 203 mm, Package depth: 35 mm, Package height: 152 mm. Quantity per pack: 8 pc(s). Master (outer) case width: 480 mm, Master (outer) case length: 390 mm, Master (outer) case height: 253 mm
– Slim type, specially designed for 1U 48-port Keystone Patch Panel (equip 769248)
– LSA connector
– Gold flash contact
– Compliant with CLASS E IS0/IES 11801 2nd Edition & EN 50173

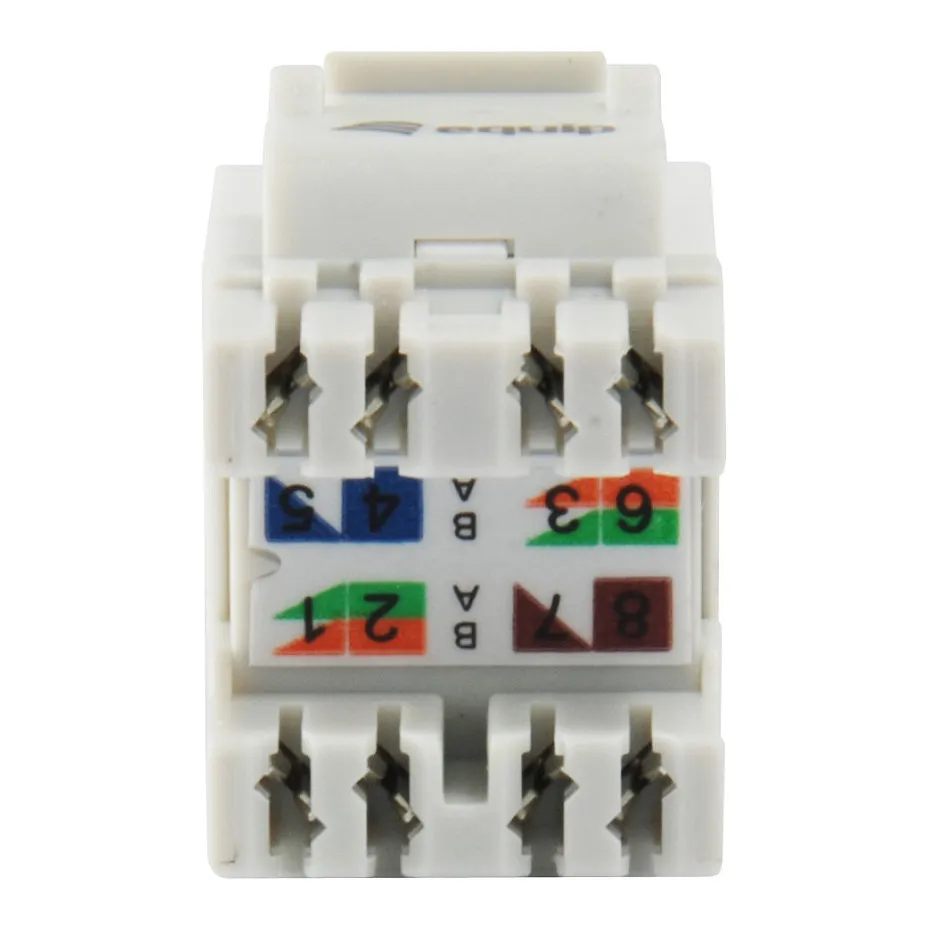

– IDC color T568A/T568B coded
– Selling unit: 8pcs/pack
– LSA connector
– Gold flash contact
– Compliant with CLASS E IS0/IES 11801 2nd Edition & EN 50173
– IDC color T568A/T568B coded
– Selling unit: 8pcs/pack
Features
Construction type: Flat
Product colour: White
Connector 1: RJ-45
Connector 2: IDC
Connector 1 gender: Female
Connector 2 gender: Male
Connector contacts plating: Gold
Cable types supported: Cat6
Housing material: Acrylonitrile butadiene styrene (ABS)
Compatible products: Equip 769248
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Weight & dimensions
Width: 18 mm
Depth: 24.5 mm
Height: 41 mm
Weight: 112 g
Packaging data
Package width: 203 mm
Package depth: 35 mm
Package height: 152 mm
Package weight: 120 g
Packaging content
Quantity per pack: 8 pc(s)
Logistics data
Harmonized System (HS) code: 85369010
Master (outer) case width: 480 mm
Master (outer) case length: 390 mm
Master (outer) case height: 253 mm
Master (outer) case gross weight: 7 kg
Products per master (outer) case: 504 pc(s)
Construction type: Flat
Product colour: White
Connector 1: RJ-45
Connector 2: IDC
Connector 1 gender: Female
Connector 2 gender: Male
Connector contacts plating: Gold
Cable types supported: Cat6
Housing material: Acrylonitrile butadiene styrene (ABS)
Compatible products: Equip 769248
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Weight & dimensions
Width: 18 mm
Depth: 24.5 mm
Height: 41 mm
Weight: 112 g
Packaging data
Package width: 203 mm
Package depth: 35 mm
Package height: 152 mm
Package weight: 120 g
Packaging content
Quantity per pack: 8 pc(s)
Logistics data
Harmonized System (HS) code: 85369010
Master (outer) case width: 480 mm
Master (outer) case length: 390 mm
Master (outer) case height: 253 mm
Master (outer) case gross weight: 7 kg
Products per master (outer) case: 504 pc(s)
