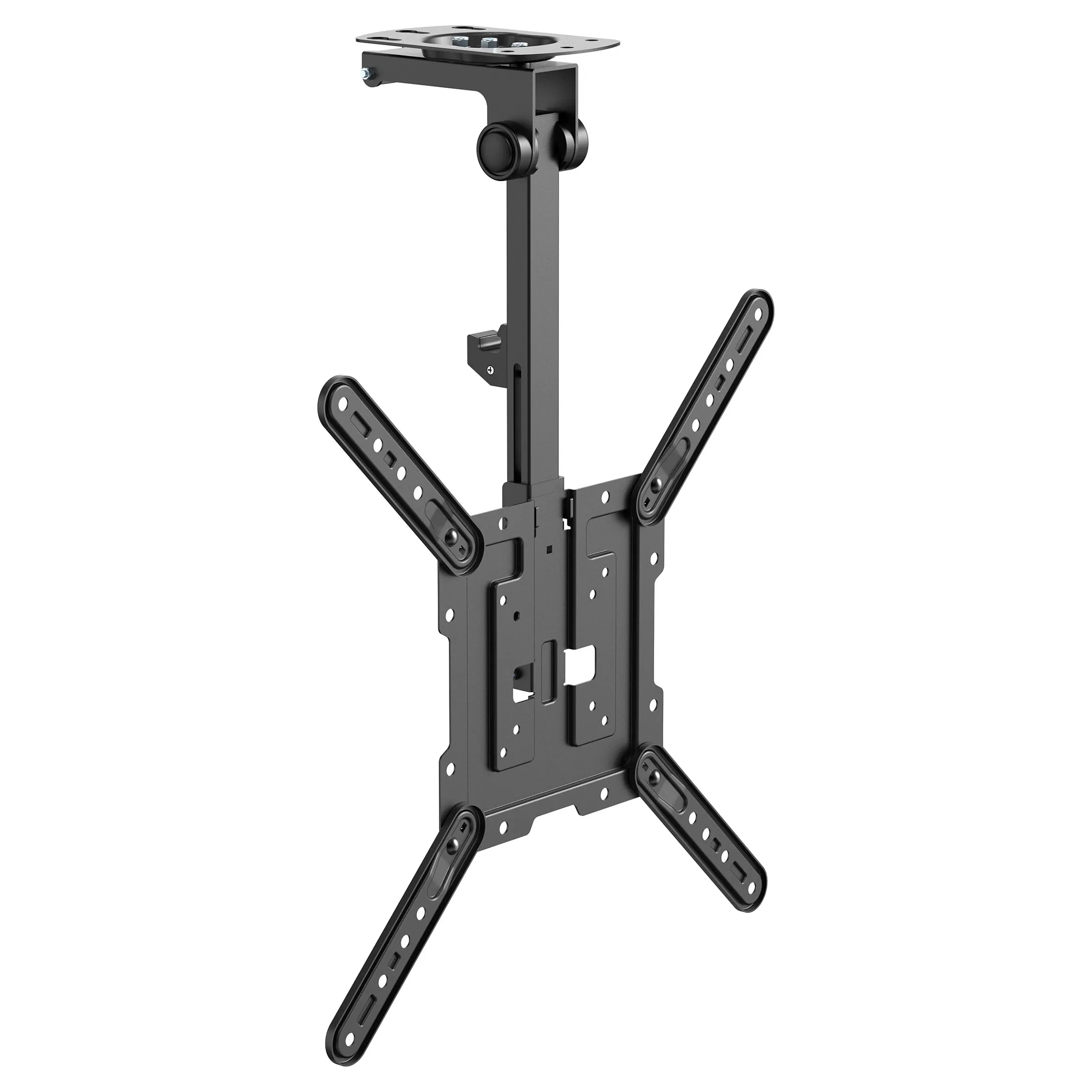

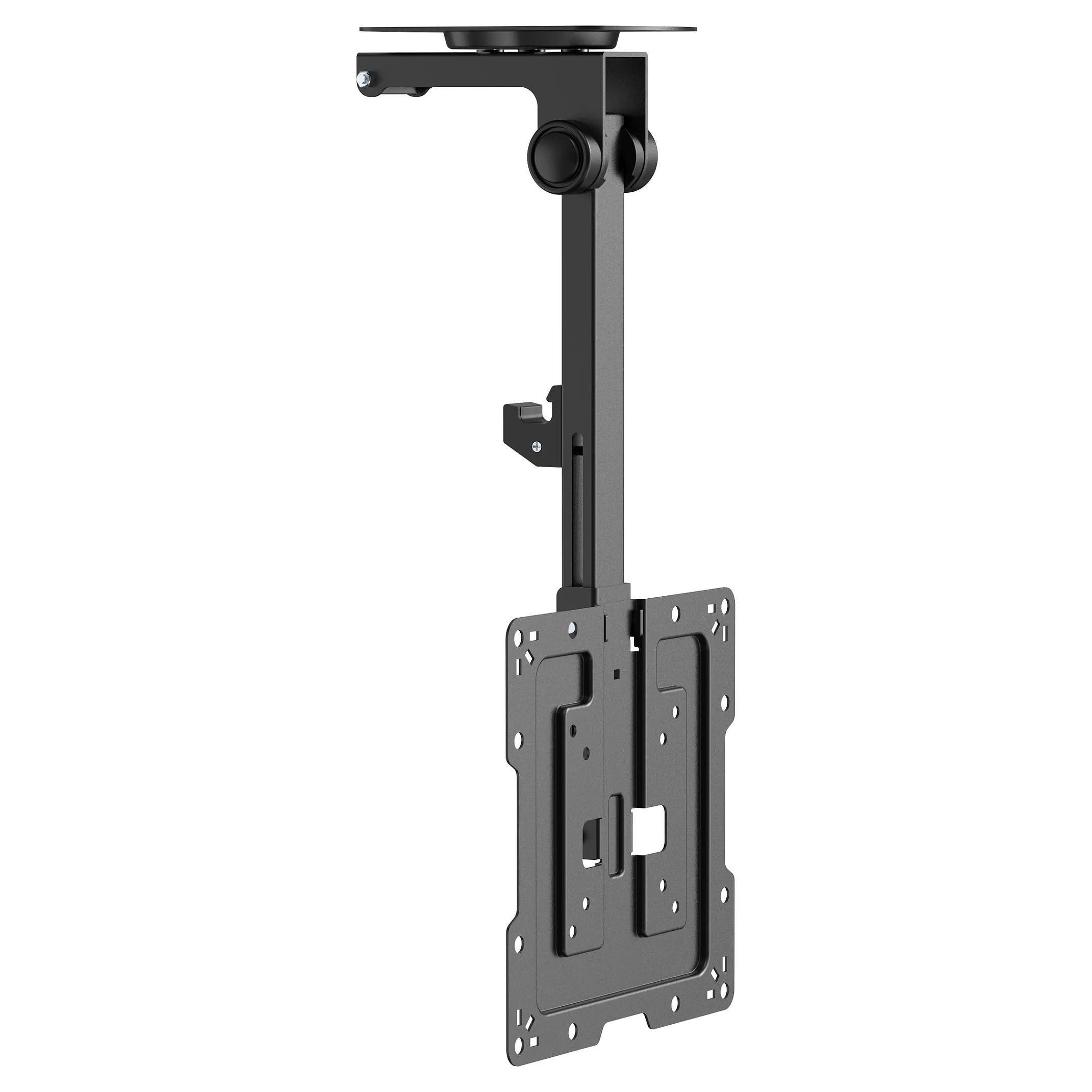

Equip 23"-55" Ceiling Mount TV Bracket. Maximum weight capacity: 20 kg, Minimum screen size: 58.4 cm (23"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 75 x 75 mm, Maximum VESA mount: 400 x 400 mm. Height adjustment range: 520 – 614 mm, Tilt angle range: 0 – 80°, Swivel angle range: -45 – 45°, Distance to the wall (max): 8.3 cm. Product colour: Black
Featuring a sturdy and durable construction, the ceiling mount TV bracket ensures stability and secure support for your television. The adjustable design allows you to customize the viewing angle, making it suitable for a variety of room configurations. This is particularly useful for spaces where wall mounting may not be practical or desired.

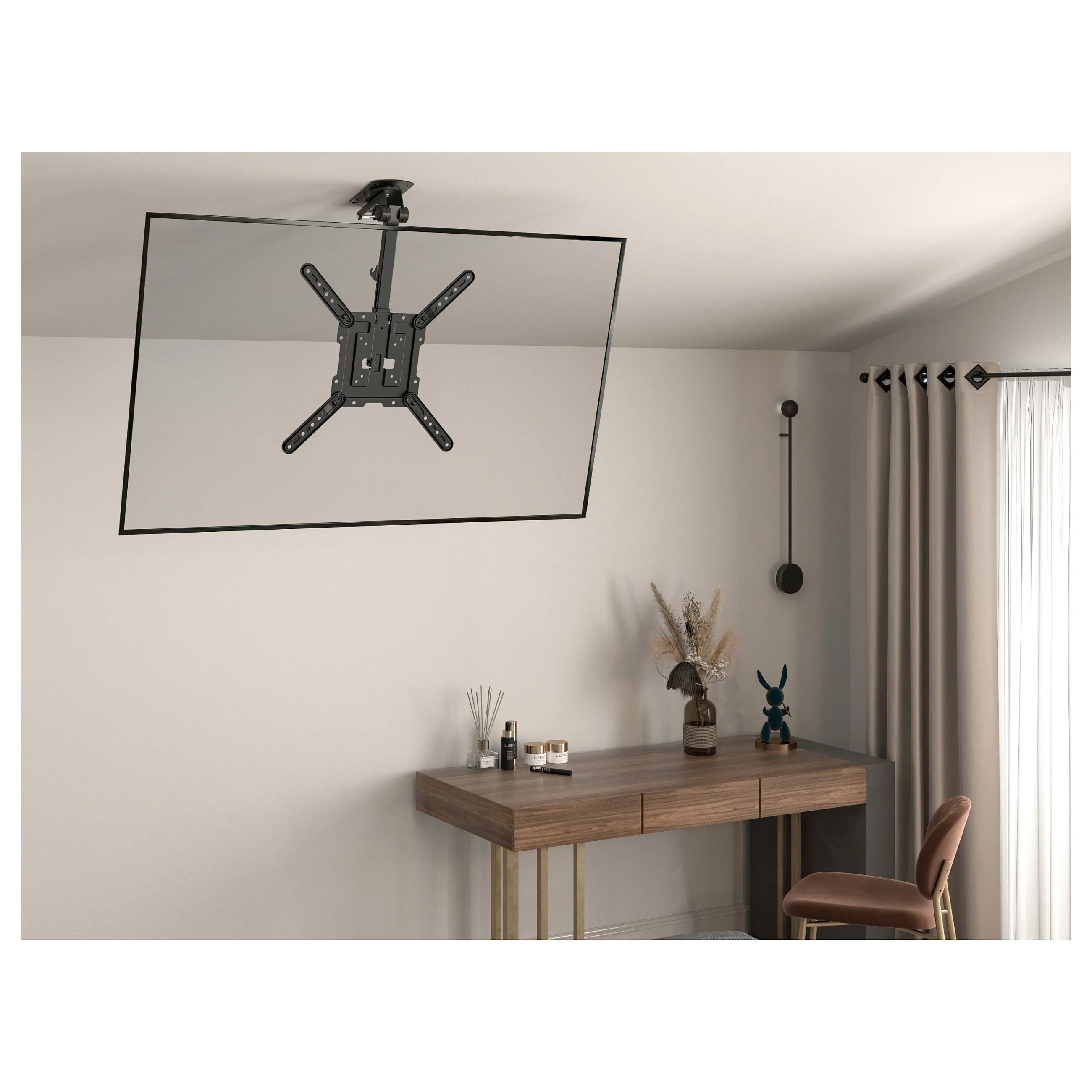

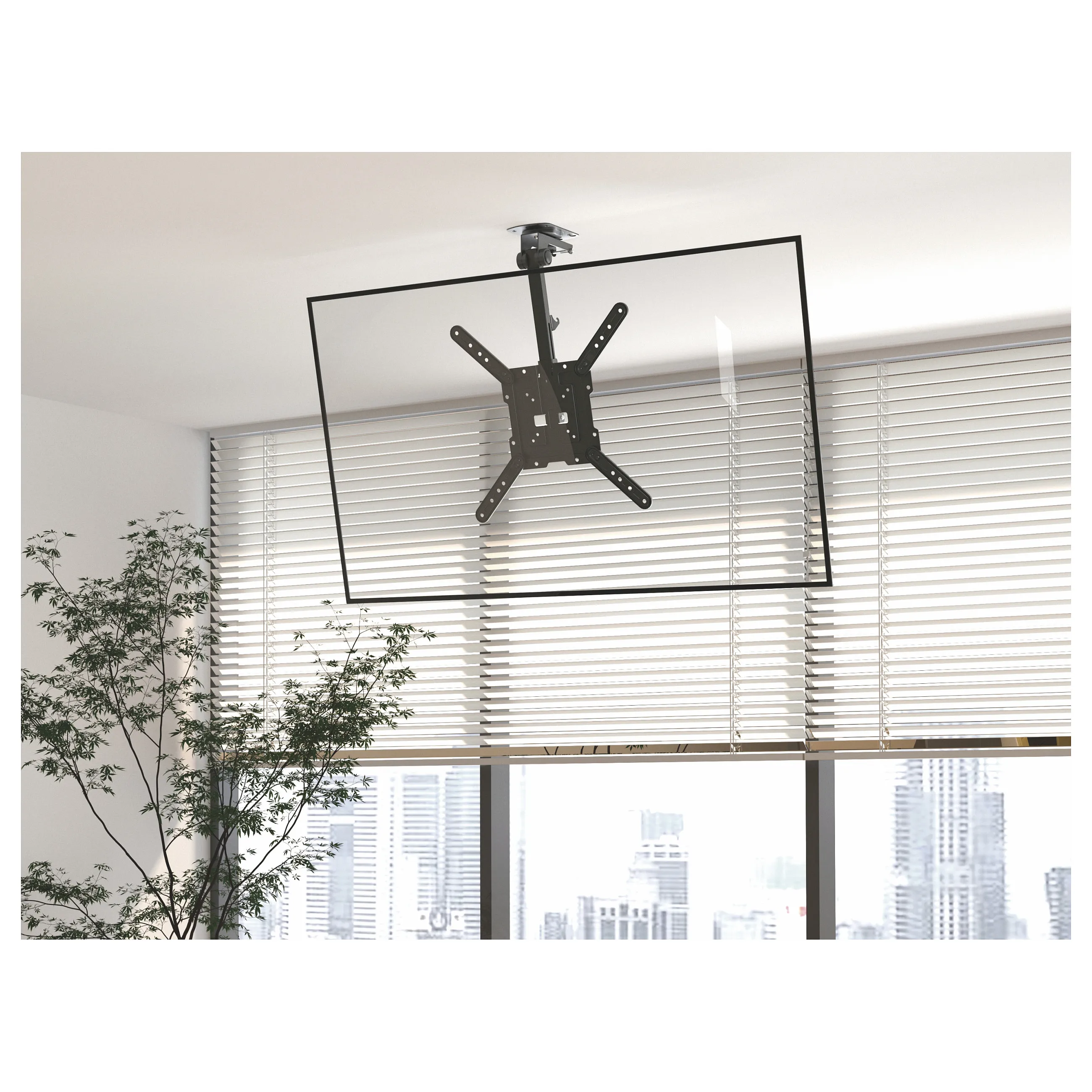

Installation is straightforward, and the bracket is compatible with a range of ceiling heights. The versatile design is ideal for both residential and commercial settings, such as living rooms, bedrooms, conference rooms, or retail spaces.”
Maximum weight capacity: 20 kg
Minimum screen size: 58.4 cm (23″)
Number of displays supported: 1
Maximum screen size: 139.7 cm (55″)
Minimum VESA mount: 75 x 75 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 75 x 75,100 x 100,100 x 200,200 x 100,200 x 200,200 x 300,200 x 400,300 x 400,300 x 300,300 x 200,400 x 200,400 x 400,400 x 300

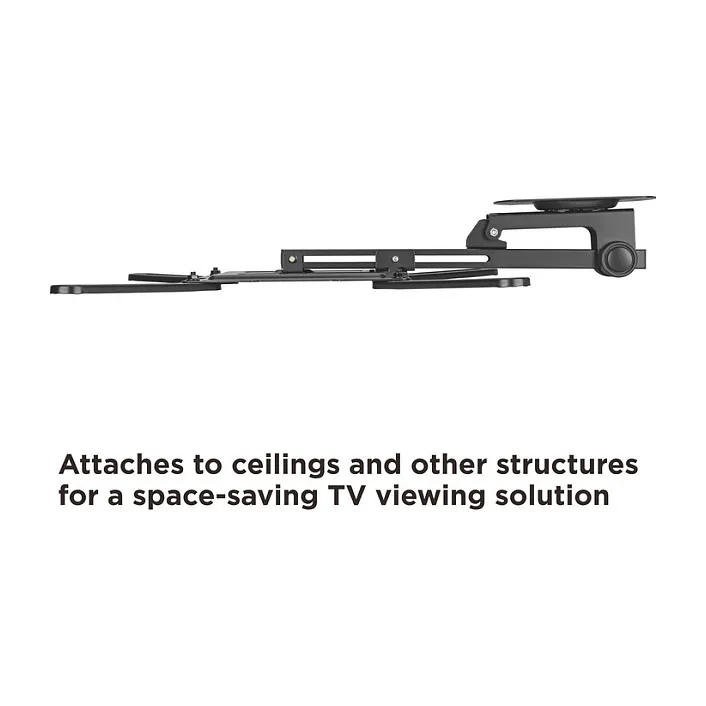

Mounting type: Ceiling
Ergonomics
Feature: Height adjustment

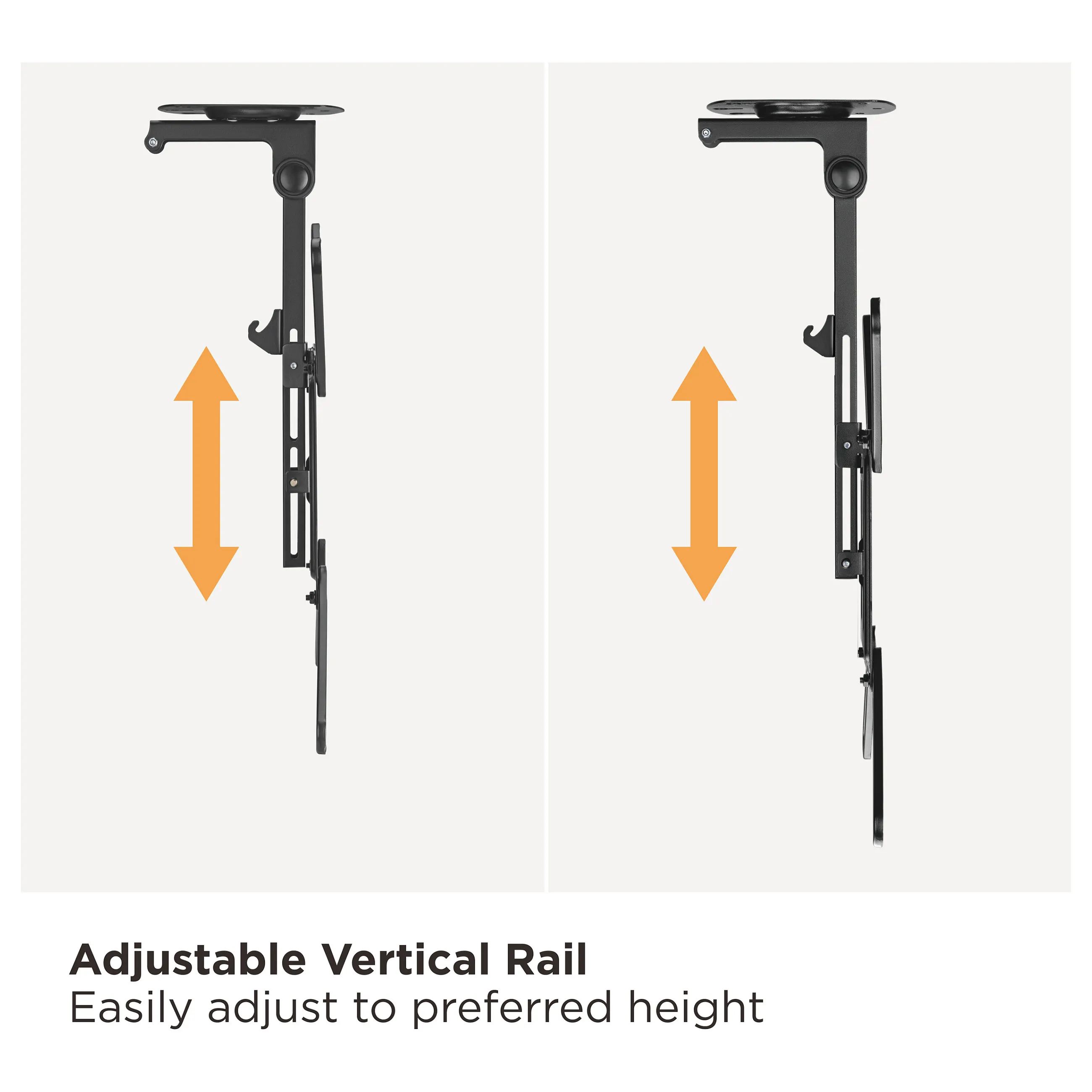

Height adjustment range: 520 – 614 mm
Feature: Tilt adjustment
Tilt angle range: 0 – 80°
Feature: Swivelling
Swivel angle range: -45 – 45°
Distance to the wall (max): 8.3 cm
Feature: Suitable for curved screen
Design
Product colour: Black
Housing material: Stainless steel
Technical details
Country of origin: China
Feature: Sustainability compliance
Compliance certificates: REACH, RoHS
Packaging content
Feature: Screws included
Feature: Manual

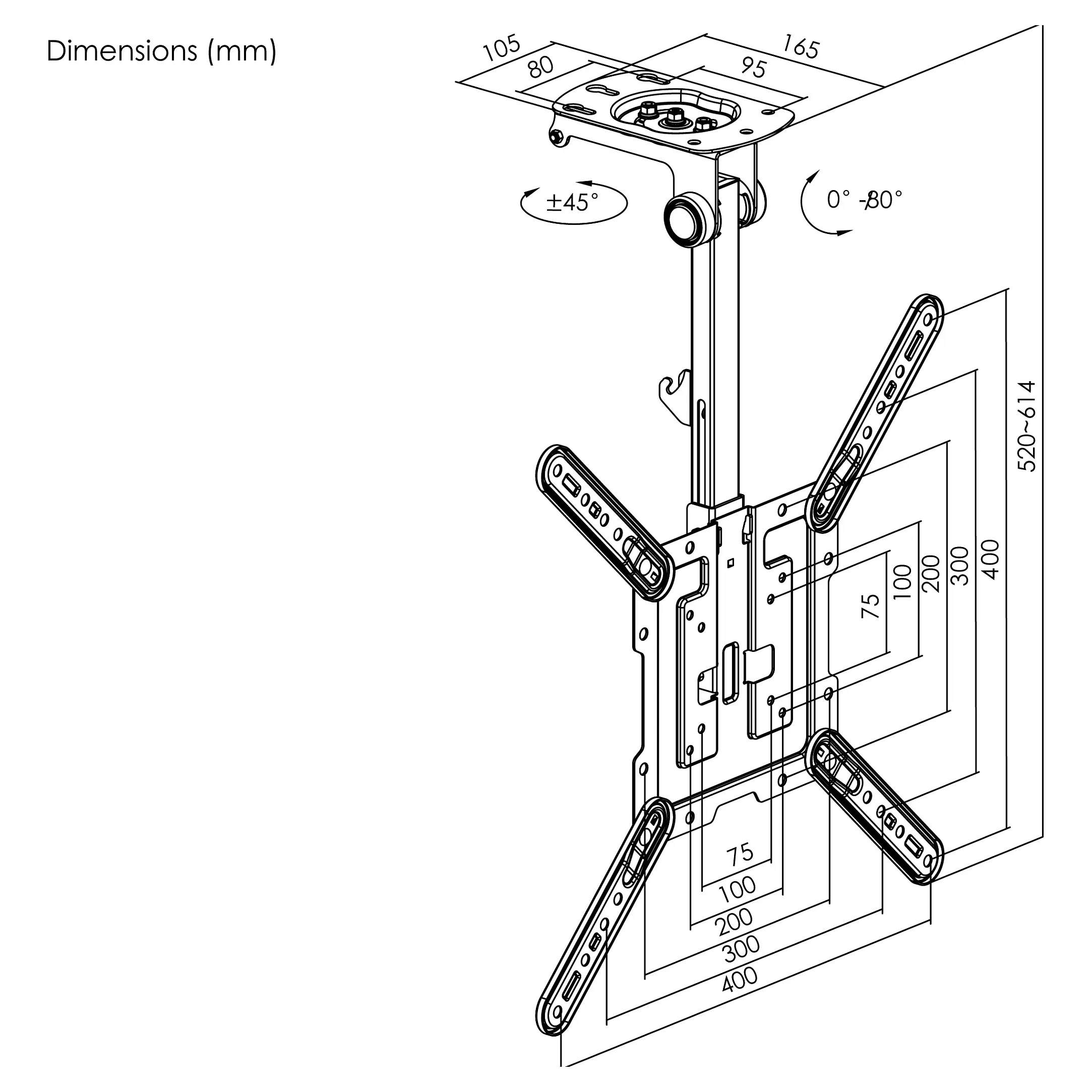

Weight & dimensions
Width: 435 mm
Depth (max): 16.5 cm
Height: 614 mm
Weight: 2.11 kg
Packaging data
Package width: 415 mm
Package depth: 225 mm
Package height: 90 mm
Package weight: 2.45 kg
Logistics data
Master (outer) case width: 470 mm
Master (outer) case length: 430 mm
Master (outer) case height: 382 mm
Master (outer) case gross weight: 20.5 kg
Products per master (outer) case: 8 pc(s)
Harmonized System (HS) code: 8529908100
