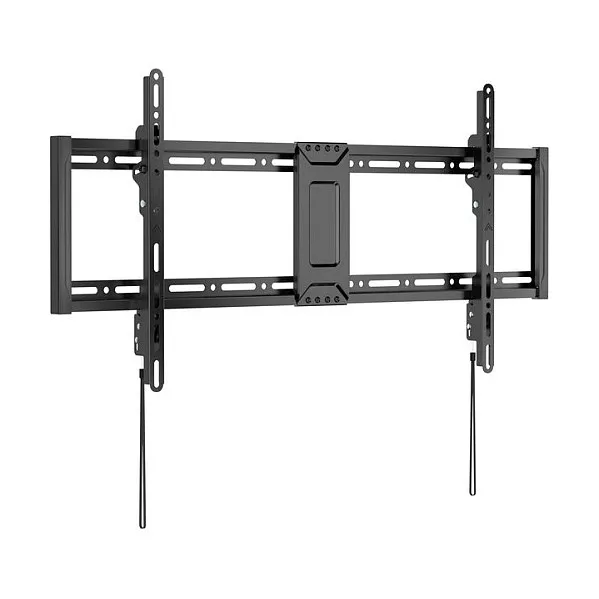

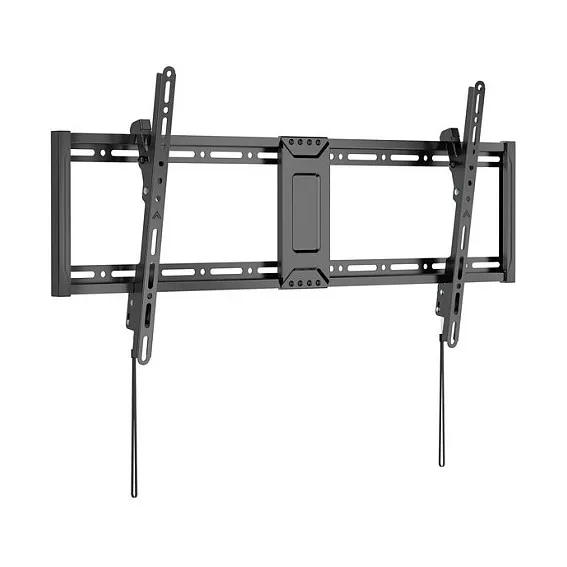

Equip 43"-95" Tilt Slim TV Wall Mount Bracket. Maximum weight capacity: 75 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.41 m (95"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: 0 – 8°, Distance to the wall (max): 4.2 cm. Product colour: Black

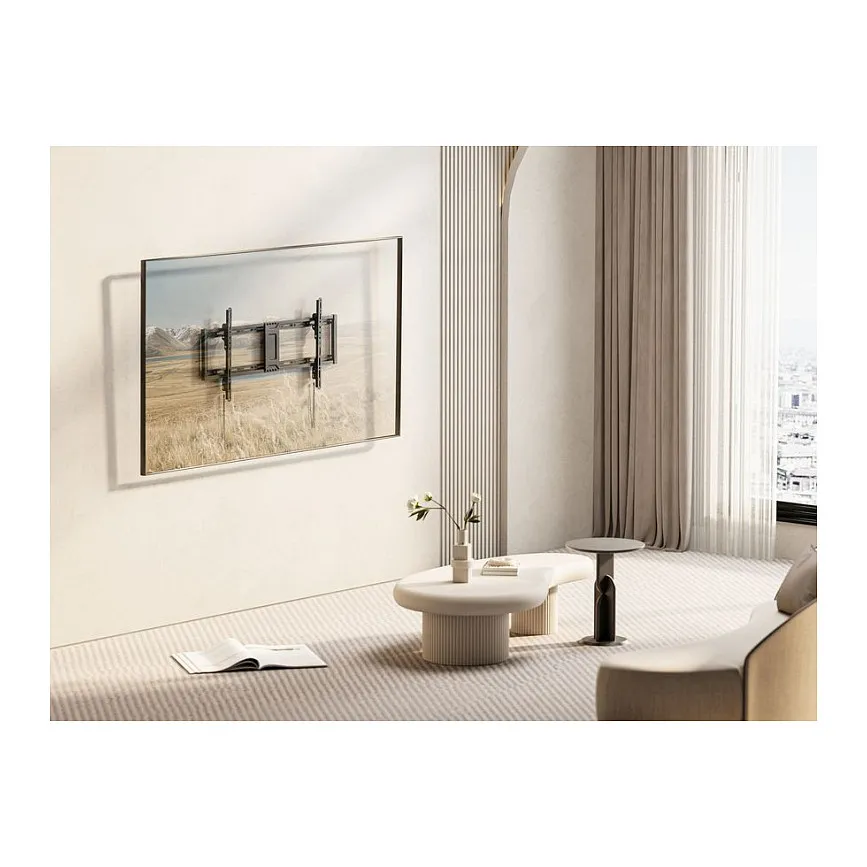

The Equip 650361 43″-95″ Tilt Slim TV Wall Mount Bracket is the ultimate solution for mounting large-screen TVs in a sleek and secure manner. Designed for displays ranging from 43 to 95 inches, this versatile bracket is compatible with most major TV brands and models. Its slim profile ensures a clean, modern look, keeping your TV close to the wall while still allowing for easy tilt adjustments to reduce glare and enhance viewing angles.
Ideal for both home and commercial settings, this mount is perfect for living rooms, bedrooms, offices, or conference rooms. Installation is made simple with the included hardware kit, detailed instructions, and compatibility with VESA mounting patterns up to 800x400mm.
Mounting

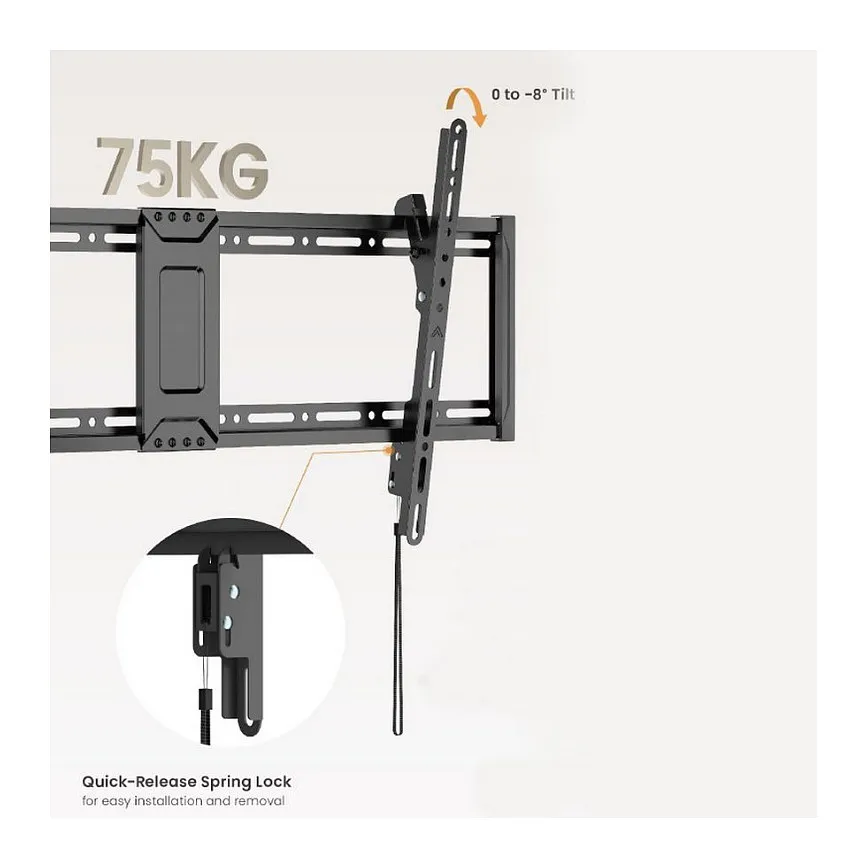

Maximum weight capacity: 75 kg
Minimum screen size: 109.2 cm (43″)
Number of displays supported: 1
Maximum weight capacity (per display): 75 kg
Maximum screen size: 2.41 m (95″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 800 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment

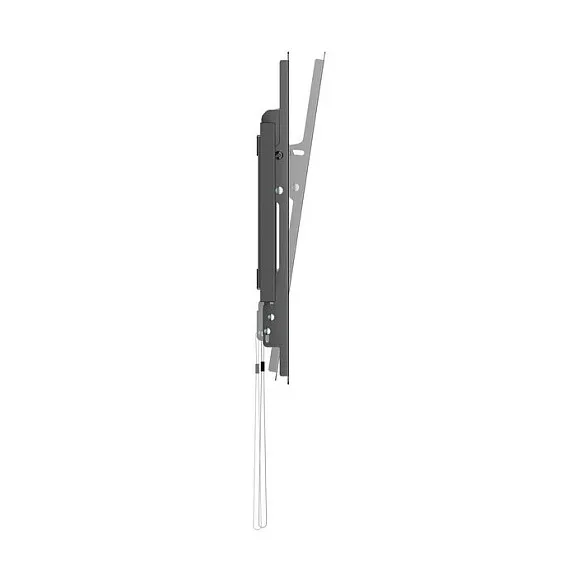

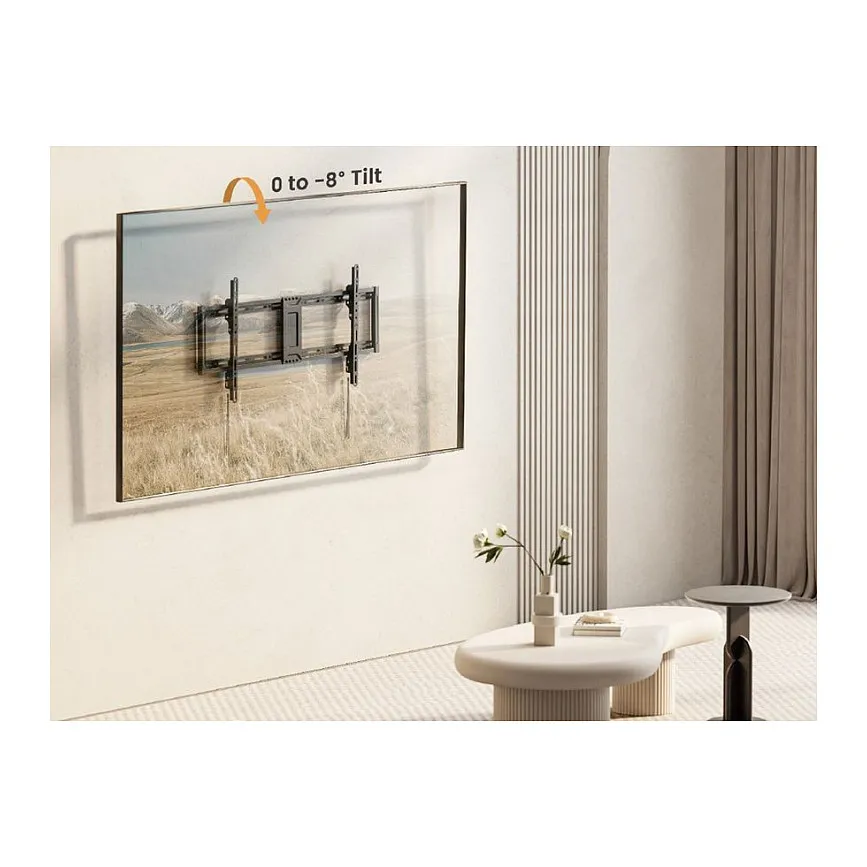

Tilt angle range: 0 – 8°
Distance to the wall (max): 4.2 cm
Design
Product colour: Black
Housing material: Acrylonitrile butadiene styrene (ABS), Stainless steel
Technical details
Country of origin: China
Compliance certificates: CE, RoHS
Packaging content
Feature: Manual
Feature: Mounting kit
Weight & dimensions
Width: 886 mm
Depth (max): 4.2 cm
Height: 426 mm
Weight: 2.45 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 230 mm
Package depth: 48 mm
Package height: 445 mm
Package weight: 2.85 kg
Package type: Box
