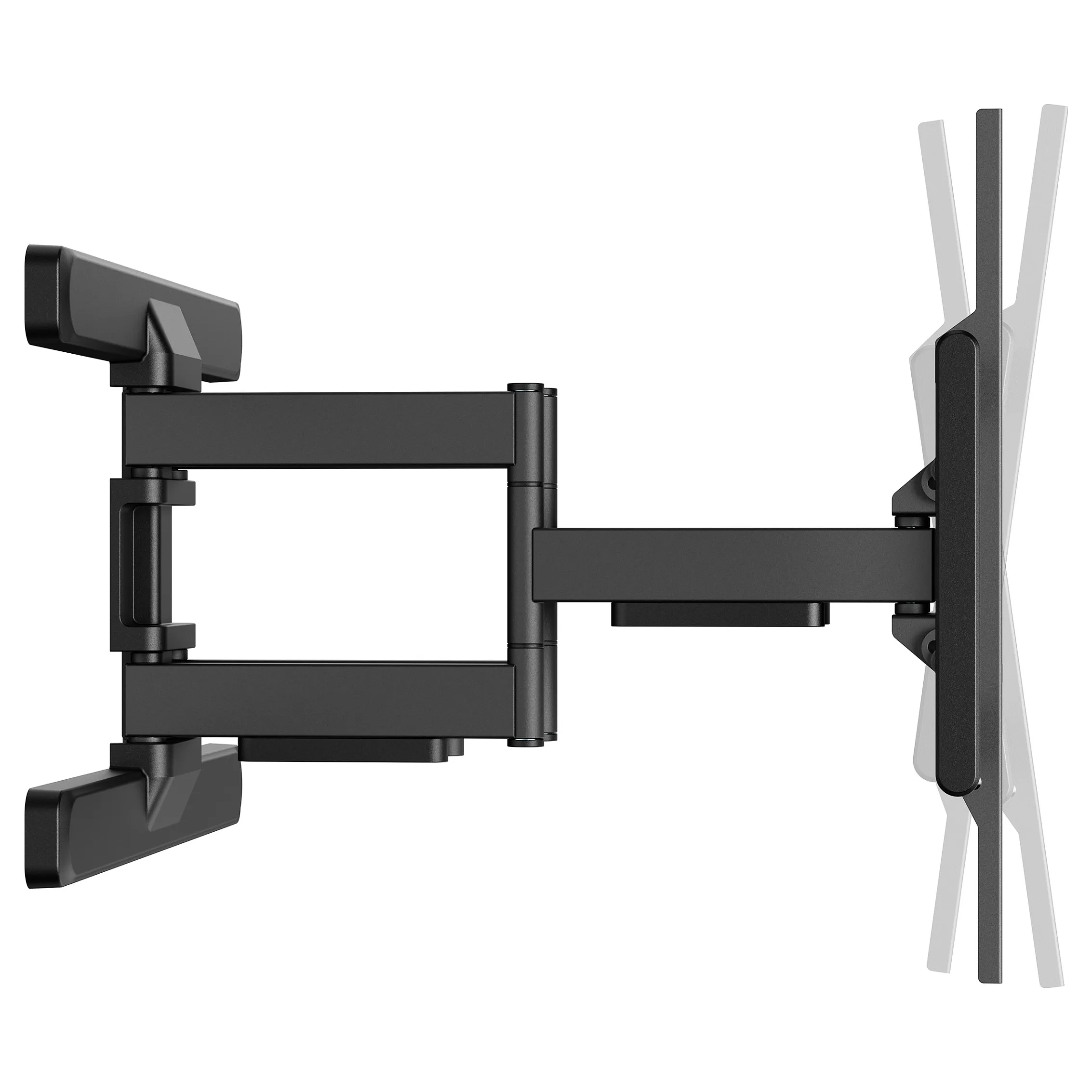

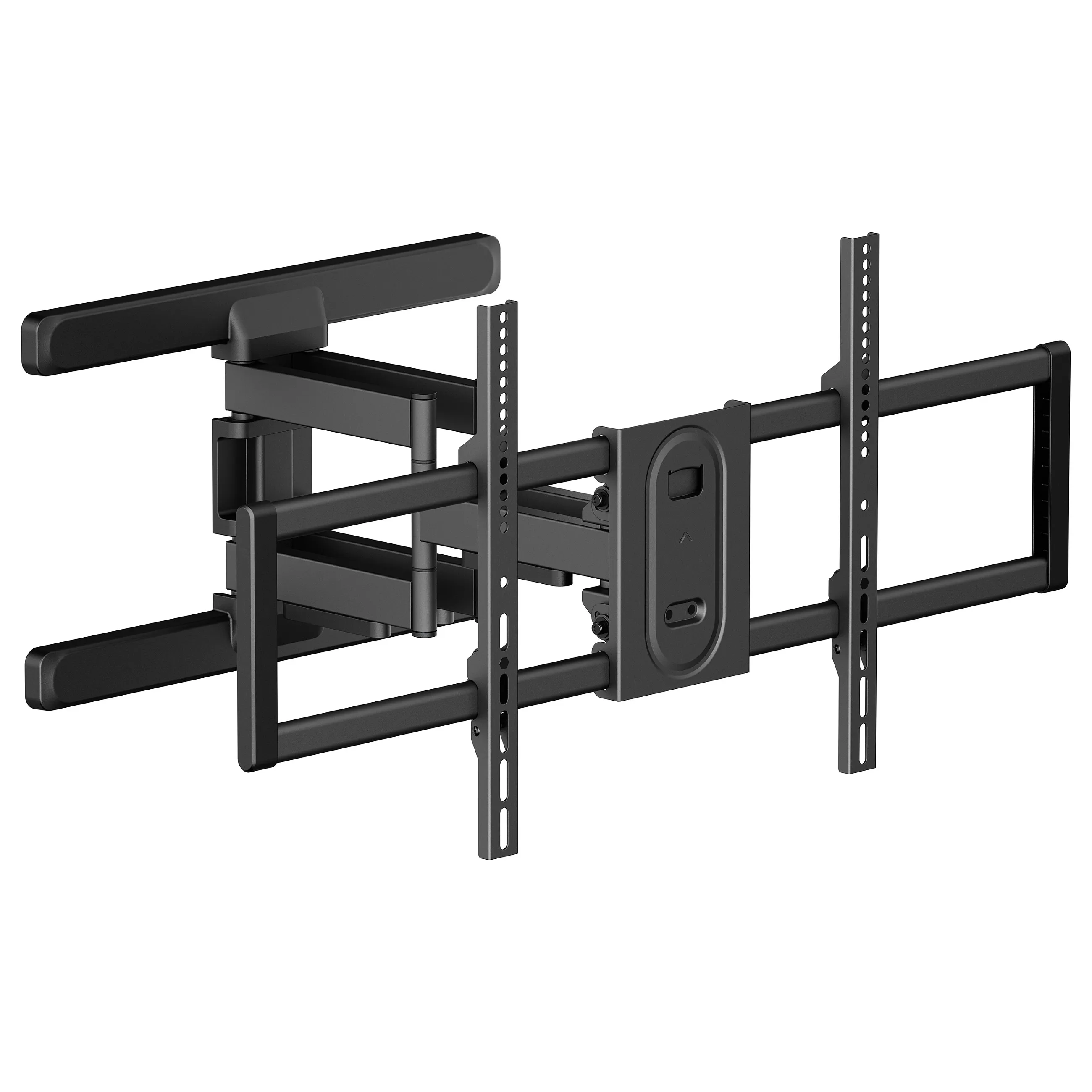

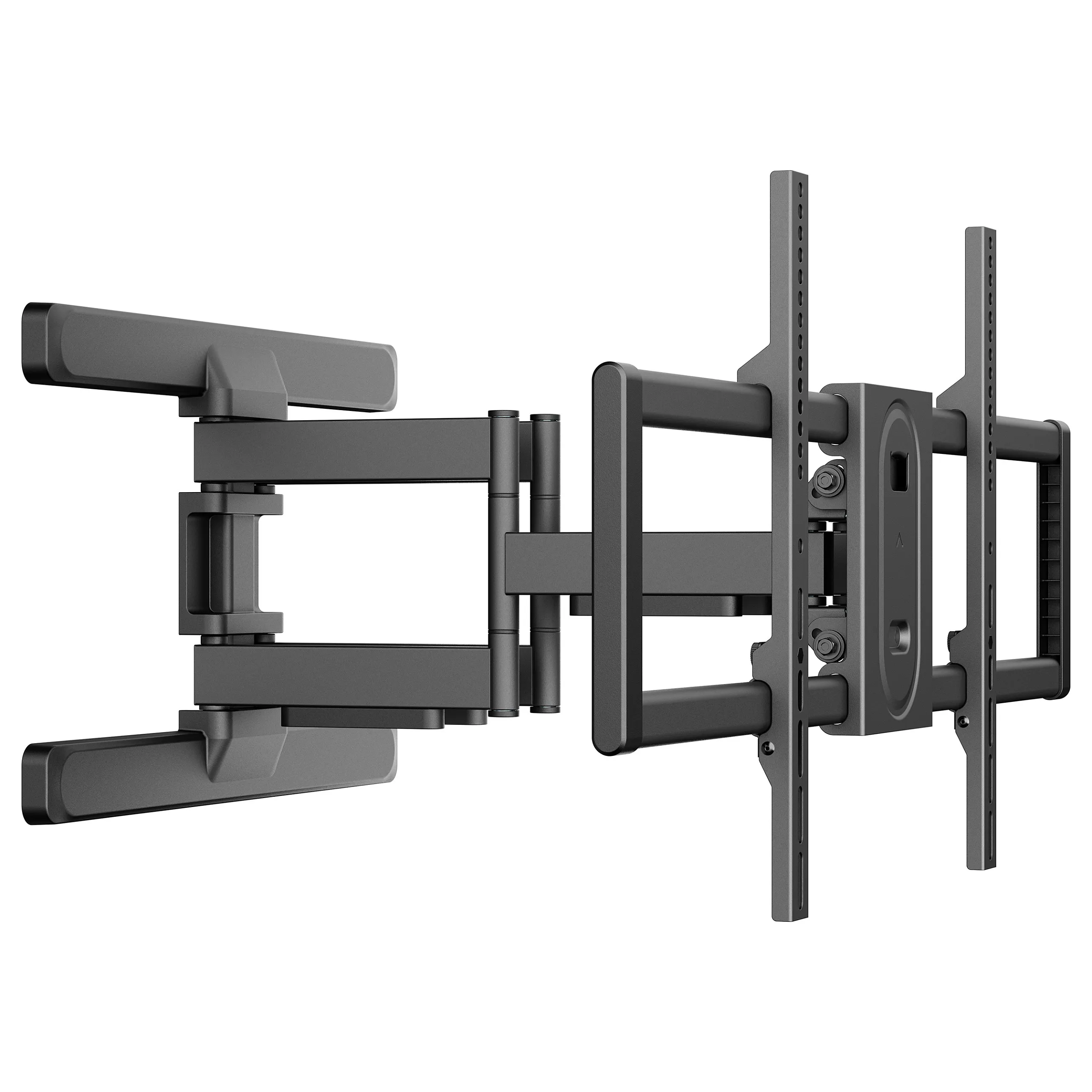

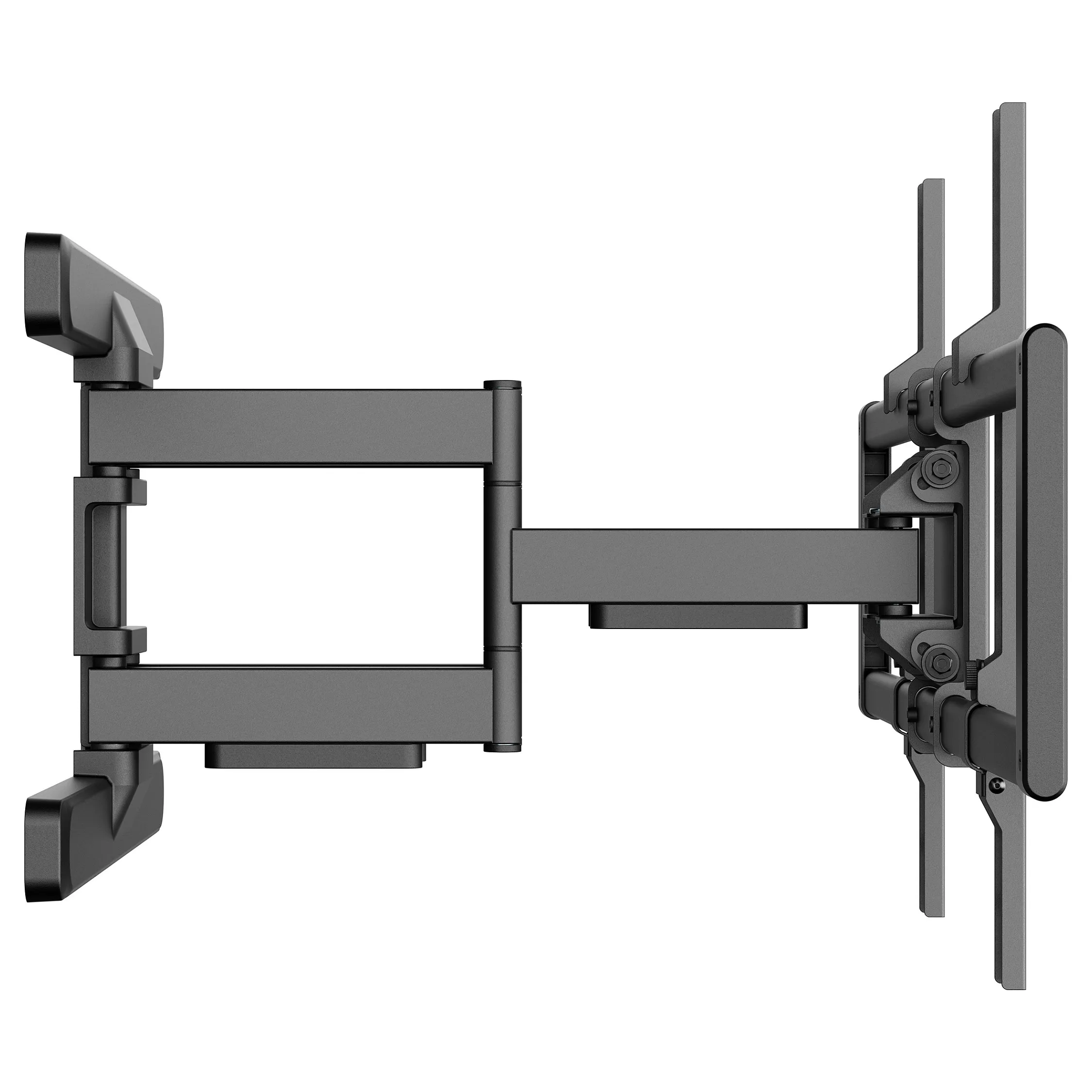

Equip 43"-100" Full Motion TV Mount Bracket. Maximum weight capacity: 60 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 2.54 m (100"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 800 x 400 mm. Tilt angle range: -10 – 5°, Swivel angle range: -60 – 60°, Distance to the wall (min): 6.5 cm, Distance to the wall (max): 48 cm. Product colour: Black
The Equip 650348 Full Motion TV Mount Bracket is a versatile and durable solution for mounting televisions ranging from 43 to 100 inches. Engineered for stability and convenience, this bracket supports a wide range of TV sizes and provides full motion capabilities, including tilt, swivel, and rotation. Constructed with high-quality materials, it ensures your TV remains securely in place while allowing for optimal viewing angles from any position in the room. The installation process is straightforward, with all necessary hardware included. Ideal for both home and office settings, the 650348 TV Mount Bracket combines functionality with sleek design, enhancing your viewing experience.
Mounting
Maximum weight capacity: 60 kg
Minimum screen size: 109.2 cm (43″)
Number of displays supported: 1
Maximum screen size: 2.54 m (100″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 800 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -10 – 5°
Feature: Swivelling
Swivel angle range: -60 – 60°
Feature: Cable management

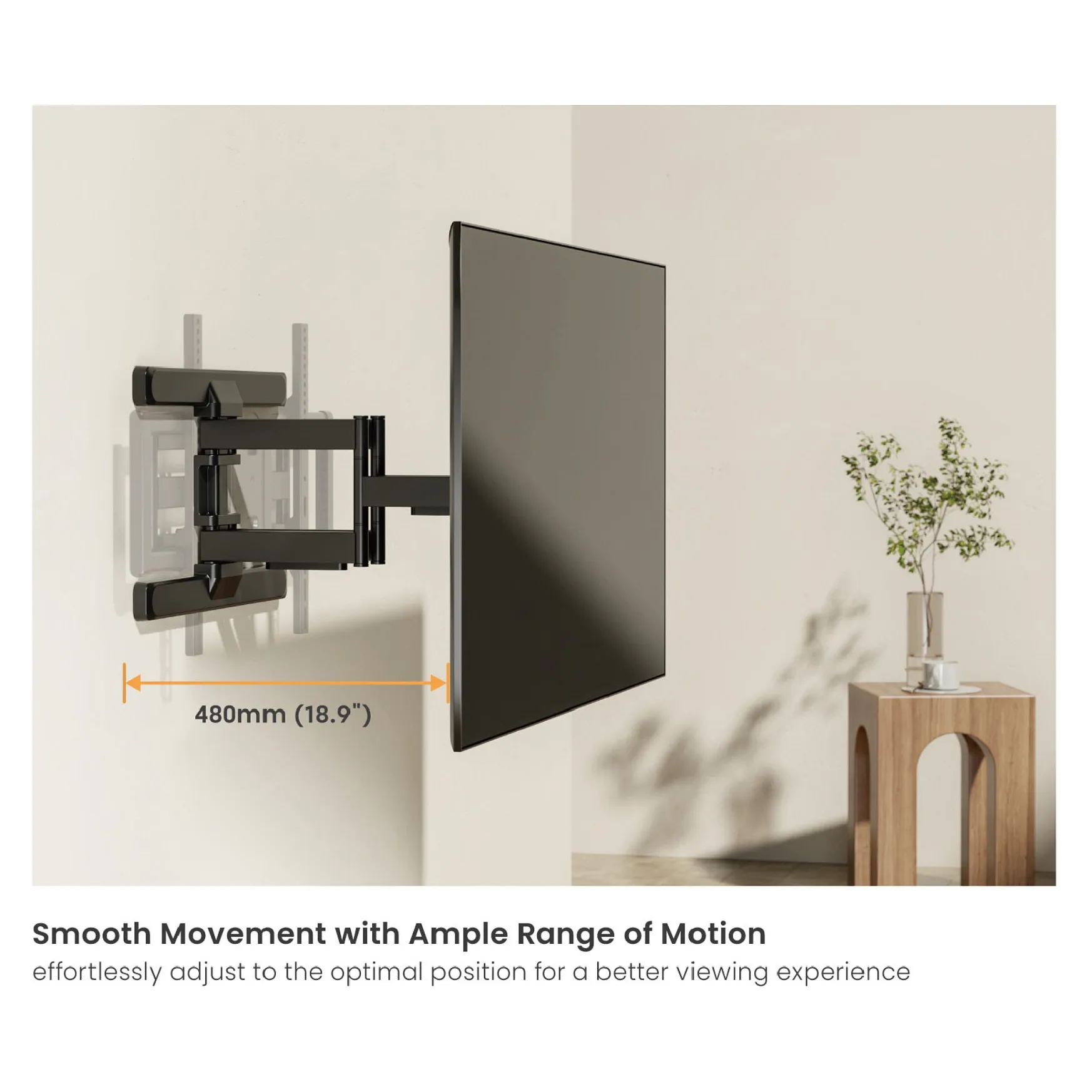

Distance to the wall (max): 48 cm
Distance to the wall (min): 6.5 cm
Design
Product colour: Black
Housing material: Plastic, Stainless steel
Technical details
Country of origin: China
Compliance certificates: REACH, RoHS
Packaging content
Feature: Screws included
Feature: Manual

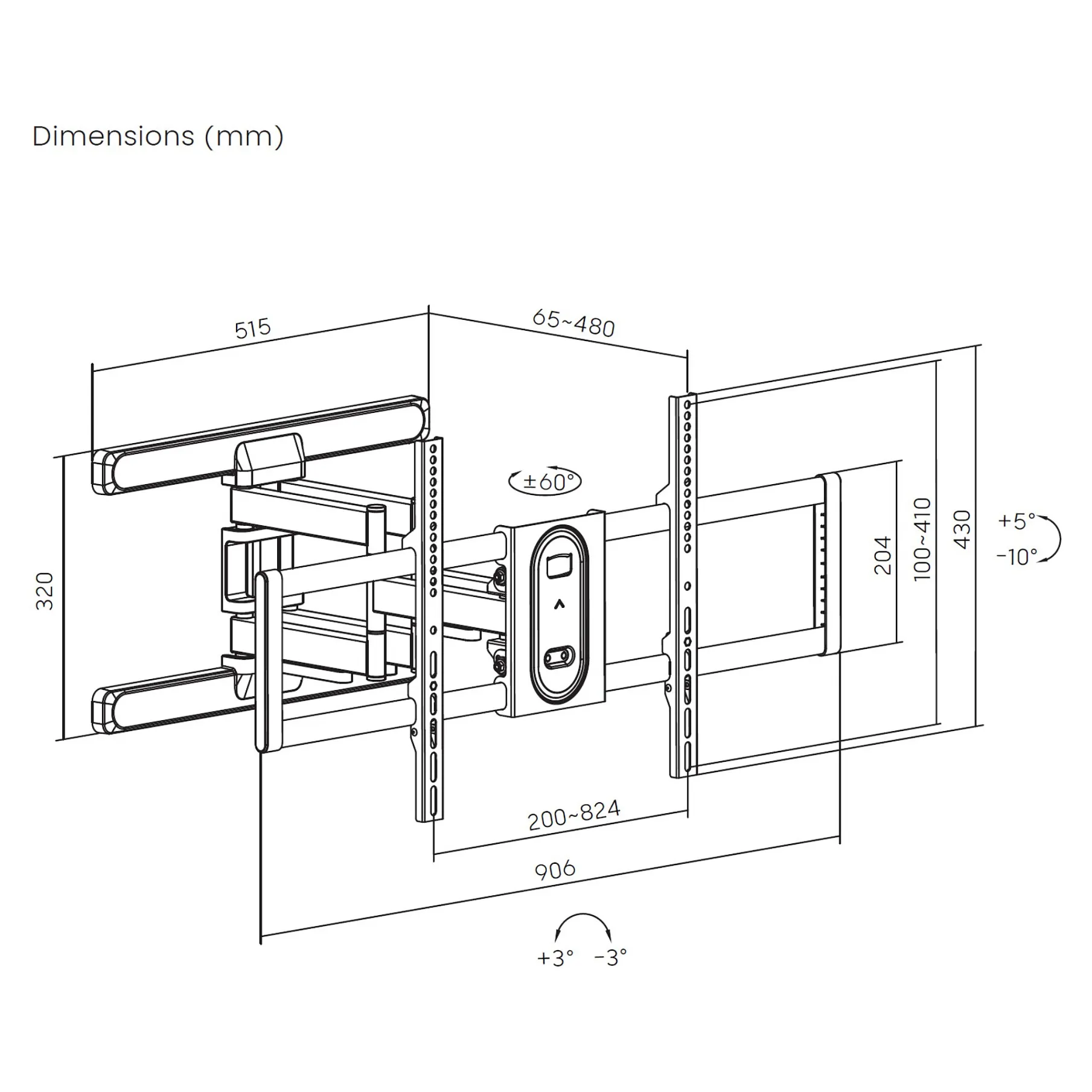

Weight & dimensions
Width: 906 mm
Height: 430 mm
Weight: 8.15 kg
Packaging data
Package width: 933 mm
Package depth: 325 mm
Package height: 70 mm
Package weight: 9 kg
Logistics data
Master (outer) case width: 950 mm
Master (outer) case length: 340 mm
Master (outer) case height: 160 mm
Master (outer) case gross weight: 18.9 kg
Products per master (outer) case: 2 pc(s)
Customs product code (TARIC): 8529909700
Maximum weight capacity: 60 kg
Minimum screen size: 109.2 cm (43″)
Number of displays supported: 1
Maximum screen size: 2.54 m (100″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 800 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400,800 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -10 – 5°
Feature: Swivelling
Swivel angle range: -60 – 60°
Feature: Cable management
Distance to the wall (max): 48 cm
Distance to the wall (min): 6.5 cm
Design
Product colour: Black
Housing material: Plastic, Stainless steel
Technical details
Country of origin: China
Compliance certificates: REACH, RoHS
Packaging content
Feature: Screws included
Feature: Manual
Weight & dimensions
Width: 906 mm
Height: 430 mm
Weight: 8.15 kg
Packaging data
Package width: 933 mm
Package depth: 325 mm
Package height: 70 mm
Package weight: 9 kg
Logistics data
Master (outer) case width: 950 mm
Master (outer) case length: 340 mm
Master (outer) case height: 160 mm
Master (outer) case gross weight: 18.9 kg
Products per master (outer) case: 2 pc(s)
Customs product code (TARIC): 8529909700
