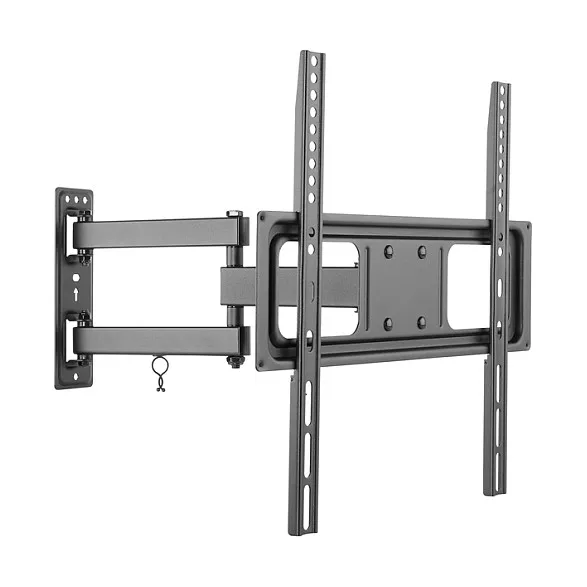

Equip 650341 32"-55" Articulating TV Wall Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 81.3 cm (32"), Maximum screen size: 139.7 cm (55"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 400 x 400 mm. Tilt angle range: -15 – 10°, Distance to the wall (min): 6.3 cm, Distance to the wall (max): 42.7 cm. Product colour: Black
The equip® TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
Mounting
Maximum weight capacity: 35 kg
Minimum screen size: 81.3 cm (32″)
Number of displays supported: 1
Maximum screen size: 139.7 cm (55″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment

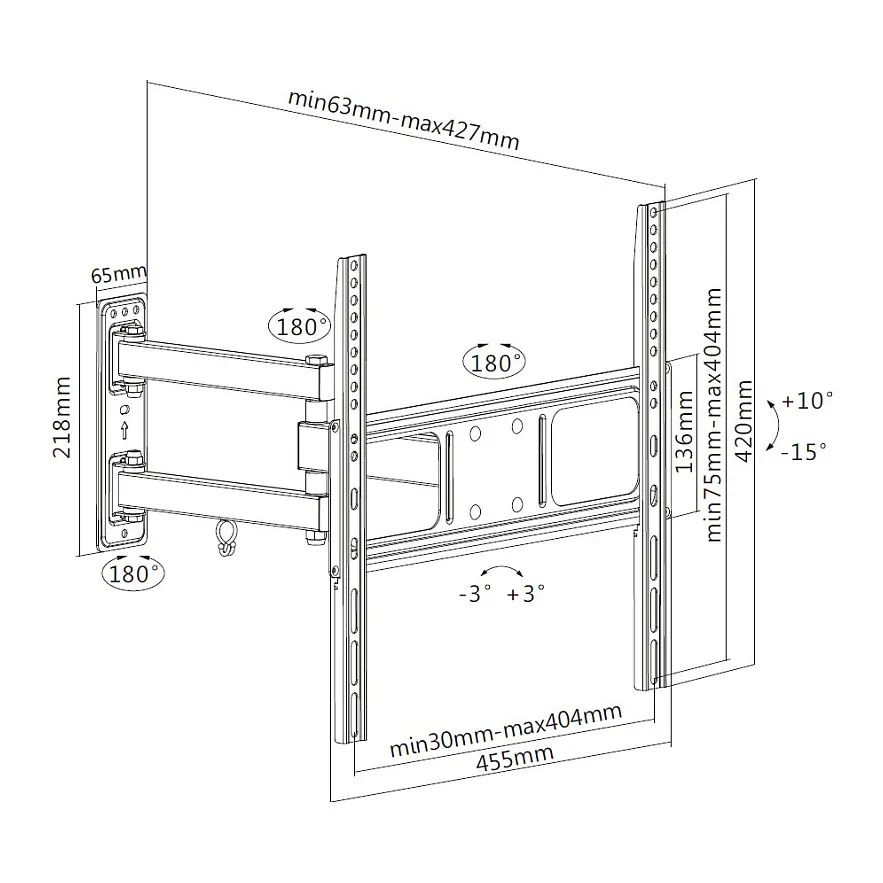

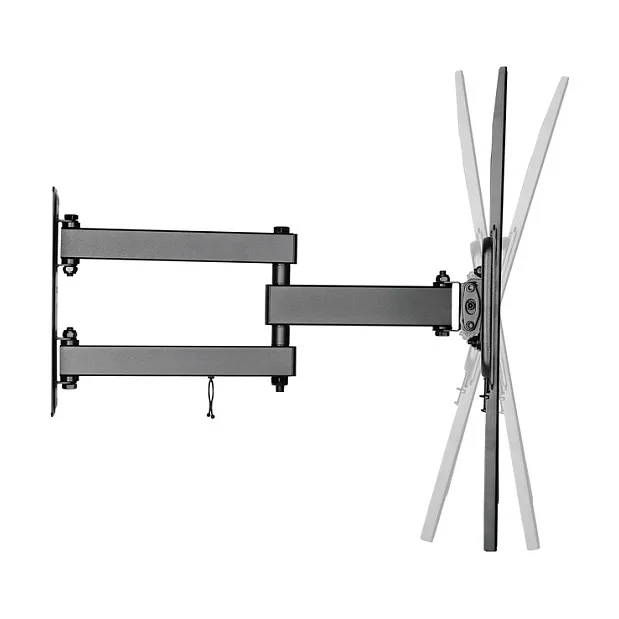

Tilt angle range: -15 – 10°
Pan range: -90 – 90°
Distance to the wall (max): 42.7 cm
Distance to the wall (min): 6.3 cm
Design
Product colour: Black
Housing material: Stainless steel
Certification: ROHS
Technical details
Country of origin: China
Packaging content
Feature: Mounting kit
Weight & dimensions
Width: 455 mm
Depth (max): 42 cm
Height: 427 mm
Weight: 2.79 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 231 mm
Package depth: 68 mm
Package height: 477 mm
Package weight: 3.07 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 85299097
Maximum weight capacity: 35 kg
Minimum screen size: 81.3 cm (32″)
Number of displays supported: 1
Maximum screen size: 139.7 cm (55″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 400 x 400 mm
Panel mounting interface: 200 x 200,300 x 300,400 x 200,400 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -15 – 10°
Pan range: -90 – 90°
Distance to the wall (max): 42.7 cm
Distance to the wall (min): 6.3 cm
Design
Product colour: Black
Housing material: Stainless steel
Certification: ROHS
Technical details
Country of origin: China
Packaging content
Feature: Mounting kit
Weight & dimensions
Width: 455 mm
Depth (max): 42 cm
Height: 427 mm
Weight: 2.79 kg
Packaging data
Quantity per pack: 1 pair(s)
Package width: 231 mm
Package depth: 68 mm
Package height: 477 mm
Package weight: 3.07 kg
Package type: Box
Logistics data
Harmonized System (HS) code: 85299097
