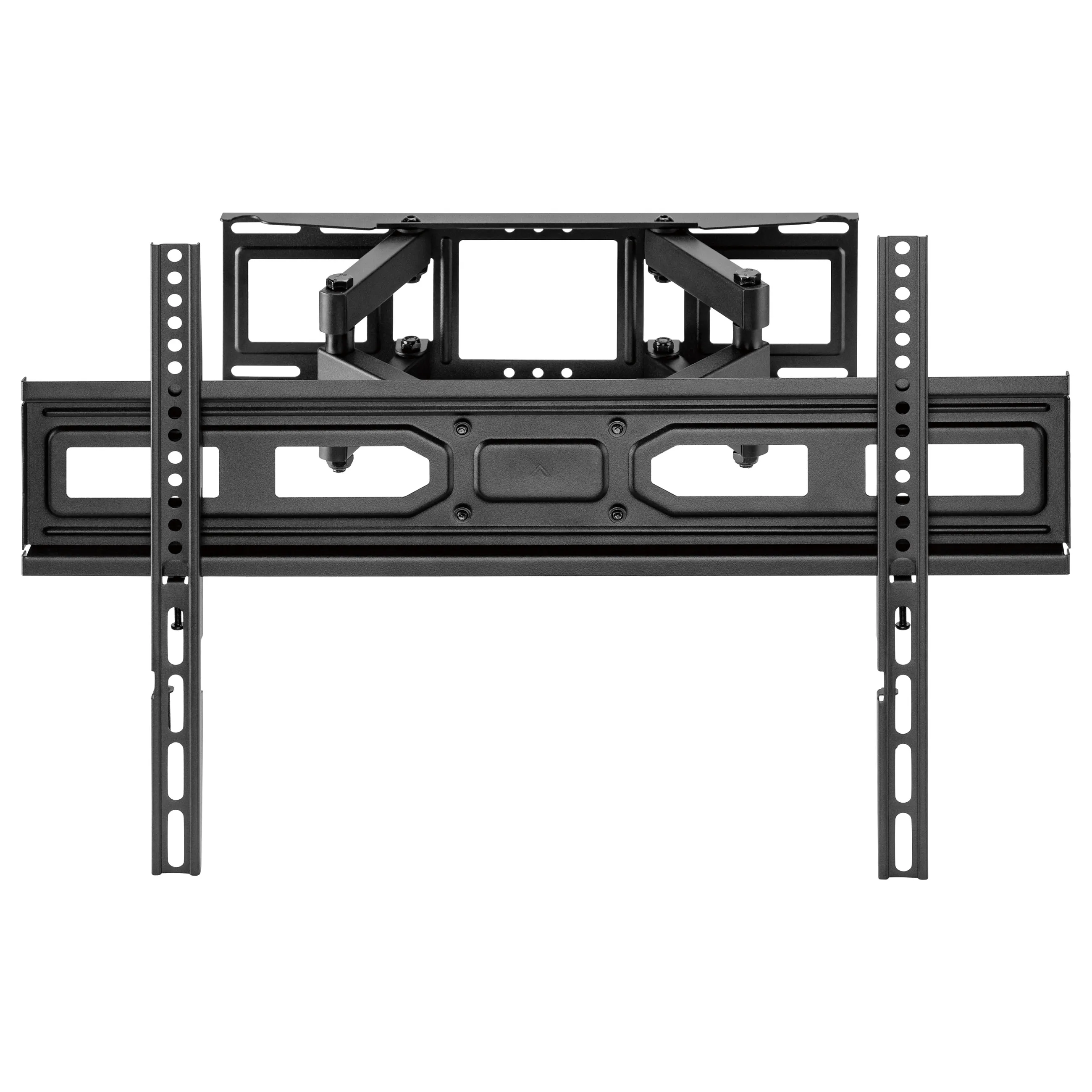

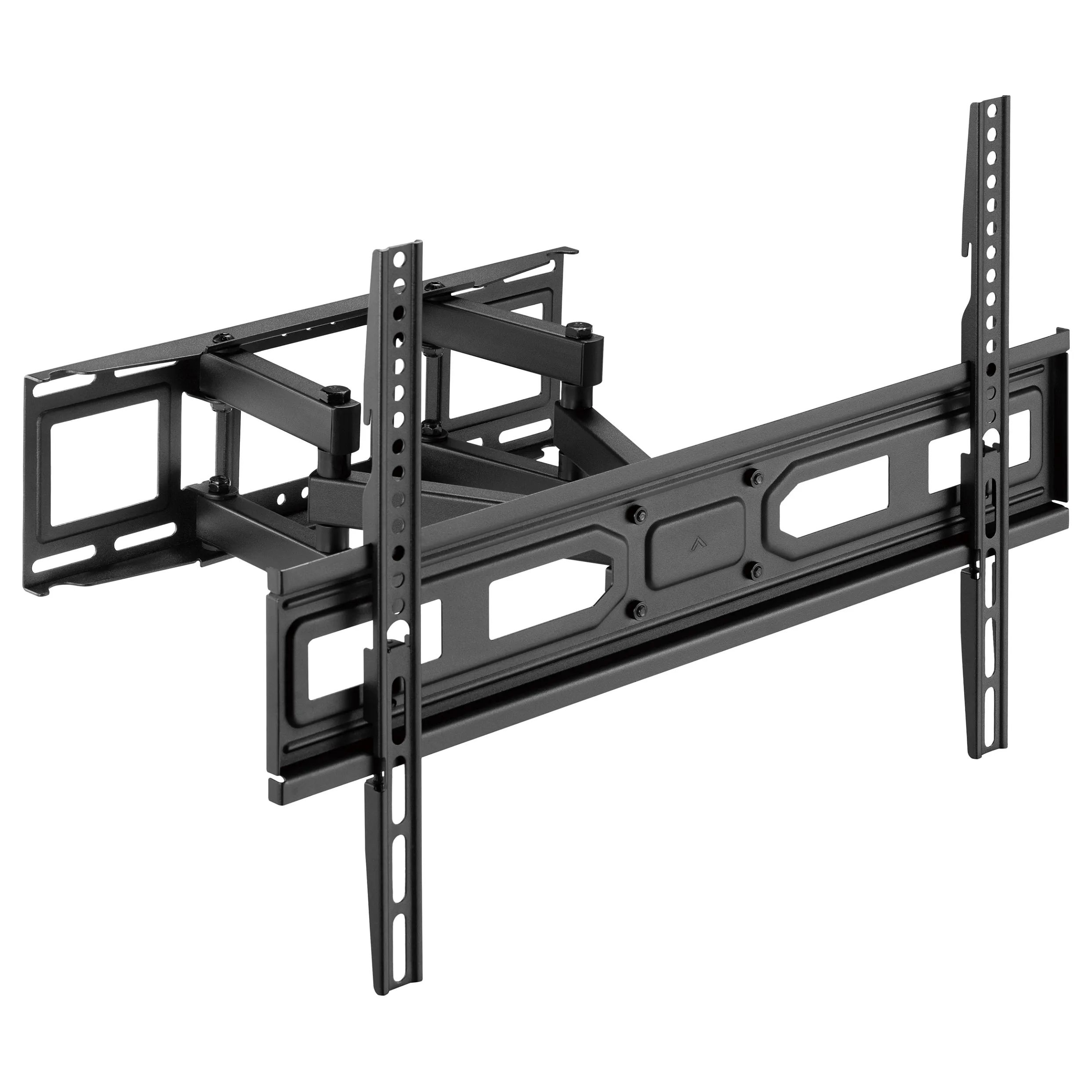

Equip 37"-80" Full Motion TV Mount Bracket. Maximum weight capacity: 40 kg, Minimum screen size: 94 cm (37"), Maximum screen size: 2.03 m (80"), Minimum VESA mount: 100 x 100 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -15 – 3°, Swivel angle range: -60 – 60°, Distance to the wall (min): 6.7 cm, Distance to the wall (max): 35.5 cm. Product colour: Black
„The equip® 650337 TV Wall Mount Bracket is a compact but sturdy product that ensures a reliable installation of your LCD/LED TV. Follow the graphic guide included in the package, you can install your TV on your own with ease. The wall bracket fits most of the wall materials- brick, concrete and wood, making the ideal choice for you to set up your screens.
The Full-Motion TV Mount fits most flat panel TVs up to 40kg. Full-motion adjustment allows maximum flexibility leveling TV for optimal viewing from any seat in a room”
Mounting
Maximum weight capacity: 40 kg
Minimum screen size: 94 cm (37″)
Number of displays supported: 1
Maximum screen size: 2.03 m (80″)
Minimum VESA mount: 100 x 100 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 100 x 100,100 x 150,100 x 200,150 x 100,150 x 150,200 x 100,200 x 200,300 x 200,400 x 200,400 x 400,400 x 300,600 x 200,600 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -15 – 3°

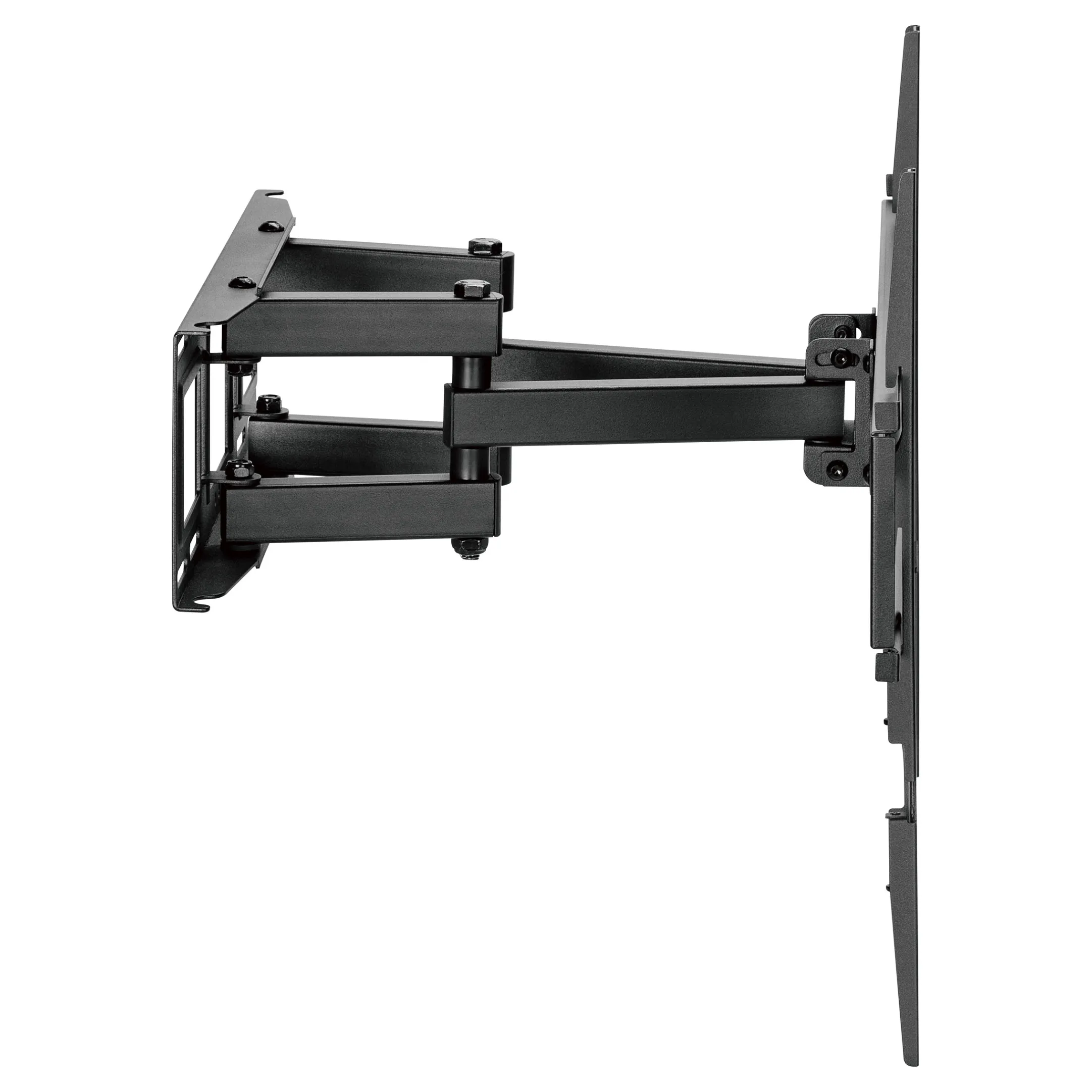

Feature: Swivelling
Swivel angle range: -60 – 60°

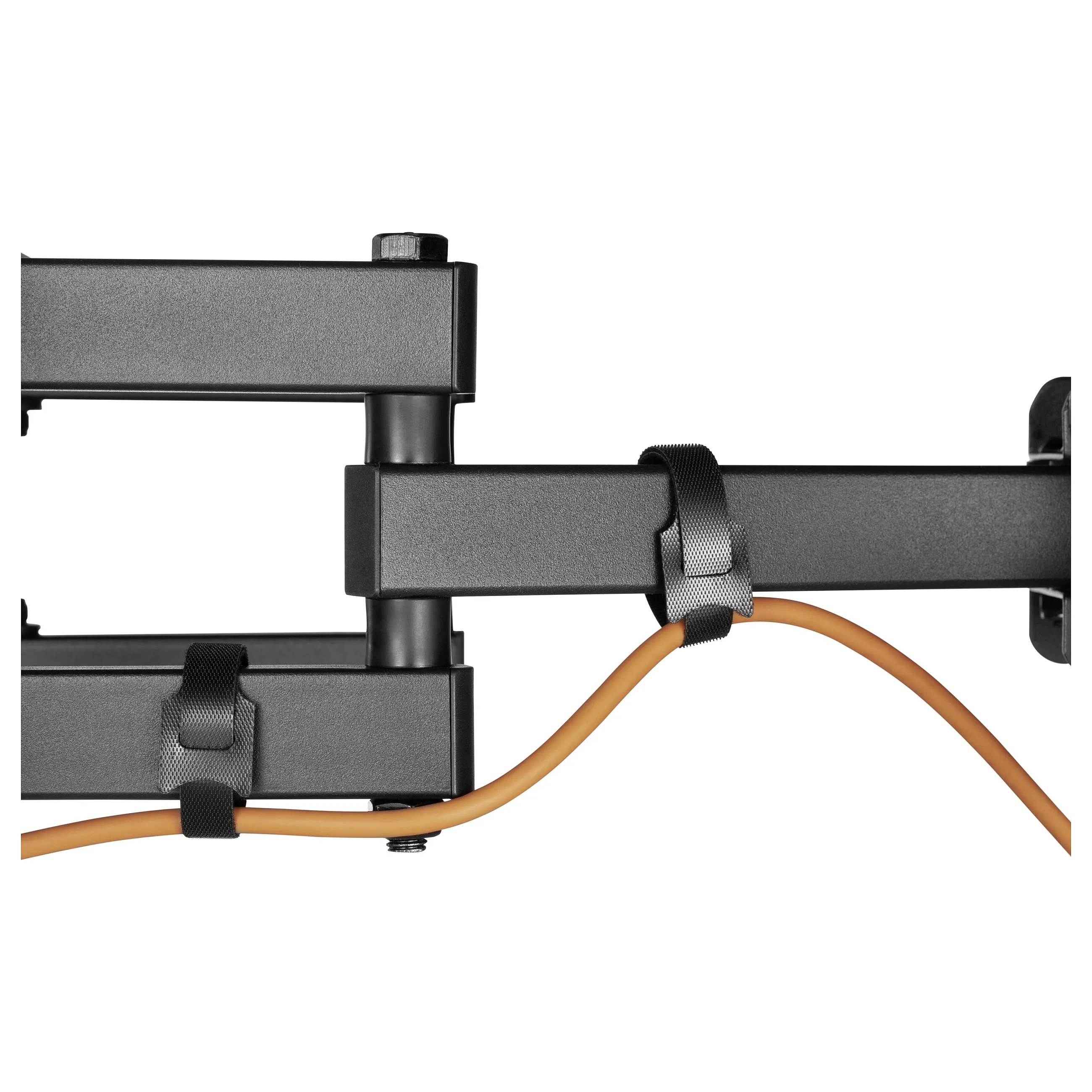

Feature: Cable management
Distance to the wall (max): 35.5 cm
Distance to the wall (min): 6.7 cm
Design
Product colour: Black
Housing material: Plastic, Stainless steel
Technical details
Country of origin: China
Feature: Sustainability compliance
Compliance certificates: REACH, RoHS
Packaging content
Feature: Screws included

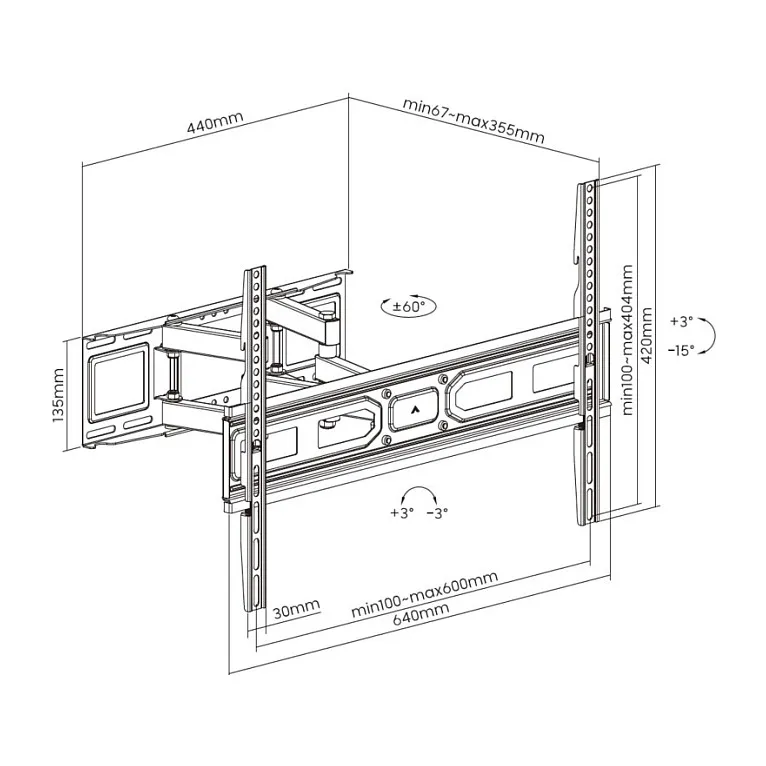

Weight & dimensions
Width: 640 mm
Depth (max): 35.5 cm
Height: 420 mm
Weight: 3.6 kg
Packaging data
Package width: 155 mm
Package depth: 62 mm
Package height: 645 mm
Package weight: 3.8 kg
Package type: Box
Logistics data
Master (outer) case width: 330 mm
Master (outer) case length: 205 mm
Master (outer) case height: 660 mm
Master (outer) case gross weight: 23.4 kg
Products per master (outer) case: 6 pc(s)
