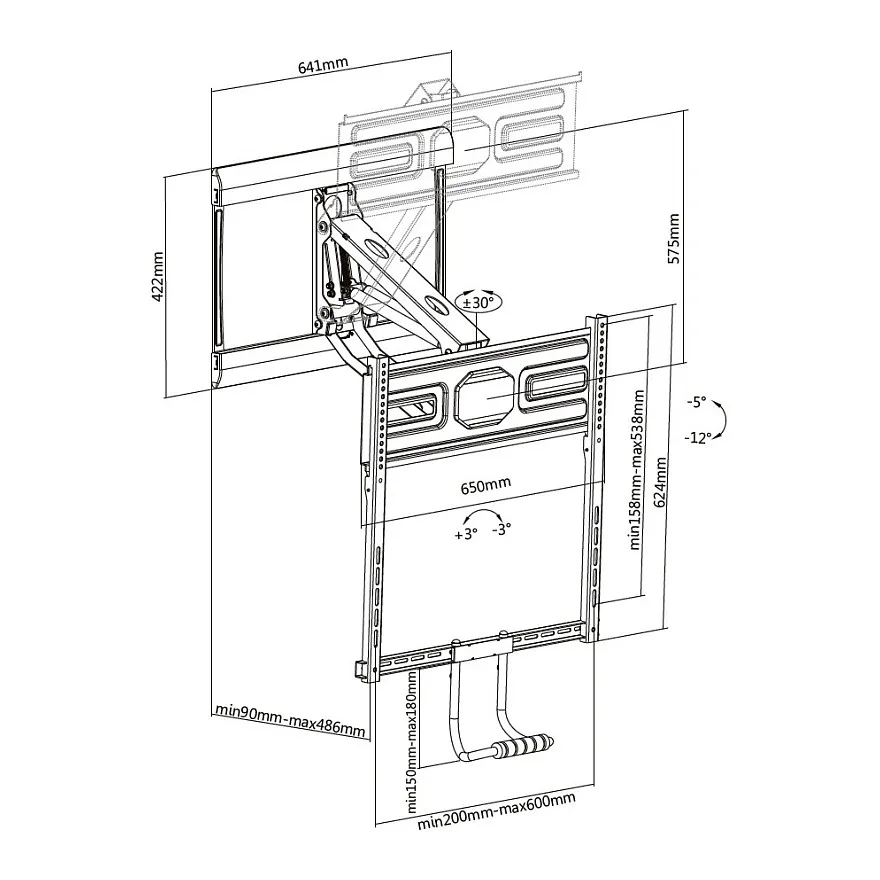

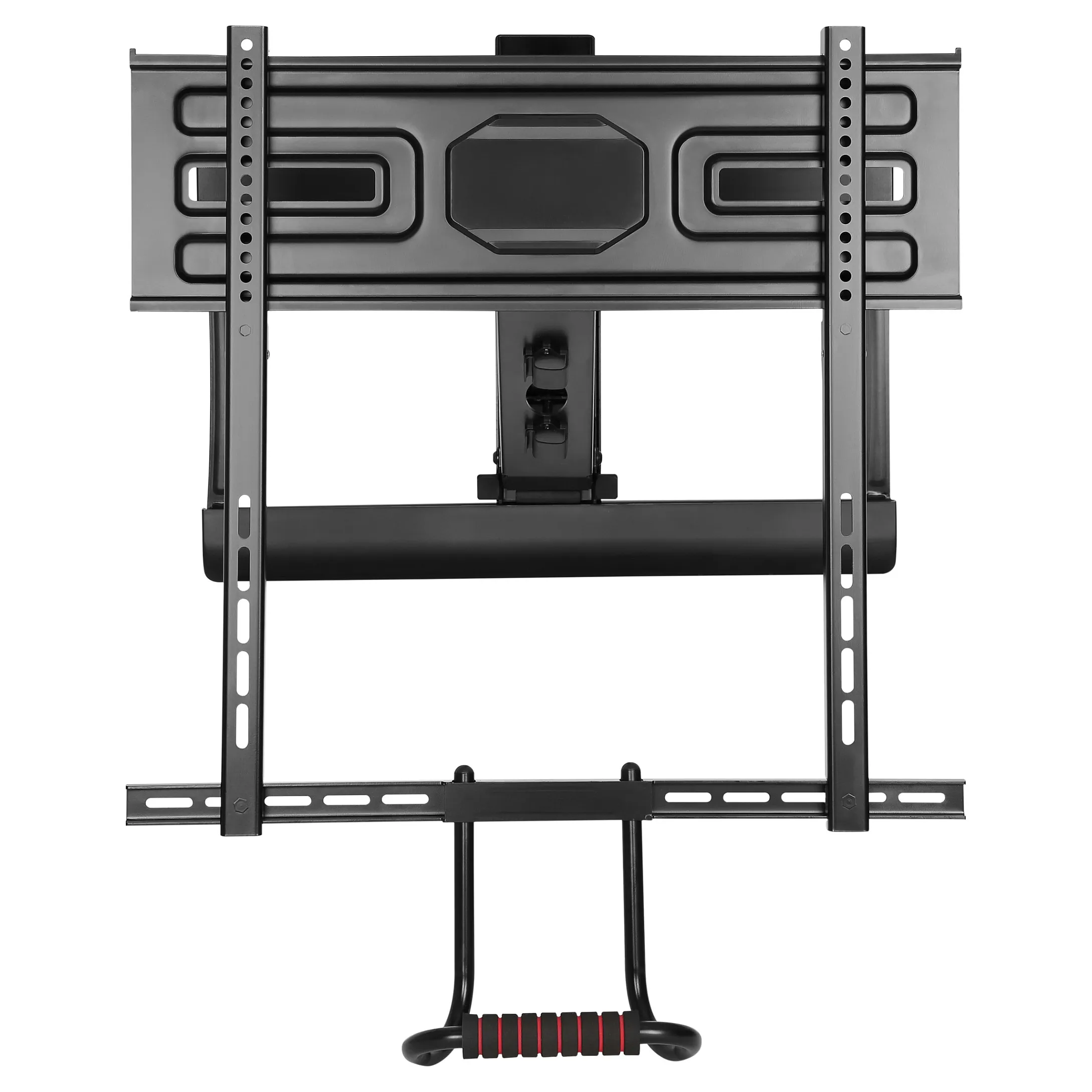

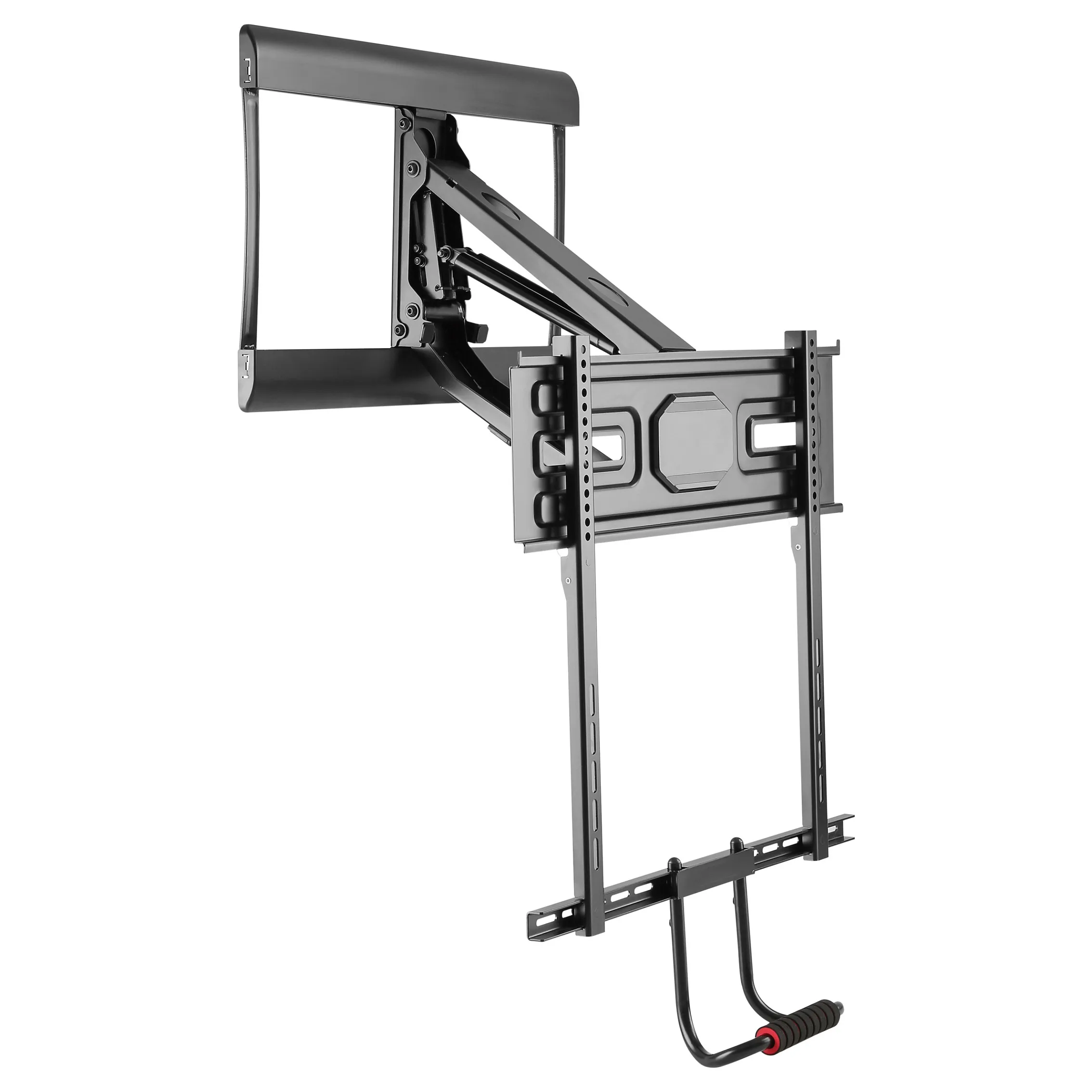

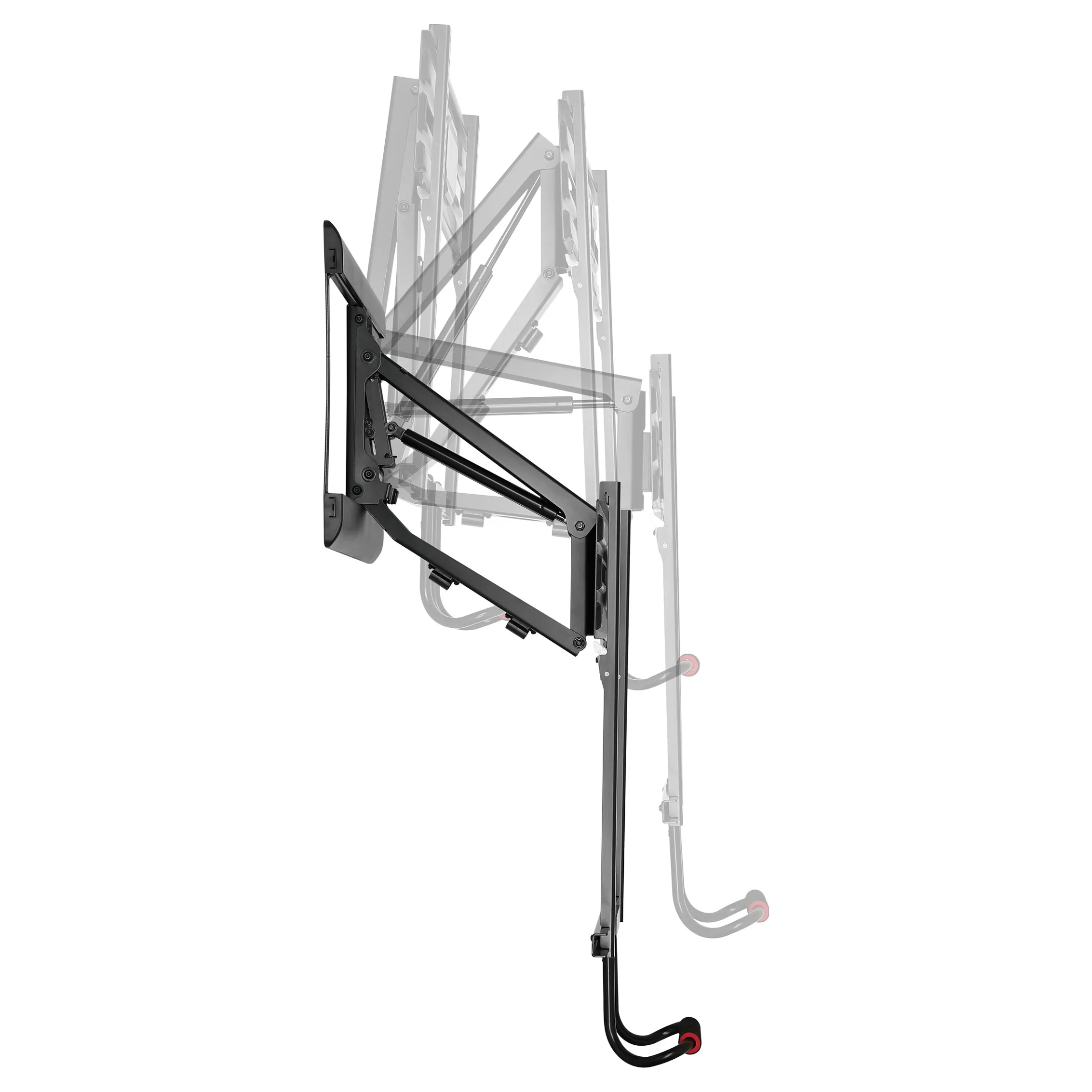

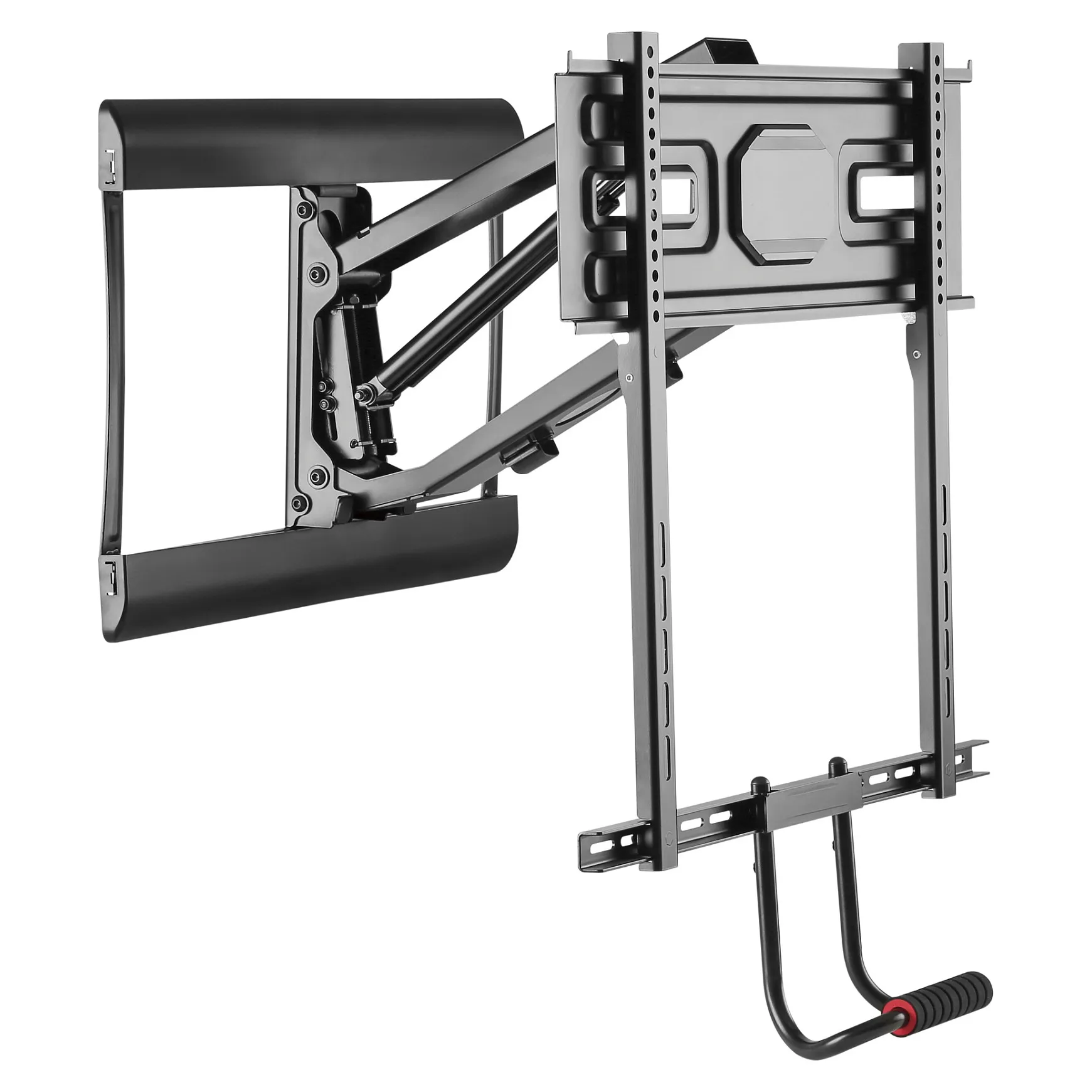

Equip 43"-70" Pull-Down TV Wall Mount Bracket. Maximum weight capacity: 35 kg, Minimum screen size: 109.2 cm (43"), Maximum screen size: 177.8 cm (70"), Minimum VESA mount: 200 x 200 mm, Maximum VESA mount: 600 x 400 mm. Tilt angle range: -5 – -12°, Swivel angle range: -30 – 30°, Distance to the wall (min): 9 cm, Distance to the wall (max): 48.6 cm. Product colour: Black
With a sleek and unobtrusive design, it blends seamlessly with modern decor. The bracket typically comes with a built-in cable management system, concealing wires for a clutter-free appearance. Its compatibility with a wide range of TV sizes and the convenience of the pull-down feature make it a practical choice for creating an immersive entertainment experience in various living spaces.”
Maximum weight capacity: 35 kg
Minimum screen size: 109.2 cm (43″)
Number of displays supported: 1
Maximum screen size: 177.8 cm (70″)
Minimum VESA mount: 200 x 200 mm
Maximum VESA mount: 600 x 400 mm
Panel mounting interface: 200 x 200,300 x 200,300 x 300,400 x 200,400 x 400,400 x 300,600 x 400
Mounting type: Wall
Ergonomics
Feature: Tilt adjustment
Tilt angle range: -5 – -12°

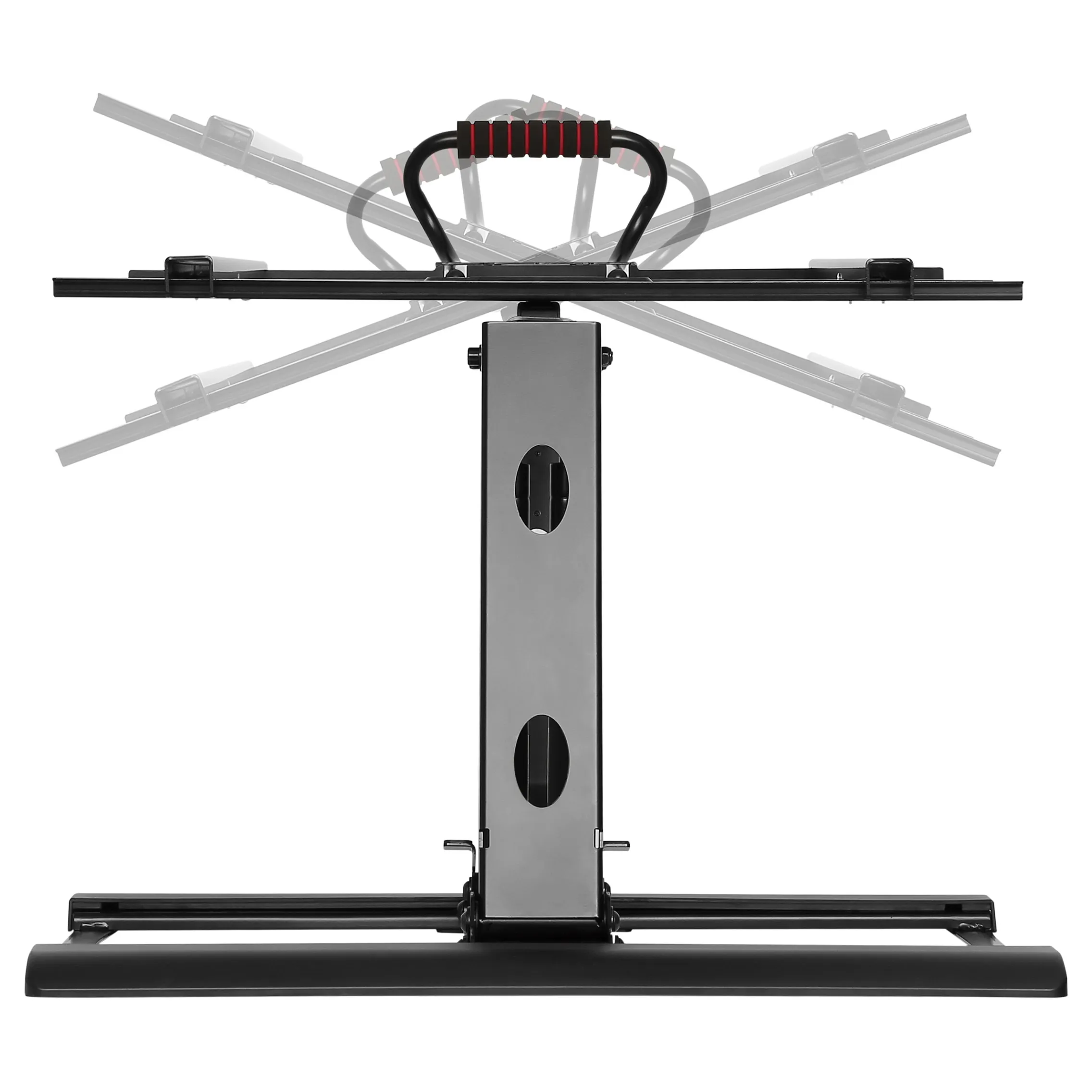

Swivel angle range: -30 – 30°

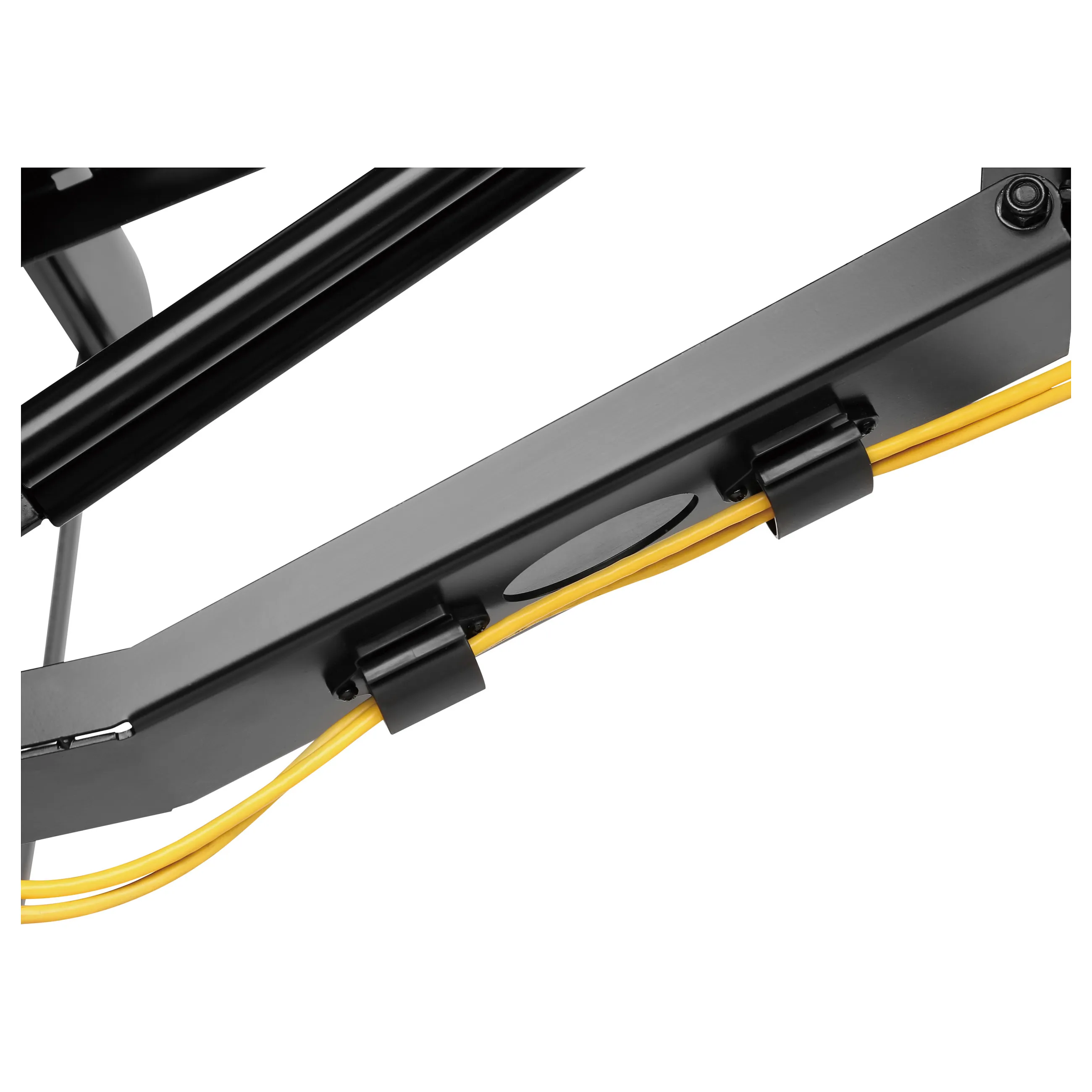

Feature: Cable management
Distance to the wall (max): 48.6 cm
Distance to the wall (min): 9 cm
Design
Product colour: Black
Housing material: Plastic, Steel
Certification: CE
Technical details
Country of origin: China
Packaging content
Feature: Screws included
Feature: Manual
Weight & dimensions
Width: 572 mm
Depth (max): 65 cm
Height: 915 mm
Weight: 14.2 kg
Packaging data
Package width: 510 mm
Package depth: 155 mm
Package height: 770 mm
Package weight: 16.3 kg

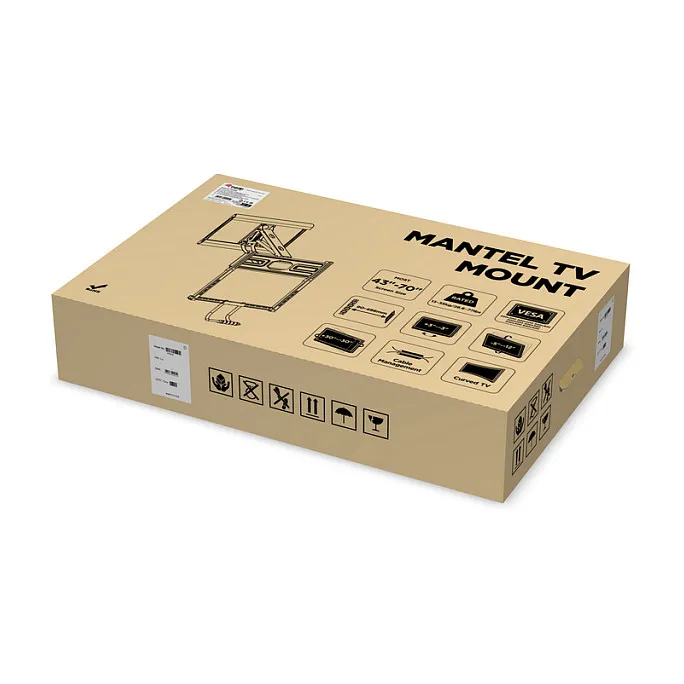

Package type: Box
Logistics data
Master (outer) case width: 510 mm
Master (outer) case length: 155 mm
Master (outer) case height: 770 mm
Master (outer) case gross weight: 16.3 kg
Products per master (outer) case: 1 pc(s)
Harmonized System (HS) code: 85299097
