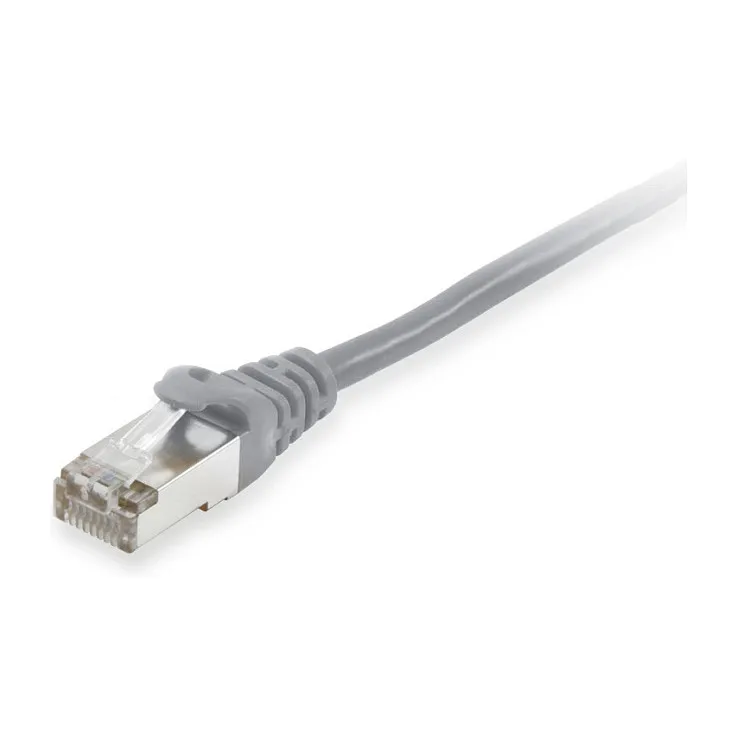

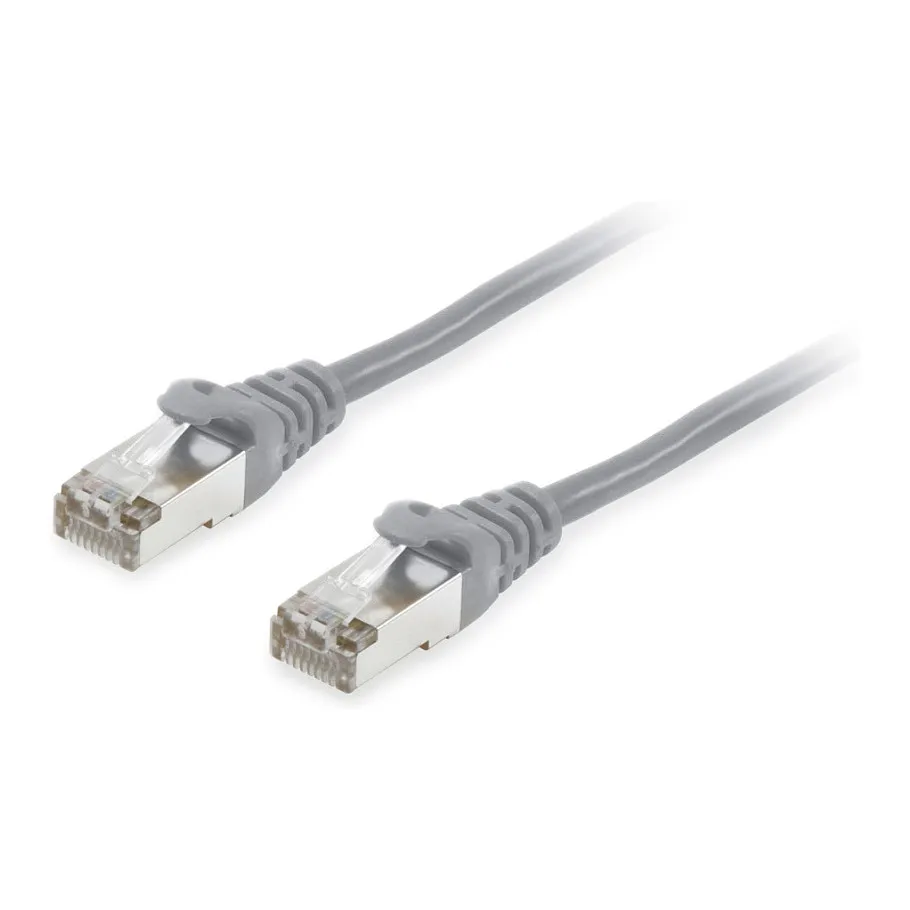

Equip Cat.6A S/FTP Patch Cable, Grey, 35m. Cable length: 35 m, Cable standard: Cat6a, Cable shielding: S/FTP (S-STP), Connector 1: RJ-45, Connector 2: RJ-45, Data transfer rate: 10000 Mbit/s, Product colour: Grey

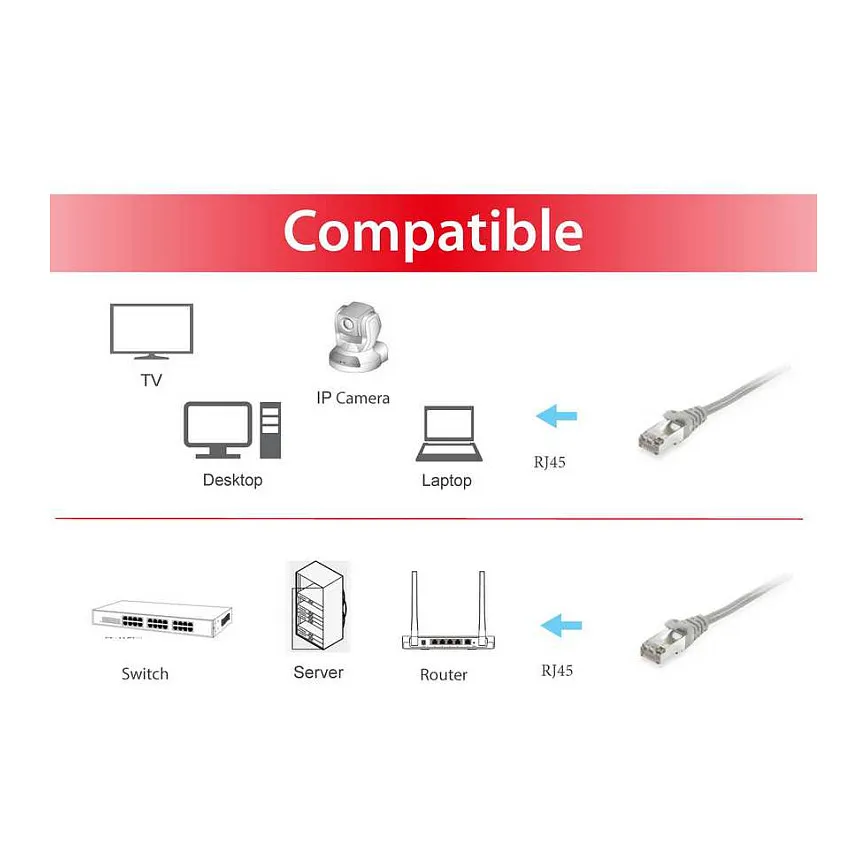

This patch cable supports bandwidths up to 500MHz and data transmission speeds of up to 10Gbps, making it suitable for short-distance, high-density installations such as patch panels, switches, servers, and network cabinets. It is compatible with PoE and PoE+ applications, allowing simultaneous data and power delivery.
Built with stranded bare copper conductors and an S/FTP structure, the cable uses foil and braided shielding with PIMF (pairs in metal foil) to minimize EMI and crosstalk. The LSZH/LSOH jacket improves safety by reducing smoke and toxic emissions, while molded boots with strain relief enhance durability. The cable complies with ISO/IEC 11801, EN 50173, and RoHS standards for reliable and compliant network deployment.
Product colour: Grey
Cable length: 35 m
Cable standard: Cat6a
Cable shielding: S/FTP (S-STP)
Connector 1: RJ-45
Connector 2: RJ-45
Connector 1 gender: Male
Connector 2 gender: Male
Connector 1 form factor: Straight
Connector 2 form factor: Straight
Jacket material: Low smoke zero halogen (LSZH)
Cable shape: Round
Conductor material: Copper
Cabling technology: 10GBase-T
Ethernet interface type: Fast Ethernet, Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet
AWG wire size: 26/7
Data transfer rate: 10000 Mbit/s
Frequency: 500 MHz
Feature: Power over Ethernet (PoE)
Power over Ethernet (PoE) type supported: PoE+
Country of origin: China
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Certificates
Compliance certificates: RoHS
Weight & dimensions
Width: 8.34 mm
Depth: 11.7 mm
Weight: 935 g
Packaging data
Package width: 360 mm
Package height: 300 mm
Package weight: 939 g
Logistics data
Harmonized System (HS) code: 854442
Customs product code (TARIC): 8544421000
Master (outer) case width: 290 mm
Master (outer) case length: 350 mm
Master (outer) case gross weight: 15 kg
Master (outer) case height: 380 mm
Products per master (outer) case: 12 pc(s)
