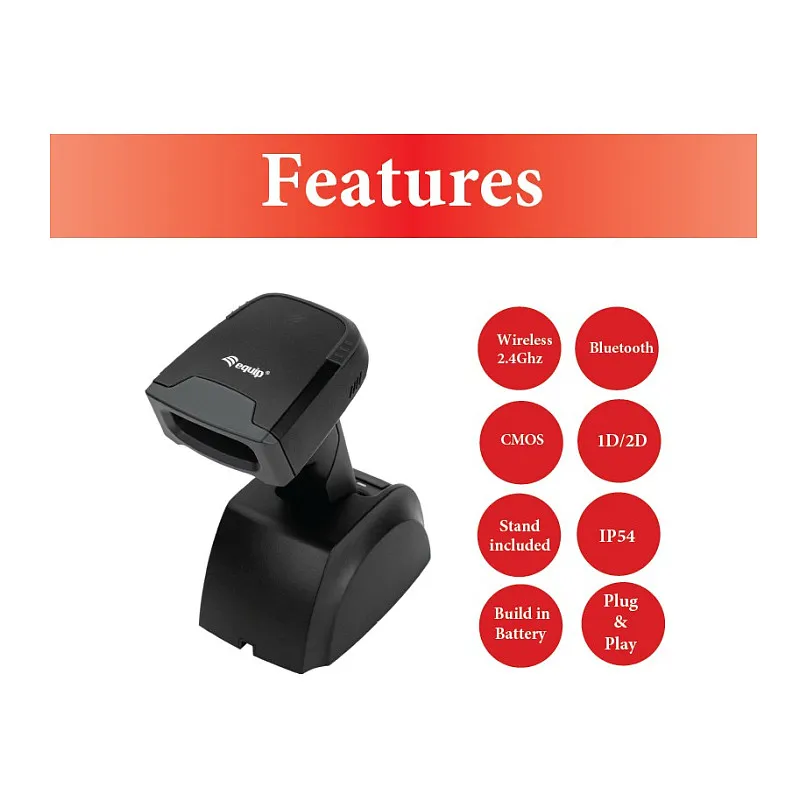

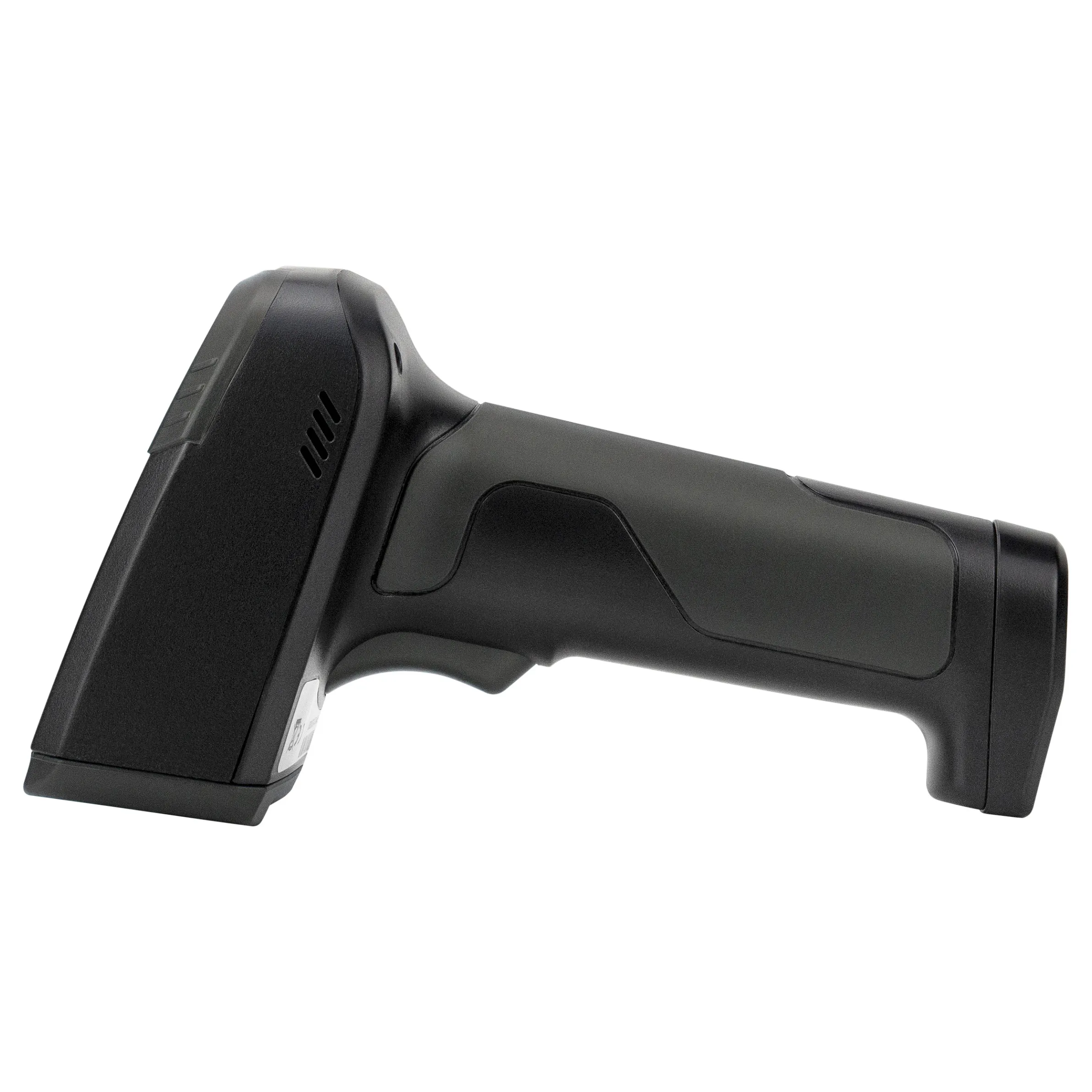

Equip Wireless 2D 2.4GHz + Bluetooth Barcode Scanner, with charging Stand. Type: Handheld bar code reader, Scanner type: 1D/2D, Sensor type: CMOS. Connectivity technology: Wireless, Standard interfaces: Bluetooth, RF Wireless, Operating frequency: 2400 MHz. Product colour: Black, Housing material: Acrylonitrile butadiene styrene (ABS), International Protection (IP) code: IP54. Power source type: Battery, Battery voltage: 3.7 V, Battery life: 20 h. Weight: 312 g, Width: 78 mm, Depth: 124 mm
This scanner offers exceptional performance and connectivity options, ensuring seamless integration into your existing systems. Its 2D scanning capability allows it to read a wide range of barcodes, including QR codes and Datamatrix, ensuring efficient data capture. Whether you need to scan barcodes on products, shelves, or packages, this scanner simplifies the process, streamlining operations and improving accuracy.

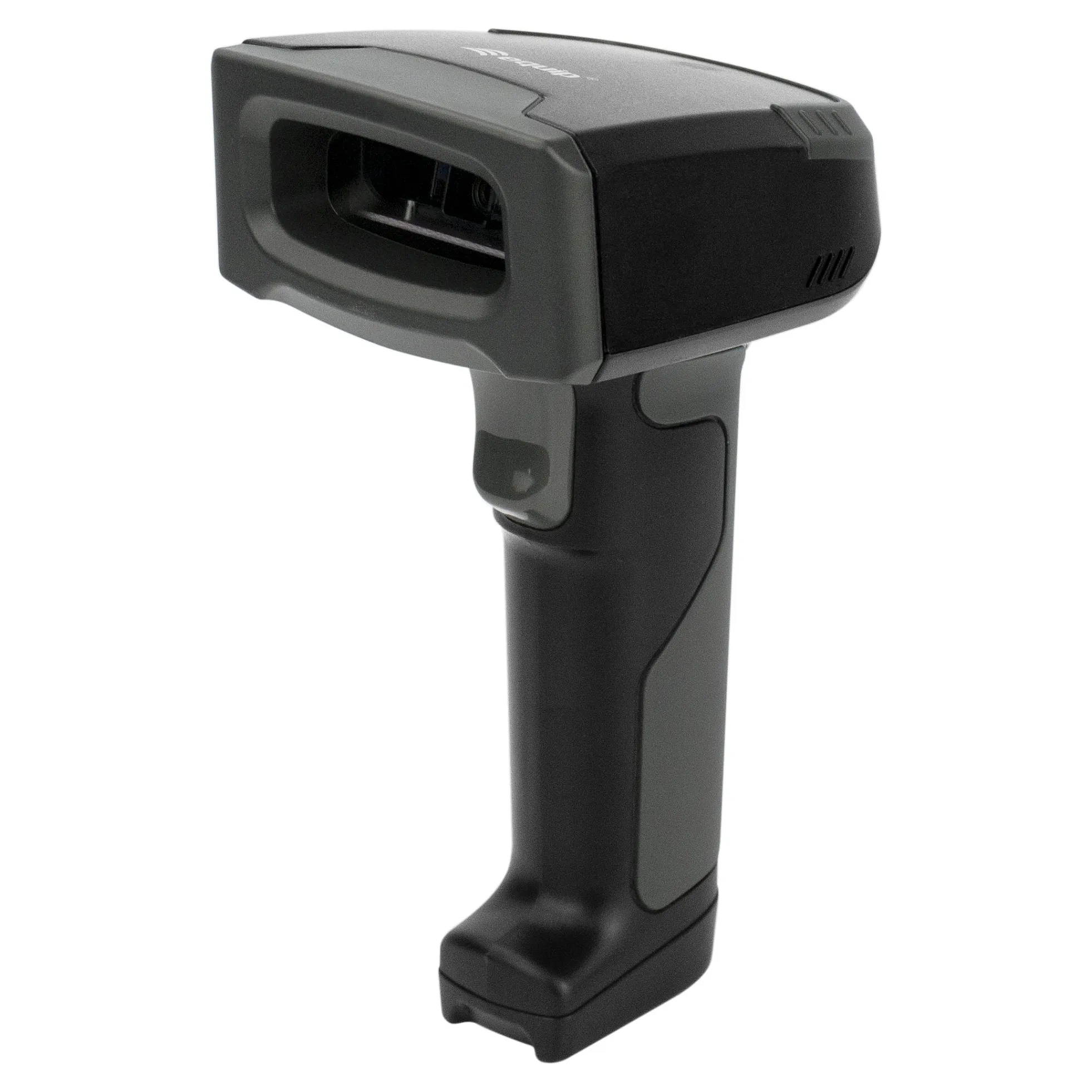

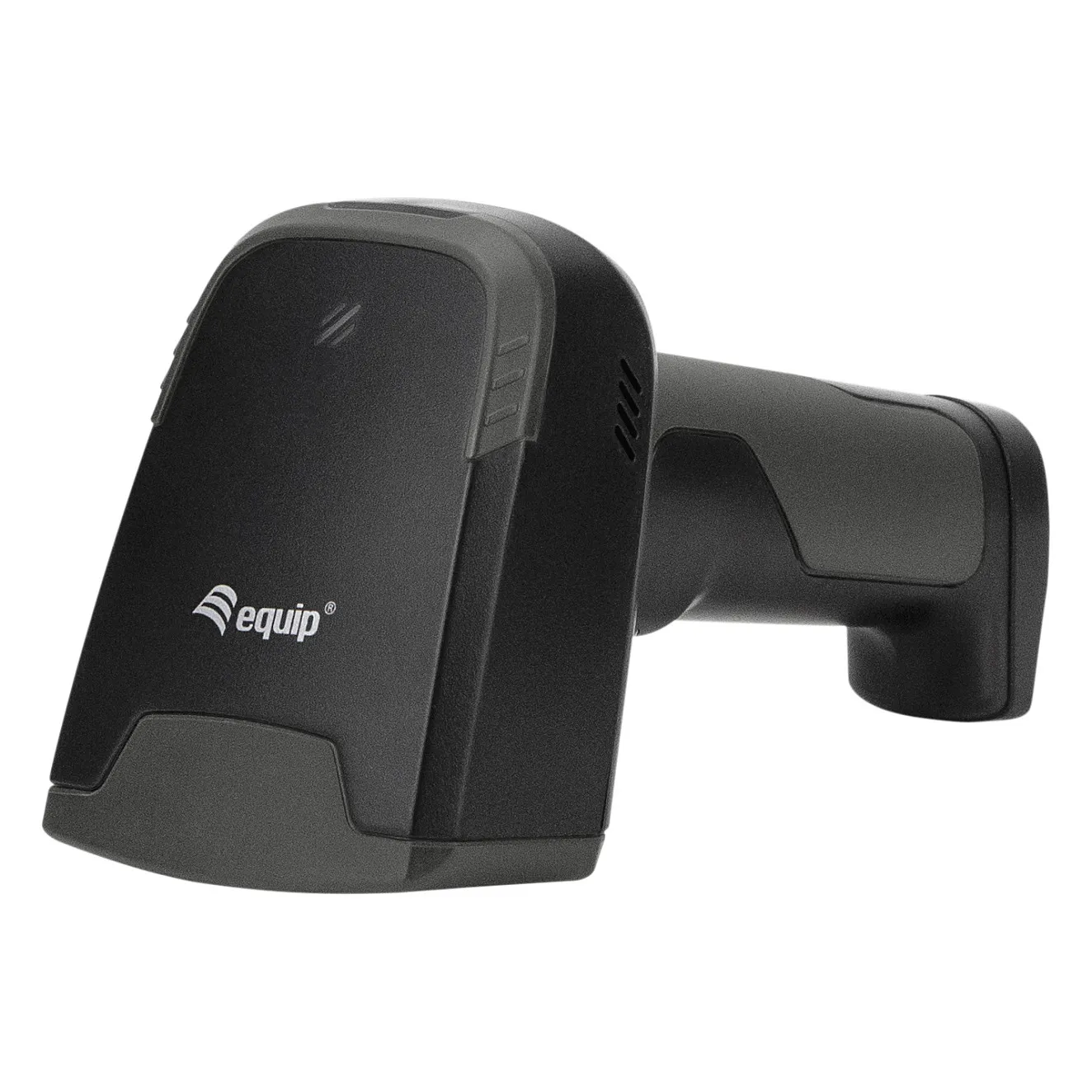

Type: Handheld bar code reader
Scanner type: 1D/2D
Sensor type: CMOS
2D (matrix & stacked) barcodes supported: QR Code, PDF417, Data Matrix
Trigger mode: Continuous, Manual
1D resolution (min): 4 mm
2D resolution (min): 5 mm
Working distance: 150 cm
Read rate (max): 220 reads/s
Tilt reading angle: 0 – 360°
Pitch reading angle: -30 – 30°
Yaw reading angle: -35 – 35°
Ports & interfaces
Connectivity technology: Wireless
Standard interfaces: Bluetooth, RF Wireless
Operating frequency: 2400 MHz
Performance
Housing material: Acrylonitrile butadiene styrene (ABS)
International Protection (IP) code: IP54
Protection features: Drop resistant, Water resistant
Product colour: Black
Country of origin: China
Power
Power source type: Battery
Battery voltage: 3.7 V
Battery life: 20 h
Weight & dimensions
Width: 78 mm
Depth: 124 mm
Height: 186 mm
Weight: 312 g
Packaging data

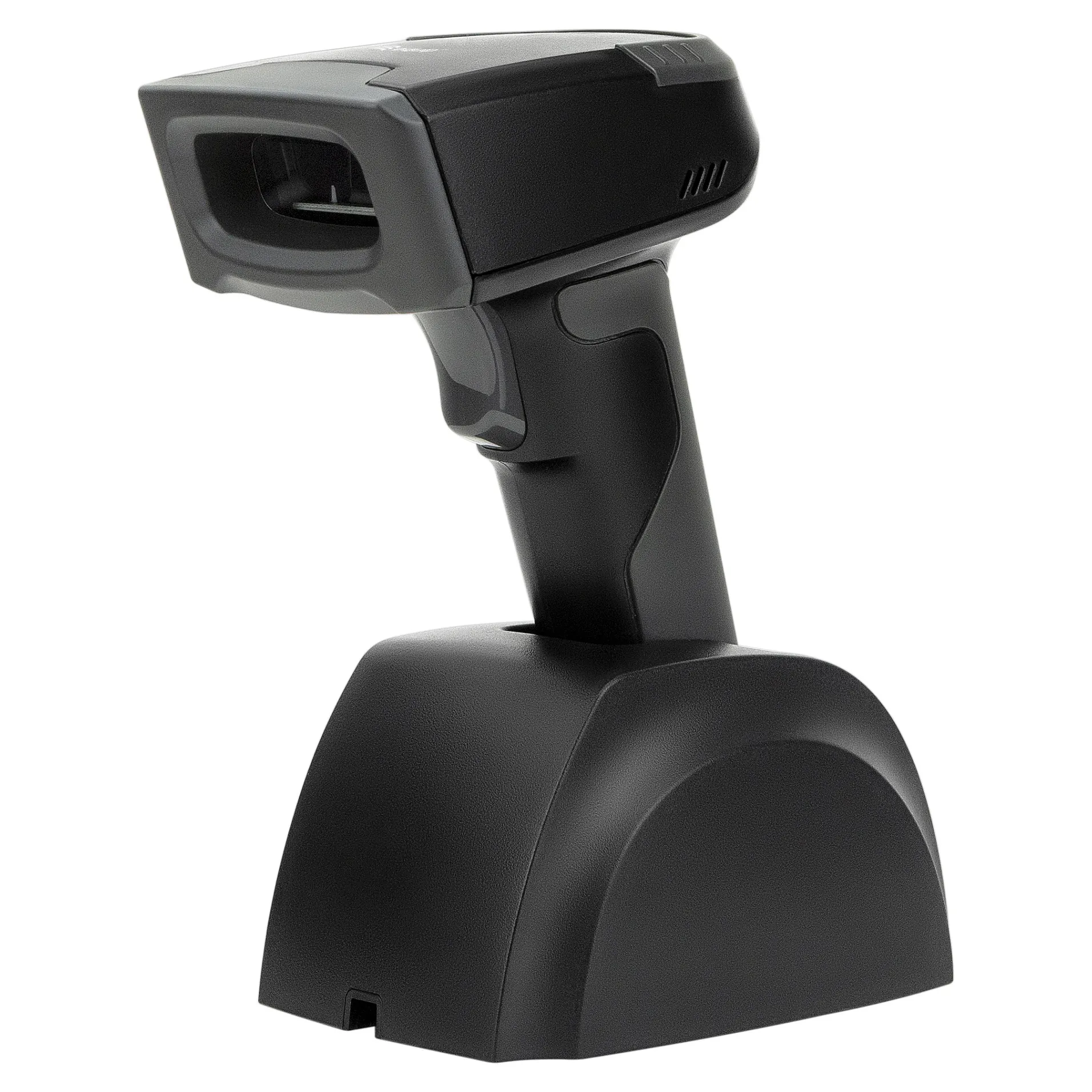

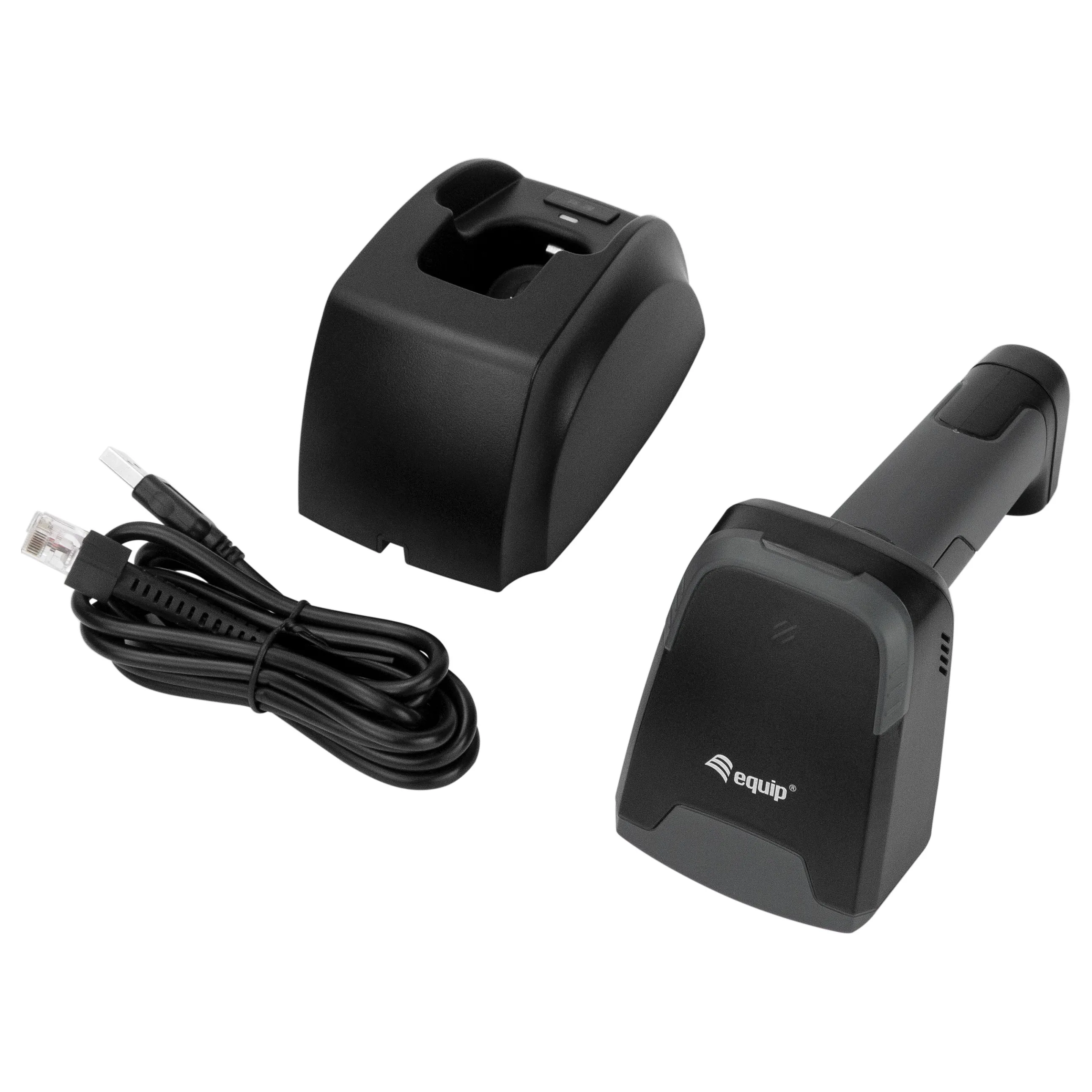

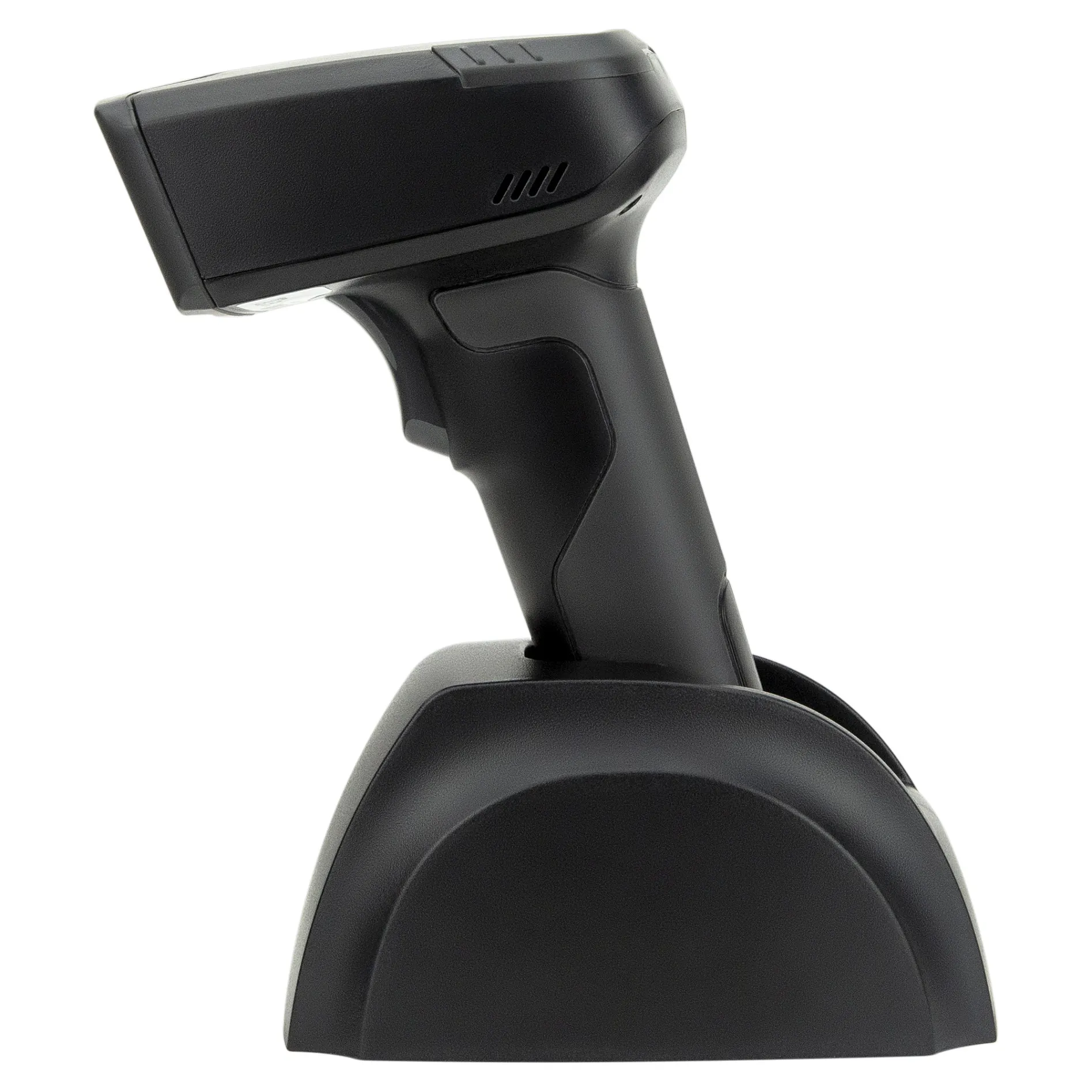

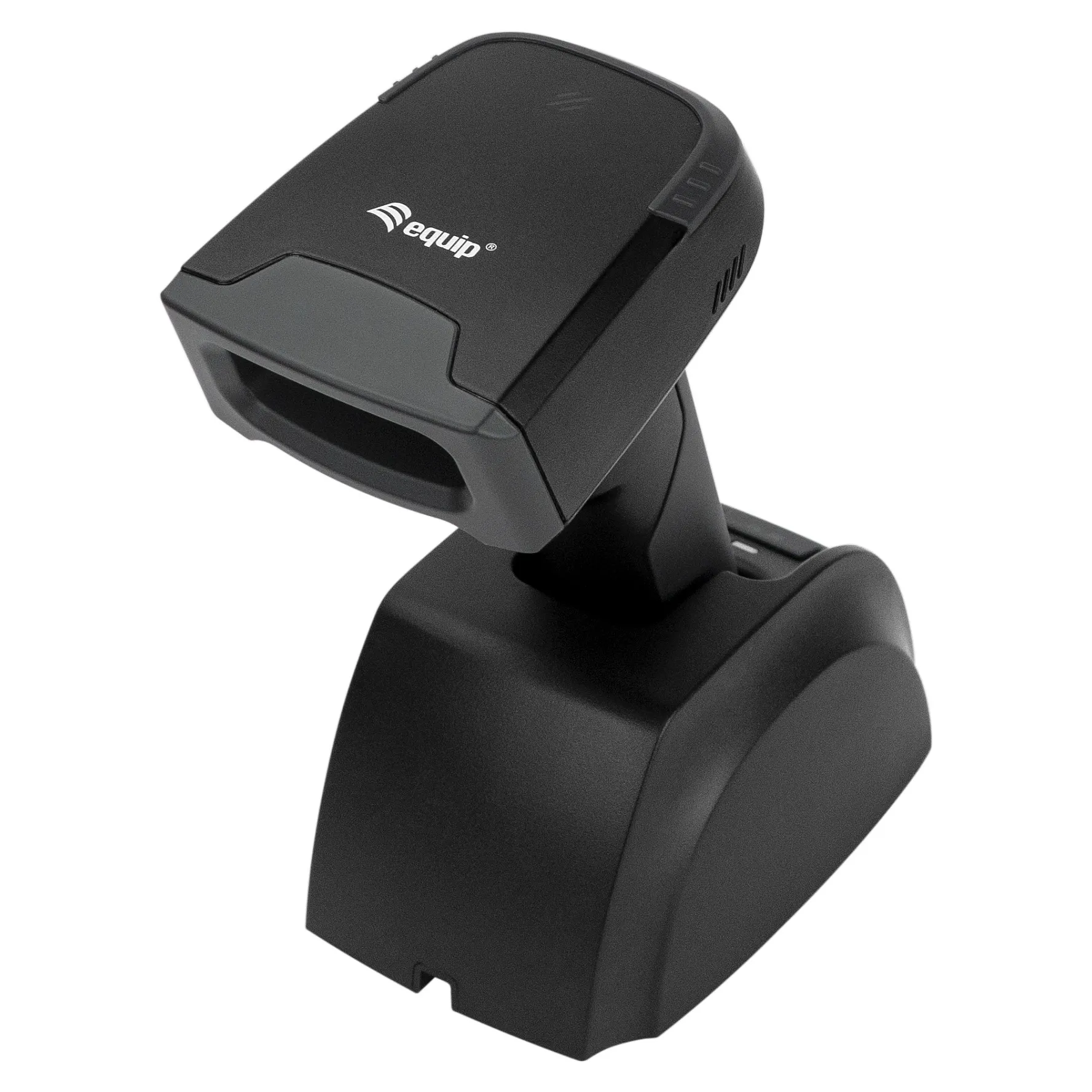

Feature: Stand included
Package width: 150 mm
Package depth: 207 mm
Package height: 100 mm
Package weight: 473 g
Operational conditions
Operating temperature (T-T): -20 – 60 °C
Storage temperature (T-T): -40 – 90 °C
Operating relative humidity (H-H): 5 – 95%
Battery
Battery technology: Lithium-Ion (Li-Ion)
Battery capacity: 1500 mAh
Standby time: 3 month(s)
Technical details
Compliance certificates: CE, REACH, RoHS
Logistics data
Products per master (outer) case: 30 pc(s)
Master (outer) case gross weight: 15.5 kg
Master (outer) case length: 485 mm
Master (outer) case width: 440 mm
Master (outer) case height: 525 mm
Customs product code (TARIC): 8471900000
Other features

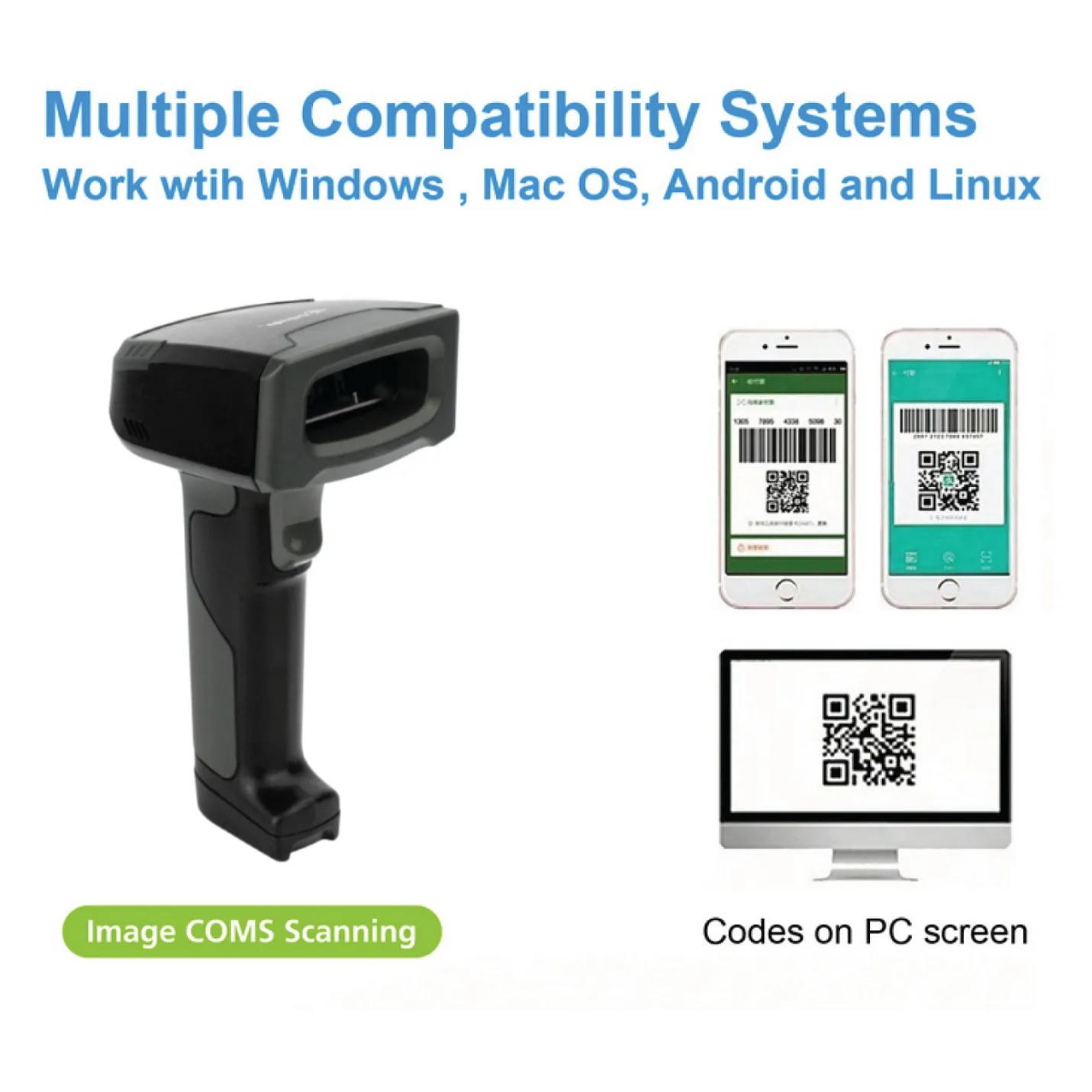

Mobile operating systems supported: Android, iOS
Linux operating systems supported: Yes
Feature: Quick start guide
