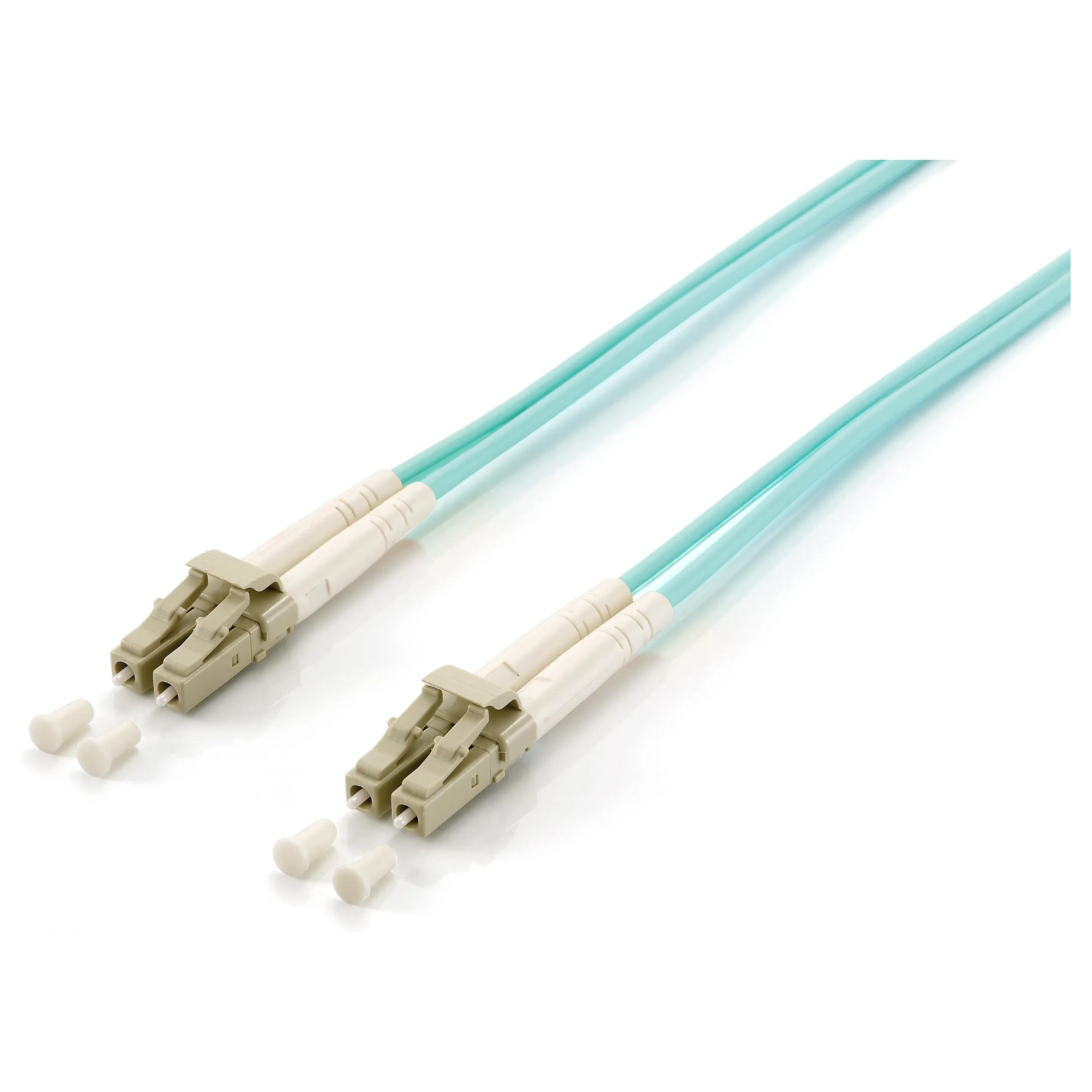

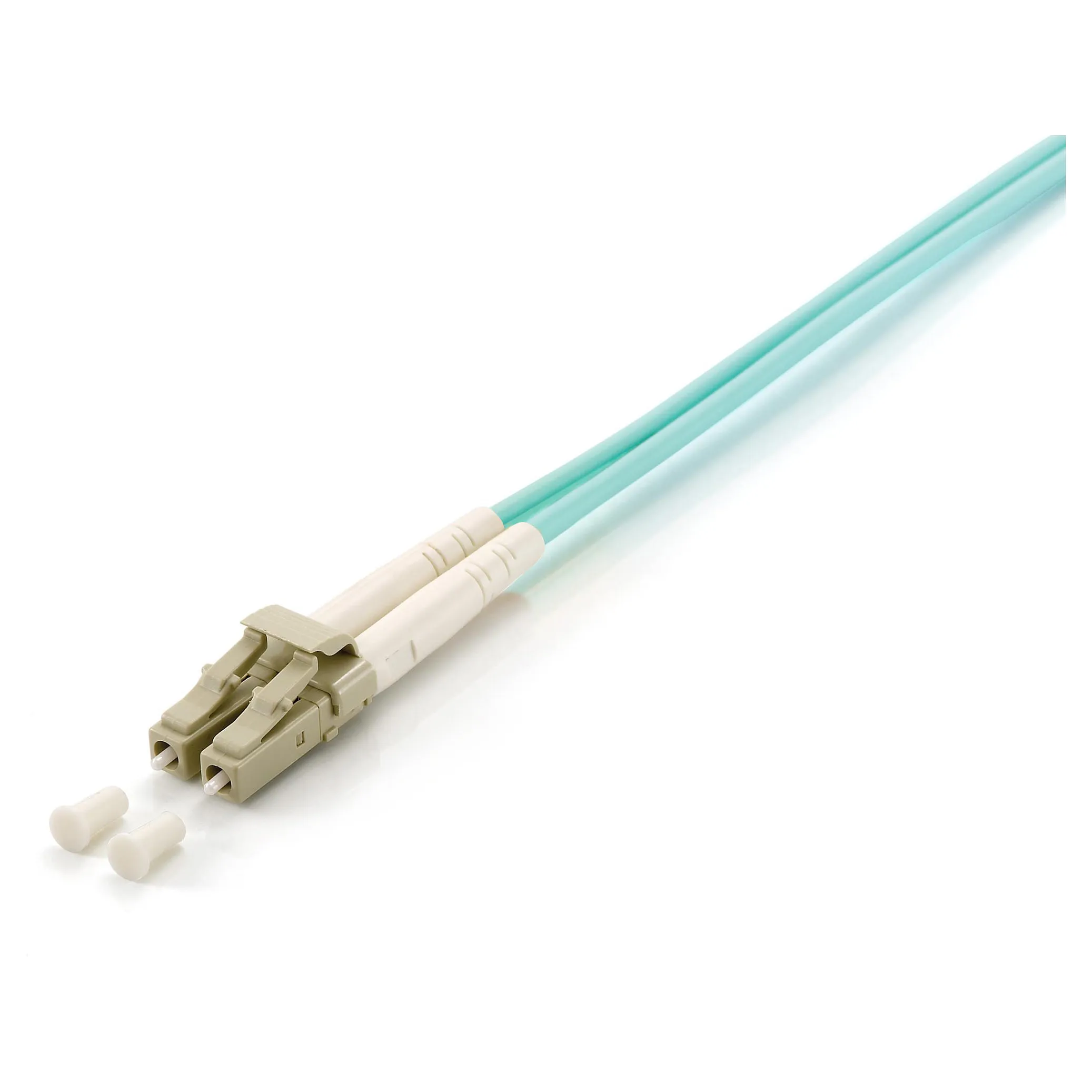

Equip LC/LC Fiber Optic Patch Cable, OM3, 25m. Cable length: 25 m, Fibre optic type: OM3, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
The LC to LC fiber optic patch cable is a duplex multi-mode OM3 fiber cable designed for reliable, high-speed data transmission in enterprise and data center environments.
Equipped with LC connectors on both ends, this cable is suitable for network switches, servers, and optical transceivers in structured cabling systems that require stable short-distance optical connections.
Constructed with a 50/125µm OM3 multi-mode fiber core and ceramic ferrule connectors, the cable delivers low insertion loss and consistent signal quality. The LSZH jacket enhances safety for indoor installations, while supporting 10G Ethernet transmission distances of up to 300 meters.
Features
Cable length: 25 m
Fibre optic type: OM3
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Aqua colour
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Data transfer rate: 10 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)
Connector material: Ceramic
Certificates
Compliance certificates: RoHS
Weight & dimensions
Cable diameter: 2 mm
Weight: 185 g
Packaging data
Package width: 275 mm
Package depth: 12 mm
Package height: 175 mm
Package weight: 27 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Customs product code (TARIC): 8544700010
Country of origin: China
Master (outer) case width: 400 mm
Master (outer) case length: 300 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 70 pc(s)
Cable length: 25 m
Fibre optic type: OM3
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Aqua colour
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Data transfer rate: 10 Gbit/s
Jacket material: Low smoke zero halogen (LSZH)
Connector material: Ceramic
Certificates
Compliance certificates: RoHS
Weight & dimensions
Cable diameter: 2 mm
Weight: 185 g
Packaging data
Package width: 275 mm
Package depth: 12 mm
Package height: 175 mm
Package weight: 27 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Customs product code (TARIC): 8544700010
Country of origin: China
Master (outer) case width: 400 mm
Master (outer) case length: 300 mm
Master (outer) case height: 400 mm
Master (outer) case gross weight: 13 kg
Products per master (outer) case: 70 pc(s)
