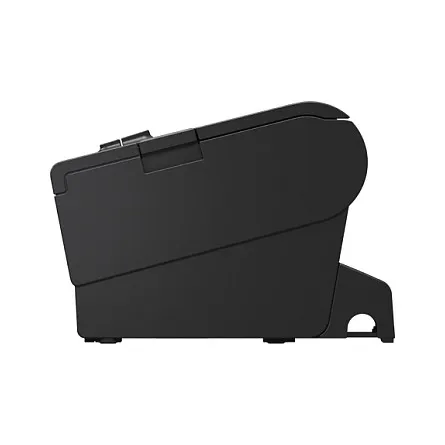

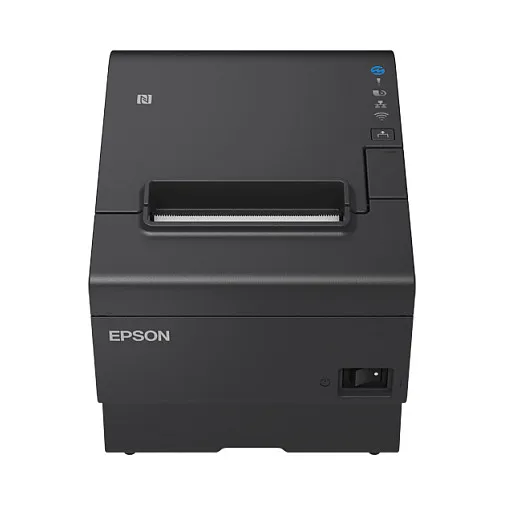

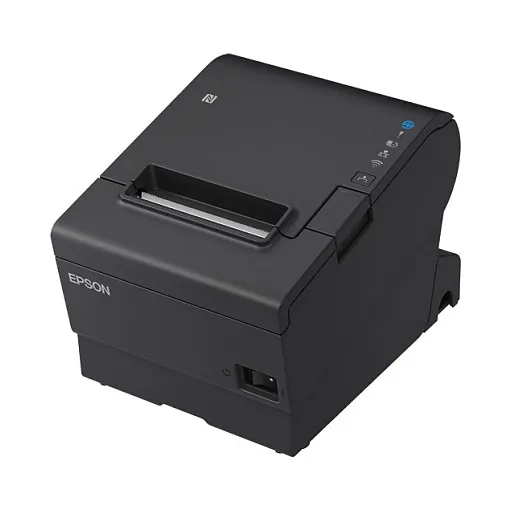

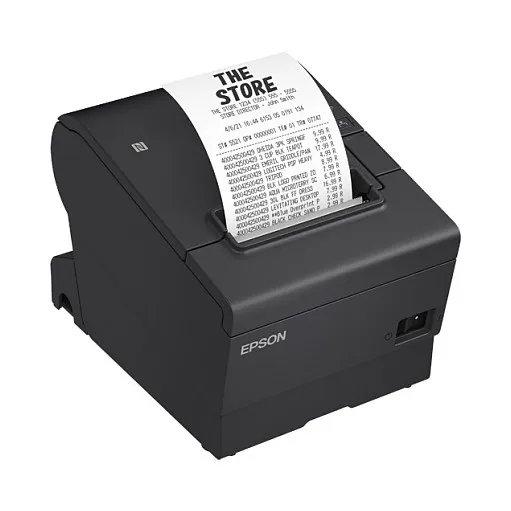

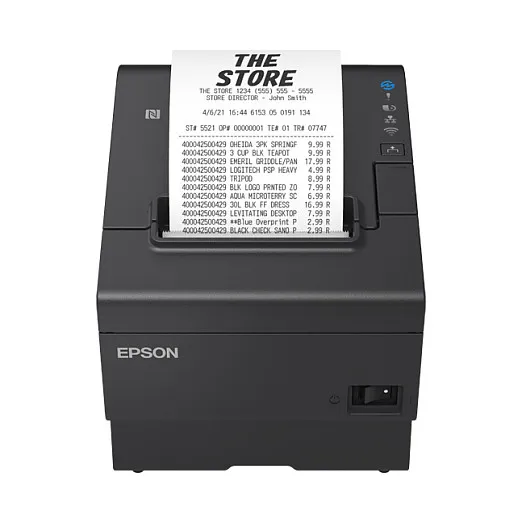

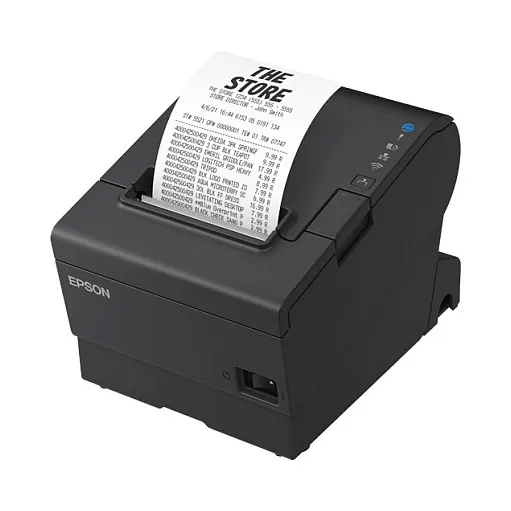

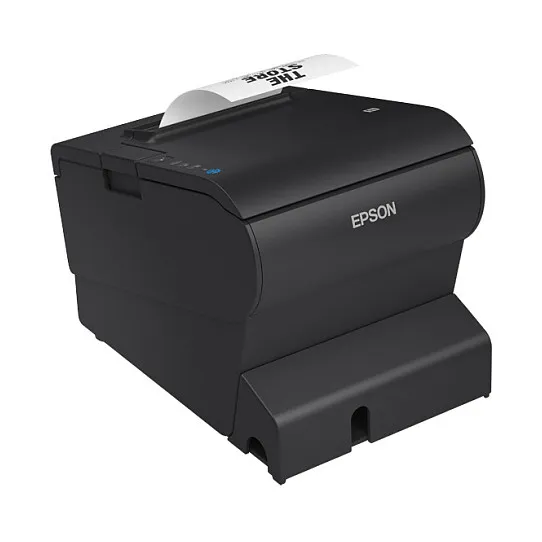

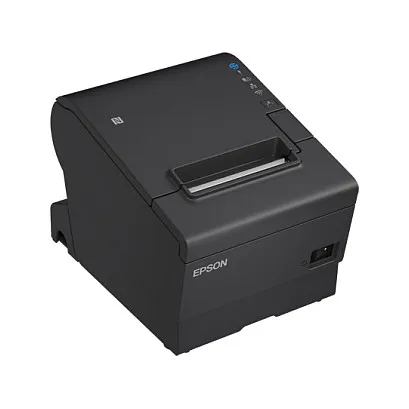

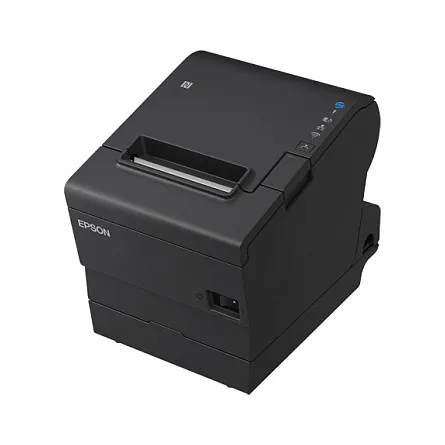

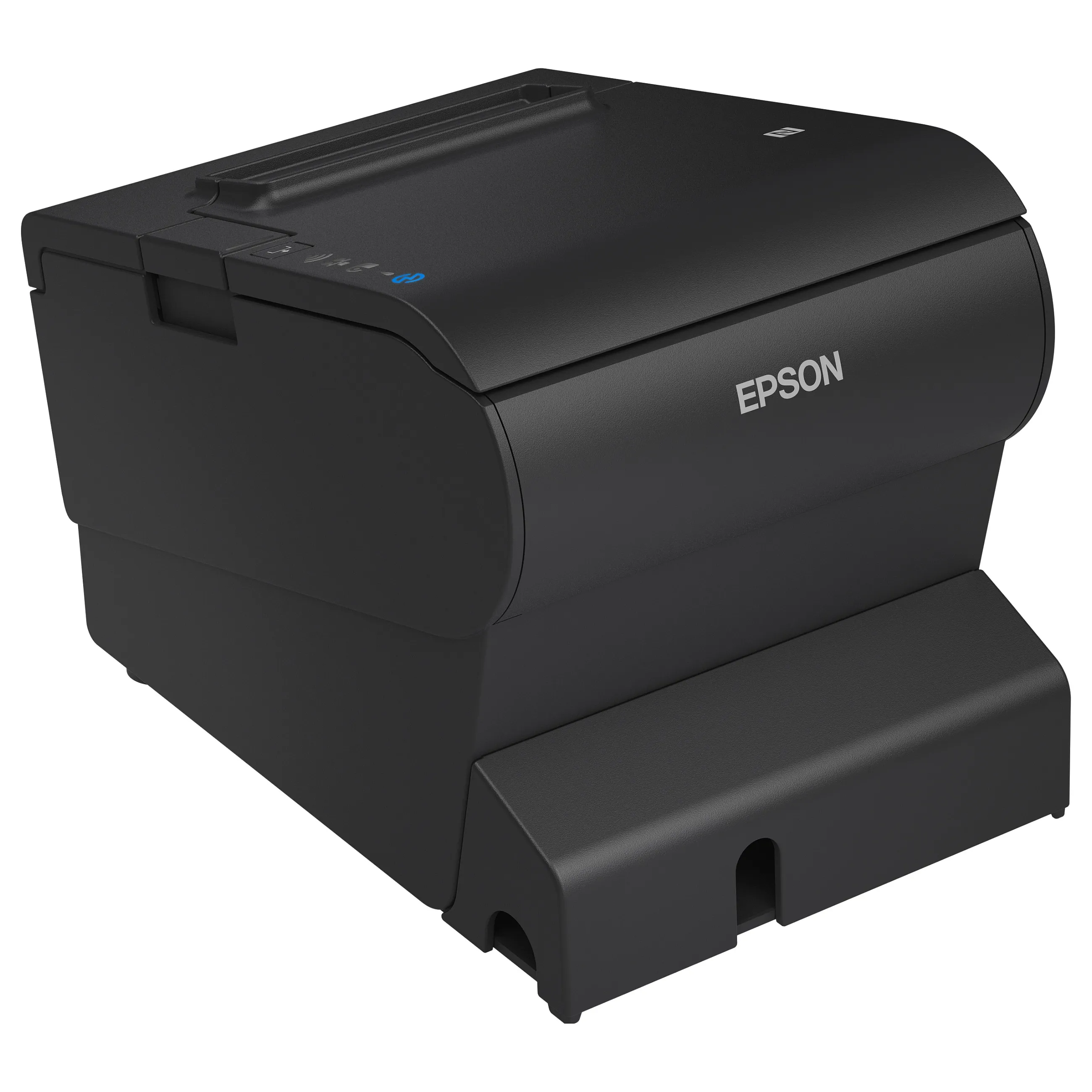

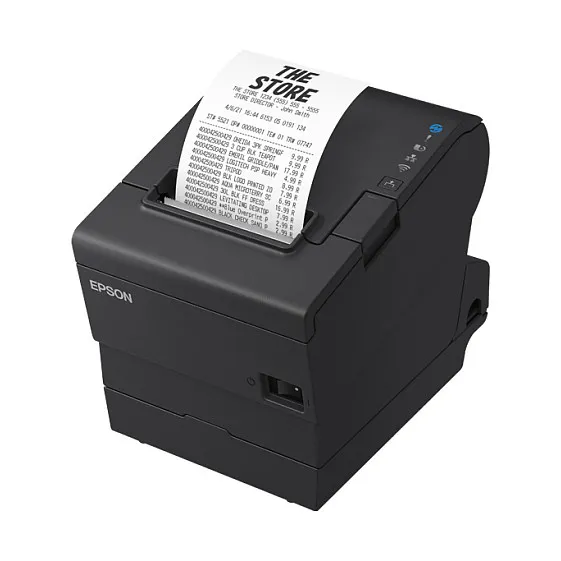

Epson TM-T88VII (112): USB, Eth, Serial, PS, Buzz, Black. Print technology: Thermal, Type: POS printer, Maximum resolution: 180 x 180 DPI. Printing media thickness: 48 – 80 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80 mm. Connectivity technology: Wired & Wireless, USB connector: USB Type-A / USB Type-B, Serial interface type: RS-232. Sound pressure level (printing): 52 dB, Sound pressure level (standby): 52 dB, Mean time between failures (MTBF): 360000 h. Product colour: Black
The TM-T88VII is our new high-performance receipt printer range. It features a range of design, connectivity and usability improvements and enhancements to improve the user experience.
Reliable and high-performance
Avoid downtime by choosing proven, reliable hardware from the market leader{s1. Fast print speeds of 500mm/s and high-quality, printed legible receipts will ensure happy customers.
Backwards compatible
The TM-T88VII is fully compatible with the existing T88V and T88VI software so there are no expensive costs associated with changing business infrastructure. The printer also has same footprint as previous models, meaning no additional costs of having to change the counters/tills.
Eco-conscious
The TM-T88VII demonstrates reduced environmental impacts, with lower noise level, lower power consumption and smaller, more efficient power supply. The printer is now compatible with more eco-friendly, Phenol-free paper.
Maximum resolution: 180 x 180 DPI
Print speed: 500 mm/sec
Character size: 1.41 x 3.39 mm
Printing characters: Text, Graphic, Barcode, 2D barcode
Character sets: ANK
Print technology: Thermal
Type: POS printer
Paper handling
Printing media thickness: 48 – 80 µm
Maximum roll diameter: 8.3 cm
Supported paper width: 80 mm
Media thickness: 48 – 80 mm
Ports & interfaces
Feature: USB port
USB connector: USB Type-A / USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Connectivity technology: Wired & Wireless
Feature: Near Field Communication (NFC)
Interface: Wireless LAN IEEE 802.11a/b/g/n/ac (optional), USB 2.0-A, USB 2.0, RS-232, Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out
Optional connectivity: Wireless LAN
Network
Feature: Ethernet LAN
Features
Sound pressure level (printing): 52 dB
Sound pressure level (standby): 52 dB
Mean time between failures (MTBF): 360000 h
Autocutter durability: 3 million cuts
Feature: Paper save function
Print head life: 200 km
Country of origin: Philippines
Mounting position: Horizontal/Vertical
Feature: Wall mountable
Built-in sensors details: Paper End Sensor, Paper Near End Sensor, Cover Open Sensor, Receipt paper sensor
Certification: CE
Design
Product colour: Black
Power
Power consumption (printing): 27.9 W
AC input voltage: 24 V
Power consumption: 27900 mA
Power consumption (standby): 1400 mA
Power consumption (standby): 1.4 W
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -10 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
System requirements
Pre-installed software: Server Direct Print, ePOS-Device, ePOS-Display, ePOS-Print
Weight & dimensions
Width: 145 mm
Depth: 195 mm
Height: 148 mm
Weight: 1.7 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 195 mm
Package depth: 235 mm
Package height: 260 mm
Package weight: 2.7 kg
Print technology
Column capacity: 42/56
Logistics data
Pallet weight (UK): 0 g
Harmonized System (HS) code: 84433210
Products per pallet: 112 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 168 pc(s)
Technical details
Box contents: Connector Cover, Main unit, PS-190 & AC cable, Paper roll spacer, Power switch cover, Roll paper
Changeable interface: Y
Lifetime: 20000000 lines
Other features
Buffer size: 4 KB
Mean cycles between failures (MCBF): 70000000
