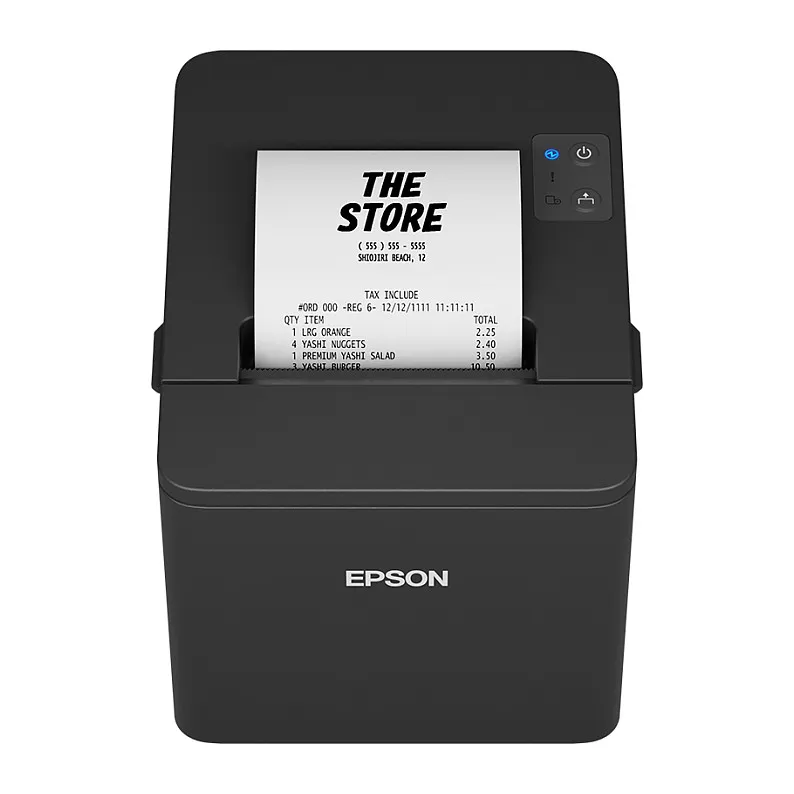

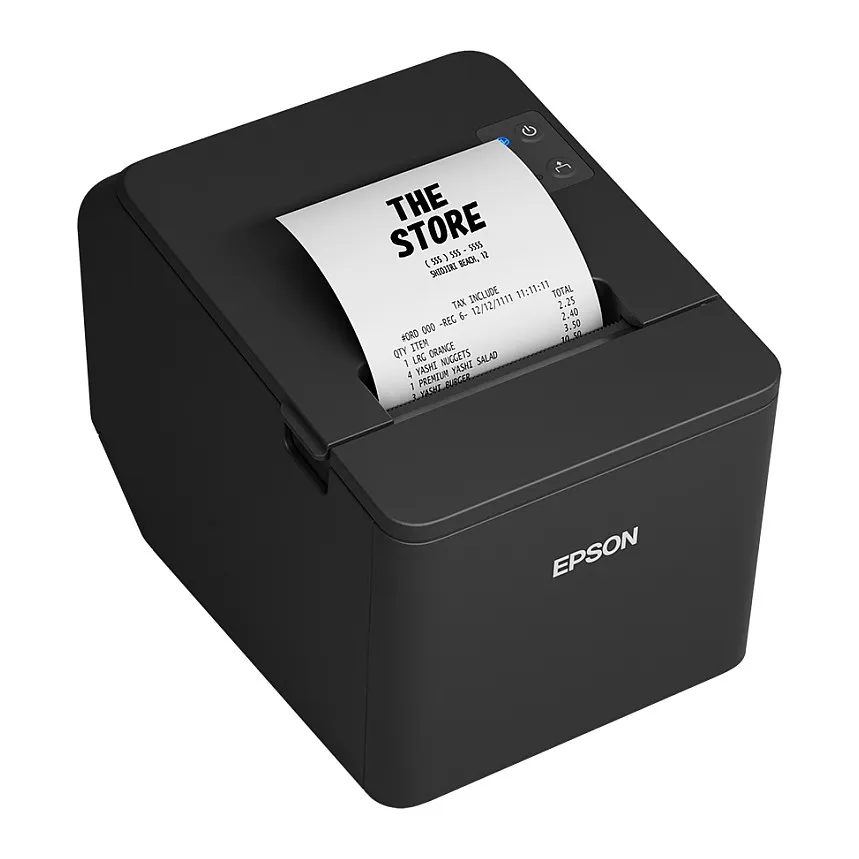

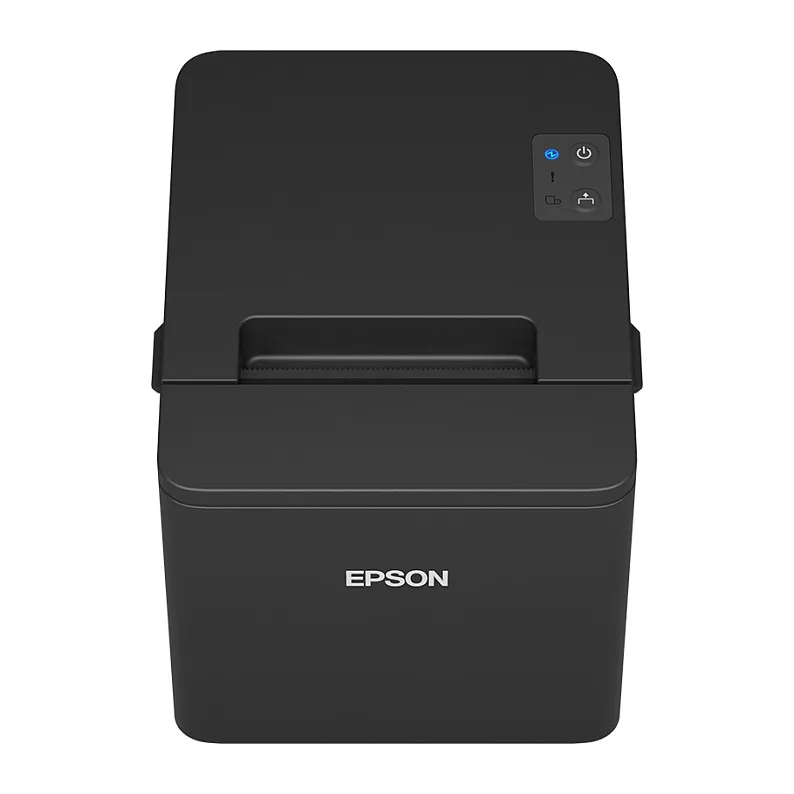

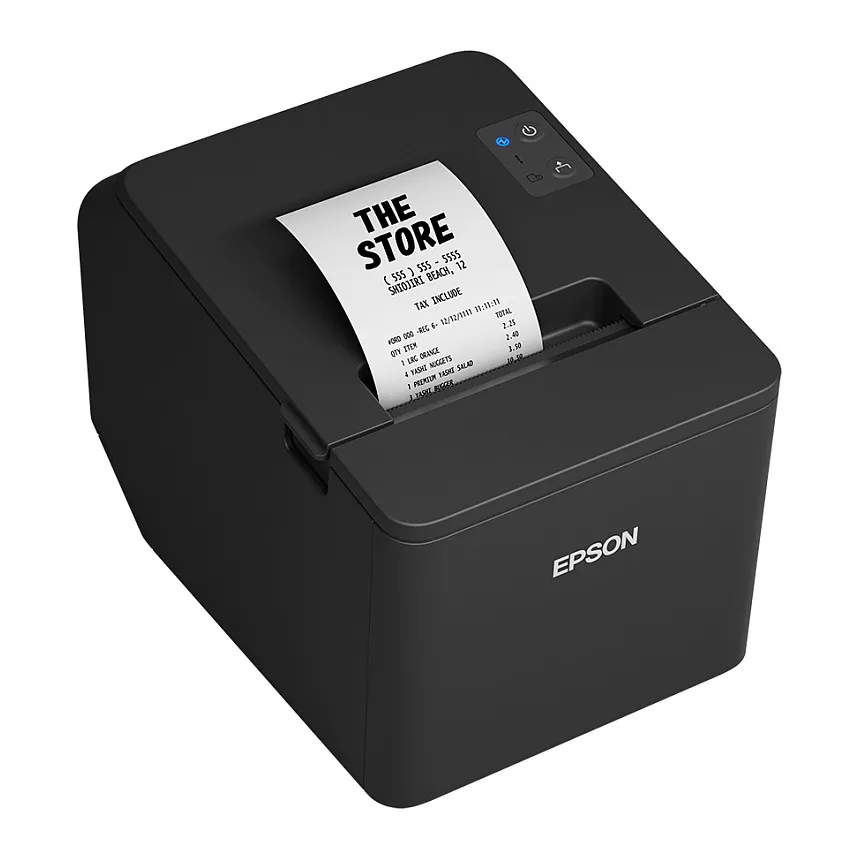

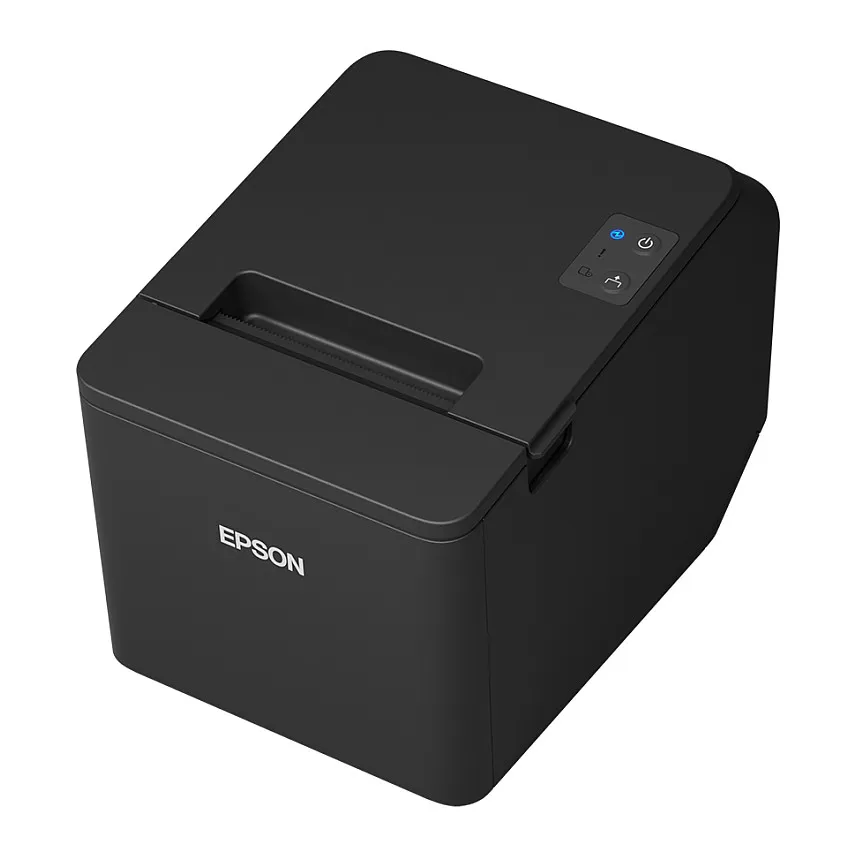

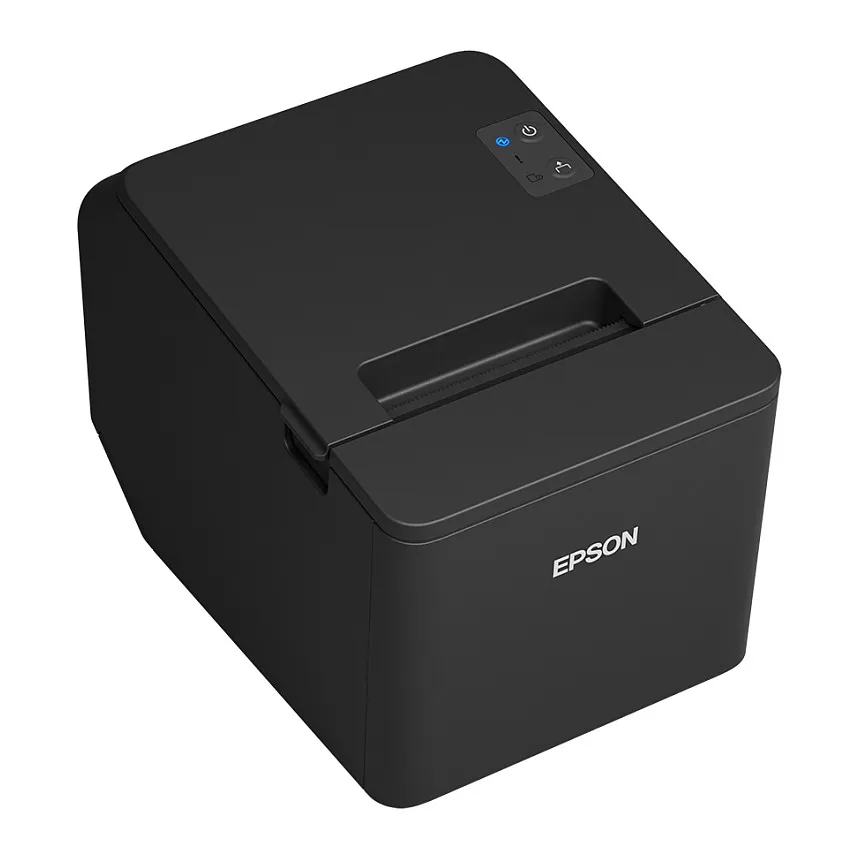

Epson TM-T20IV(102):USB+Serial+Ether, PS, Blk, EU, RS-232. Print technology: Thermal, Type: POS printer, Maximum resolution: 203 x 203 DPI. Printing media thickness: 53 – 75 µm, Maximum roll diameter: 8.3 cm, Supported paper width: 80, 48 / 64 mm. Connectivity technology: Wired, USB connector: USB Type-A, Serial interface type: RS-232. Ethernet LAN data rates: 10,100 Mbit/s. Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E, Sound pressure level (printing): 55 dB, Mean time between failures (MTBF): 360000 h
The combination of its fast print speeds, high reliability and economical operation, make this printer a must-have for small retail and speciality stores, hospitality venues and grocery stores.
Affordable
This easy-to-use model is our entry-level POS receipt printer and has an 80mm printing width. Its Automatic Paper Reduction feature reduces top and bottom margins, line feed width and barcode height, allowing for flexible receipt printing. This monitors and controls the amount of paper used. Paper costs are minimised by printing the top logo of the next receipt before cutting, so the top margin is further reduced by 12mm.
Reliable
With the mean time between failures (MTBF) of 360,000 hours and a mechanism life of 15 million lines, you can rely on the TM-T20IV in high-volume printing environments.
Flexible
The TM-T20IV comes with a built-in USB + Serial interface, making the model a long-term investment as it is possible to switch connectivity at any time.
Fast
Its print speed of 250mm/sec can save you time and its competitive price and running costs can save you money; ideal for when you need to beat queues quickly.
Maximum resolution: 203 x 203 DPI
Print speed: 250 mm/sec
Character size: 1.25 x 3 mm
Character density: 22.6 cpi
Printing characters: Graphic
Print technology: Thermal
Type: POS printer
Paper handling
Printing media thickness: 53 – 75 µm
Maximum roll diameter: 8.3 cm
Supported paper width: 80, 48 / 64 mm
Ports & interfaces
Feature: USB port
USB 2.0 ports quantity: 1
USB connector: USB Type-A
Feature: Serial interface
Serial interface type: RS-232
Connectivity technology: Wired

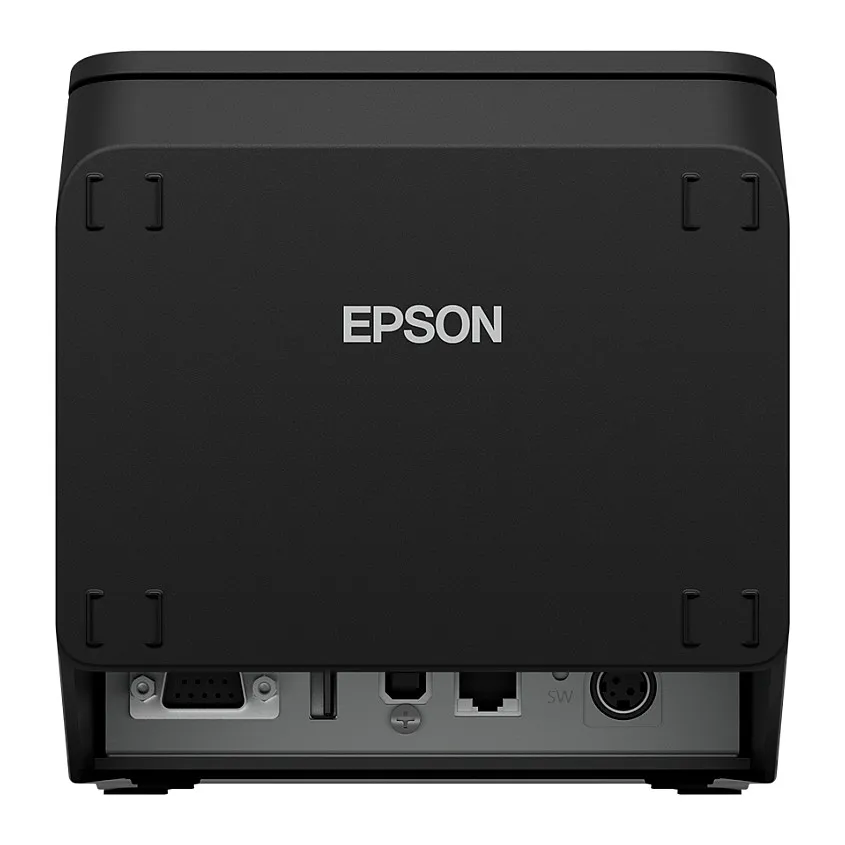

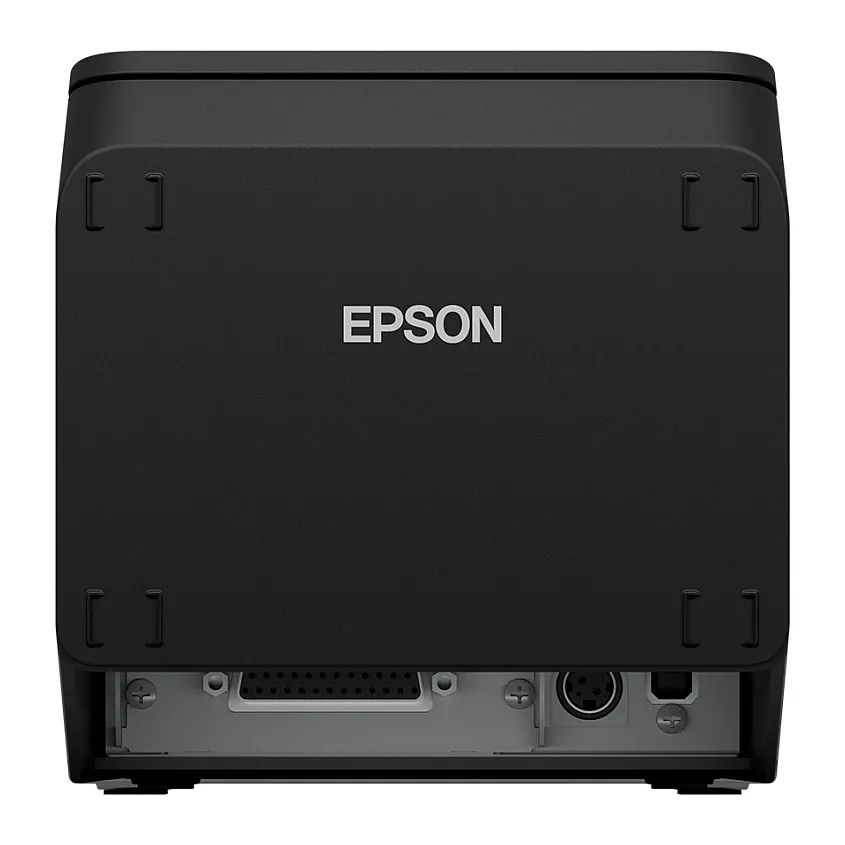

Interface: Ethernet interface (100 Base-TX / 10 Base-T), Drawer kick-out, RS-232, USB 2.0
Optional connectivity: Wireless LAN
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100 Mbit/s
Features
Built-in barcodes: CODABAR (NW-7), Code 39, Code 93, EAN13, EAN8, GS1 DataBar, GS1-128, ITF, UPC-A, UPC-E
Sound pressure level (printing): 55 dB
Mean time between failures (MTBF): 360000 h
Feature: Cutter
Autocutter durability: 2 million cuts
Feature: Paper save function
Print head life: 150 km
Country of origin: Philippines

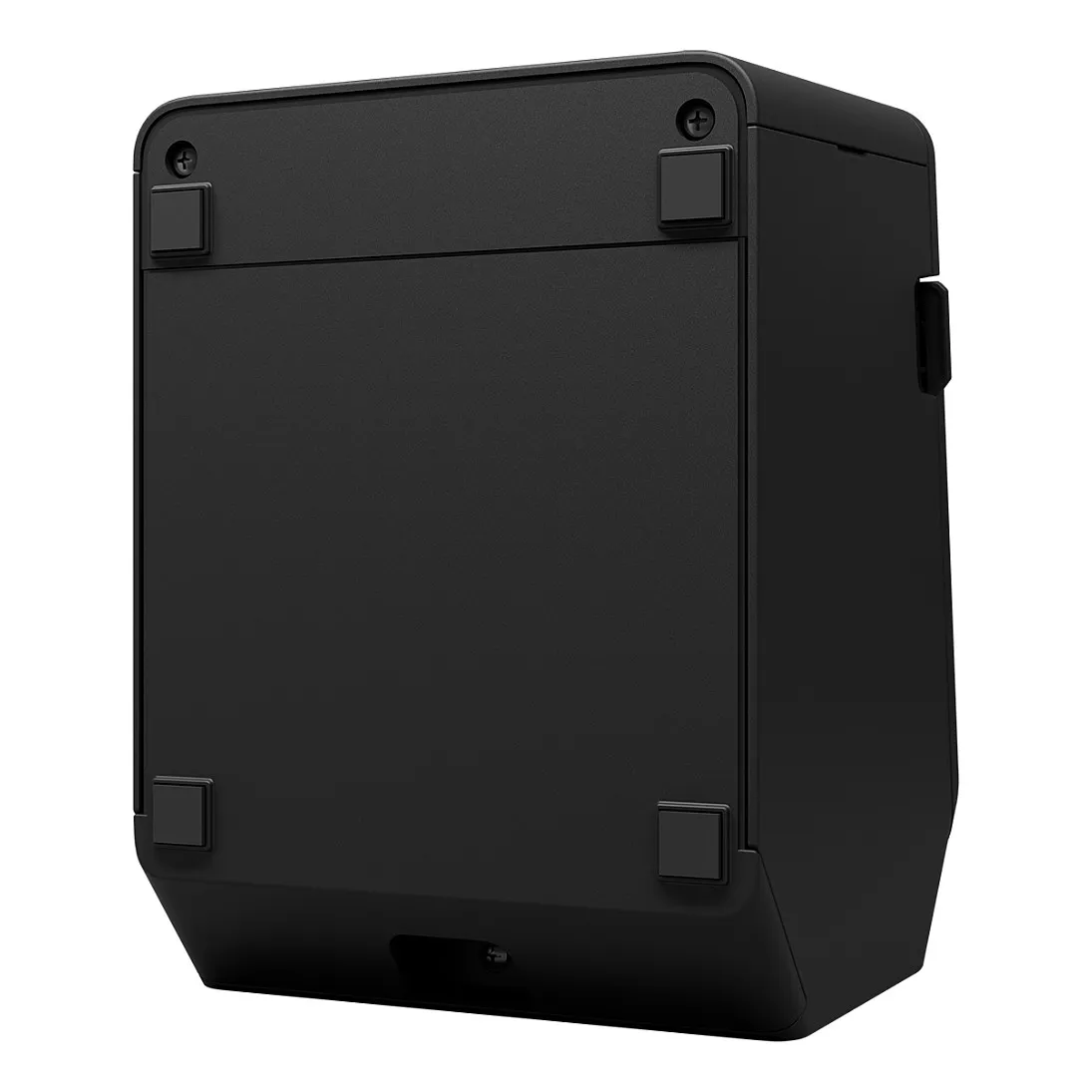

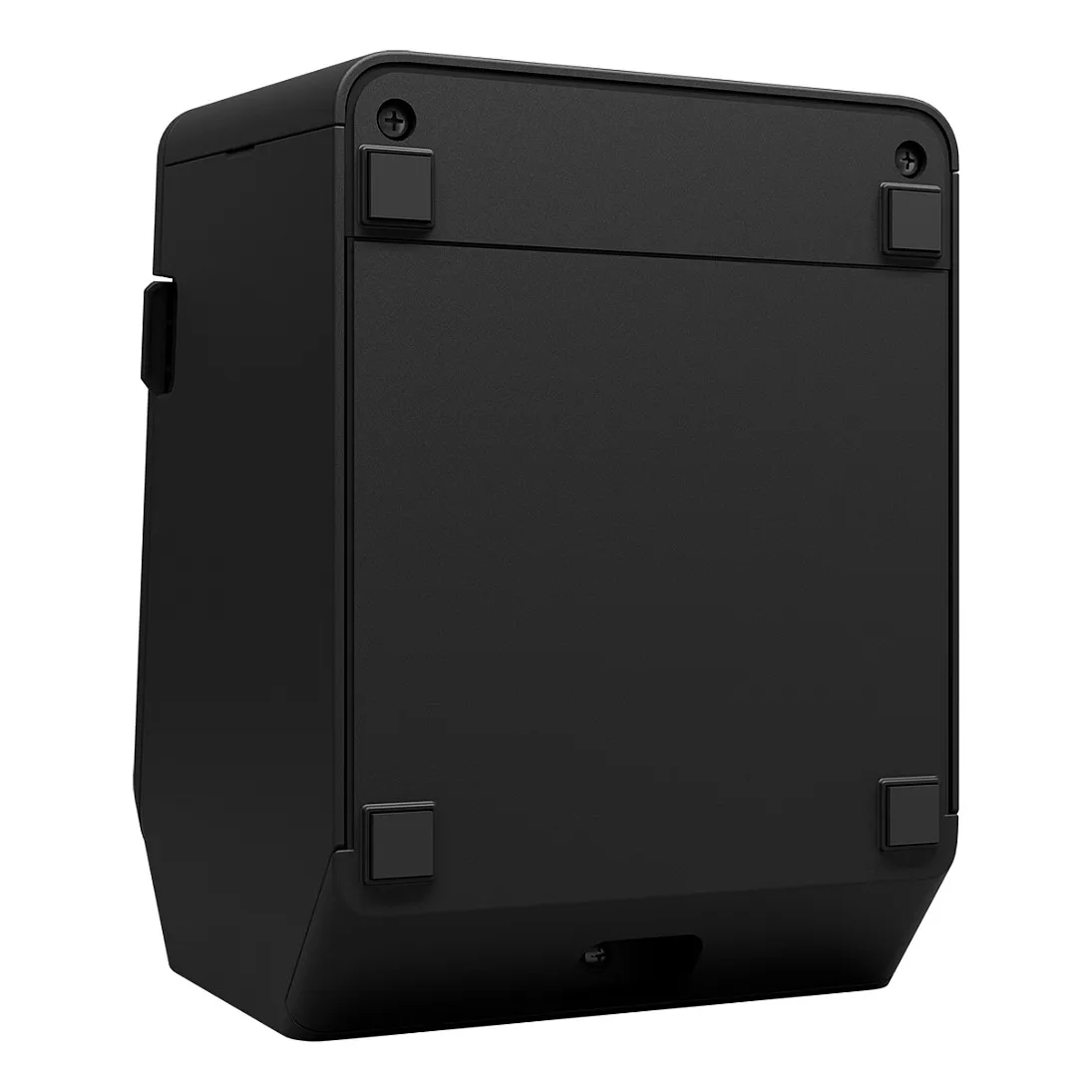

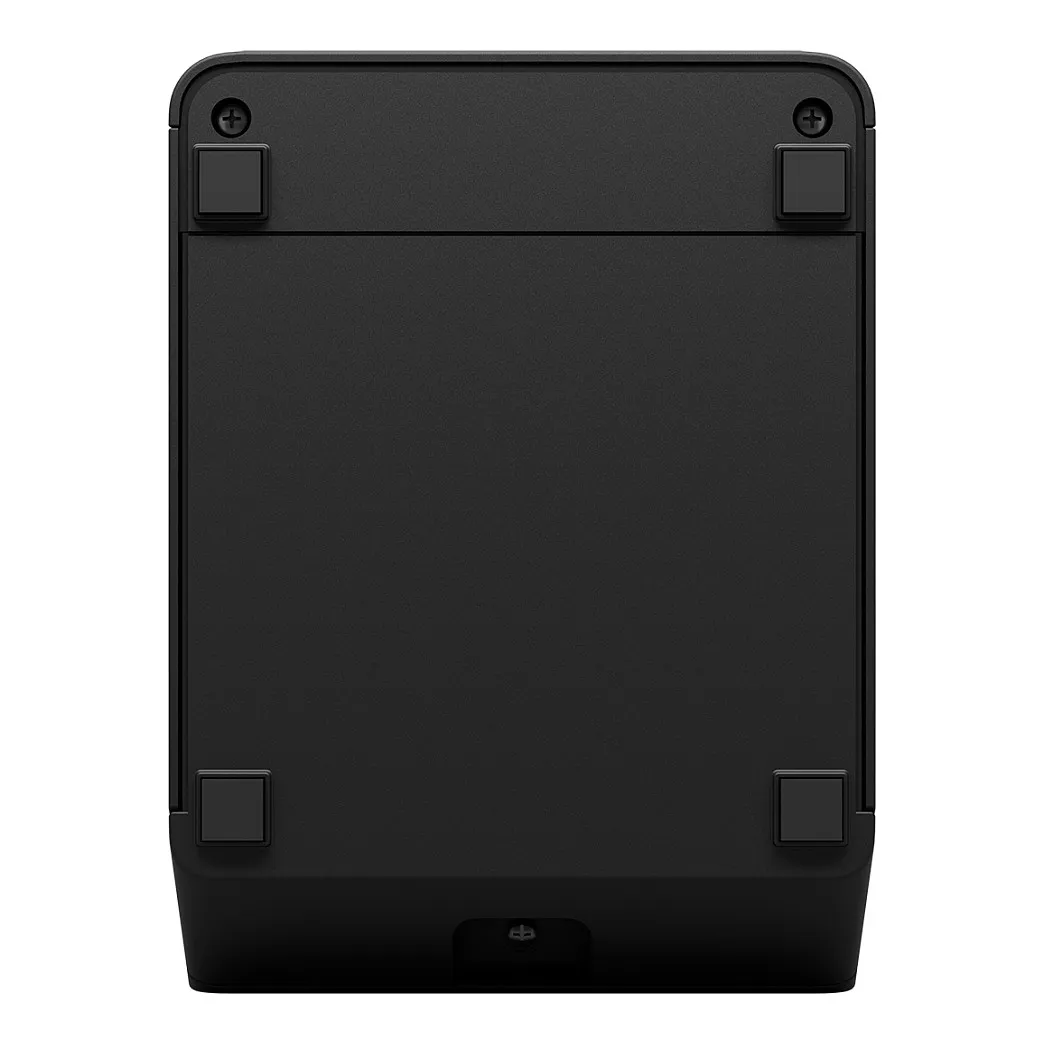

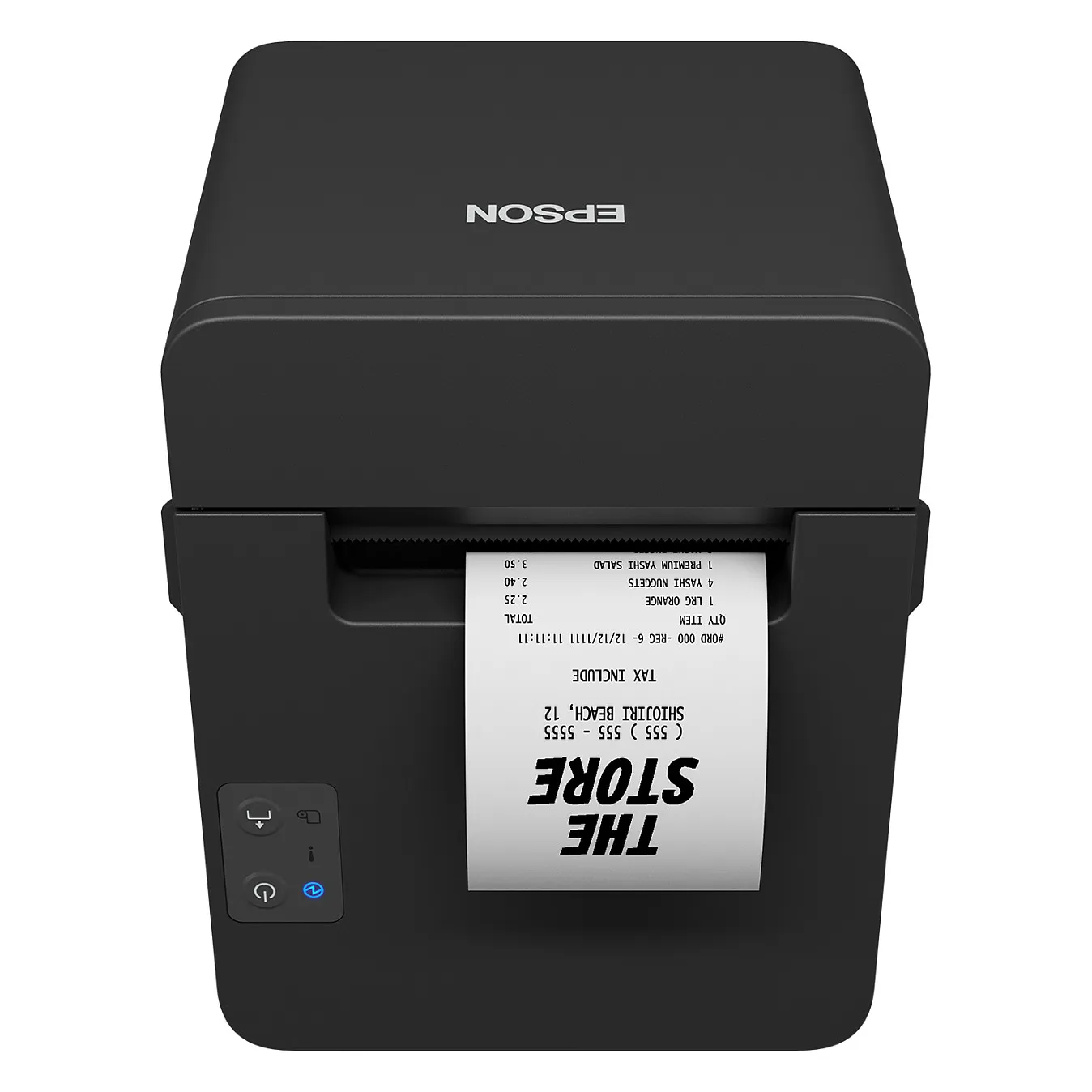

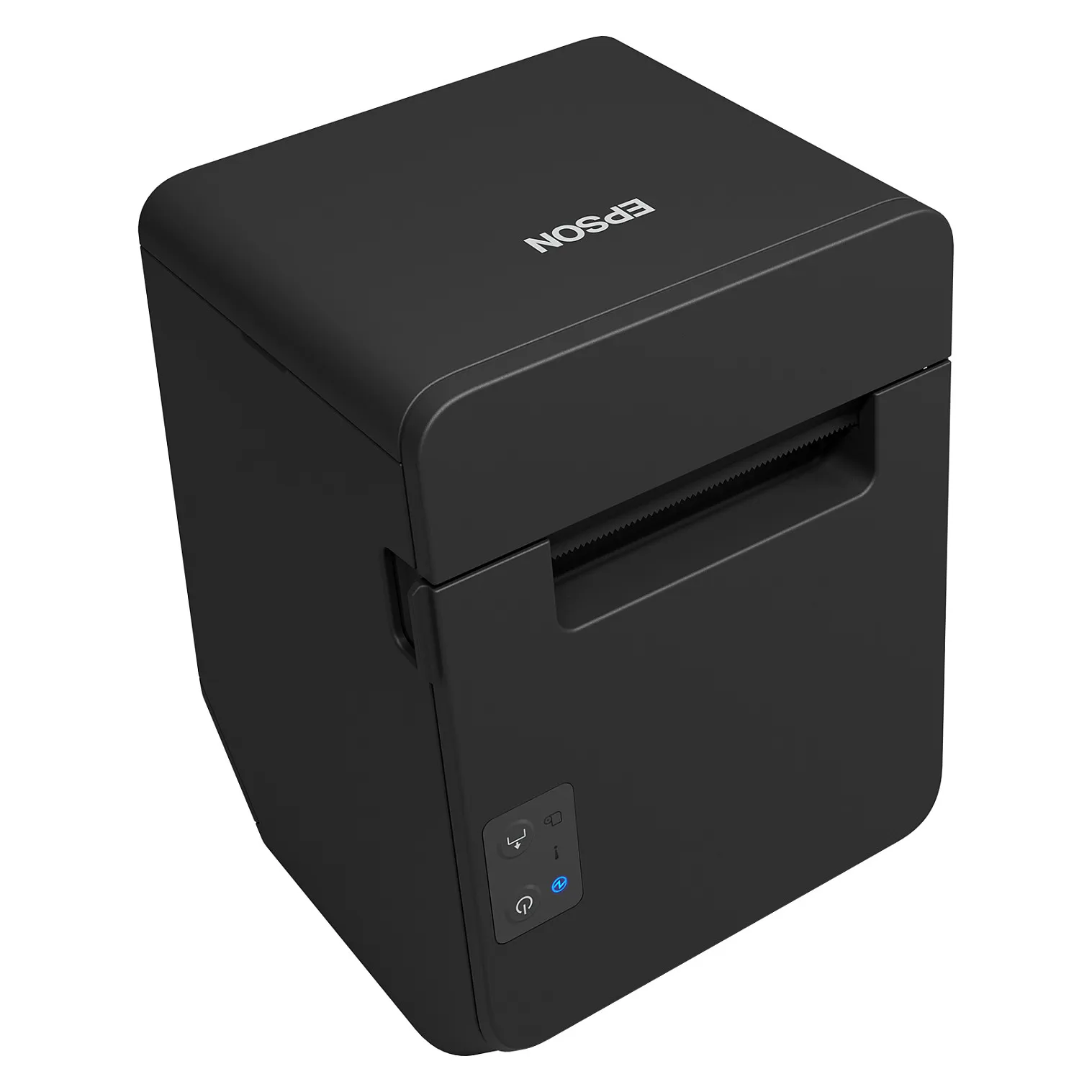

Feature: Wall mountable
Receive buffer: 4 KB
Built-in sensors details: Paper End Sensor, Paper Near End Sensor
Safety: UL, CSA, TÜV
Design
Product colour: Black
Power
Power source type: DC
Power consumption (printing): 27.2 W
AC input voltage: 100 – 230 V
AC input frequency: 50/60 Hz
DC output voltage: 24 V
Power consumption (standby): 0.96 W
Operational conditions
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -10 – 50 °C
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
System requirements
Windows operating systems supported: Yes
Mobile operating systems supported: Android, iOS
Weight & dimensions
Width: 140 mm
Depth: 199 mm
Height: 146 mm
Weight: 1.7 kg
Packaging data
Cables included: AC
Quantity per pack: 1 pc(s)
Package width: 195 mm
Package depth: 240 mm
Package height: 285 mm
Package weight: 2.65 kg
Packaging content
Feature: AC adapter included
Technical details
Font styles: ANK
Paper size roll paper: 79.50 ± 0.50 (W) mm x dia 83.00 mm,
57.50 ± 0.50 (W) mm x dia 83.00 mm
Technology: Thermal Line
Voltage: 24 V
Compliance certificates: CE
Safety warning: UL62368-1, CAN/CSA C22.2 No.62368-1
Power consumption: Standby:0.1 A, Mean:1.8 A
Other features
Buffer size: 4 KB
Mean cycles between failures (MCBF): 60000000
