Epson TM-L90 (465): USB, Ethernet, PS, EDG. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 150 mm/sec. Connectivity technology: Wired, Ethernet LAN, USB port. Supported paper width: 80 mm. Product colour: Dark Grey

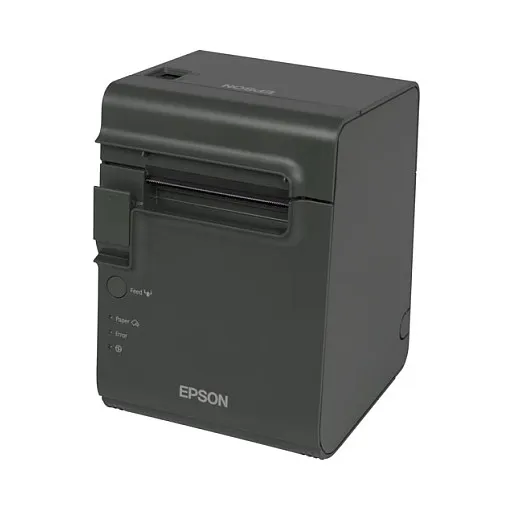

The TM-L90 is Epson’s compact thermal label printer that’s also ideal for barcode printing. This model effortlessly increases productivity for post offices, pharmacies, supermarkets and other businesses. You can easily print on different types of label and receipt paper, in a variety of different sizes, thanks to the adjustable cutter.
Label and barcode printing
With fast, thermal printing of up to 150mm/sec, the TM-L90 is a valuable asset to your business. With this model, you’ll be able to print out and get on with more important work, rather than waiting around for labels or barcodes.
More connectivity

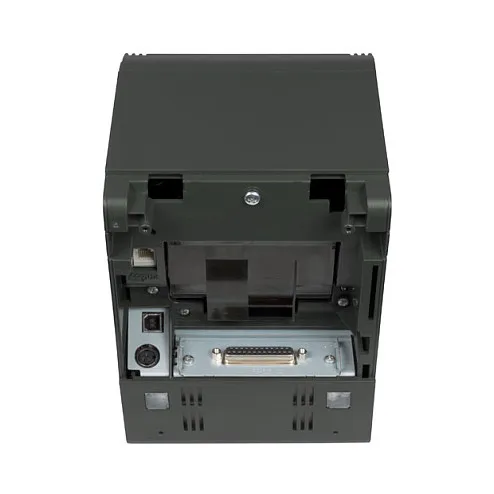

This printer benefits from high speed serial, Ethernet and parallel connectivity plus a built-in USB interface, which means it can be operated as a network device.
Easy to use
The small footprint and wall bracket mean that you can place it almost anywhere, in any position, for convenient and versatile printing. Practical design features, such as drop-in paper load, selectable auto-cutter and jamproof paper feeding, ensure smooth operation. The easy-to-use operator cover and lifespan of up to 20 million lines enable long-lasting, trouble-free maintenance.
High quality labels
Its greyscale capabilities allow highly customised layouts, and logos and promotional messages can be added with ease.
Larger receipt rolls, wider paper
Altogether, the TM-L90 label printer is one of the most efficient label printers available: it accepts large paper rolls (up to 90mm in diameter) and you can select paper widths between 38 and 80mm to produce labels in different sizes.
Print technology: Direct thermal
Maximum resolution: 203 x 203 DPI
Print speed: 150 mm/sec
Printing characters: Barcode
Paper handling
Feature: Autocutter
Maximum roll diameter: 9 cm
Media thickness: 0.06 – 0.08 mm
Supported paper width: 80 mm
Autocutter durability: 2 million cuts
Ports & interfaces
Connectivity technology: Wired
Feature: Ethernet LAN
Feature: USB port
USB 2.0 ports quantity: 1
Performance
Tape cutting: Automatic
Character pitch: 22.6,16.9 cpi
Mean time between failures (MTBF): 260000 h
Mean cycles between failures (MCBF): 70000000
Feature: Cutter
Sound pressure level (printing): 53 dB
Certification: VCCI-Class A, FCC-Class A, CE, AS / NZS 3548
Design
Product colour: Dark Grey
Power
AC input voltage: 24 V
Power consumption: 1800 mA
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -10 – 50 °C
Weight & dimensions
Width: 140 mm
Depth: 148 mm
Height: 203 mm
Weight: 1.9 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 193 mm
Package depth: 250 mm
Package height: 240 mm
Package weight: 2.8 kg
Packaging content
Feature: Manual
Logistics data
Products per pallet layer: 16 pc(s)
Products per pallet layer (UK): 24 pc(s)
Products per pallet (UK): 168 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 2.5 m
Harmonized System (HS) code: 84433210
Pallet gross width: 80 cm
Pallet gross length: 120 cm
Pallet gross height: 2.5 m
Pallet gross weight: 0 g
Products per pallet: 112 pc(s)
Technical details
Box contents: Label paper roll, Main unit, PS-180, Panel label for horizontal installation, Paper exit guide, Paper roll spacer, Power switch cover, User manual
Interface: USB 2.0, Ethernet interface (100 Base-TX / 10 Base-T)
Other features
Safety: UL, CSA, TÜV
Buffer size: 4 KB
Character sets: ANK
Country of origin: China
