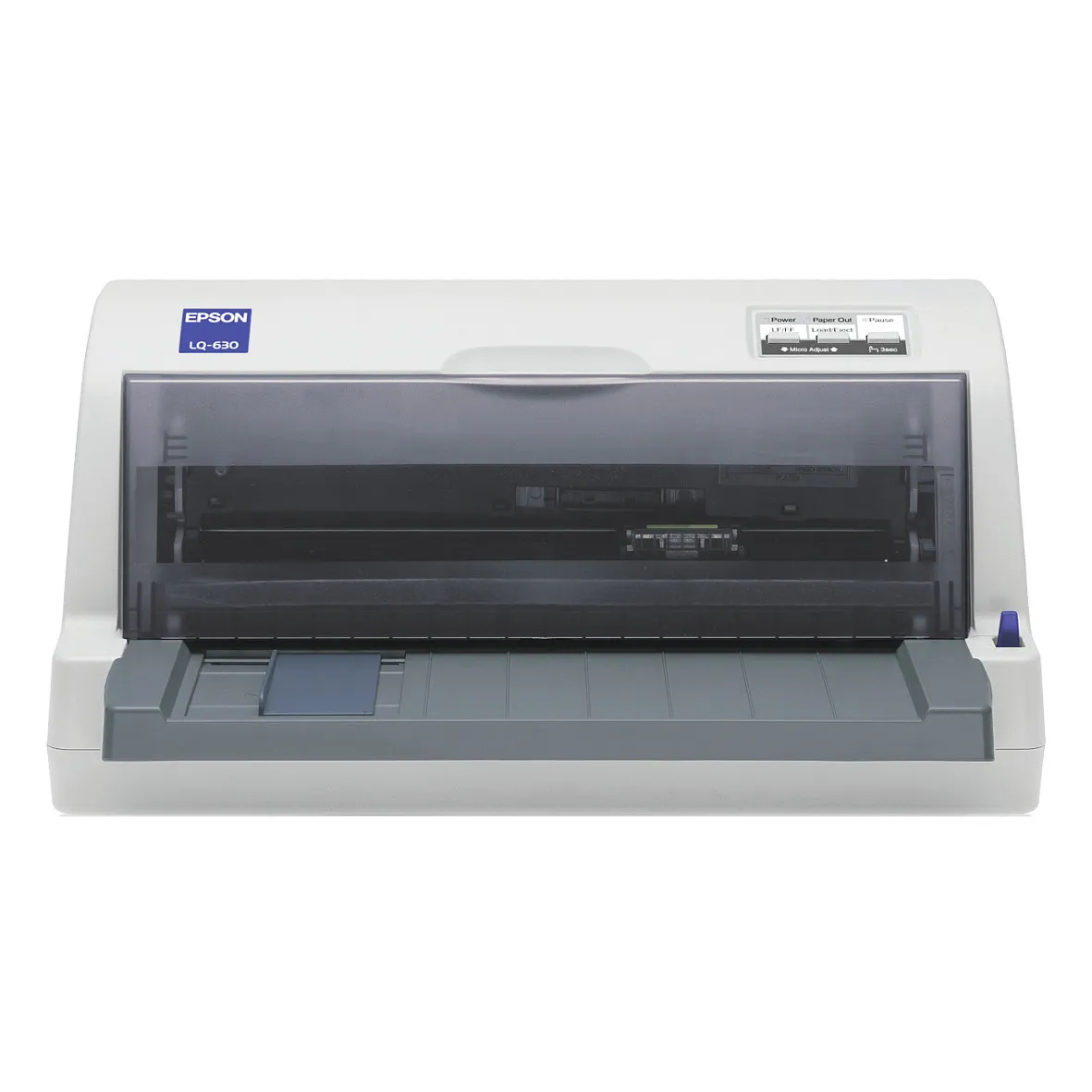

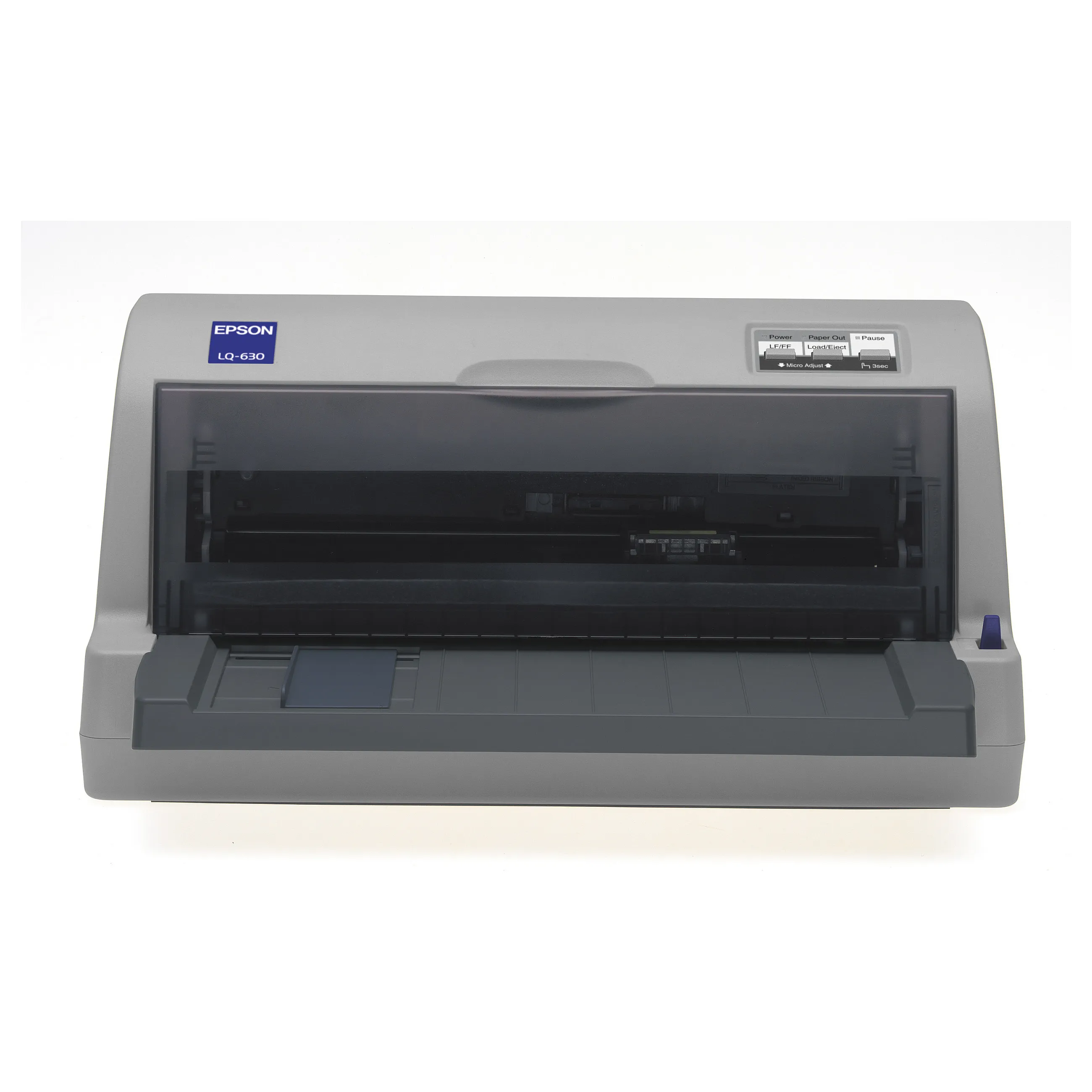

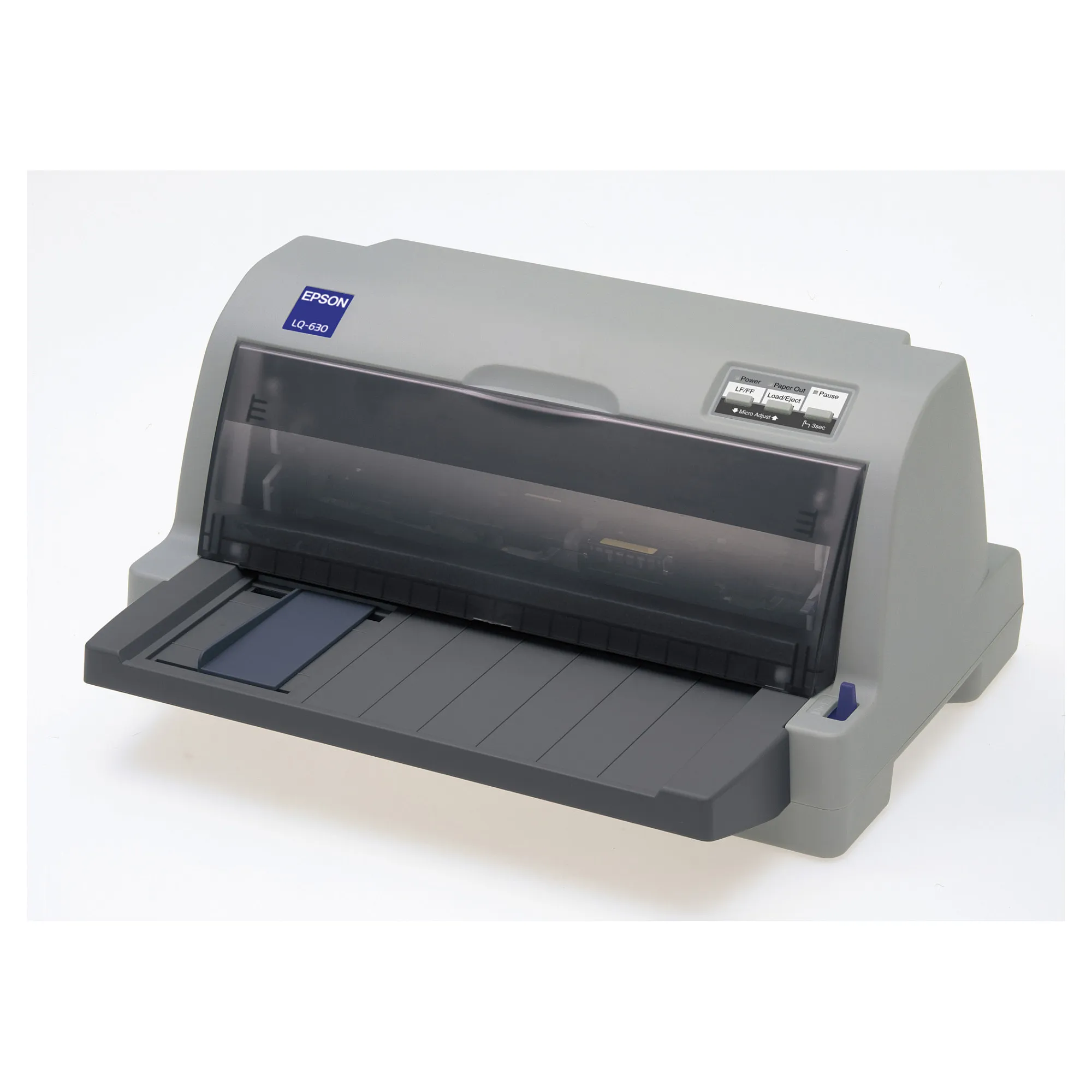

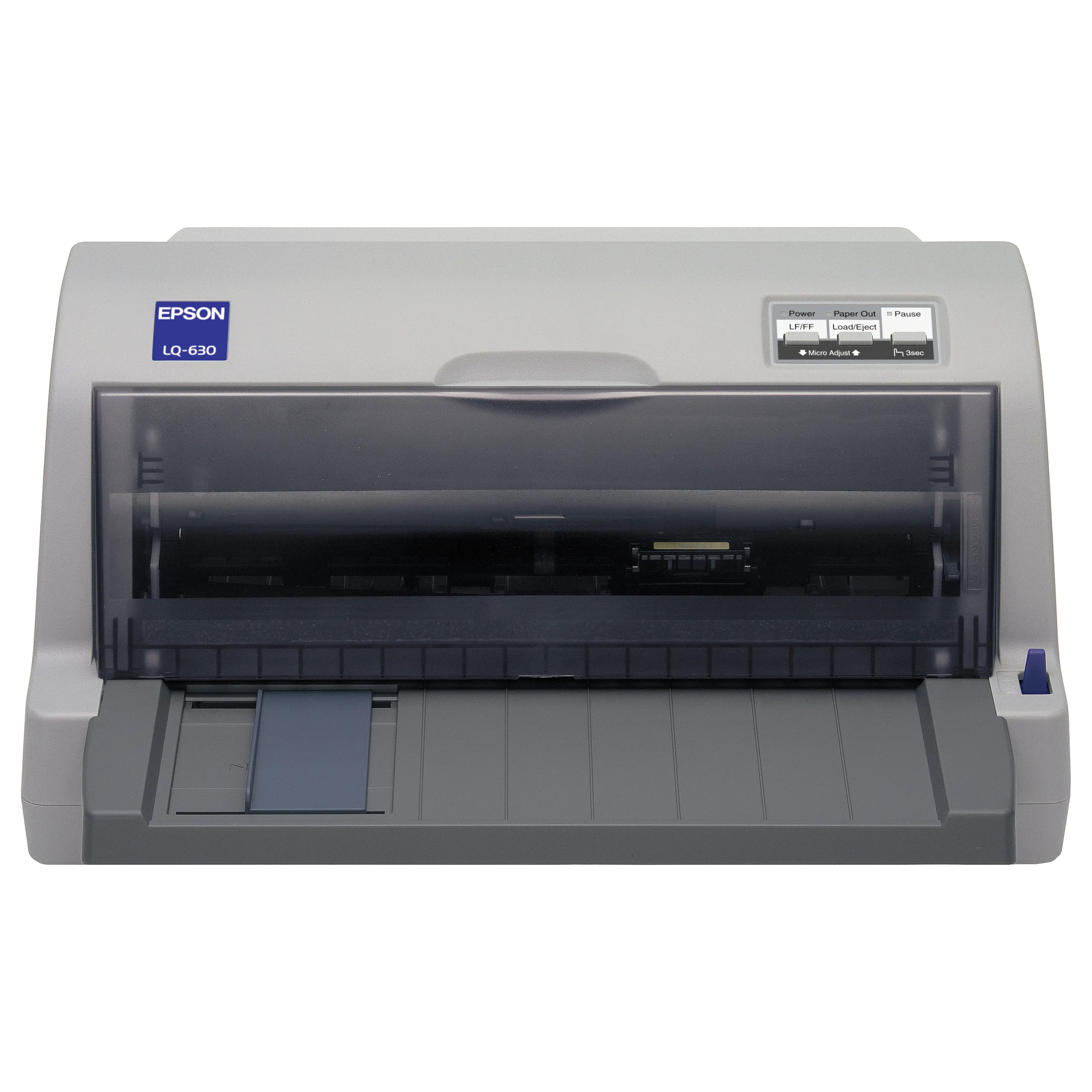

Epson LQ-630. Maximum print speed: 360 cps, Maximum resolution: 360 x 180 DPI, Maximum print speed (draft): 225 cps. Maximum print size: 254 x 559 mm, Paper tray media types: Labels, Roll. Product colour: Grey, Buffer size: 32 KB, Sound pressure level (printing): 57 dB. Standard interfaces: Parallel, USB 2.0. Print head: 24-pin, Print direction: Bidirectional, Print head life: 400 million characters
LQ-630 is a small and reliable printer especially for counter application. With its small design with 80 columns, LQ-630 fits perfectly in environments where space is rather limited. The ejection of both, continuous paper and cut sheets at front side enables easy handling of the print outs only at the front side of the printer. Due to the printer’s flatbed technology, LQ-630 can print even smallest cut sheet forms and stickers down to 9 cm x 7 cm. LQ-630 can ideally be used with retail stores, banks, post offices, doctors’ surgeries, ticket shops, cinemas, pizza services. Moreover the printer is perfect for label and protocol printing with trade industrial firms.
Key Features
– Fast print speed up to 360 cps
– Compact and robust design
– Handles up to 1 original plus 3 copies
– Flatbed technology for ergonomic front paper feed
– Mean Volume Between Failures: 12 mill. lines
– Standard Centronics Parallel and USB 2.0 Interfaces
Printing
Maximum resolution: 360 x 180 DPI
Maximum printing width (columns): 80
Maximum print speed: 360 cps
Maximum print speed (draft): 225 cps
Maximum print speed (LQ): 79 cps
Character pitch: 10,12 cpi
Maximum number of copies: 5 copies
Built-in barcodes: Code 39, POSTNET, UPC-A, UPC-E
Paper handling
Maximum print size: 254 x 559 mm
Paper tray media types: Labels, Roll
Features
Product colour: Grey
Buffer size: 32 KB
Sound pressure level (printing): 57 dB
Page description languages: Epson ESC/P2, PPDS
Country of origin: China
Ports & interfaces
Standard interfaces: Parallel, USB 2.0
Endurance
Print head: 24-pin
Print direction: Bidirectional
Print head life: 400 million characters
Ribbon life (black, draft): 2 million characters
Mean time between failures (MTBF): 10000 h
Power
Power consumption (typical): 20 W
Power consumption (standby): 4.8 W
AC input voltage: 220 – 240 V
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 80%
System requirements
Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Bundled software: Epson Status Monitor
Weight & dimensions
Width: 386 mm
Depth: 306 mm
Height: 185 mm
Weight: 3.5 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 265 mm
Package depth: 455 mm
Package height: 310 mm
Package weight: 5.2 g
Other features
Standard media sizes: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper
Print technology: Dot matrix
Needles: 24
Logistics data
Products per pallet: 35 pc(s)
Pallet gross width: 120 cm
Pallet gross height: 100 cm
Products per pallet layer: 5 pc(s)
Products per pallet layer (UK): 7 pc(s)
Products per pallet (UK): 49 pc(s)
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 2 m
Harmonized System (HS) code: 84433210
Maximum resolution: 360 x 180 DPI
Maximum printing width (columns): 80
Maximum print speed: 360 cps
Maximum print speed (draft): 225 cps
Maximum print speed (LQ): 79 cps
Character pitch: 10,12 cpi
Maximum number of copies: 5 copies
Built-in barcodes: Code 39, POSTNET, UPC-A, UPC-E
Paper handling
Maximum print size: 254 x 559 mm
Paper tray media types: Labels, Roll
Features
Product colour: Grey
Buffer size: 32 KB
Sound pressure level (printing): 57 dB
Page description languages: Epson ESC/P2, PPDS
Country of origin: China
Ports & interfaces
Standard interfaces: Parallel, USB 2.0
Endurance
Print head: 24-pin
Print direction: Bidirectional
Print head life: 400 million characters
Ribbon life (black, draft): 2 million characters
Mean time between failures (MTBF): 10000 h
Power
Power consumption (typical): 20 W
Power consumption (standby): 4.8 W
AC input voltage: 220 – 240 V
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Operating relative humidity (H-H): 10 – 80%
System requirements
Windows operating systems supported: Windows 2000, Windows 7, Windows 8, Windows 98, Windows XP
Bundled software: Epson Status Monitor
Weight & dimensions
Width: 386 mm
Depth: 306 mm
Height: 185 mm
Weight: 3.5 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 265 mm
Package depth: 455 mm
Package height: 310 mm
Package weight: 5.2 g
Other features
Standard media sizes: Sheet Paper (single- and multi-layer), Continuous Paper (single- and multi-layer), Labels (single- and multi-layer), Roll Paper
Print technology: Dot matrix
Needles: 24
Logistics data
Products per pallet: 35 pc(s)
Pallet gross width: 120 cm
Pallet gross height: 100 cm
Products per pallet layer: 5 pc(s)
Products per pallet layer (UK): 7 pc(s)
Products per pallet (UK): 49 pc(s)
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 2 m
Harmonized System (HS) code: 84433210
