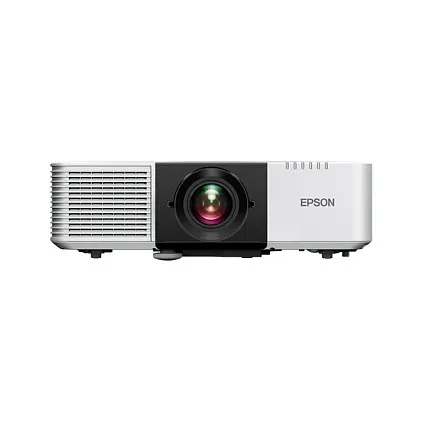

Epson EB-L690U. Projector brightness: 6500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920×1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 – 31.8 mm, Aperture range (F-F): 1.5 – 1.7. Supported graphics resolutions: 1920 x 1200 (WUXGA), Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, Natural, DICOM SIM, Presentation. Noise level: 32 dB, Noise level (economic mode): 25 dB, Country of origin: Philippines
The EB-L690U offers 6,500 lumens, WUXGA resolution, HDR and advanced installation features. It provides up to 30,000 hours of maintenance-free projection in Eco mode. Featuring a fixed centre lens with manual lens shift, 1.6x zoom and 10W speakers, it’s ideal for professional applications and offers flexible control options via HDBaseT, LAN and wireless.
Powerful, vibrant visuals for any space
The EB-L690U delivers 6,500 lumens of brightness and WUXGA resolution with 3LCD technology, ensuring sharp, vibrant visuals. Its precise lens shift and built-in 10W speakers enhance performance, while the compact white chassis allows for easy installation and quiet operation. Ideal for lecture halls, auditoriums, training rooms, and other professional environments, it performs exceptionally well even in brightly lit spaces.
Easy-to-setup, big impact

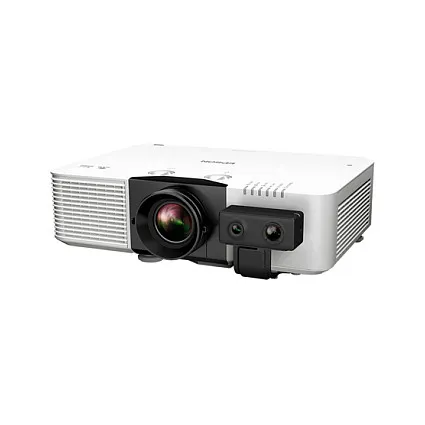

With flexible installation options including a standard throw ratio of 1.35–2.2:1 and 1.6x optical zoom, the EB-L690U can project images up to 500 inches. Advanced geometry correction and the optional ELPEC01 camera, combined with the Epson Projector Professional Tool, enable quick, straightforward setup and calibration – streamlining advanced installation for any space.
Smart control for seamless experience
The EB-L690U enhances usability with NFC for easy large-scale rollouts using the Epson Projector Config Tool. Its user-friendly OSD menu simplifies navigation, while Epson’s EPMC cloud monitoring allows effortless remote management. Fully compatible with Crestron XiO Cloud, it offers centralised control. OTA firmware updates ensure the projector remains up-to-date, improving performance for a seamless experience.
Proven brand reliability
Engineered for long-lasting performance, the EB-L690U features fit-and-forget laser technology, backed by a 3-year warranty. It minimises maintenance needs, reduces downtime, and offers peace of mind with Epson’s renowned after-sales support.
Environmentally friendly design
Built with sustainability in mind, our projectors are manufactured using 100% renewable electricity{s2 and packaged in 100% recyclable cardboard. With low maintenance and energy consumption and benefits from end-of-life recycling and energy recovery services across Europe.
Stream and share easily
With Apple AirPlay 2 and Miracast connectivity{s1, sharing content is quick and simple – users can wirelessly mirror their device screens to the display for seamless collaboration. The USB-A port also enables PC-free streaming, while additional options like HDBaseT and HDMI daisy-chaining further enhance flexibility.
Feature: Smart projector
Screen size compatibility: 1270 – 12700 mm (50 – 500″)
Projection distance: 1.44 – 23.84 m
Projection distance (wide): 1.4 – 14.8 m
Projection distance (tele): 2.4 – 23.8 m
Contrast ratio (dynamic): 5000000:1
Projector brightness: 6500 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920×1200)
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 4550 ANSI lumens
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°
Light source
Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
Lens system
Focus: Manual
Focal length range: 20 – 31.8 mm
Aperture range (F-F): 1.5 – 1.7
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.6:1
Throw ratio: 1.35 – 2.20:1
Horizontal lens shift range: -20 – -20%
Vertical lens shift range: -50 – -50%
Video
Feature: Full HD
Supported graphics resolutions: 1920 x 1200 (WUXGA)
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic, Natural, DICOM SIM, Presentation
Video colour modes: BT.709, Cinema, DICOM simulation mode, Dynamic, Multi-projection, Natural, Presentation

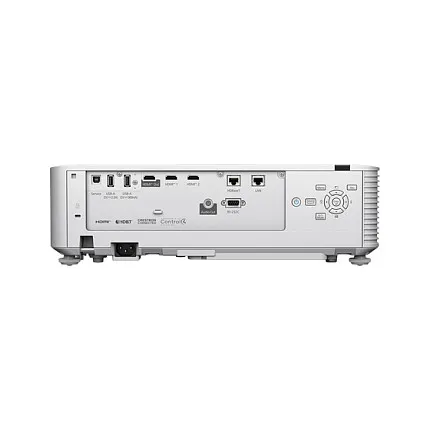

Ports & interfaces
Feature: HDBaseT port
USB 2.0 Type-A ports quantity: 1
HDMI ports quantity: 1
Network
Feature: Ethernet LAN
Feature: Miracast
Feature: Apple AirPlay 2 support
Features
Noise level (economic mode): 25 dB
Noise level: 32 dB
Country of origin: Philippines
Feature: High Dynamic Range (HDR) supported
Feature: Password protection
Multimedia
Feature: Built-in speaker(s)
RMS rated power: 10 W
Number of built-in speakers: 1
Design
Product type: Standard throw projector
Product colour: White
Housing material: Plastic

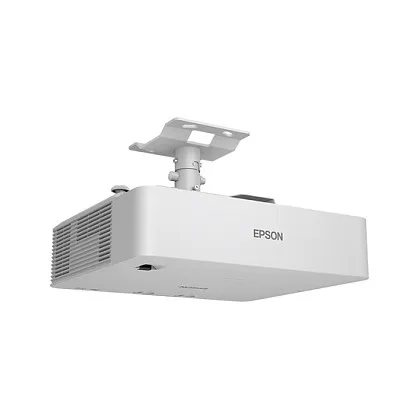

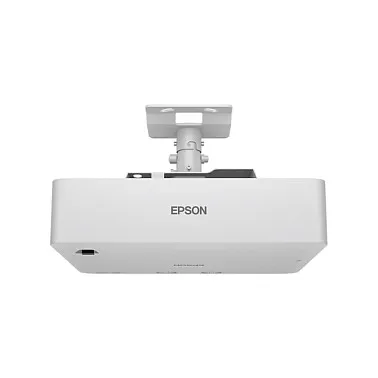

Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington
Power
Power source: USB
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Supplier features
Material: Recycled plastic
Operational conditions
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 440 mm
Depth: 340 mm
Height: 138 mm
Weight: 8.2 kg
Package width: 510 mm
Package depth: 515 mm
Package height: 230 mm
Package weight: 12.2 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: Power
Feature: Manual
Technical details
Warranty period: 3 year(s)
Feature: Mobile app support
Power consumption: 336 Watt (Normal On-Mode), 233 Watt (Eco On-Mode), 399 Watt (Normal Peak-mode), 295 Watt (Eco Peak-Mode), 0.4 Watt (Energy saving standby)
Logistics data
Quantity per pack: 1 pc(s)
Products per pallet: 18 pc(s)
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 2 pc(s)
Products per pallet (UK): 18 pc(s)
Other features
Control panel: 0.67 inch with C2 Fine
Supported network protocols: HTTPS, SNMP, ESC/VP.net, PJLink
Box contents: Main unit, Power cable, Quick Start Guide, Remote control incl. batteries, User guide, Warranty document
Security features: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Password protection
