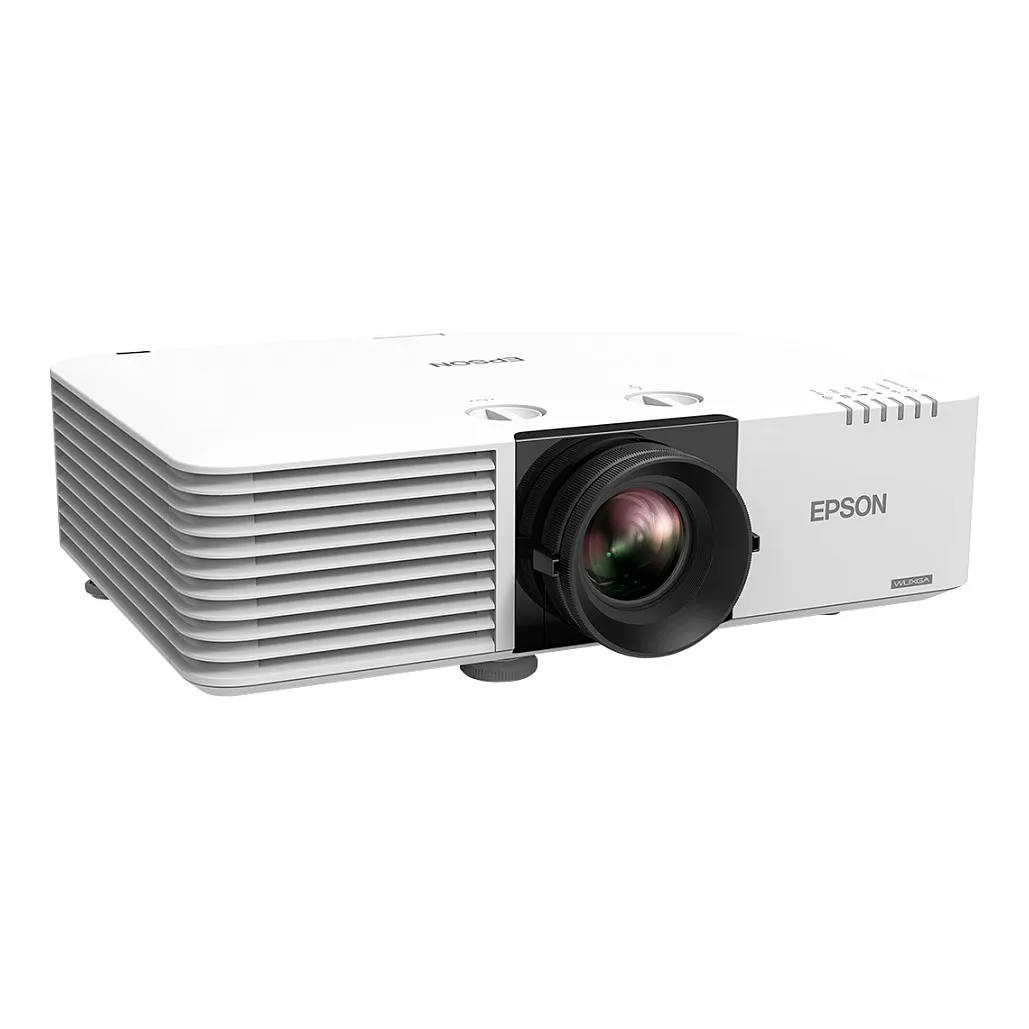

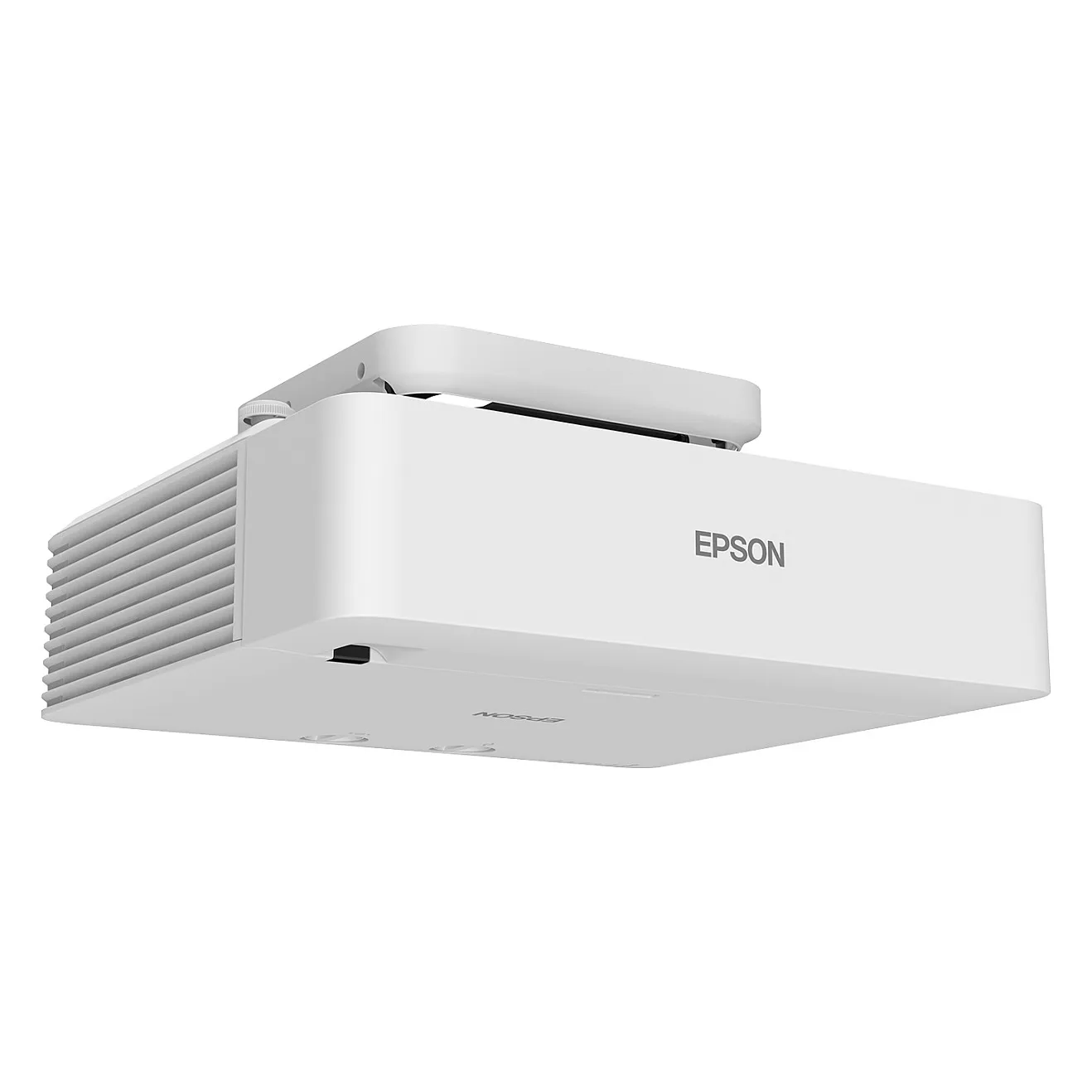

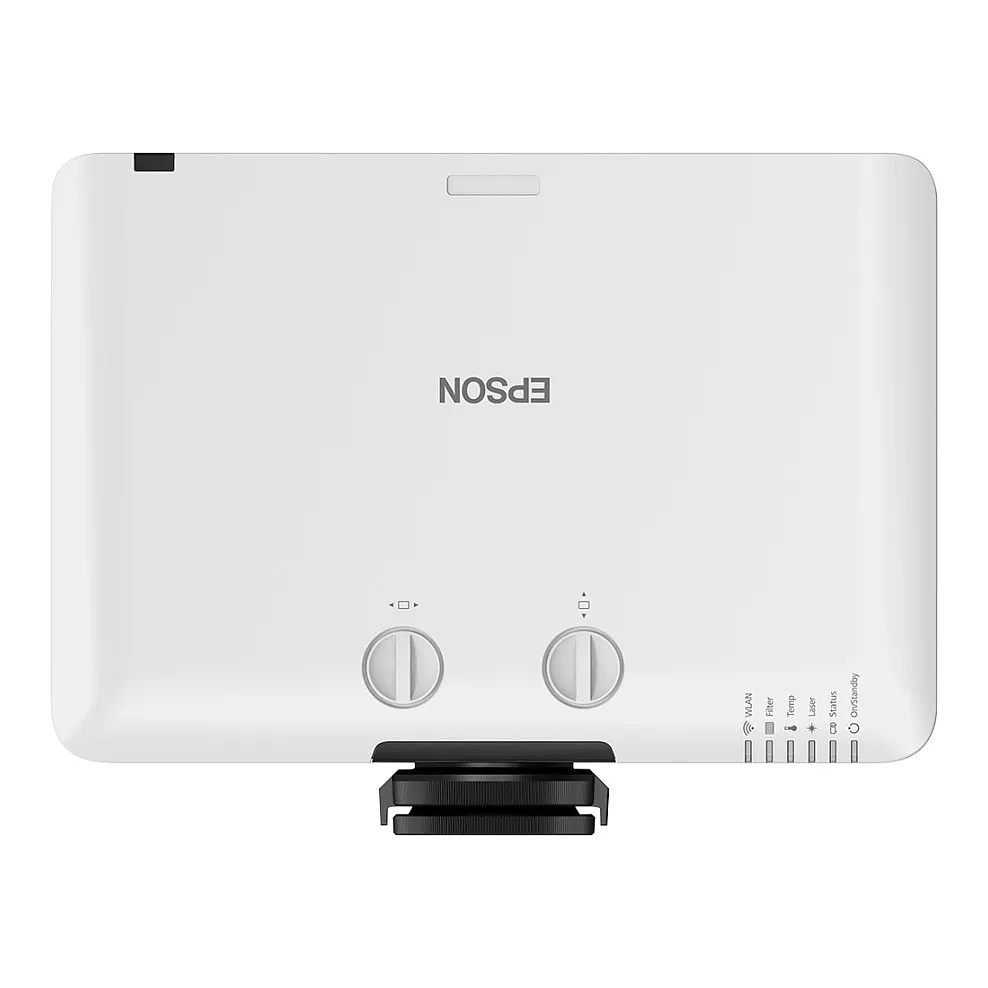

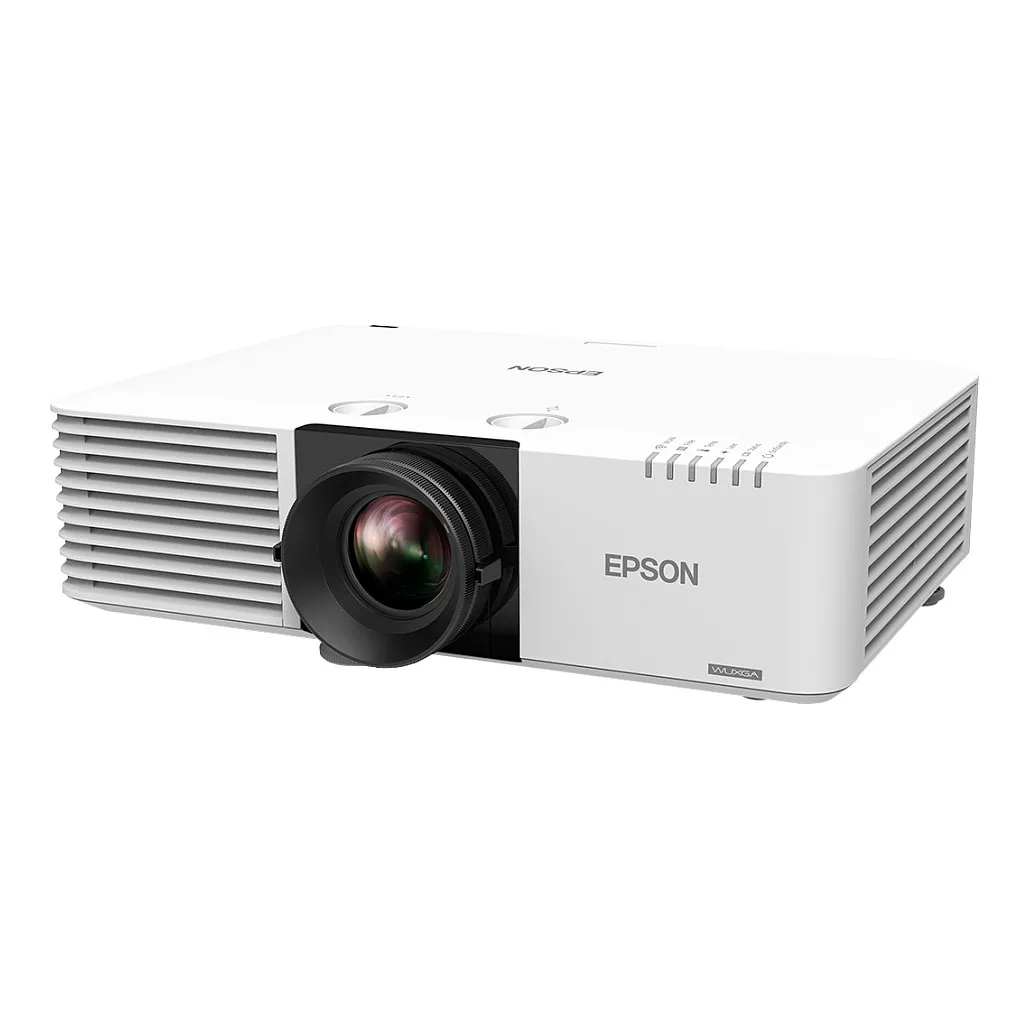

Epson EB-L530U. Projector brightness: 5200 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WUXGA (1920×1200). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 20 – 31.8 mm, Aperture range (F-F): 1.5 – 1.7. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, sRGB, DICOM SIM, Presentation, Video colour modes: Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB. Serial interface type: RS-232C, HDMI connector type: Full-size

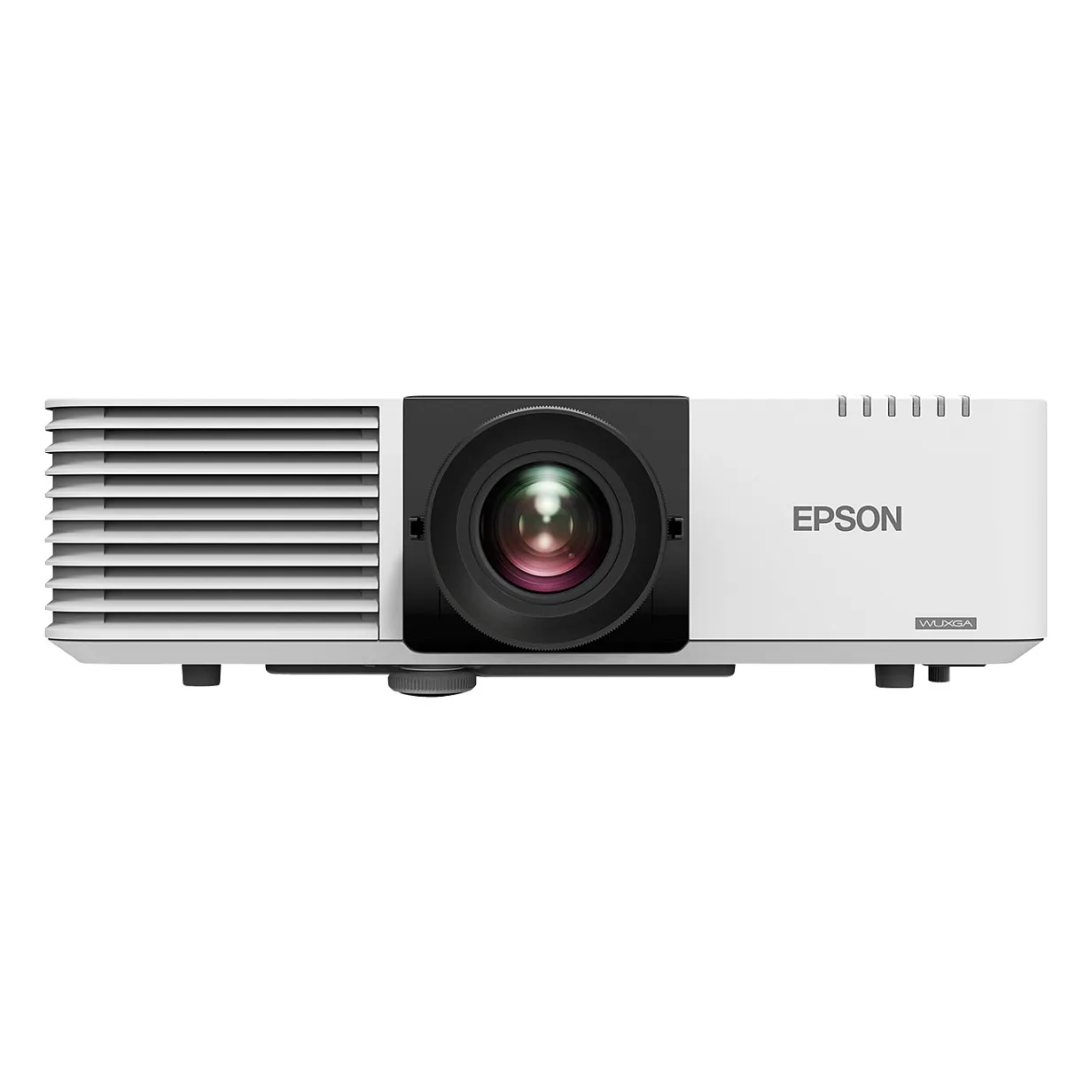

This laser projector has been designed to deliver large-scale, vivid displays. With the EB-L530U, you’ll benefit from a lower-cost, high brightness laser display solution that makes lamp replacements and clunky, inflexible flat panels problems of the past. As the market leader in 3LCD technology, Epson continues to improve its high brightness laser projectors with even smaller and more compact display solutions. The EB-L530U delivers effective, practical and creative display applications across a number of different industries.
Experience brighter and bolder displays
The EB-L530U produces more engaging and impactful displays even in brightly lit environments. It offers impressive 5,200-lumen brightness and WUXGA Full HD resolution at an affordable price. This means you can upgrade to laser performance and reliability, with reduced power consumption. It also features: 4K input support, detail enhancement technology, edge blending and wide lens shift to fit challenging installation environments. The EB-L530U is capable of up to 500-inch displays, without any reduction in clarity or vivid detail.
Install with ease

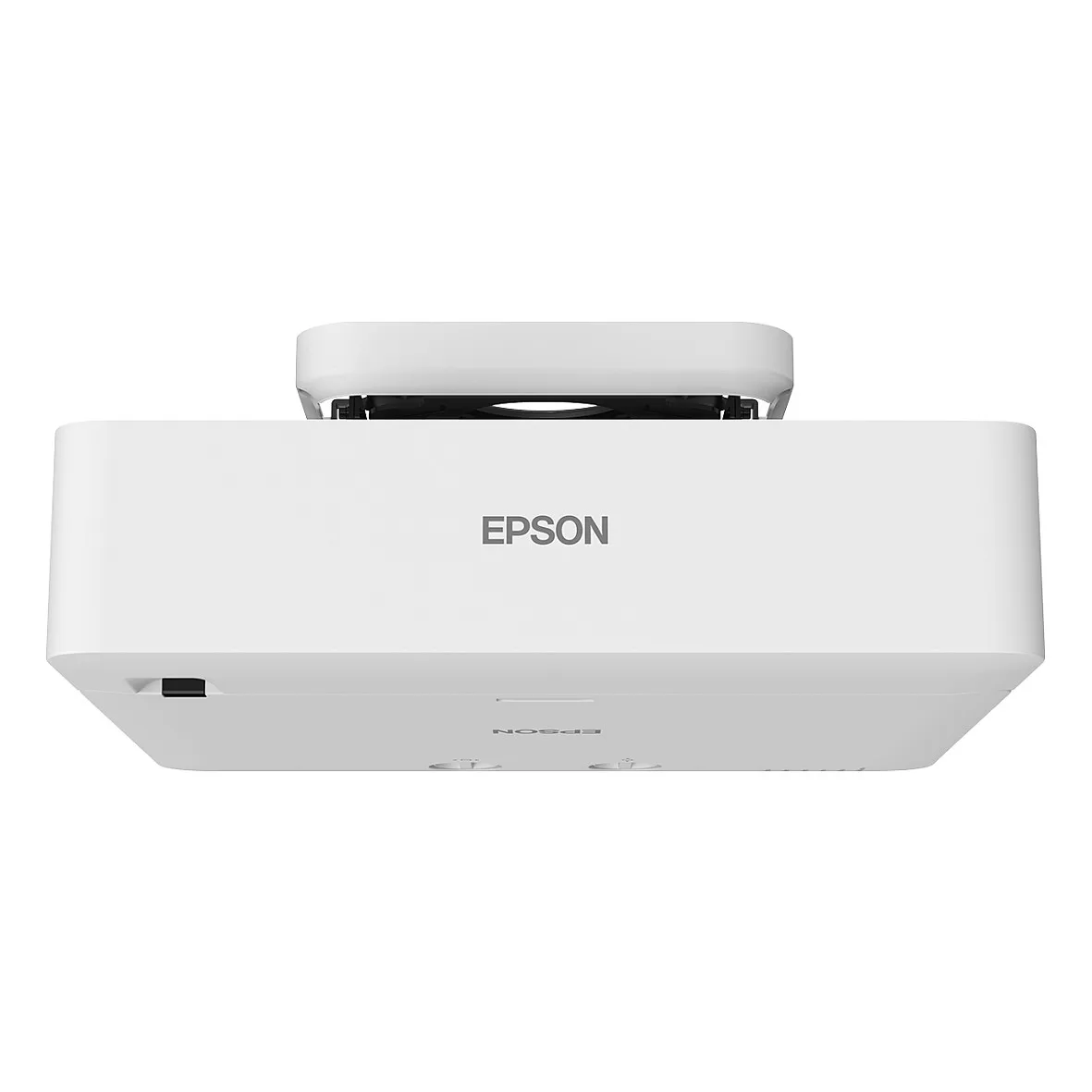

The EB-L530U includes many professional features which make installation simple, even when producing more advanced displays. This stylish and compact projector offers 360-degree installation, without compromising the display quality, and supports 16:6 ultra-widescreen, which means you can maximise the visible display space available. Also, with split-screen capability you can display two or four images from different sources simultaneously; and geometric correction and edge blending help create one large, seamless image using multiple displays.
Scale to suit your environment

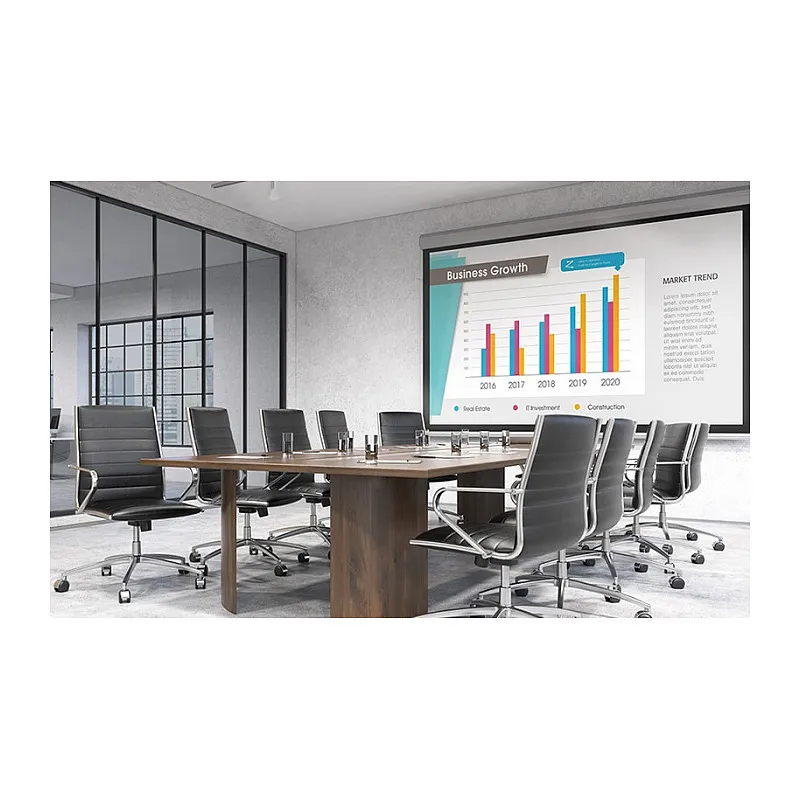

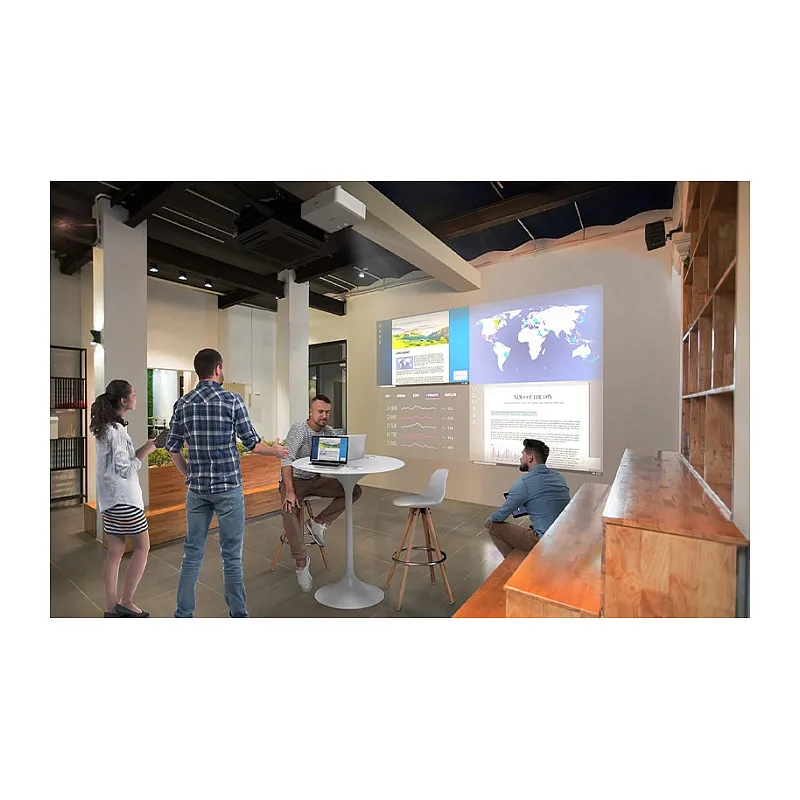

Unlike a flat-panel display, there’s no glare, fingerprints or wasted wall space. The image can be scaled to fit the required display size, from 50 to 500 inches. Whether it’s for education, corporate, retail or visitor attractions, the viewing experience can be unrestricted and more engaging for the audience.
Connect and control
The EB-L530U offers many ways to connect, show multiple sources simulateneously and present wirelessly. The future-proofed connectivity options include: HDMI (input and output) and HDBaseT with 4K signal support, 5GHz wireless with enterprise security, built-in media player, built-in Miracast and support for Epson’s ELPWP10 wireless presentation system. It is also easy to set up and navigate thanks to the intuitive on-screen user guide.
Create customised content for signage
Featuring a built-in media player with network content upload, The EB-L530U allows playlists to be loaded onto a USB storage device and played directly from the projector². Create customised content with your smartphone or tablet using the Epson Creative Projection App or create and schedule playlists using Epson Projector Content Manager software.
Plug, click and collaborate
Collaboration is made easy with Epson’s wireless presentation system, the ELPWP10. Achieve cost-saving and contemporary wireless connectivity. No cables – just plug-and-play!
Take control of your projected images

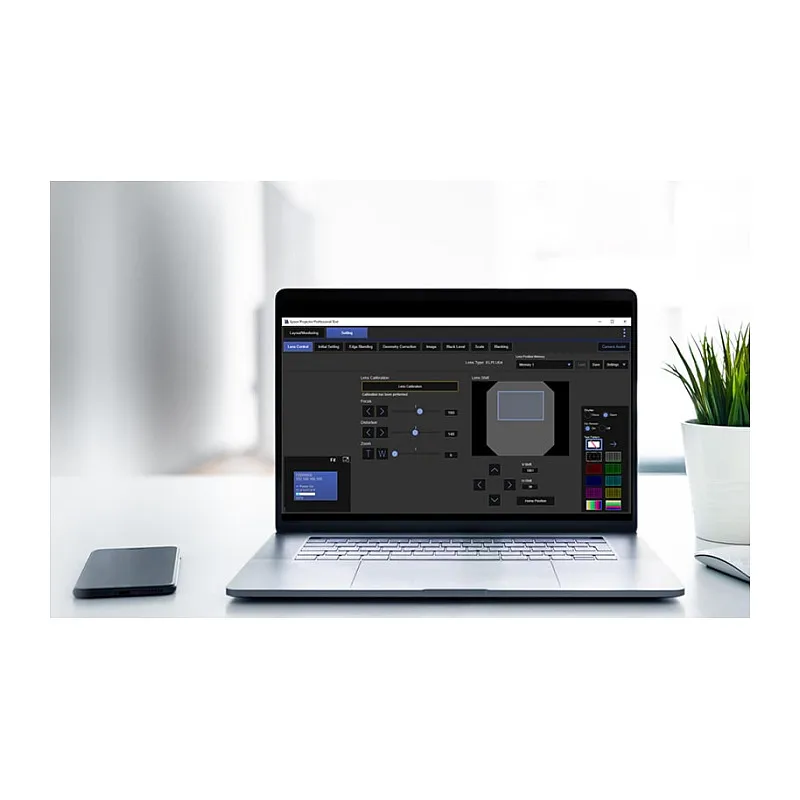

Achieve greater levels of image manipulation and control with Epson Projector Professional Tool software. Advanced features such as edge blending, projection mapping and multi-projector control are simplified thanks to this free and intuitive tool.
Support social distancing
Where social distancing remains both a requirement and responsible consideration, the scalable display size of up to 500 inches allows the content to be viewed from any position.
Screen size compatibility: 1270 – 12700 mm (50 – 500″)
Projection distance: 1.44 – 23.84 m
Projection distance (wide): 1.4 – 14.8 m
Projection distance (tele): 2.4 – 23.8 m
Contrast ratio (dynamic): 5000000:1
Projector brightness: 5200 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WUXGA (1920×1200)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 3640 ANSI lumens
Keystone correction, horizontal: ±30°
Keystone correction, vertical: ±30°
Matrix size: 1.7 cm (0.67″)
Light source
Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
Lens system
Focus: Manual
Focal length range: 20 – 31.8 mm
Aperture range (F-F): 1.5 – 1.7
Feature: Zoom capability
Zoom type: Manual
Zoom ratio: 1.6:1
Throw ratio: 1.35 – 2.20:1
Horizontal lens shift range: -20 – -20%
Vertical lens shift range: -50 – -50%
Video
Feature: Full HD
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic, sRGB, DICOM SIM, Presentation
Video colour modes: Cinema, DICOM simulation mode, Dynamic, Multi-projection, Presentation, sRGB

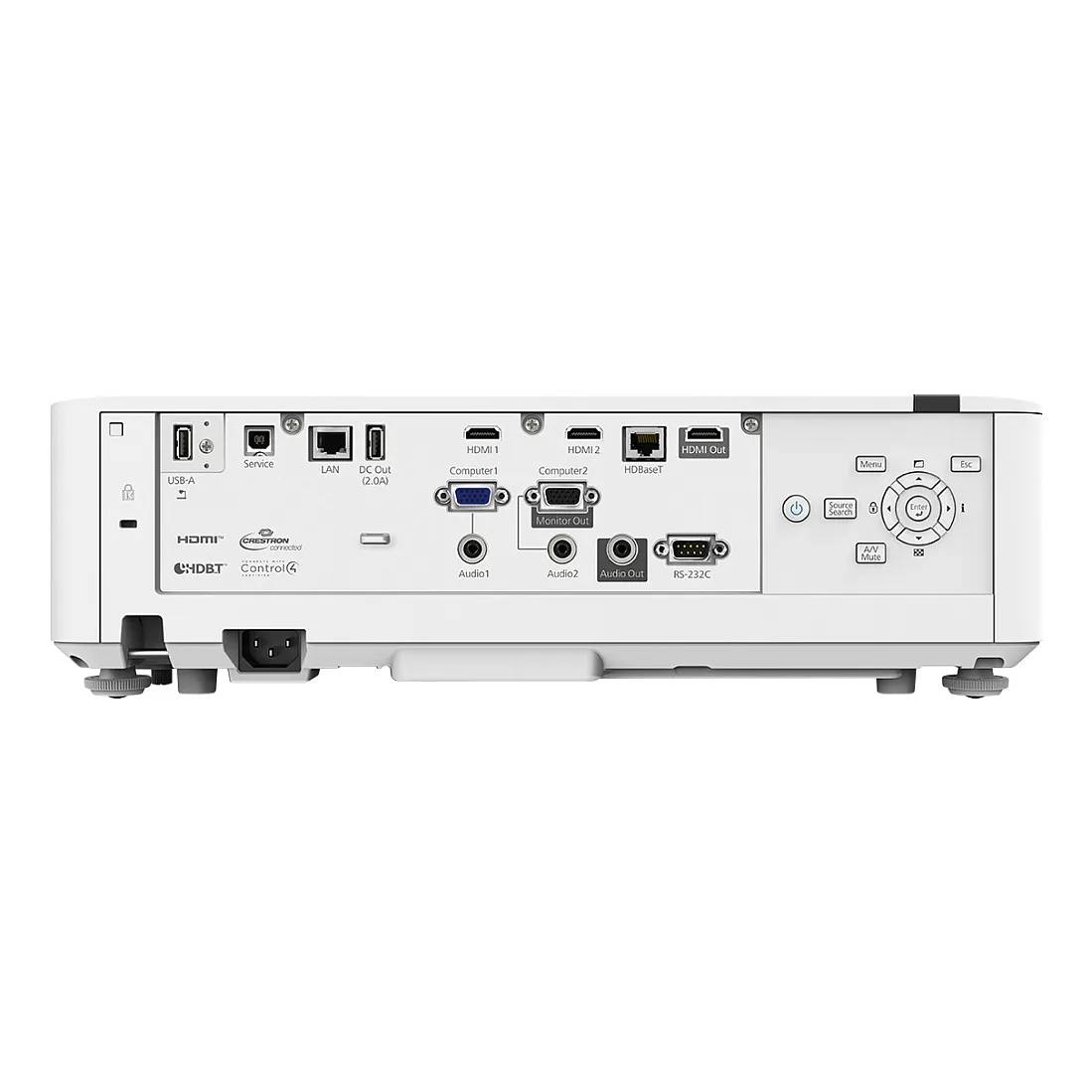

Ports & interfaces
HDMI connector type: Full-size
Feature: HDBaseT port
USB 2.0 ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Serial interface type: RS-232C
Feature: PC Audio in
Feature: PC Audio out
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 3
Feature: AC (power) in
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n)
Feature: Miracast
Features
Noise level (economic mode): 23 dB
Feature: HDCP
Noise level: 31 dB
Country of origin: Philippines
Feature: Password protection
Multimedia
Feature: Built-in speaker(s)
RMS rated power: 10 W
Number of built-in speakers: 1
Design
Market positioning: Presentation
Product type: Standard throw projector
Product colour: White

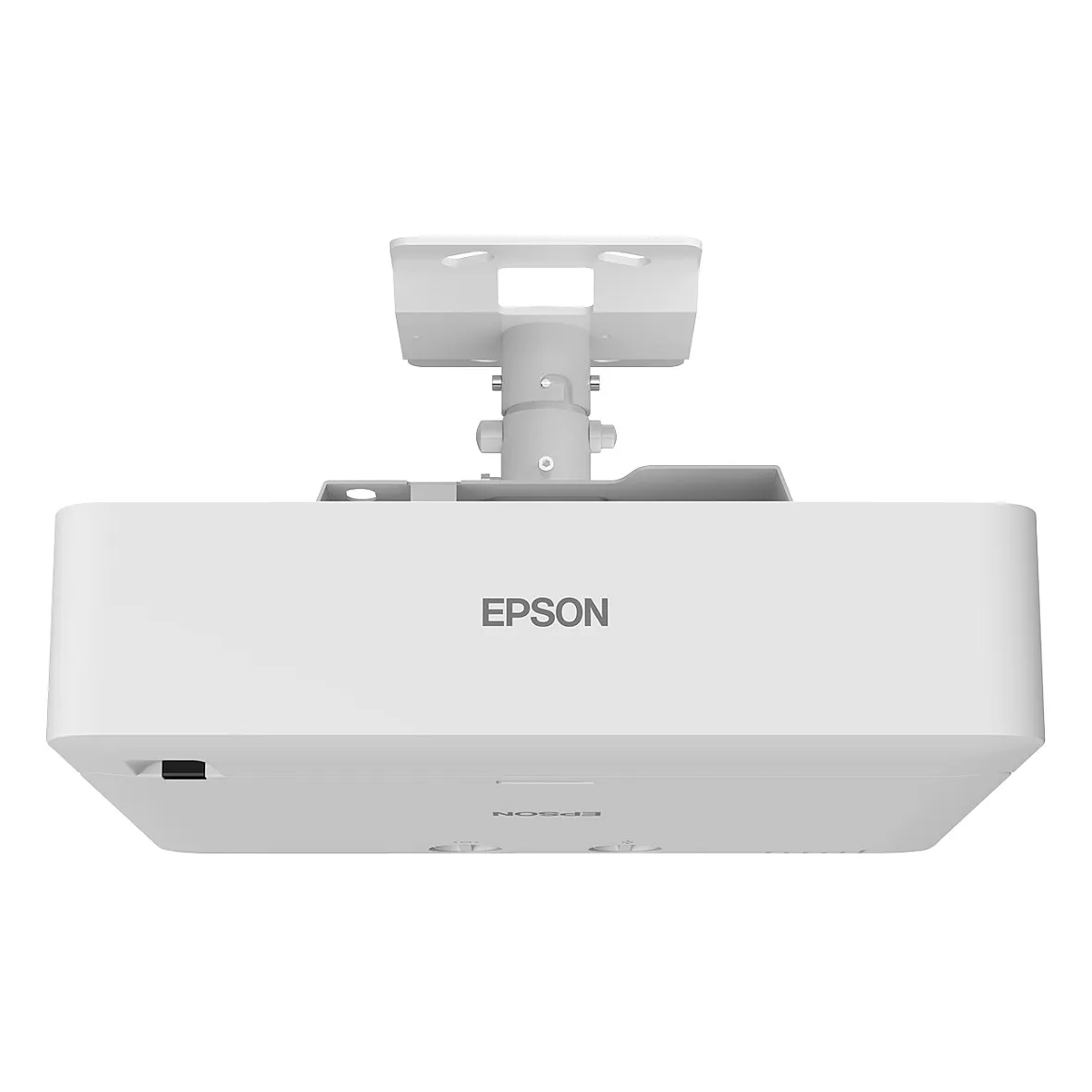

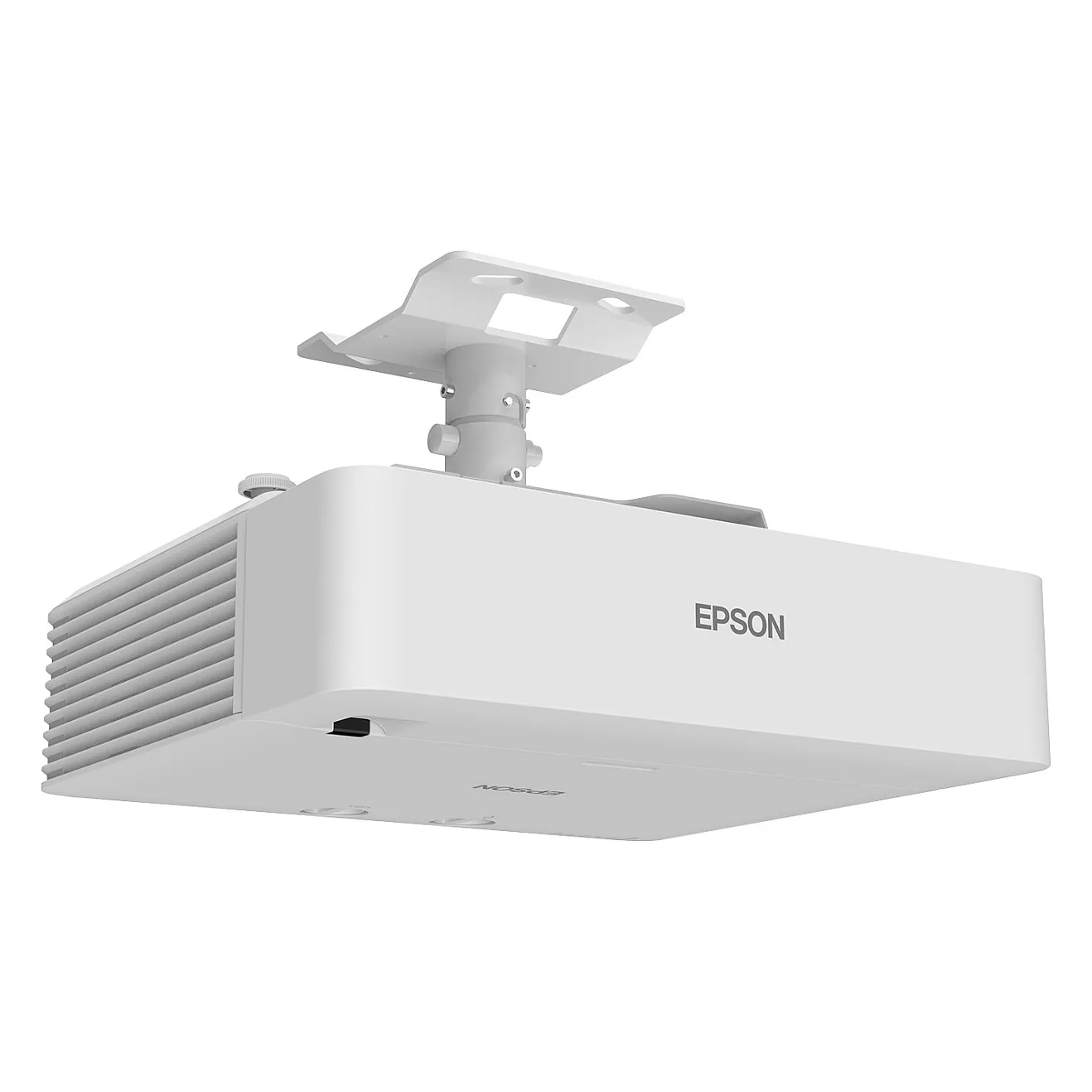

Placement: Ceiling, Desktop
Feature: Cable lock slot
Cable lock slot type: Kensington
Power
Power source: AC
Power consumption (typical): 293 W
Power consumption (standby): 0.3 W
Power consumption (economy mode): 223 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Software
Software support: via: Crestron Integrated Partner, Extron IP Link, Extron XTP, AMX Device Discovery, Control4 Simple Device Discovery Protocol
Operational conditions
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 440 mm
Depth: 339 mm
Height: 136 mm
Weight: 8.2 kg
Package width: 540 mm
Package depth: 565 mm
Package height: 210 mm
Package weight: 12 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC
Feature: Manual
Feature: Warranty card
Feature: WLAN adapter included
Technical details
Sustainability certificates: TCO
Feature: Mobile app support
Power consumption: 234 Watt (Normal On-Mode), 164 Watt (Eco On-Mode), 293 Watt (Normal Peak-mode), 223 Watt (Eco Peak-Mode), 0.3 Watt (Energy saving standby)
Logistics data
Quantity per pack: 1 pc(s)
Products per pallet: 14 pc(s)
Pallet gross weight: 0 g
Products per pallet (UK): 14 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 85286200
Other features
Option type: Connection and control box, Document camera, External Speaker, HDBaseT Transmitter, MB22 ceiling mount, Wireless LAN unit
Control panel: 0.67 inch with C2 Fine
Supported network protocols: HTTPS, IPv6, SNMP, ESC/VP.net, PJLink
Box contents: Cable cover, HDMI Cable, Main unit, Power cable, Remote control incl. batteries, User guide, Warranty Documents
Security features: Kensington lock, Control panel lock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
