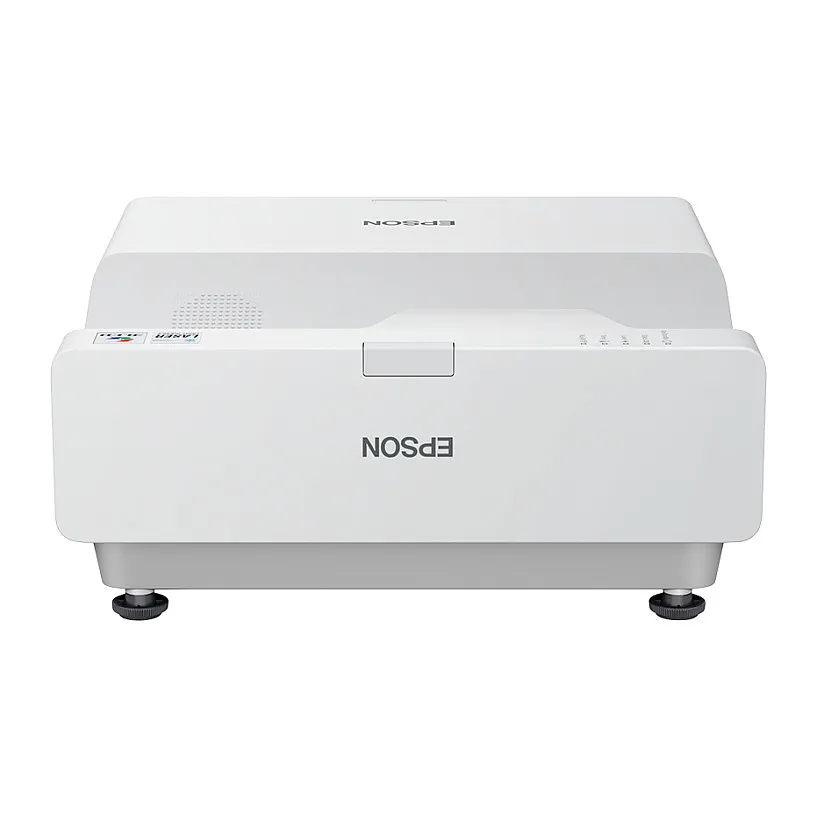

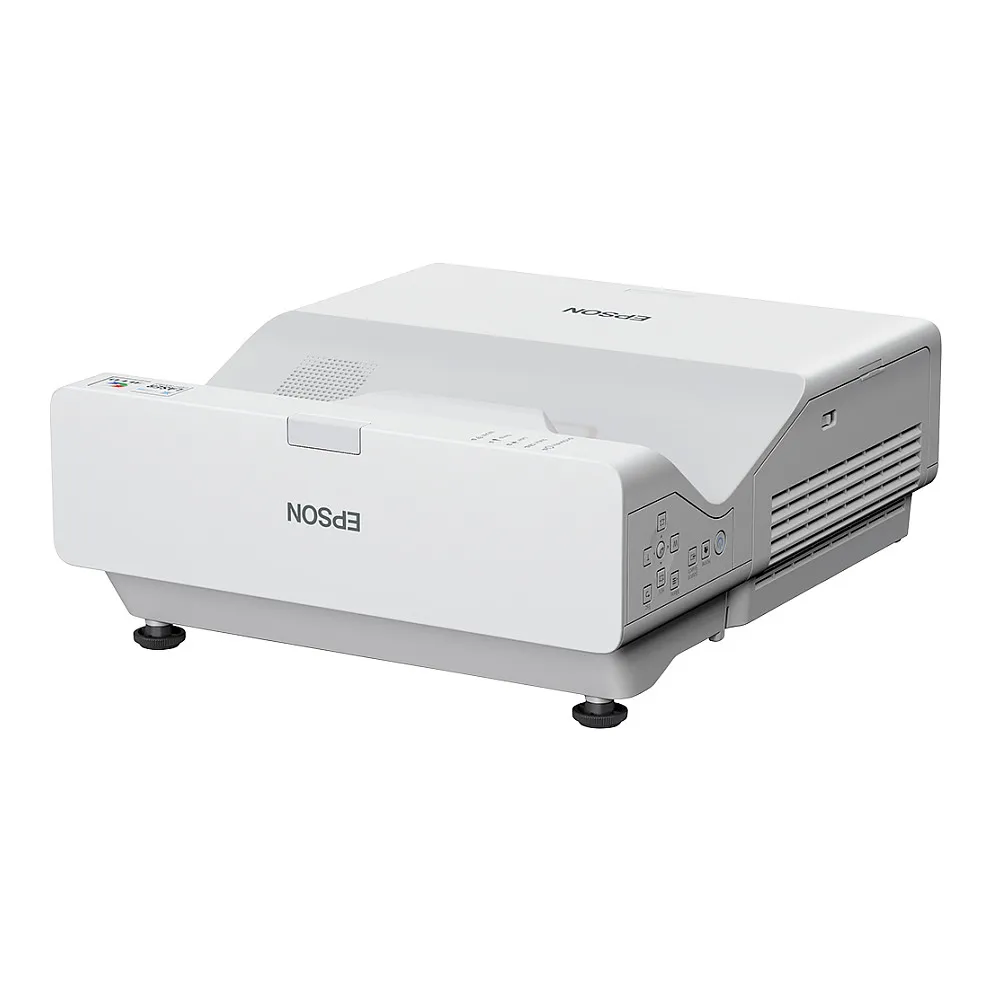

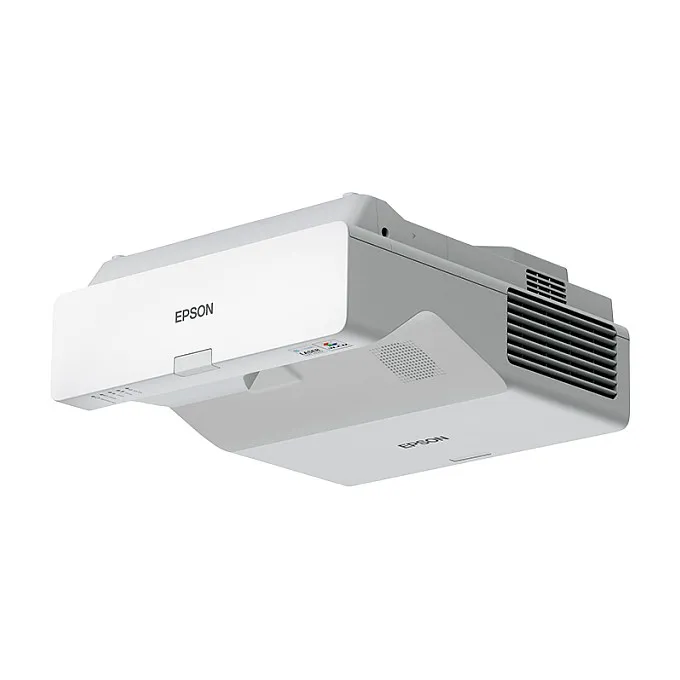

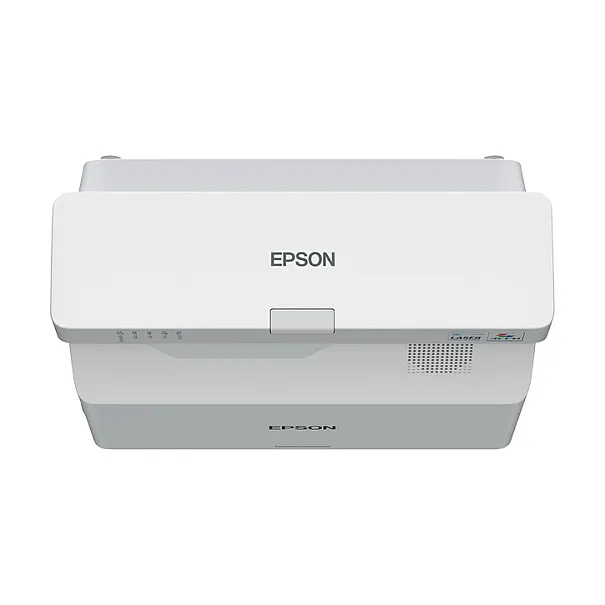

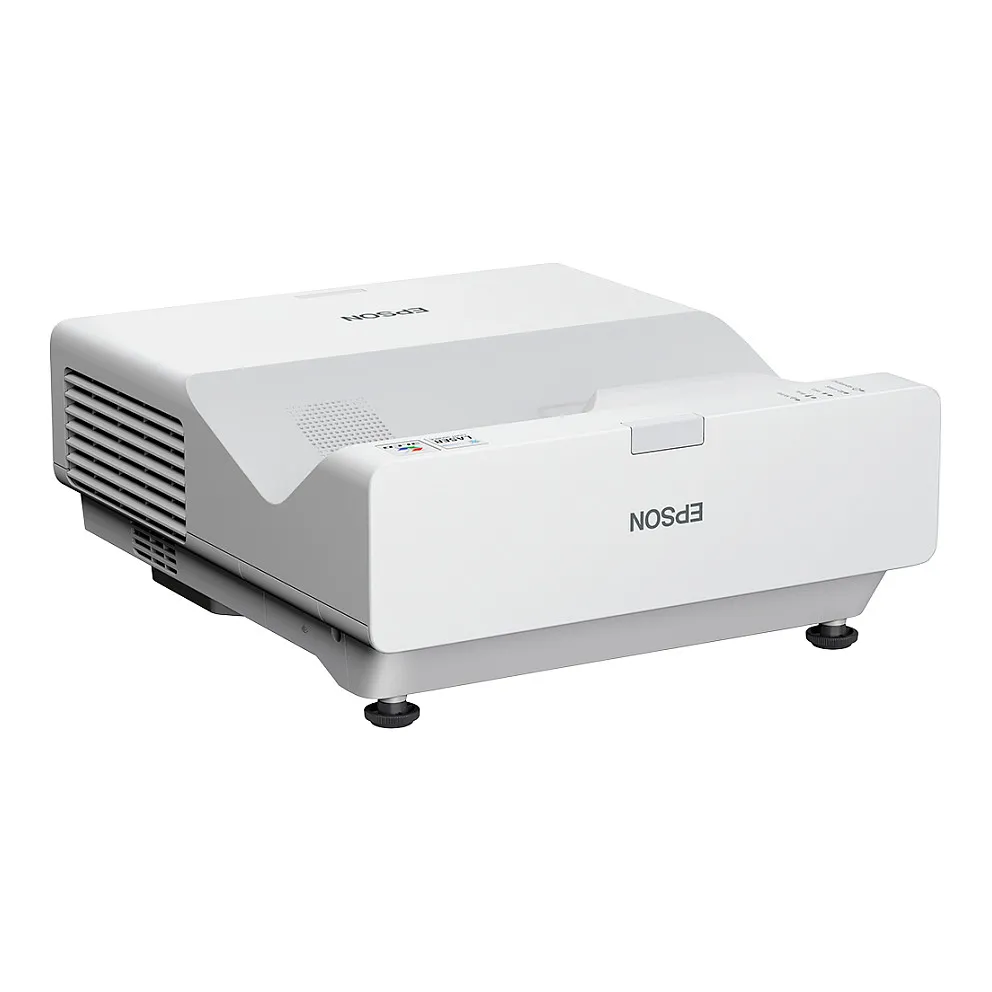

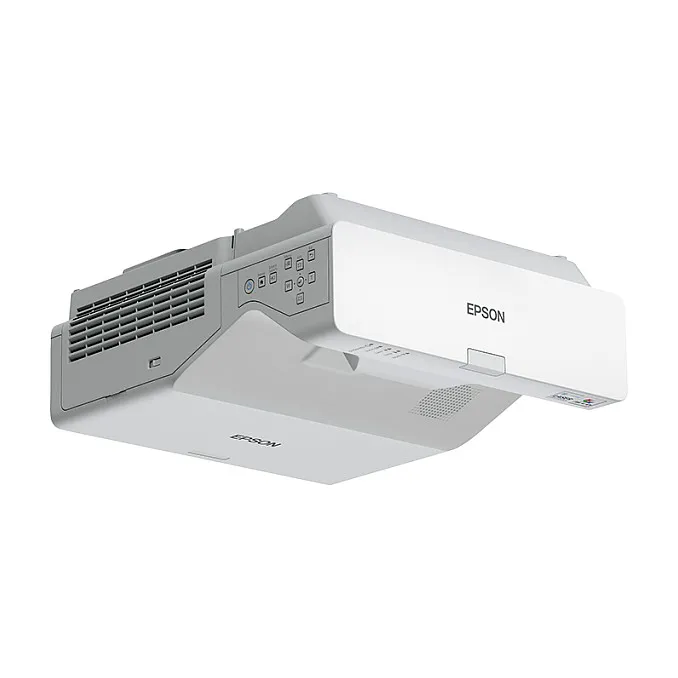

Epson EB-770Fi. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: 1080p (1920×1080). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB. Serial interface type: RS-232C

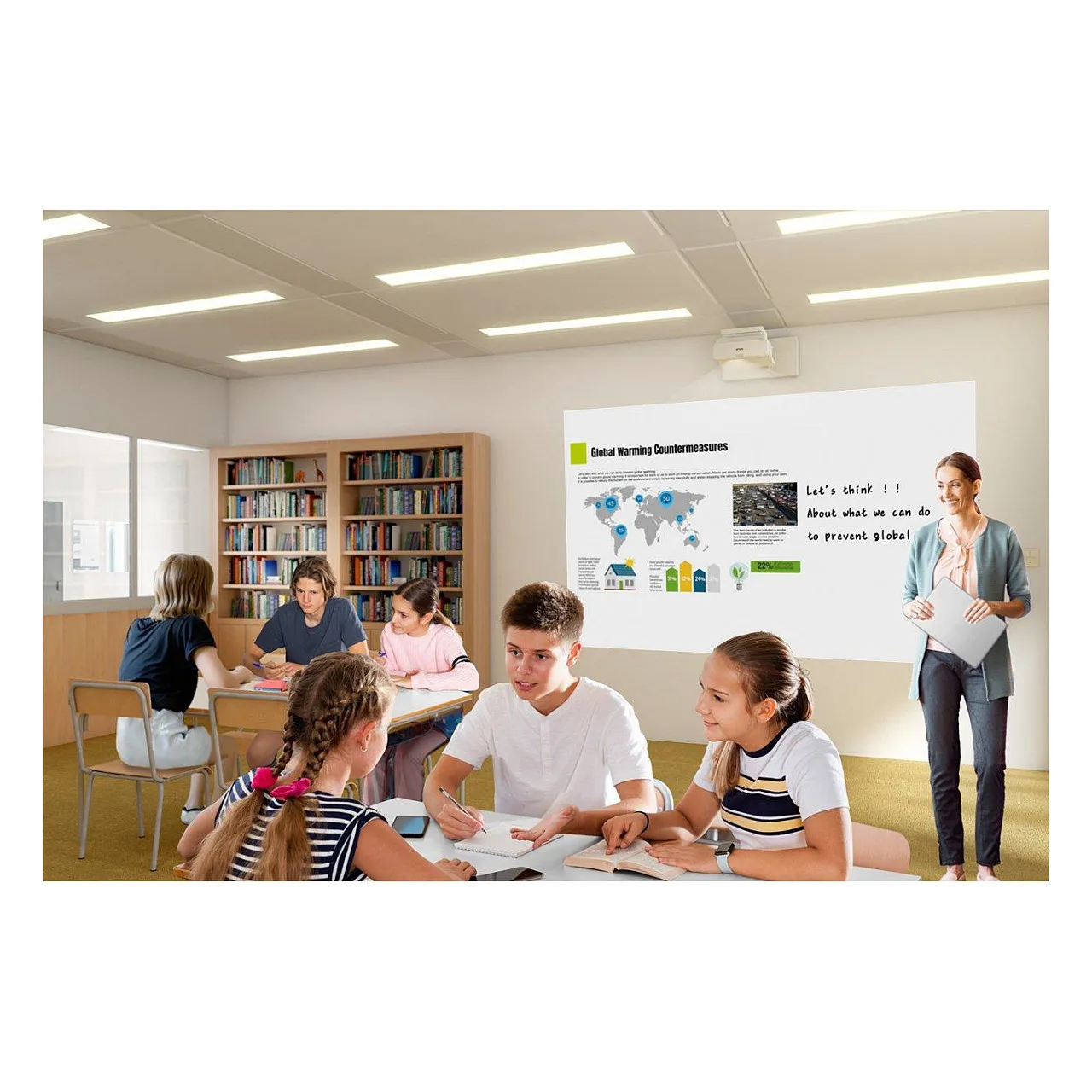

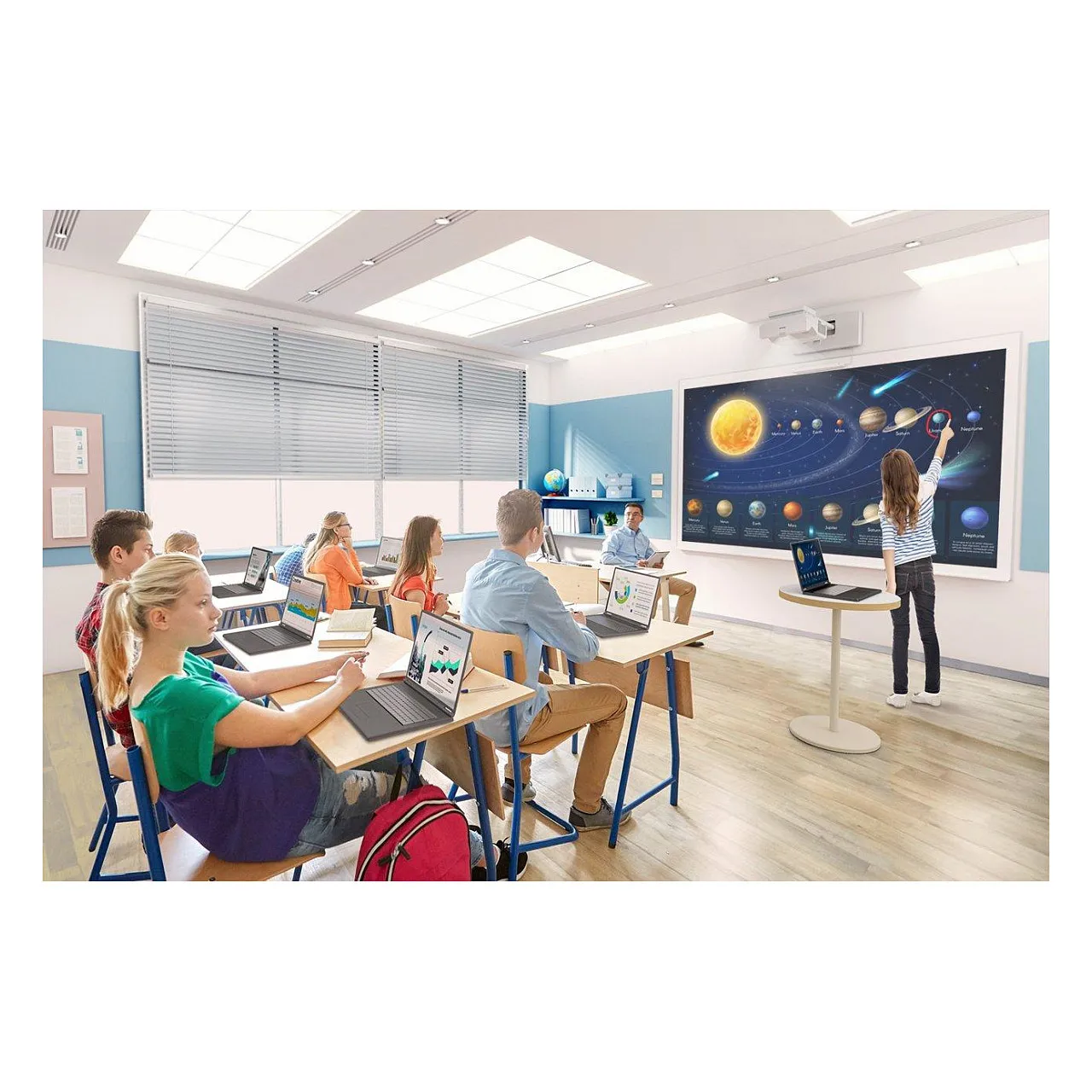

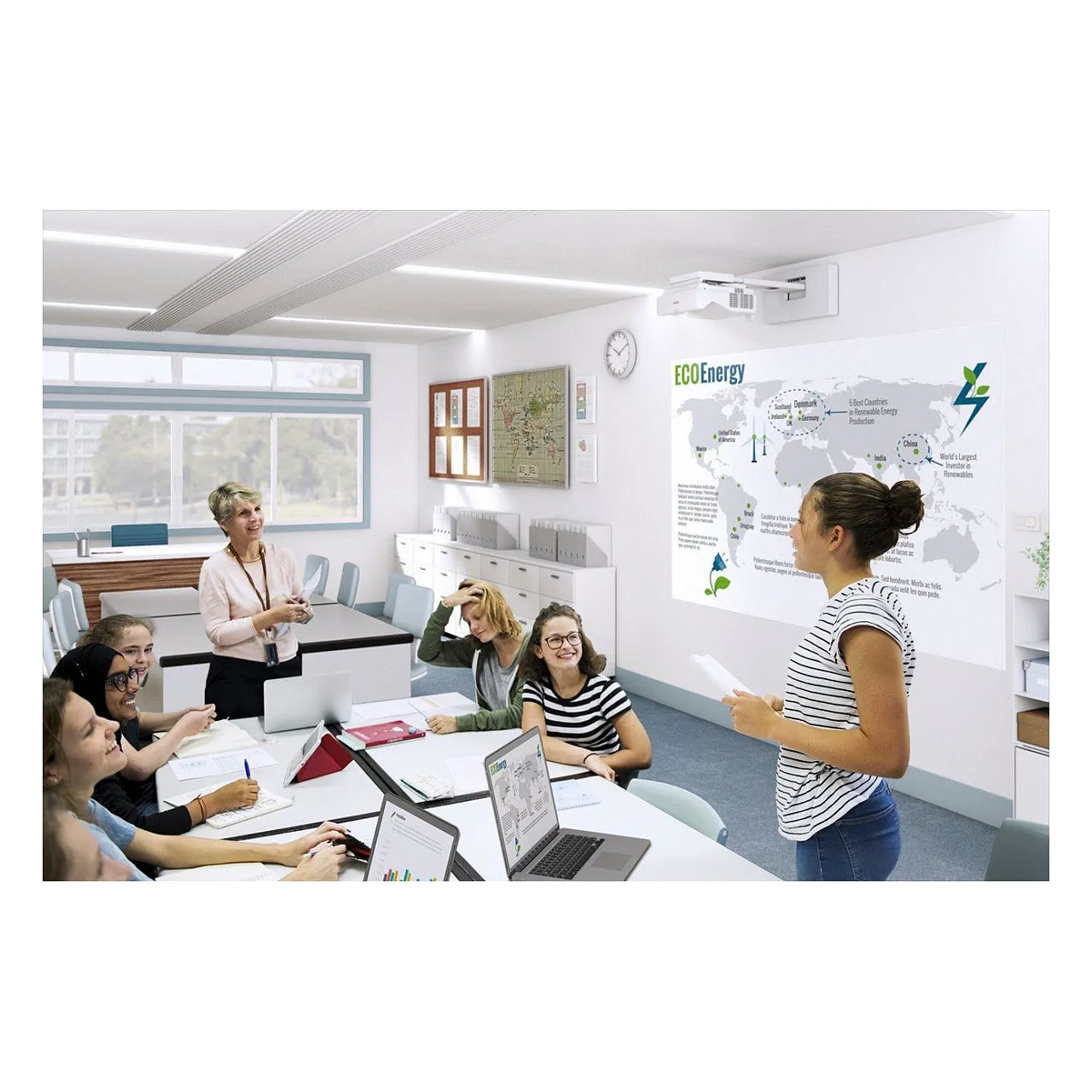

Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi’s bright image, scalable up to 100″, is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

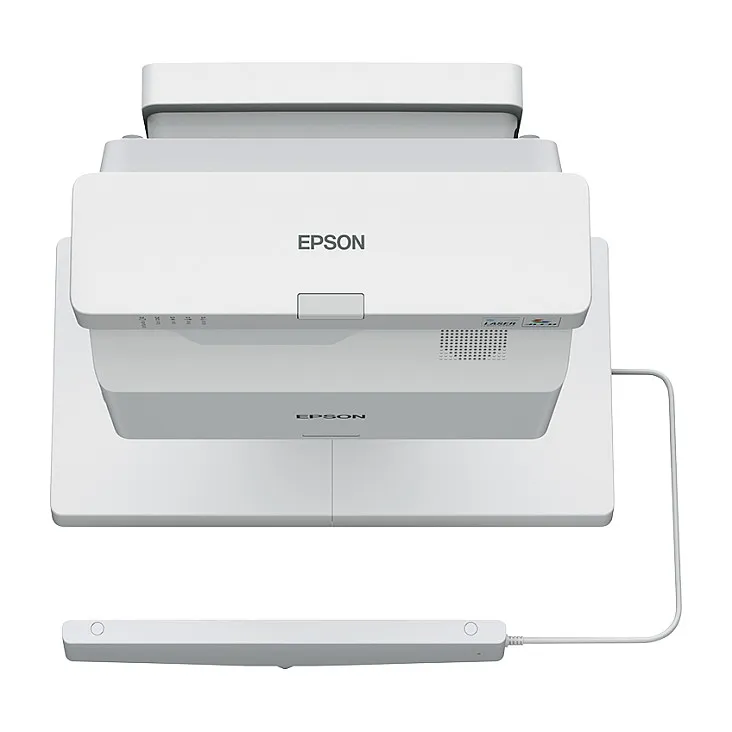

Interactive display
The EB-770Fi is a step up from the EB-770F, with added interactive features.
Two digital pens to be used on the display simultaeously (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be contolled via the display, projecting documents or objects from a desk for everyone to see in incredible detail.
Bright display up to 100″
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100″, clearly visible from all angles and at a distance.
Effortless connectivity
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allows participants to effortlessly share content from their PCs or mobile devices.
The experience is immersive and user-friendly

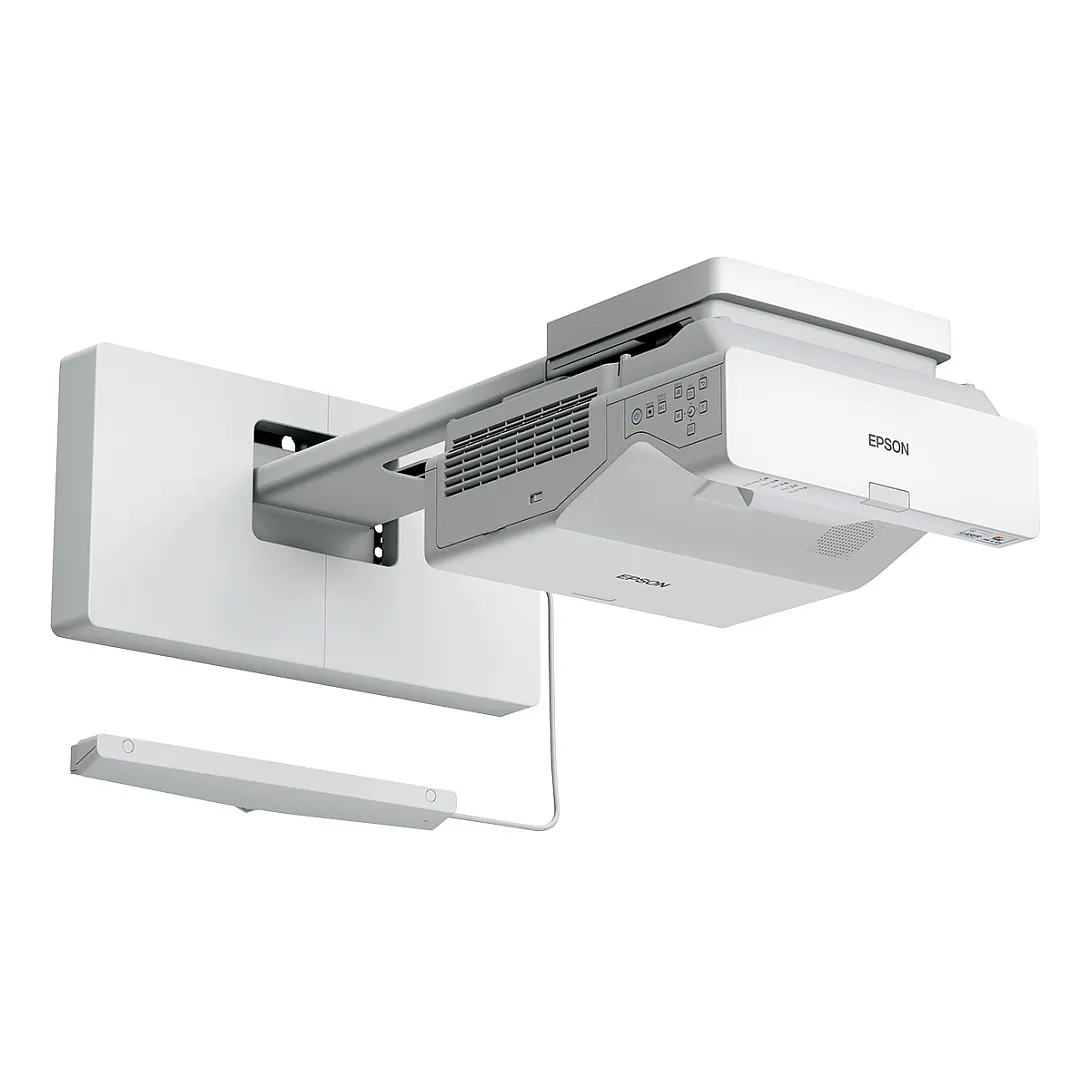

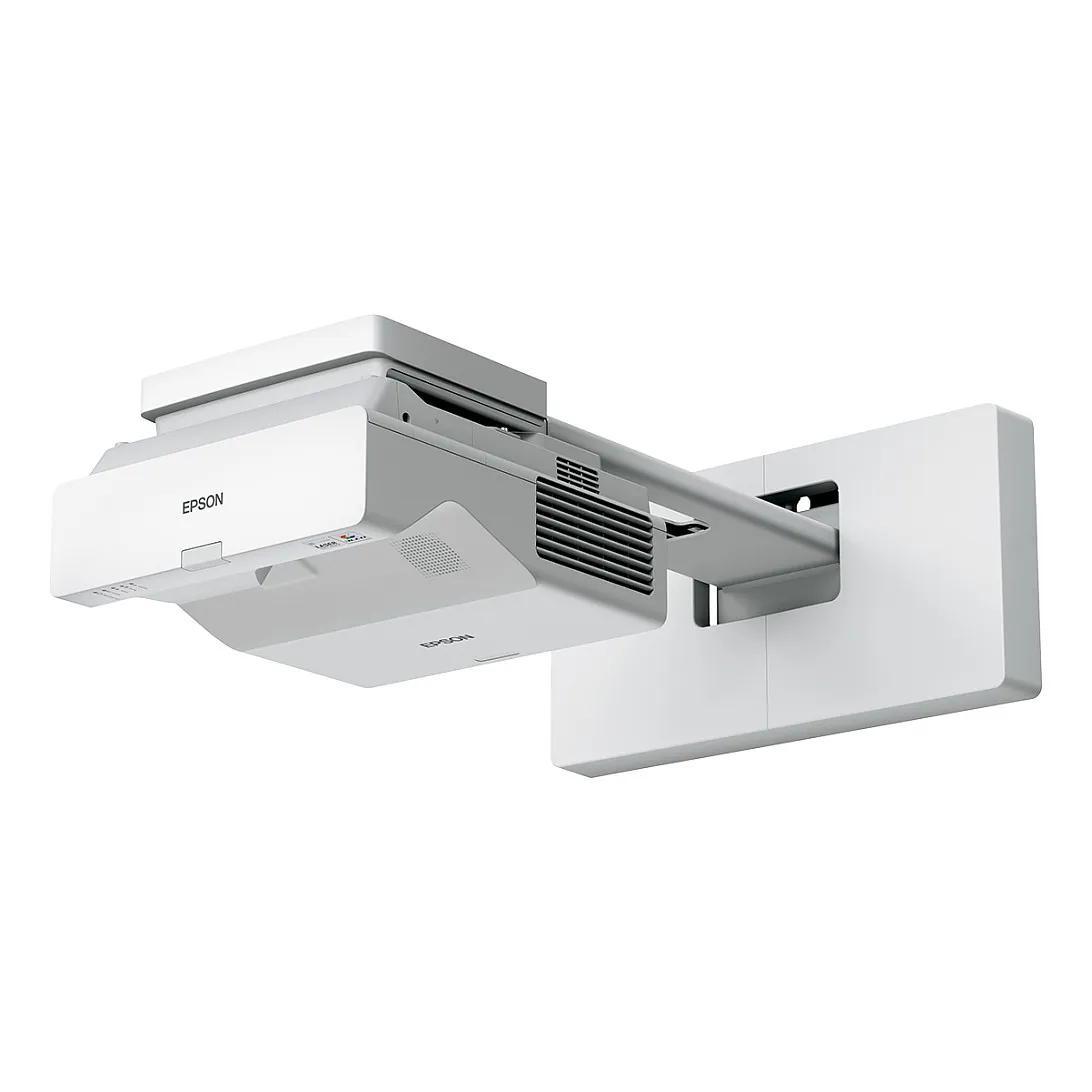

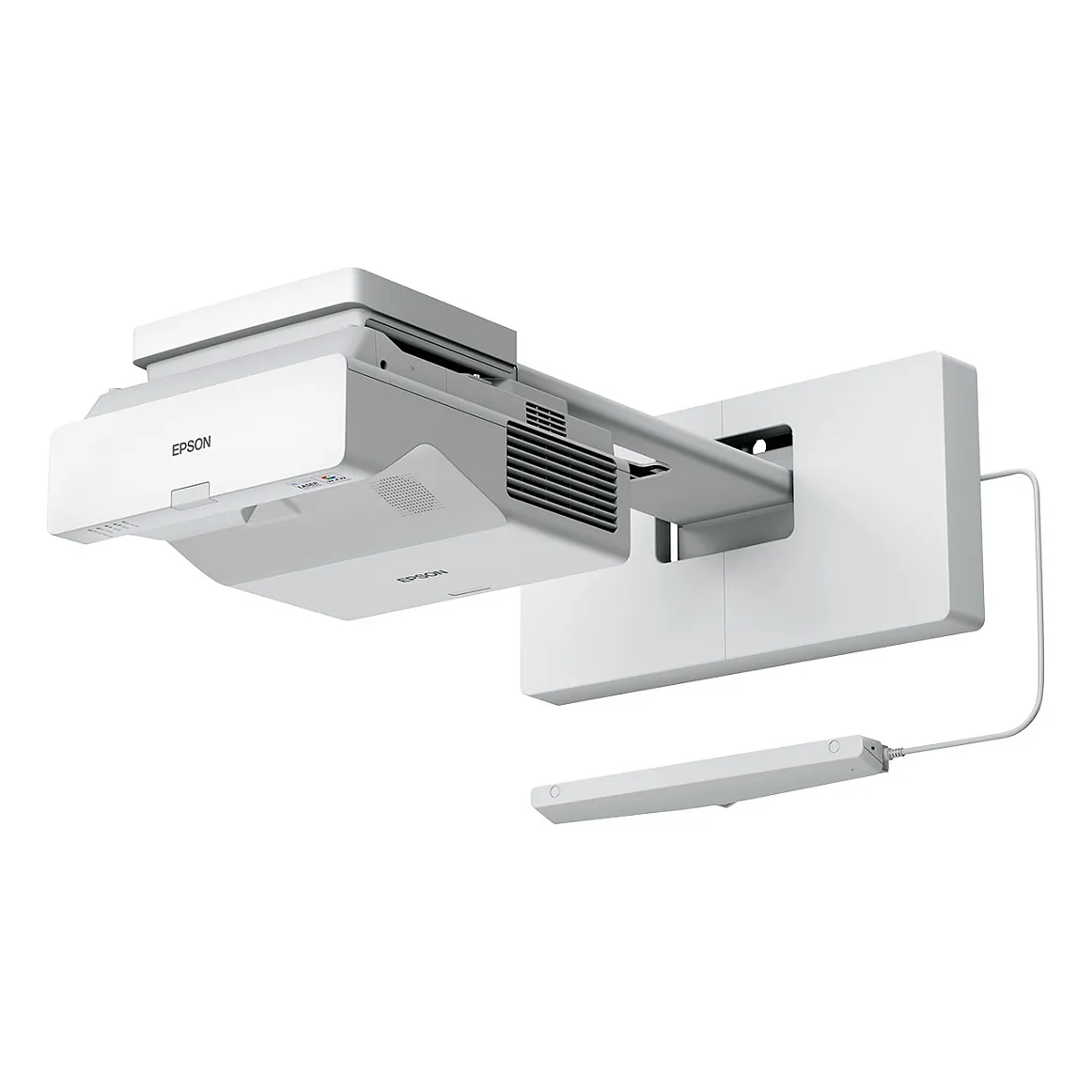

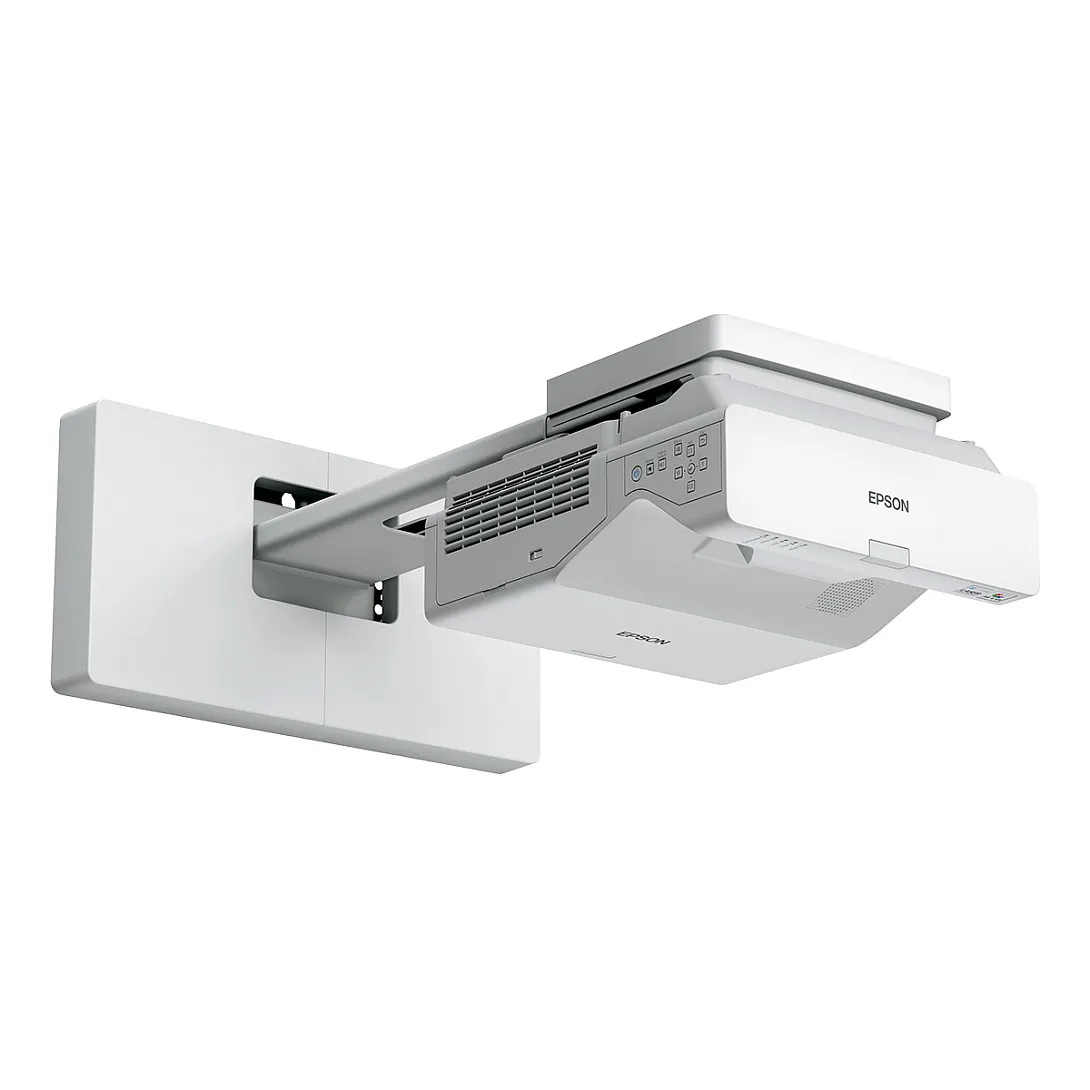

The ultra short throw lens allows safe, unobtrusive positioning above the display, enabling presenters free access to interact without casting shadows.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles; and presenters are not subjected to LCD panel direct blue light radiation.
Screen size compatibility: 1524 – 2540 mm (60 – 100″)
Contrast ratio (dynamic): 5000000:1
Projector brightness: 4100 ANSI lumens
Projection technology: 3LCD
Projector native resolution: 1080p (1920×1080)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:9
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2800 ANSI lumens
Vertical scan range: 192 – 240 Hz
Keystone correction, horizontal: ±3°
Keystone correction, vertical: ±3°
Heat dissipation: 895 BTU/h
Light source
Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
Lens system
Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
F-number (relative aperture): 1.6
Feature: Zoom capability
Zoom ratio: 1.35:1
Throw ratio: 0.25 – 0.35:1
Video
Analog signal format system: Not supported
Feature: Full HD
Video processing: 10 bit
Video colour modes: Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB

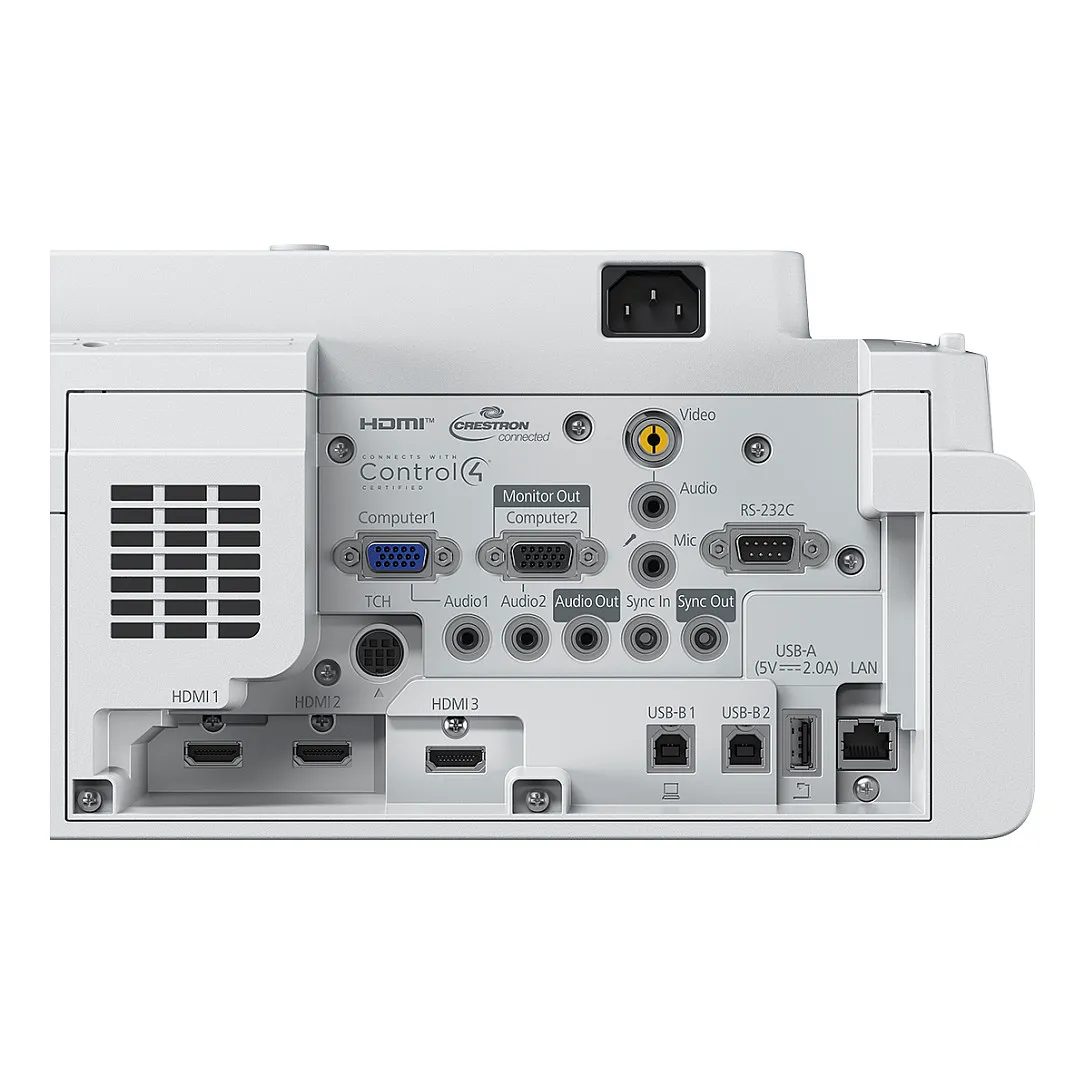

Ports & interfaces
USB 2.0 ports quantity: 4
USB 2.0 Type-A ports quantity: 2
USB 2.0 Type-B ports quantity: 2
Feature: Microphone in
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 3
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Features
Feature: Interactive
Interactive input supported: Interactive pen/Touch
Noise level (economic mode): 27 dB
Noise level: 37 dB
Country of origin: Philippines
Feature: Password protection
Multimedia
Feature: Built-in speaker(s)
RMS rated power: 16 W
Design
Market positioning: Presentation
Product type: Ultra short throw projector
Product colour: White
Placement: Ceiling, Desktop, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington
Power
Power source: AC
Power consumption (typical): 197 W
Power consumption (standby): 0.5 W
Power consumption (PowerSave): 199 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
AC adapter output voltage: 100 – 240 V
Operational conditions
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 356 mm
Depth: 395 mm
Height: 133 mm
Weight: 6 kg
Package width: 450 mm
Package depth: 485 mm
Package height: 325 mm
Package weight: 9.15 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC, USB
Bundled software: Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management
Technical details
Power consumption: 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Logistics data
Quantity per pack: 1 pc(s)
Products per pallet: 12 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.1 m
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 4 pc(s)
Products per pallet (UK): 24 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.1 m
Other features
Control panel: 0.62 inch with C2 Fine
Supported network protocols: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Security features: Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
