Epson EB-760W. Projector brightness: 4100 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280×800). Light source type: Laser, Service life of light source: 20000 h, Service life of light source (economic mode): 30000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB. Serial interface type: RS-232C
Whatever the size of class or meeting room, unrestricted and immersive presentations are possible with this bright, clear, compact and affordable display solution.
The EB-760W’s bright image, scalable up to 150″, is clearly visible from any angle and from a distance, and content can be easiliy shared or streamed directly from multiple devices for the perfect collaborative experience.
The EB-760W’s ultra short throw lens allows safe, discreet positioning close to the display, enabling presenters free access to perform without casting shadows.
With 4,100 lumens Colour Light Output and Epson 3LCD technology, the display is bright and vibrant up-to 150″, clearly visible from all angles and from a distance. The experience is immersive and user-friendly.
Projection also enables flexible display sizes, scalable from 49-150″, display sizes can be optimised for each room with one familiar product and at a fixed cost
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allow participants to effortlessly share content from their PCs or mobile devices. With a connected optional Epson visualiser, documents, presentations or 3D objects can be viewed with incredible detail.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots at certain angles, and teachers are not subjected to LCD panel direct blue light radiation, believed to damage eyes. Paired with a hygienic, antibacterial whiteboard, teachers can annotate presentations with dry-wipe pens, or to save energy, simply use the whiteboard with the display turned off.
Supported aspect ratios: 16:10
Screen size compatibility: 1524 – 3810 mm (60 – 150″)
Contrast ratio (dynamic): 5000000:1
Projector brightness: 4100 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280×800)
Contrast ratio (typical): 2500000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2800 ANSI lumens
Vertical scan range: 100 – 120 Hz
Keystone correction, horizontal: ±3°
Keystone correction, vertical: ±3°
Heat dissipation: 895 BTU/h
Light source
Light source type: Laser
Service life of light source: 20000 h
Service life of light source (economic mode): 30000 h
Lens system
Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
F-number (relative aperture): 1.6
Feature: Zoom capability
Zoom ratio: 1.35:1
Throw ratio: 0.27 – 0.37:1
Video
Video processing: 10 bit
Video colour modes: Blackboard, Cinema, Dynamic, Presentation, sRGB

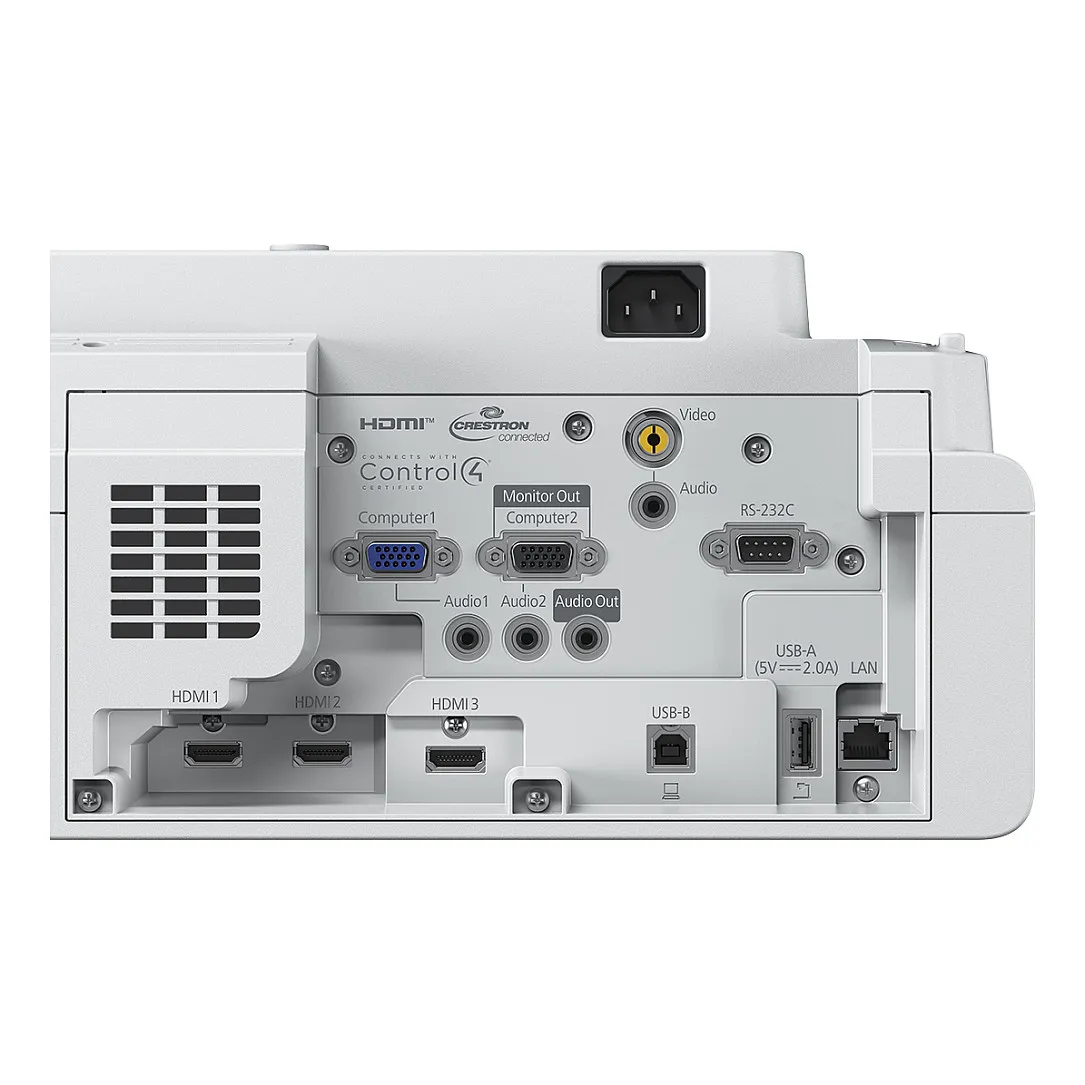

Ports & interfaces
USB 2.0 ports quantity: 3
USB 2.0 Type-A ports quantity: 2
USB 2.0 Type-B ports quantity: 1
Audio (L/R) in: 3
Audio (L/R) out: 1
Feature: Microphone in
Serial interface type: RS-232C
VGA (D-Sub) ports quantity: 2
HDMI ports quantity: 3
Composite video in: 1
Feature: Consumer Electronics Control (CEC) support
Feature: Audio Return Channel (ARC)
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Feature: Wi-Fi
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
Feature: Miracast
Features
Noise level (economic mode): 27 dB
Feature: On Screen Display (OSD)
Feature: Screen mirroring
Noise level: 37 dB
Country of origin: Philippines
Feature: Password protection
Multimedia
Feature: Built-in speaker(s)
RMS rated power: 16 W
Design
Market positioning: Presentation
Product type: Ultra short throw projector
Product colour: White

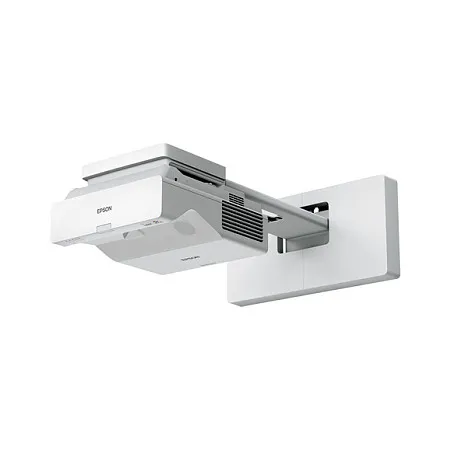

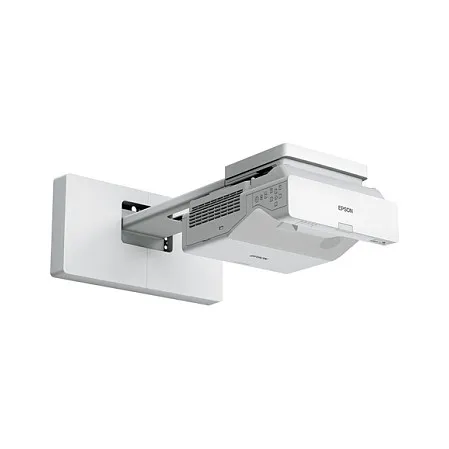

Placement: Ceiling, Desktop, Wall
Feature: Cable lock slot
Cable lock slot type: Kensington
Power
Power source: AC
Power consumption (typical): 197 W
Power consumption (standby): 0.5 W
Power consumption (max): 263 W
Power consumption (PowerSave): 199 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Supplier features
Recommended gender: Any gender
Operational conditions
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 356 mm
Depth: 395 mm
Height: 133 mm
Weight: 5.9 kg
Package width: 450 mm
Package depth: 485 mm
Package height: 325 mm
Package weight: 8.74 kg
Packaging content
Feature: Remote control included
Feature: Batteries included
Cables included: AC
Feature: Manual
Bundled software: EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Content Manager, Epson Projector Management
Technical details
Warranty period: 5 year(s)
Feature: Mobile app support
Power consumption: 197 Watt (Normal On-Mode), 141 Watt (Eco On-Mode), 263 Watt (Normal Peak-mode), 199 Watt (Eco Peak-Mode), 0.5 Watt (Energy saving standby)
Logistics data
Quantity per pack: 1 pc(s)
Products per pallet: 12 pc(s)
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 2.1 m
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 4 pc(s)
Products per pallet (UK): 24 pc(s)
Pallet length (UK): 120 cm
Pallet height (UK): 2.1 m
Other features
Control panel: 0.59 inch with C2 Fine
Supported network protocols: HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink
Box contents: Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, Warranty document
Security features: Kensington lock, Control panel lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection
