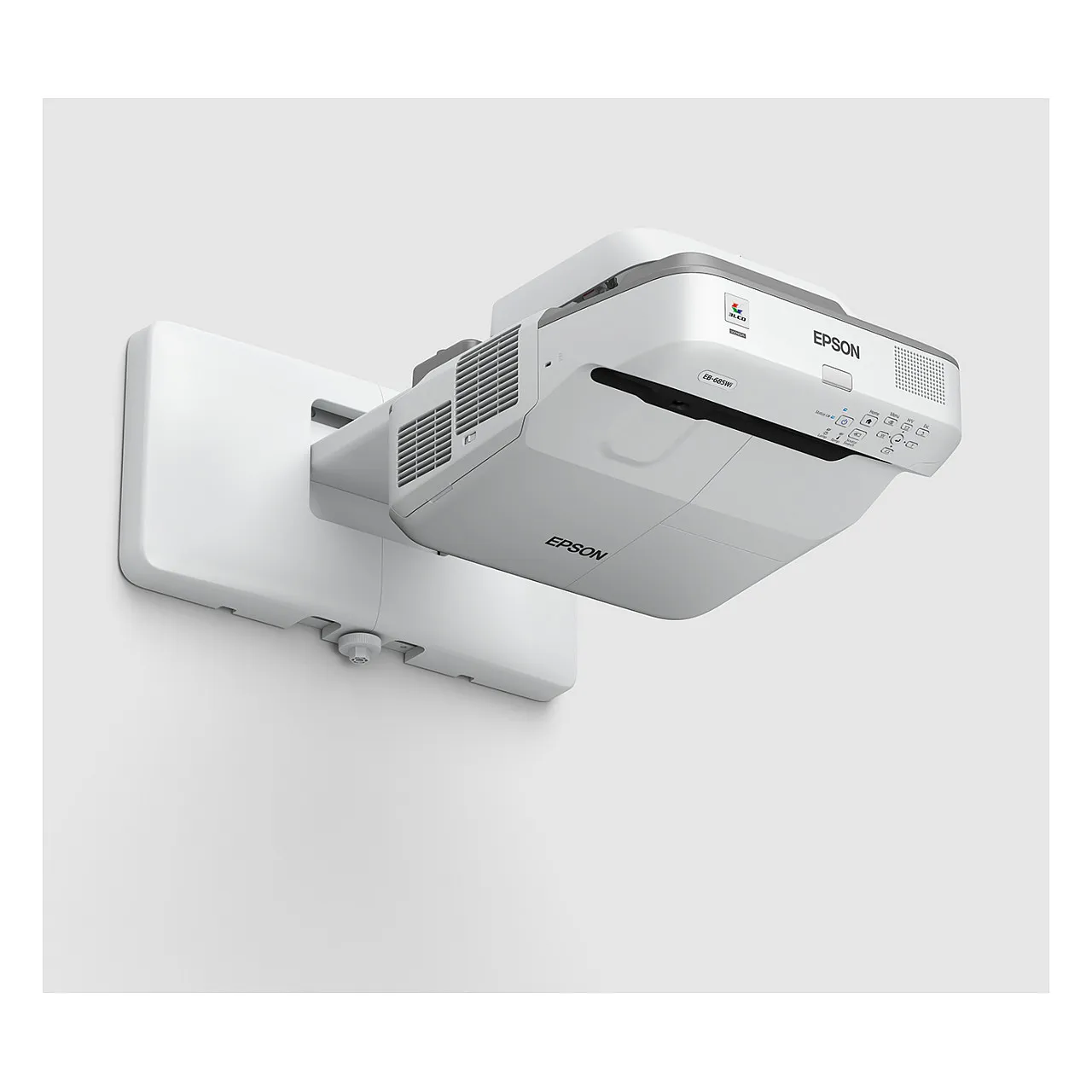

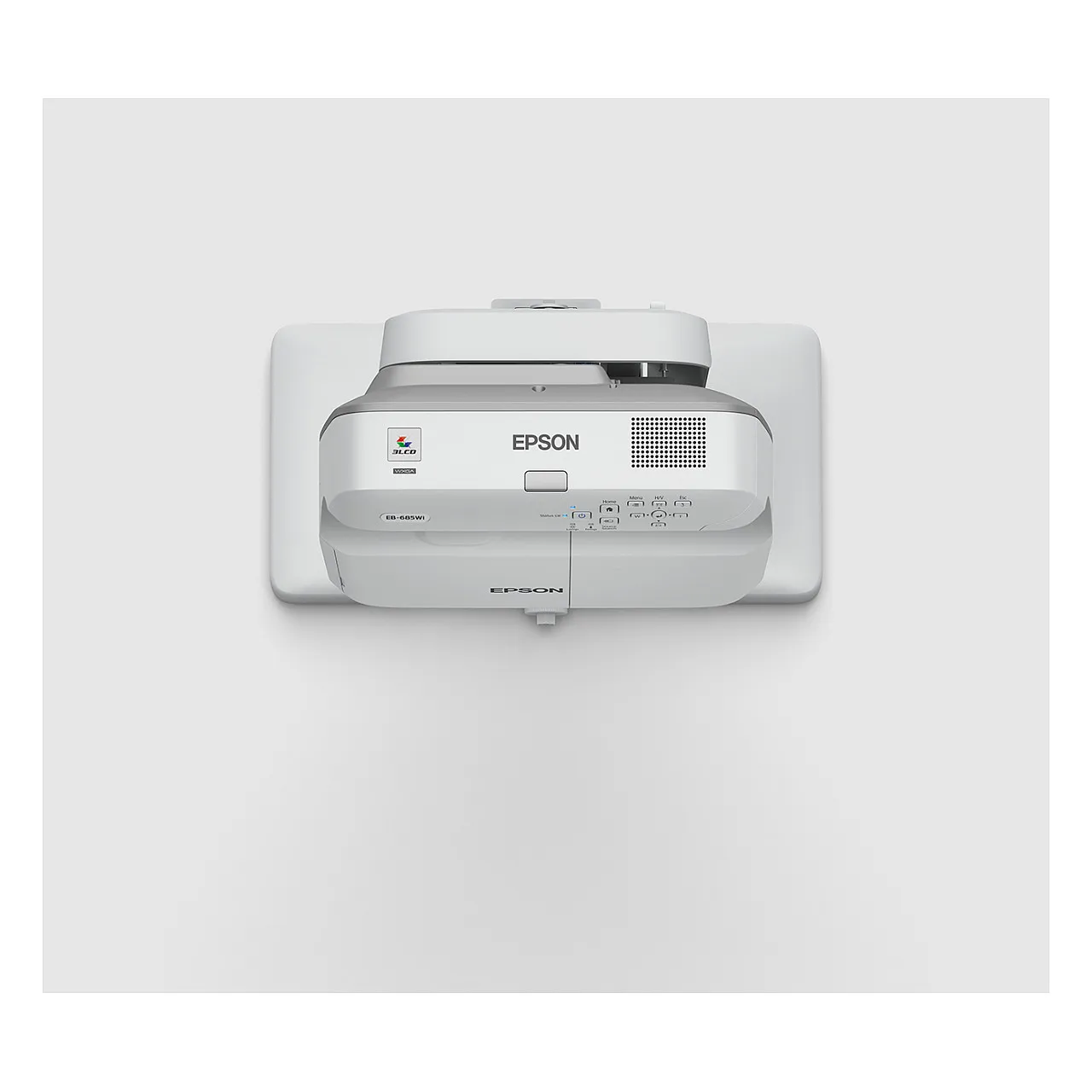

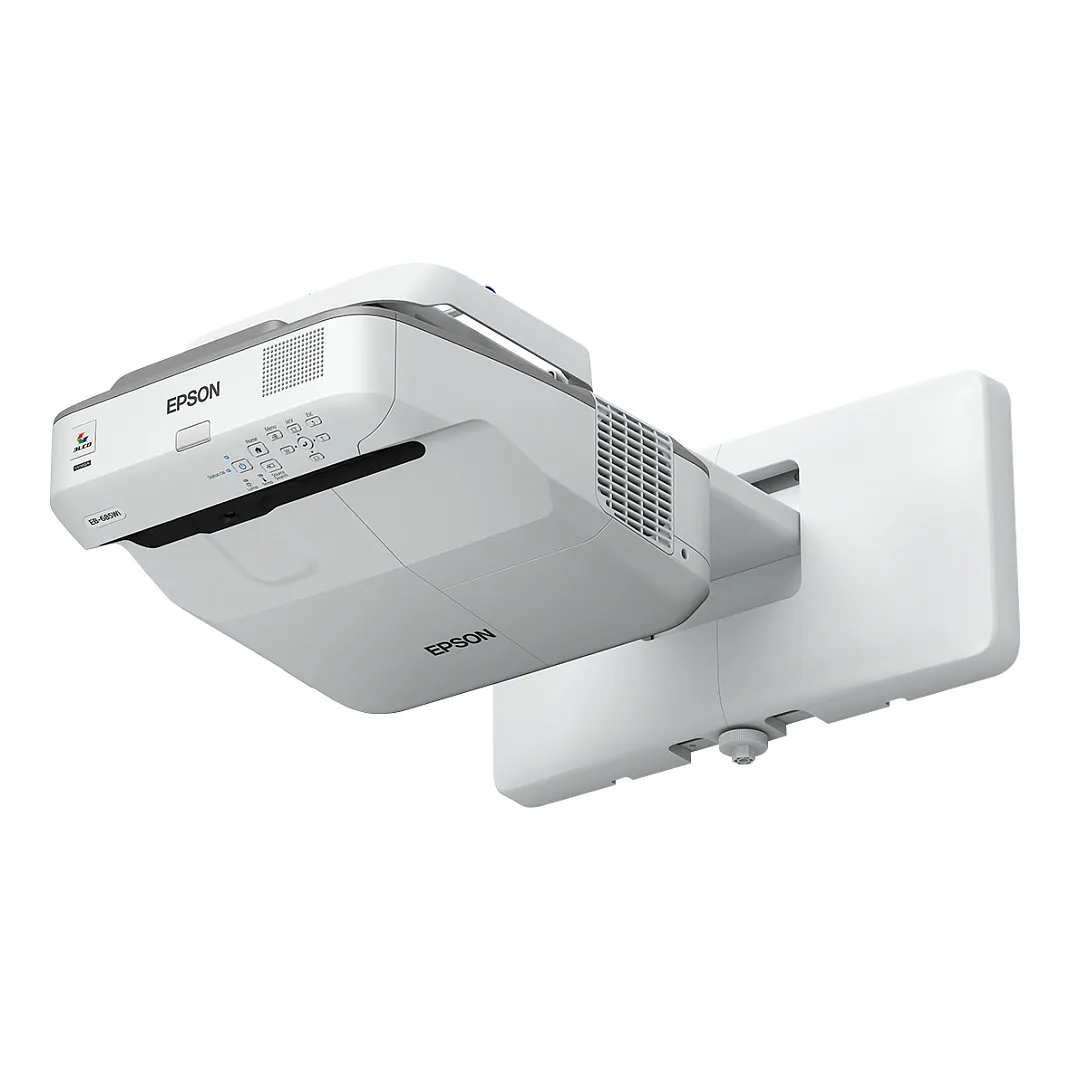

Epson EB-685W. Projector brightness: 3500 ANSI lumens, Projection technology: 3LCD, Projector native resolution: WXGA (1280×800). Light source type: Lamp, Service life of light source: 5000 h, Service life of light source (economic mode): 10000 h. Focus: Manual, Focal length range: 3.7 mm, Fixed focal length: 3.7 mm. Video processing: 10 bit, Colour modes (2D): Cinema, Dynamic, Video colour modes: Dynamic, Cinema, Presentation, sRGB, Blackboard. Serial interface type: RS-232, USB connector type: USB Type-A, USB Type-B
Innovative teaching solution with a large scalable screen size of up to 100 inches to display HD-ready WXGA content for enhanced learning.
The EB-685W’s ultra-short-throw design allows you to present large images from a very short distance with minimised shadows and glare. With a brightness level of 3,500 lumens, an HD-ready WXGA resolution, a 14,000:1 contrast ratio, and HDMI input, students benefit from sharp, clear images.
High-quality, bright images
Epson’s 3LCD technology ensures high-quality images with equally high White and Colour Light Output for vivid colours and bright images, even in daylight, and three times brighter colours than leading competitive projectors.
Enhanced learning
Split-screen functionality allows two pieces of content to be displayed simultaneously without compromising on quality. The moderator function allows teachers to remain in control, choosing what content to display.
Document camera compatibility
Connecting the optional Epson document camera allows you to easily display images and 3D objects with incredible detail for the whole class to see.
Keep costs down
Project for longer with improved reliability and a longer lamp life of up to 10,000 hours in eco mode.
-Optional wireless capability
Wirelessly display content easily from a range of smart devices and Google Chromebooks using our iProjection App.
Supported aspect ratios: 16:10
Screen size compatibility: 1524 – 2540 mm (60 – 100″)
Projection distance: 0.4 – 0.6 m
Projection distance (wide): 0 – 0.4 m
Projection distance (tele): 0 – 0.6 m
Contrast ratio (dynamic): 14000:1
Projector brightness: 3500 ANSI lumens
Projection technology: 3LCD
Projector native resolution: WXGA (1280×800)
Contrast ratio (typical): 14000:1
Native aspect ratio: 16:10
Number of colours: 1.07 billion colours
Projector brightness (economic mode): 2900 ANSI lumens
Vertical scan range: 100 – 120 Hz
Keystone correction, horizontal: -3 – 3°
Keystone correction, vertical: -3 – 3°
Matrix size: 1.5 cm (0.59″)
Light source
Light source type: Lamp
Service life of light source: 5000 h
Service life of light source (economic mode): 10000 h
Lamp power: 250 W
Lens system
Focus: Manual
Focal length range: 3.7 mm
Fixed focal length: 3.7 mm
Feature: Zoom capability
Zoom type: Auto
Zoom ratio: 1.35:1
Digital zoom: 1.35x
Throw ratio: 0.28 – 0.37:1
Video
Feature: HD-Ready
Video processing: 10 bit
Colour modes (2D): Cinema, Dynamic
Video colour modes: Dynamic, Cinema, Presentation, sRGB, Blackboard

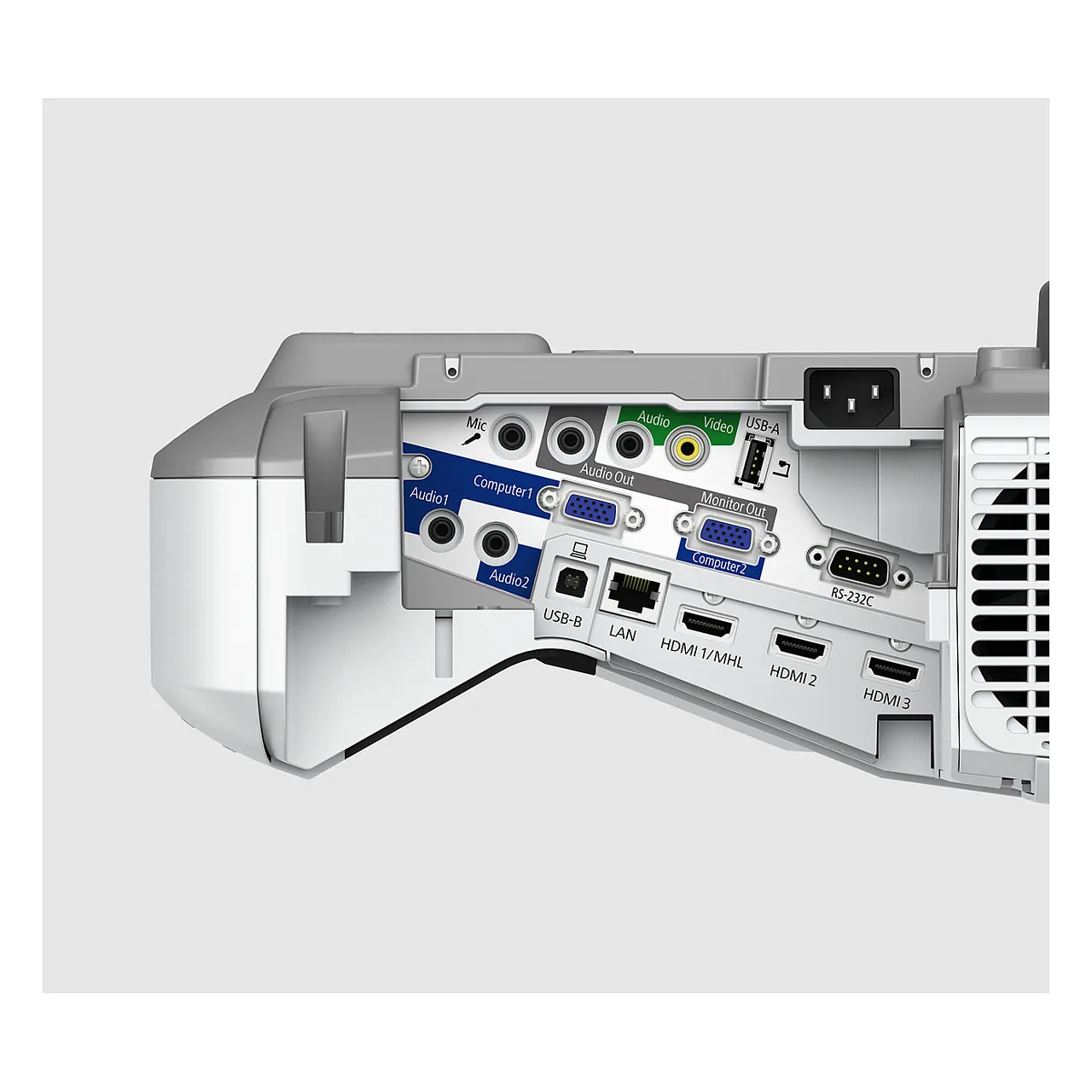

Ports & interfaces
USB 2.0 ports quantity: 2
Audio (L/R) in: 1
Headphone outputs: 1
Feature: Microphone in
Serial interface type: RS-232
VGA (D-Sub) ports quantity: 3
HDMI ports quantity: 3
USB connector type: USB Type-A, USB Type-B
Composite video in: 1
Feature: Mobile High-Definition Link (MHL)
Feature: AC (power) in
Network
Feature: Ethernet LAN
Ethernet LAN (RJ-45) ports: 1
Ethernet LAN data rates: 10,100 Mbit/s
Features
Noise level (economic mode): 30 dB
Feature: On Screen Display (OSD)
Noise level: 35 dB
Feature: Air filter
2D/3D frequency image: 100 – 120 Hz
Country of origin: Philippines
Feature: Password protection
Multimedia
Feature: Built-in speaker(s)
RMS rated power: 16 W
Number of built-in speakers: 1
Design
Market positioning: Education
Product type: Ultra short throw projector
Product colour: White, Grey
Placement: Wall
Feature: Cable lock slot
Cable lock slot type: Kensington
Power
Power source: AC
Power consumption (typical): 354 W
Power consumption (standby): 0.37 W
Power consumption (PowerSave): 310 W
Power consumption (economy mode): 309 W
AC input voltage: 100-240 V
AC input frequency: 50 – 60 Hz
Software
Software support: via: AMX, Crestron (Network), Control4
Windows operating systems supported: Windows 10, Windows 8, Windows 8.1
Feature: Mac compatibility
Mac operating systems supported: Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Operational conditions
Operating temperature (T-T): 5 – 40 °C
Storage temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width: 367 mm
Depth: 400 mm
Height: 149 mm
Weight: 5.7 kg
Package width: 490 mm
Package depth: 730 mm
Package height: 335 mm
Package weight: 18.5 kg
Packaging content
Feature: Remote control included
Remote control type: IR
Feature: Batteries included
Cables included: AC
Feature: Quick start guide
Feature: Manual
Feature: WLAN adapter included
Bundled software: EasyMP Multi PC Projection, Epson Projektor Management
Technical details
Feature: Colour
USB display function: 3 in 1: Image / Mouse / Sound
Sustainability certificates: TCO
Logistics data
Quantity per pack: 1 pc(s)
Products per pallet: 12 pc(s)
Pallet gross weight: 0 g
Pallet gross length: 120 cm
Pallet gross width: 80 cm
Pallet gross height: 141 cm
Products per pallet layer: 2 pc(s)
Products per pallet layer (UK): 2 pc(s)
Products per pallet (UK): 12 pc(s)
Pallet weight (UK): 0 g
Pallet length (UK): 120 cm
Pallet width (UK): 100 cm
Pallet height (UK): 141 cm
Harmonized System (HS) code: 85286200
Other features
RS-232 ports: 1
