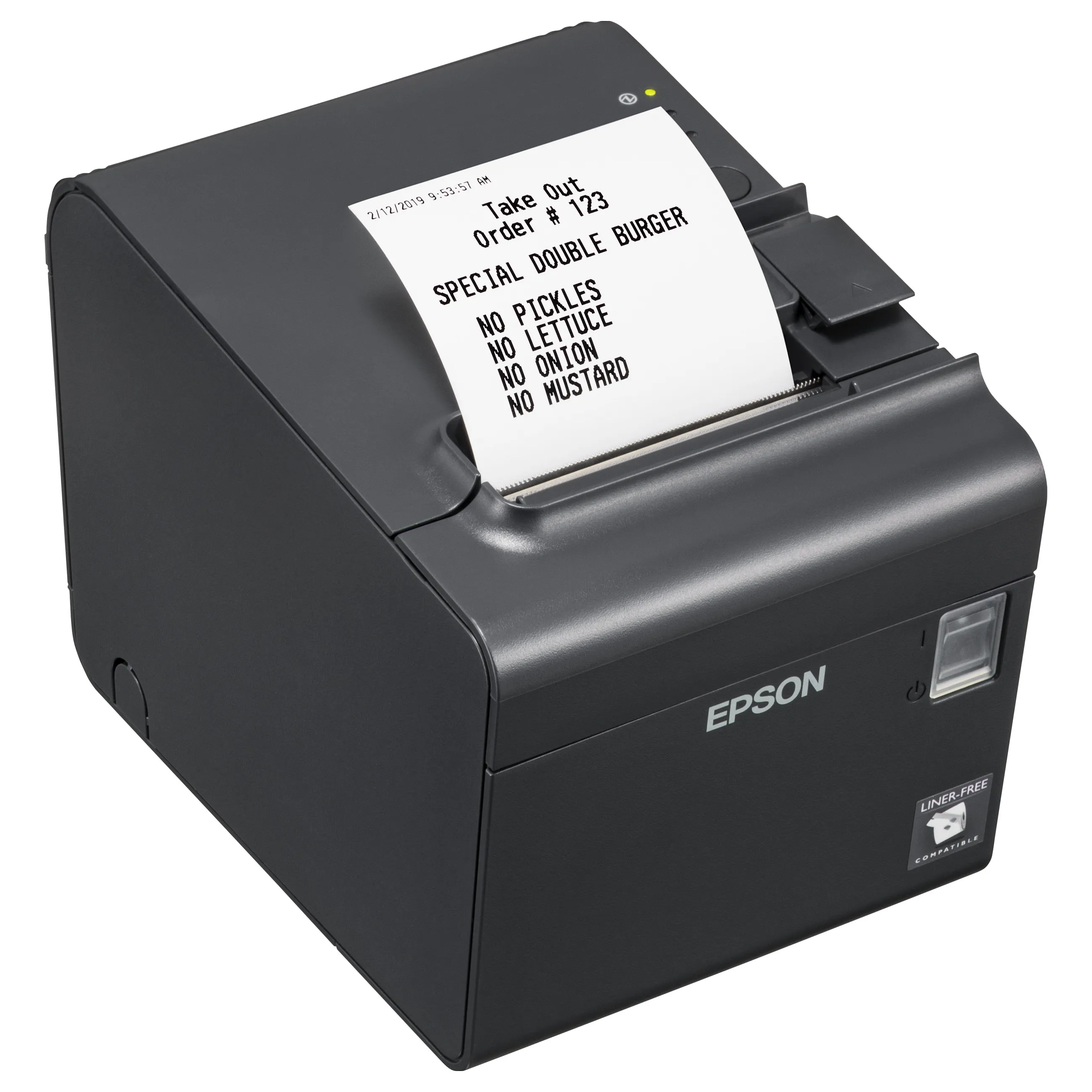

Epson TM-L90LF (682): Serial, built-in USB, PS, EDG, Liner-free. Print technology: Direct thermal, Maximum resolution: 203 x 203 DPI, Print speed: 90 mm/sec. Connectivity technology: Wired, USB port. Supported paper width: 80 mm. Product colour: Dark Grey
This thermal label printer has been developed for fast-food retail chains, restaurants, food delivery services, and logistics. The TM-L90LF liner-free thermal label printer benefits users by providing cost-effective, fast and reliable technology. It’s also compatible with liner-free adhesive media¹.
Cost efficient
As the TM-L90LF prints both liner-free labels and receipts in order to improve the user’s operational efficiency and total cost of ownership (TCO). As the printer works with adhesive-backed media, users are able to accurately label food and drink orders – thereby increasing customer satisfaction and user accuracy.
Order processing speed
With print speeds of up to 170mm/sec, the potential benefits to the user are clear: fast order (and checkout) processing, faster drive-through services and improved customer satisfaction.
Built-in taken sensor
The next label prints automatically as the printed one is taken.
Flexible installation
Users can position the printer in the most convenient spot, thanks to a choice of vertical, horizontal or wall-mounted (using optional bracket) installation.
Saves paper
The TM-L90LF features improved paper reduction functionality that includes back feed capability, line feed adjustment and a smaller sized font. It can be set up to cut through adhesive areas, which saves paper. To further reduce paper consumption, the automatic top margin reduction function prints the top of the next receipt before cutting the current one when printing continues after auto cutting. It supports 1.5-inch, 2-inch or 3-inch media widths.
Print technology: Direct thermal
Maximum resolution: 203 x 203 DPI
Print speed: 90 mm/sec
Printing characters: Text, Graphic
Paper handling
Feature: Half-cutter
Maximum roll diameter: 10.2 cm
Supported paper width: 80 mm
Autocutter durability: 1 million cuts
Ports & interfaces
Connectivity technology: Wired
Feature: USB port
Performance
Mean time between failures (MTBF): 360000 h
Mean cycles between failures (MCBF): 35000000
Feature: Cutter
Sound pressure level (printing): 52 dB
Certification: VCCI-Class A, CE
Design
Product colour: Dark Grey
Power
AC input voltage: 24 V
Power consumption: 1800 mA
Operational conditions
Operating relative humidity (H-H): 10 – 90%
Storage relative humidity (H-H): 10 – 90%
Operating temperature (T-T): 5 – 45 °C
Storage temperature (T-T): -10 – 50 °C
Weight & dimensions
Width: 140 mm
Depth: 148 mm
Height: 203 mm
Weight: 1.9 kg
Packaging data
Quantity per pack: 1 pc(s)
Package width: 195 mm
Package depth: 255 mm
Package height: 240 mm
Package weight: 2.76 kg
Packaging content
Feature: Manual
Logistics data
Products per pallet (UK): 168 pc(s)
Pallet weight (UK): 0 g
Harmonized System (HS) code: 84433210
Pallet gross weight: 0 g
Products per pallet: 112 pc(s)
Technical details
Box contents: Main unit, PS-180, Paper roll spacer, User manual
Interface: USB 2.0, Drawer kick-out, RS-232
Other features
Safety: TÜV
Buffer size: 4 KB
Character sets: ANK
Country of origin: China
