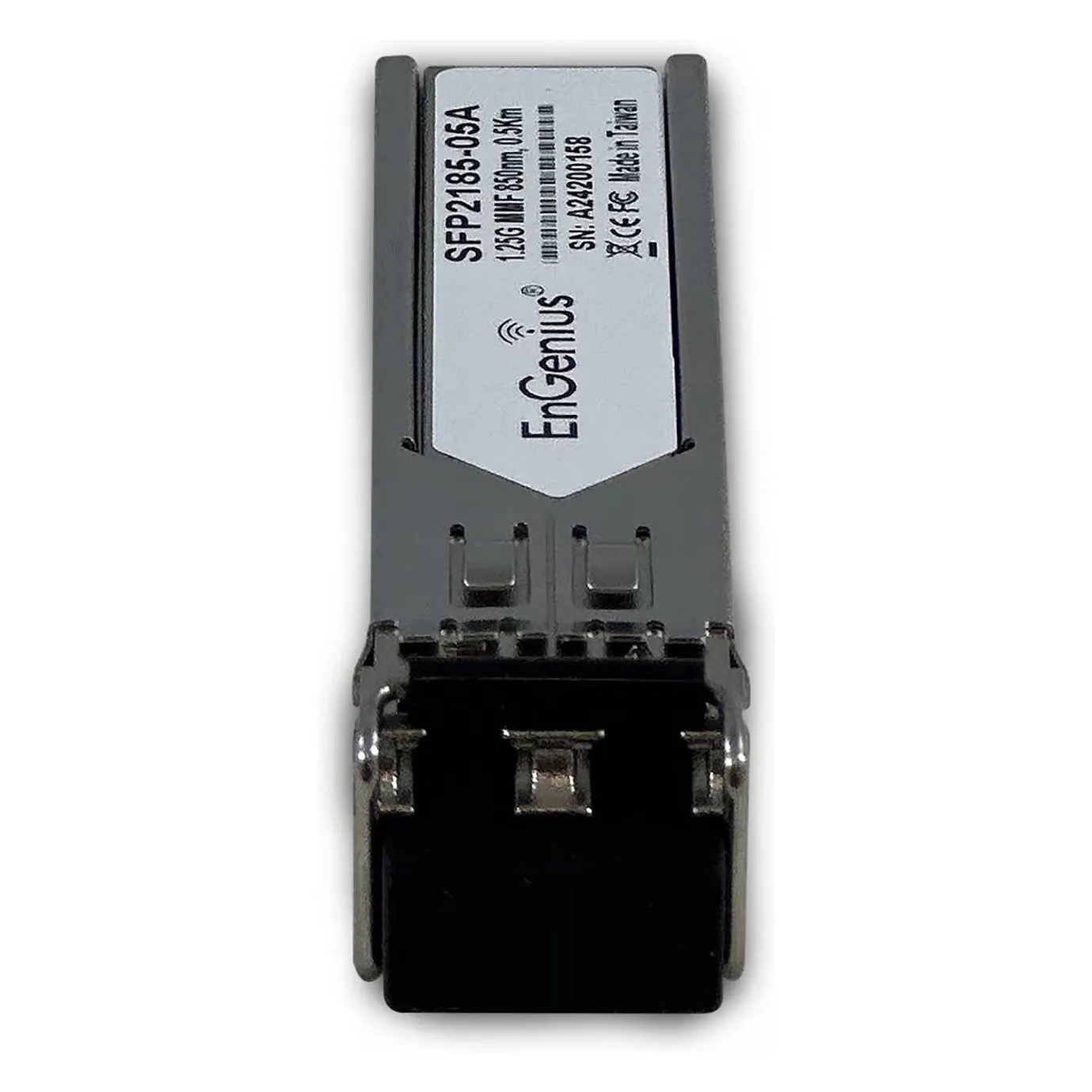

EnGenius SFP2185-05 network transceiver module 1.25G Multi-Mode Fiber 850nm 0.5km. Maximum data transfer rate: 1250 Mbit/s, Interface type: SFP, Fiber optic connector: LC. Product colour: Blue, Silver. Maximum voltage: 3.45 V, Maximum current: 0.16 A. Compliance certificates: RoHS. Width: 13.7 mm, Depth: 56.6 mm, Height: 12.4 mm
– Hot pluggable LC Duplex Connector
– IEEE 802.3z compliant
– Industry standard compliance
– Low power dissipation
– Class 1 laser product, complies with International Safety Standard IEC 825
– ROHS Compliant
Reliable, high-performance SFP transceiver modules for Gigabit Ethernet applications
EnGenius Small Form-Factor Pluggable (SFP) transceiver is an industry standard hot-swappable device that plugs into the SFP port or slot and link the port with the network.
Maximum data transfer rate: 1250 Mbit/s
Interface type: SFP
Fiber optic connector: LC
SFP transceiver standard: SX
Maximum transfer distance: 500 m
Wavelength: 850 nm
Networking standards: IEEE 802.3z
Features
Product colour: Blue, Silver
Feature: Hot-Plug support
Power
Maximum voltage: 3.45 V
Maximum current: 0.16 A
Certificates
Compliance certificates: RoHS
Operational conditions
Operating temperature (T-T): 0 – 70 °C
Storage temperature (T-T): -40 – 85 °C
Weight & dimensions
Width: 13.7 mm
Depth: 56.6 mm
Height: 12.4 mm
Weight: 25 g
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85369010
