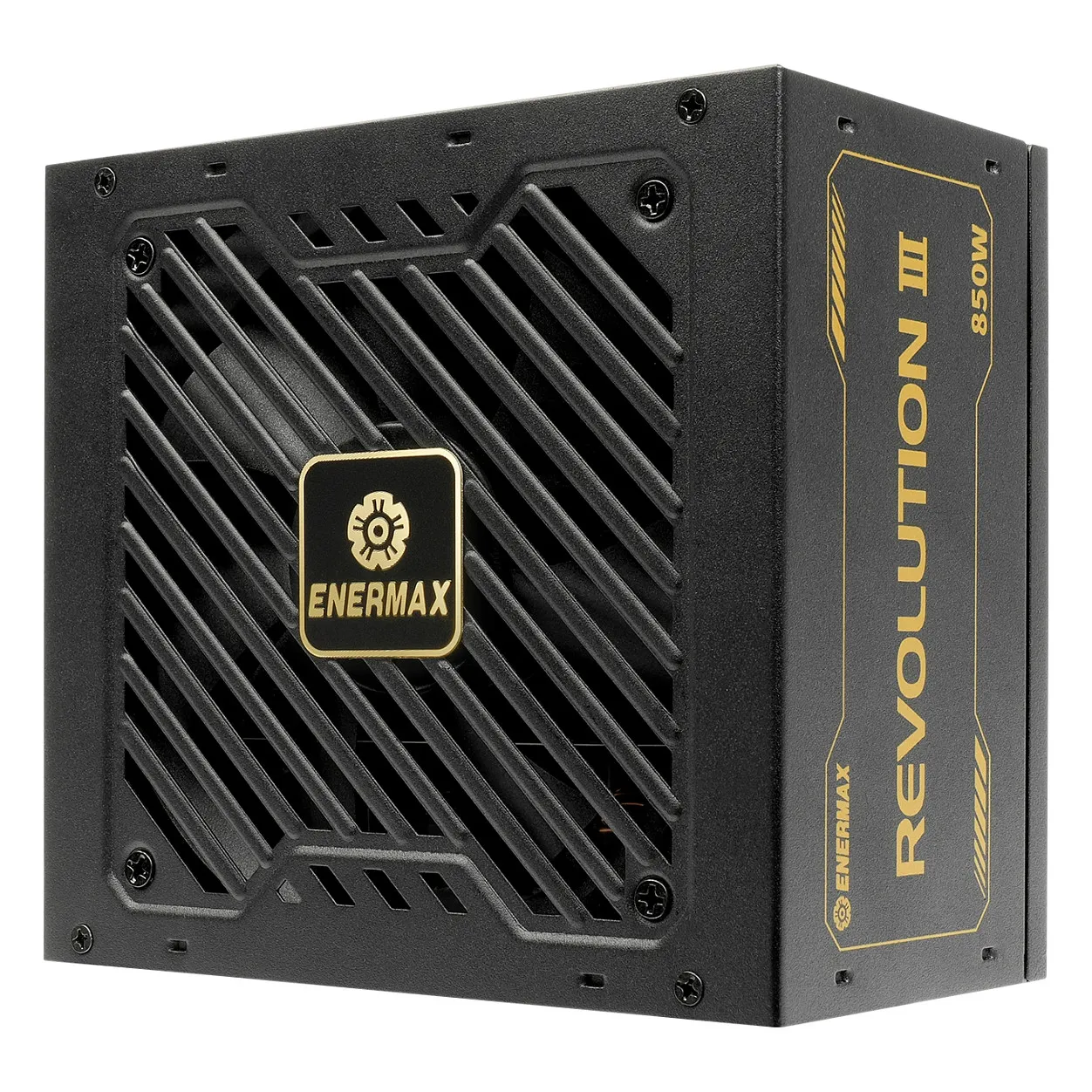

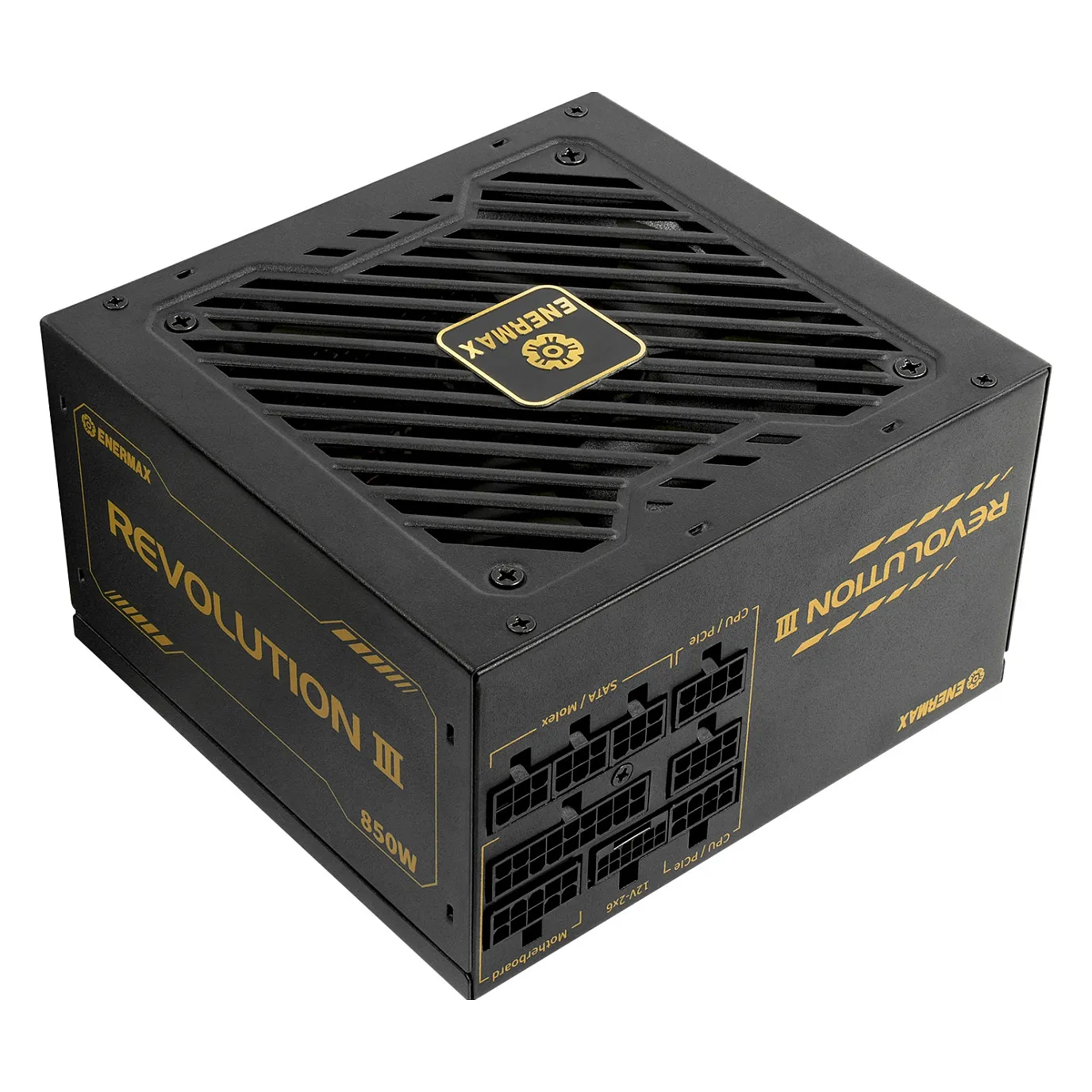

Enermax ERV850G-AHG-MAC. Total power: 850 W, AC input voltage: 100 – 240 V, AC input frequency: 50/60 Hz. Motherboard power connector: 20+4 pin ATX, Cabling type: Fully-Modular. Purpose: PC, Power supply unit (PSU) form factor: ATX, 80 PLUS certification: 80 PLUS Gold. Product colour: Black, Fan diameter: 12 cm. Width: 150 mm, Depth: 140 mm, Height: 86 mm
REVOLUTION III 850W power supply is 80 PLUS® Gold certified with efficiency up to 93% on standard loading.
ATX 3.1 READY
REVOLUTION III 850W power supply meets the Intel ATX 3.1 standards to ensure top-notch performance of power hungry graphics cards.
100% JAPANESE CAPACITORS
REVOLUTION III 850W power supply incorporates 100% industrial-grade Japanese capacitors with high-quality materials and manufacturing processes, ensuring stable and consistent performance.
FLUID DYNAMIC BEARING FAN
The F.D.B. (Fluid Dynamic Bearing) fan delivers a quiet operation while maintaining the cooling performance.
CERTIFIED FOR OPERATION AT 5000M ALTITUDE AREA
REVOLUTION III 850W power supply is designed with high-quality components and optimized layout for superior insulation and cooling performance. It can continually operate at 40°C and at altitudes up to 5,000 meters, making it suitable for a wide range of environments.
PREMIUM MESH-SLEEVED CABLES

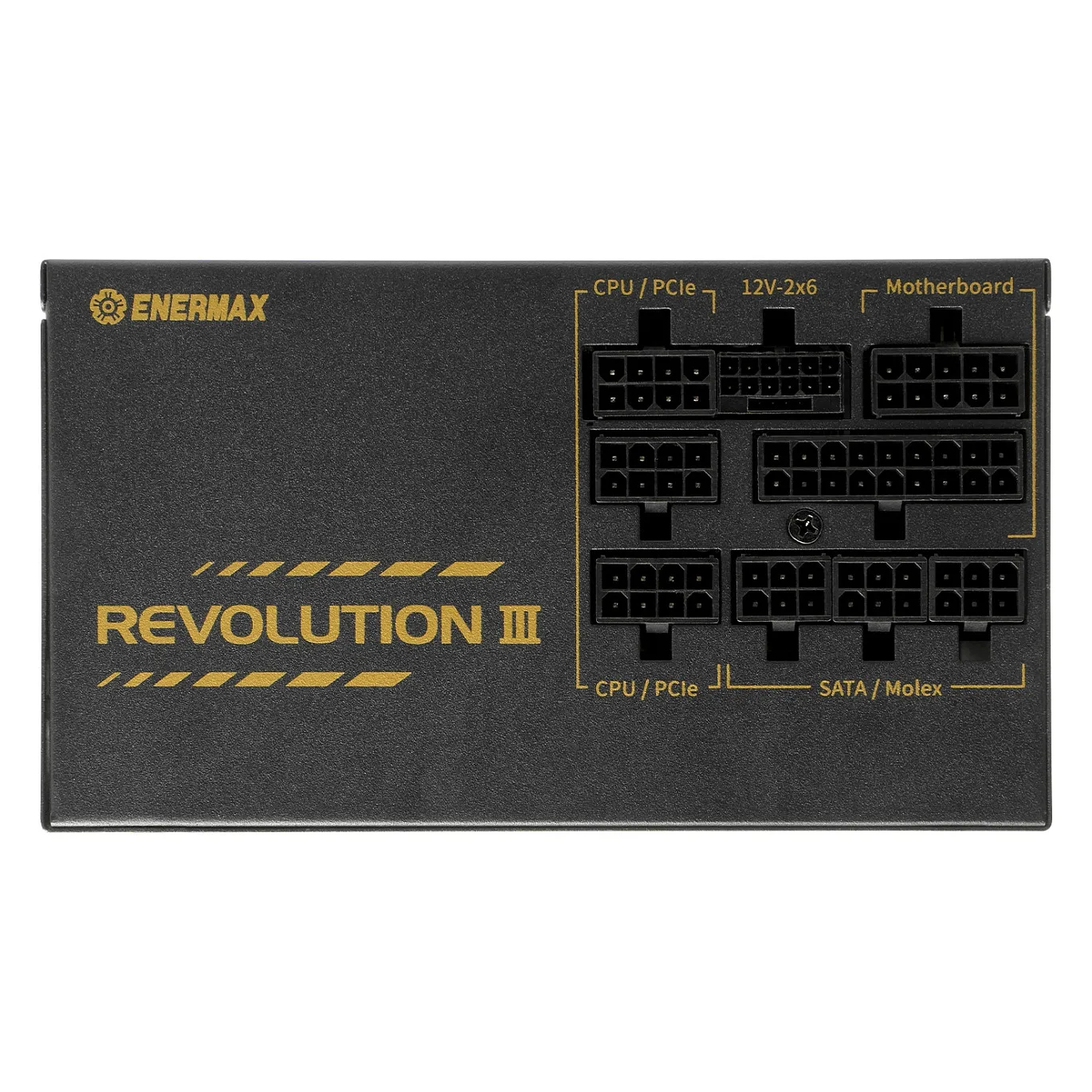

The REVOLUTION III 850W power supply features premium individually mesh-sleeved cables with cable combs for a clean and organized build. The modular sockets, inclined to one side, offer effortless cable routing and management.
CABLE AND POWER AS YOU NEED
Only connect the cable you need with fully modular design
Total power: 850 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Input current: 10-6 A
Combined power (+3.3V): 100 W
Combined power (+12V): 849.6 W
Combined power (+5V): 100 W
Max output current (+3.3V): 20 A
Max output current (+12V1): 70.8 A
Max output current (+5V): 20 A
Max output current (-12V): 0.4 A
Max output current (+5Vsb): 2.5 A
Power protection features: Over current, Over power, Over voltage, Short circuit, Under voltage
Ports & interfaces
Motherboard power connector: 20+4 pin ATX
Number of SATA power connectors: 12
Feature: EPS power connector (4+4 pin)
PCI Express power connectors (6+2 pin): 1
Cabling type: Fully-Modular
Performance
80 PLUS certification: 80 PLUS Gold
Purpose: PC
Power supply unit (PSU) form factor: ATX
Mean time between failures (MTBF): 100000 h
Design
Product colour: Black
Fan diameter: 12 cm
Weight & dimensions
Width: 150 mm
Depth: 140 mm
Height: 86 mm
Packaging data
Package width: 190 mm
Package depth: 310 mm
Package height: 110 mm
Package weight: 1.6 kg
