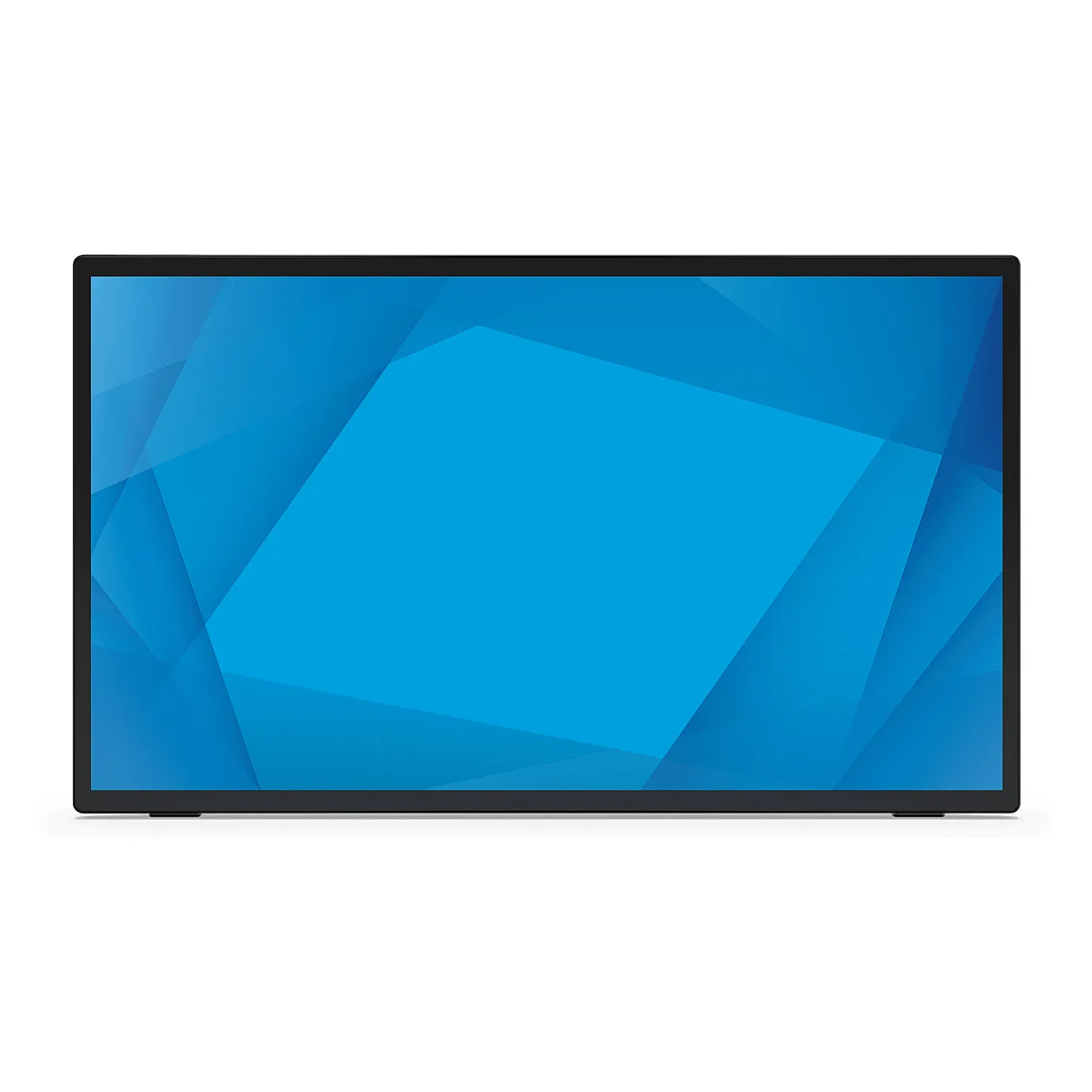

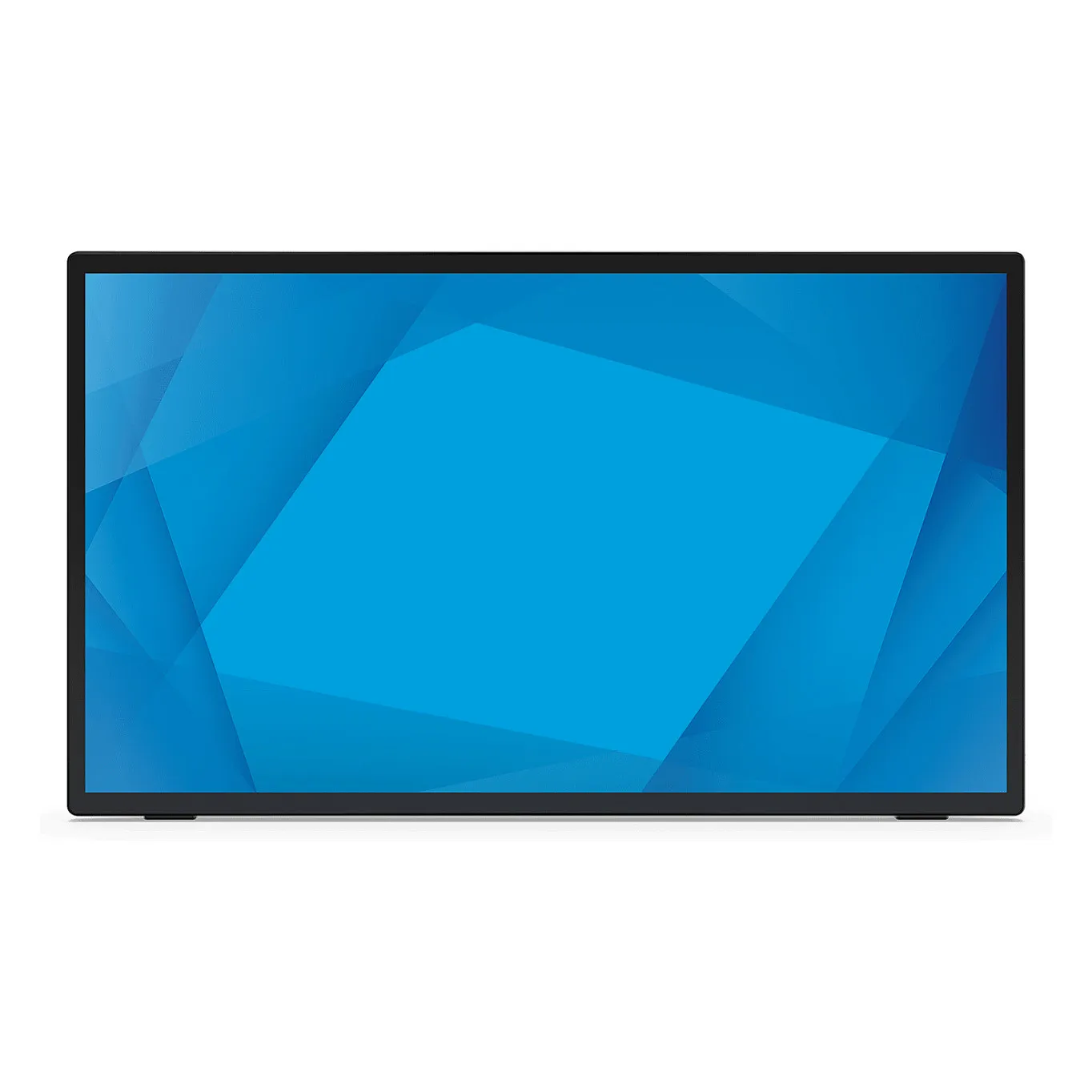

Elo Touch Solutions Elo 2770L. Display diagonal: 68.6 cm (27"), Display resolution: 1920 x 1080 pixels, HD type: Full HD, Display technology: LED, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 2.0. VESA mounting. Product colour: Black
The 2770L 27” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Built-in speakers and integrated IO.

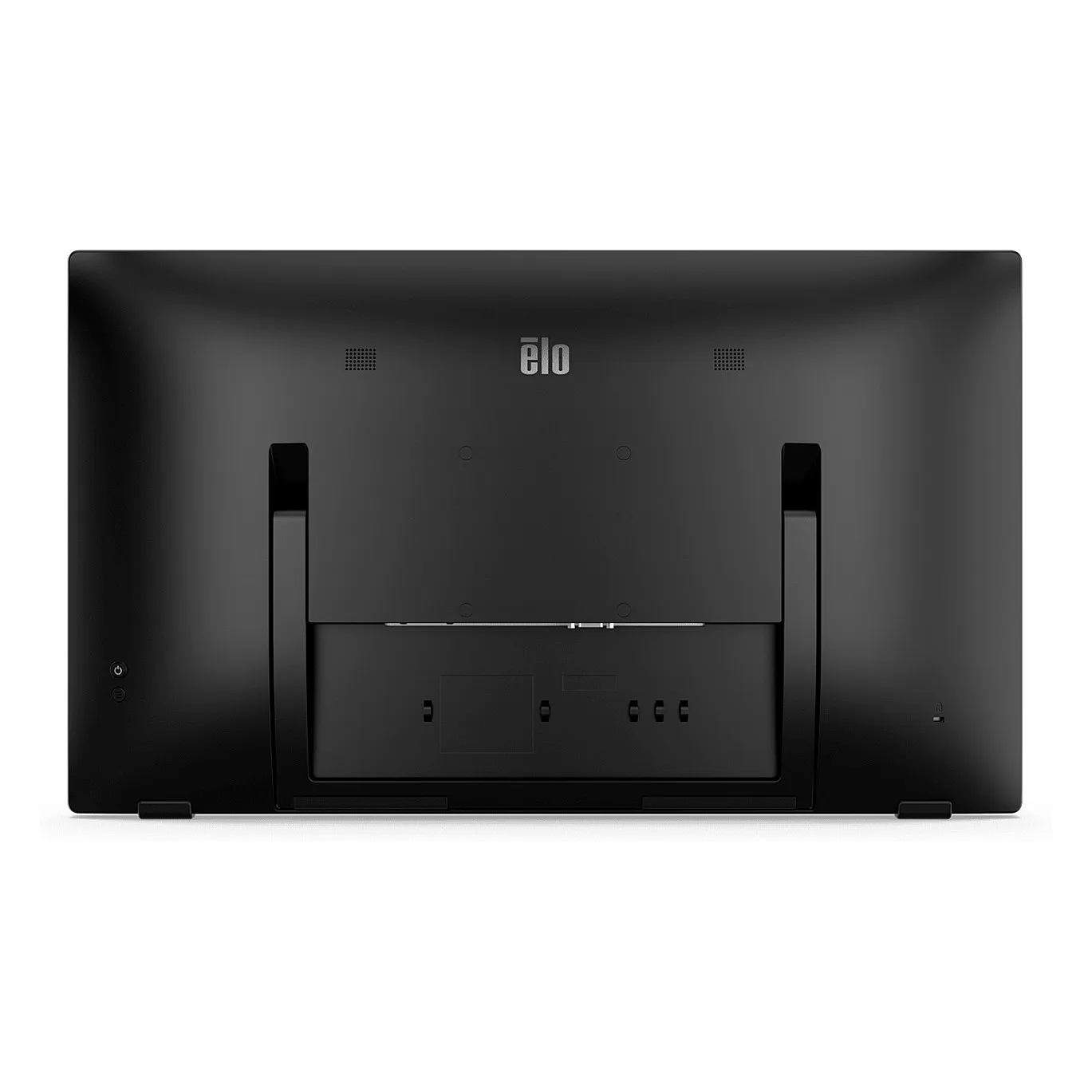

Place it on a desktop, mount it on a wall or configure the 2770L to fit your space with VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface. IK07 impact resistant. ES8.0 certified for greater energy efficiency.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display diagonal: 68.6 cm (27″)
Display resolution: 1920 x 1080 pixels
HD type: Full HD
Native aspect ratio: 16:9
Display technology: LED
Panel type: TFT
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Display brightness (peak): 300 cd/m²
Display brightness (typical): 270 cd/m²
Response time: 14 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Business
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0
USB upstream port type: USB Type-A, USB Type-B
Number of USB Type-B upstream ports quantity: 1
USB Type-A downstream ports quantity: 2
Feature: USB Touch port
USB Touch ports quantity: 1
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Power
Energy efficiency class (SDR): E
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 19 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.16 W
Power consumption (PowerSave): 16.5 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: External
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width (without stand): 626.2 mm
Depth (without stand): 372.8 mm
Height (without stand): 43.8 mm
Weight (without stand): 6.3 kg
Packaging data
Package width: 703 mm
Package depth: 136 mm
Package height: 489 mm
Package weight: 9.45 kg
