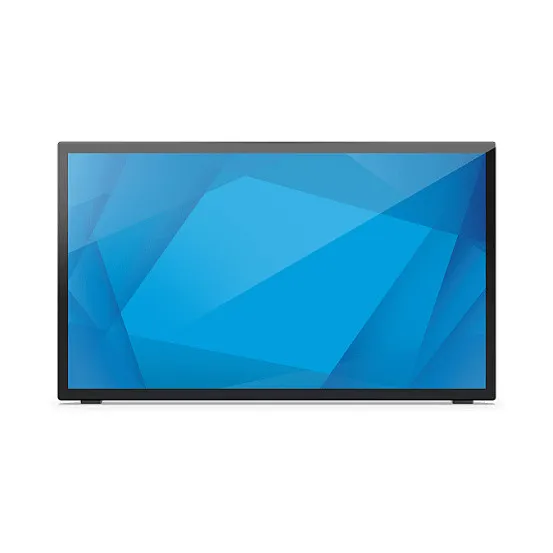

Elo Touch Solutions E510259. Display diagonal: 54.6 cm (21.5"), Display resolution: 1920 x 1080 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 14 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub. VESA mounting. Product colour: Black
The 2270L 22” touchscreen offers up to a 70% reduction in the bezel compared to similar models.
Minimalistic design to fit any space.
From 20 degrees to 70 degrees, angle the display where you want it.
Place it on a desktop, mount it on a wall or configure the 2270L to fit your space with VESA-compatibility.
VESA-compatibility. Built-in speakers and integrated IO.
Durable, energy efficient touchscreen.
Scratch-resistant glass surface.
IK07 impact resistant.
ES8.0 certified for greater energy efficiency.
Increase viewing comfort with low blue light and flicker free features.
Navigate the OSD directly on the touchscreen.
We have made it easier to manage your On-Screen Display (OSD) controls – Now you can use the touchscreen or the controls you are used to on the rear side of the monitor.
Display diagonal: 54.6 cm (21.5″)
Display resolution: 1920 x 1080 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: TFT
Feature: Touchscreen
Touchscreen technology: Capacitive
Touch technology: Multi-touch
Number of simultaneous touchpoints: 10
Response time: 14 ms
Screen shape: Flat
Aspect ratio: 16:9
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.67 billion colours
Horizontal scan range: 30 – 82 kHz
Vertical scan range: 50 – 75 Hz
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 20 W
Feature: Built-in speaker(s)
Design
Product colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB upstream port type: USB Type-A, USB Type-B
VGA (D-Sub) ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Audio input: Yes
Audio output: Yes
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Wall mountable
Power
Energy efficiency class (SDR): D
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 12 kWh
Power consumption (typical): 13.8 W
Power consumption (standby): 0.5 W
Power consumption (off): 0.16 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width (without stand): 504.7 mm
Depth (without stand): 41.3 mm
Height (without stand): 302.4 mm
Weight (without stand): 4.1 kg
Packaging data
Package width: 589 mm
Package depth: 395 mm
Package height: 136 mm
Package weight: 6.3 kg
Packaging content
Cables included: AC, HDMI, USB
Feature: Quick start guide
Sustainability
Sustainability certificates: ENERGY STAR
Other features
Compliance certificates: RoHS
Mean time between failures (MTBF): 50000 h
Certification: UL, FCC A, cUL, IC, CB, CE A, C-Tick A, NOM CoC, CCC
