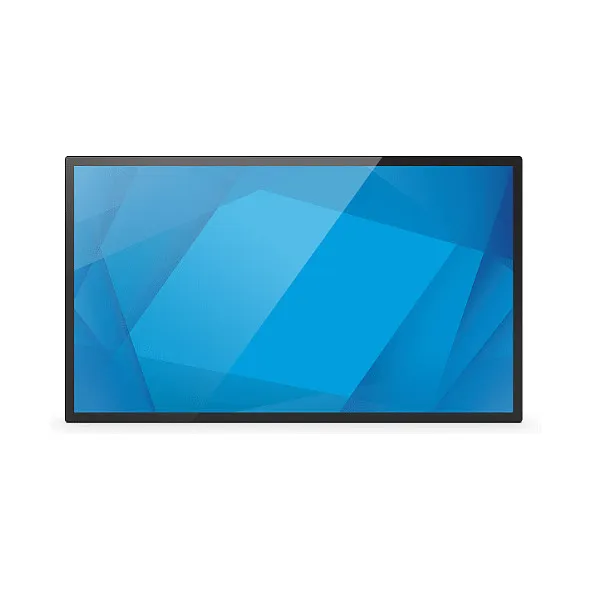

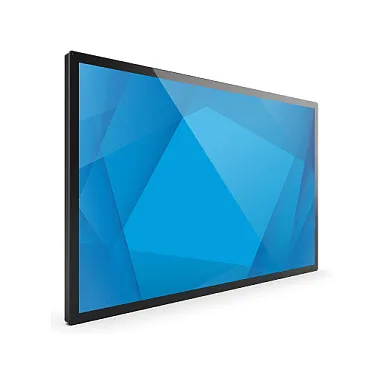

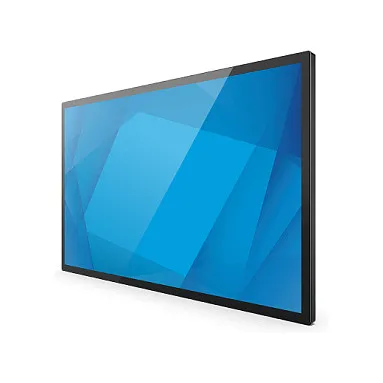

Elo Touch Solutions 5554L. Product design: Interactive flat panel. Display diagonal: 138.7 cm (54.6"), Display technology: LCD, Display resolution: 3840 x 2160 pixels, Display brightness: 430 cd/m², HD type: 4K Ultra HD, Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with EloView, Crestron or your preferred MDM solution via provided APIs.
Touch Thru Glass Enabled with PCAP
With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 5554L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 5554L for diverse international markets.
Get peace of mind with EloCare.
EloCare delivers service and support from the people who know your Elo products best. And as part of the three-year standard warranty for large format digital signage displays, Elo offers complimentary advance unit replacement to cover you in the unfortunate event your device requires service.
Quality that is built to last.
We engineer each product with a goal that goes beyond meeting expectations; we aim to exceed them. By integrating our technology into your operations, you are partnering with us – and as your partner, we are committed to delivering reliable products so you can focus on growth and innovation, confident in the knowledge that we stand behind our products, ready to support you every step of the way.
Panel type: LCD
Feature: LED backlight
Display diagonal: 138.7 cm (54.6″)
Display technology: LCD
Display resolution: 3840 x 2160 pixels
Display brightness: 430 cd/m²
HD type: 4K Ultra HD
Feature: Touchscreen
Number of simultaneous touchpoints: 40
Feature: Multi-touch
Native aspect ratio: 16:9
Response time: 8 ms
Contrast ratio (typical): 1100:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Active display area (W x H): 1209.6 x 680.4 mm
Horizontal scan range: 30 – 135 kHz
Vertical scan range: 24 – 64 Hz
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 2.0
DisplayPorts quantity: 1
DisplayPort version: 1.4
Feature: USB port
USB ports quantity: 2
USB connector type: Mini-USB A, USB Type-A
Ethernet LAN (RJ-45) ports: 1
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 20 W
Design
Product design: Interactive flat panel
Placement supported: Indoor
Product colour: Black

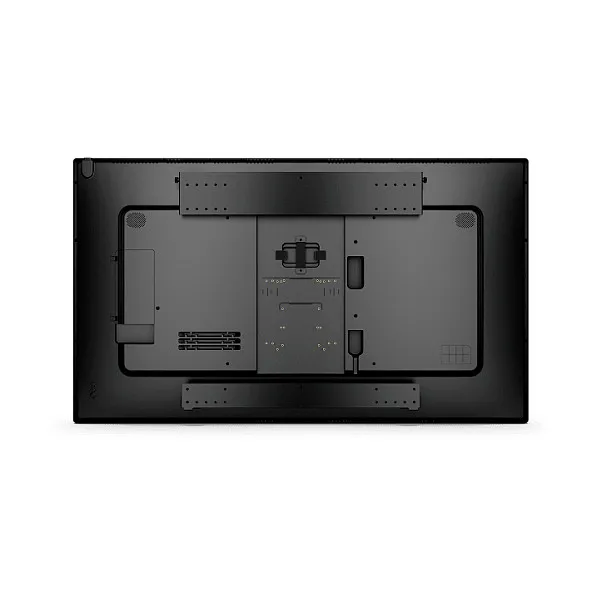

Feature: VESA mounting
Panel mounting interface: 400 x 400,600 x 600 mm
Performance
Purpose: Universal
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 111.87 W
Power consumption (standby): 0.38 W
Power consumption (sleep): 1.52 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Display width: 1271.8 mm
Display depth: 60.2 mm
Display height: 742.6 mm
Display weight: 30.1 kg
Packaging data
Package width: 1460 mm
Package depth: 1040 mm
Package height: 225 mm
Package weight: 38.5 kg
Packaging content
Cables included: AC, USB
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Certificates
Certification: UL, FCC, cUL, IC (Canada), CB, CE, VCCI, RCM, CCC/CEL, China RoHS, NOM, UL60950, IK07
Network
Feature: Ethernet LAN
Technical details
Sustainability certificates: ENERGY STAR
