Elo Touch Solutions 4304L. Product design: Interactive flat panel. Display diagonal: 108 cm (42.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 500 cd/m², Touchscreen. Operating hours (hours/days): 24/7. Product colour: Black
Elevate your applications with Elo’s 4304L 43‑inch touch screen monitor that brings
interactivity to any setting. With support for up to 40 simultaneous touches, lightning-fast
responsiveness, and anti-friction glass, Elo’s 4304L prioritizes the user experience. And
by combining the touch display with the Elo Backpack or a Brightsign player, you can
effortlessly convert this display into a versatile, life-sized 43‑inch tablet.

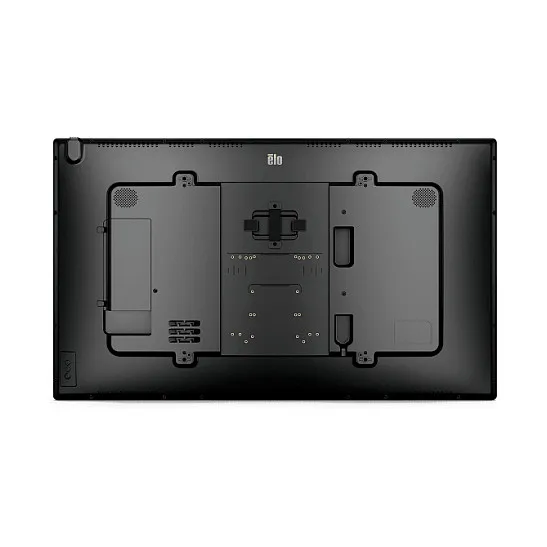

The back of your display never looked so clean.
Remote device management enabled with EloView.
With the addition of the integrated IoT control, you can easily manage your device settings with
EloView, Crestron or your preferred MDM solution via provided APIs.
Find the perfect digital signage display for your applications, with sizes ranging from 32 inches to 65 inches.
Connect your accessories to the edge. With up to 1.2 Amps, you can easily run four Elo Edge Connect peripherals at one time.
Whether you’re enhancing your retail environment with endless aisle, engaging customers with easy to use self-service kiosks, guiding visitors with interactive wayfinding or helping doctors and patients interact in the hospital, the 4304L digital signage display offers a sleek, minimalistic design engineered to withstand the demands of continuous commercial use.
Touch Thru Glass Enabled with PCAP With touch thru capability, Elo’s TouchPro® PCAP interactive displays can be mounted behind a mirror, in a counter or in a fully encased kiosk for added durability or aesthetics.
Versatile mounting options for commercial interactive displays.
Our commercial-grade interactive displays can be mounted in landscape, portrait and tabletop orientations, providing optimal flexibility for mounting to a wall, in a kiosk or tabletop.
Designed for the demands of commercial environments.
Built for 24/7 use in high-traffic environments with UL-60950 and IK-07 compliance, Elo’s 4304L delivers the reliability and durability businesses need even in the most demanding conditions. With the addition of extended product life cycles and global certifications, you can trust in the long-term performance and suitability of the 4304L for diverse international markets.
Panel type: TFT-LCD
Display diagonal: 108 cm (42.5″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 500 cd/m²
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 2
Response time: 8 ms
Contrast ratio (typical): 500:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Active display area (W x H): 940.9 x 529.3 mm
Number of displays: 1
Horizontal scan range: 30 – 70 kHz
Vertical scan range: 24 – 64 Hz
Ports & interfaces
HDMI ports quantity: 2
HDMI version: 1.4
HDMI input ports quantity: 2
DisplayPorts quantity: 1
DisplayPort version: 1.2
Feature: USB port
USB connector type: Micro-USB, USB Type-A, USB Type-C
Ethernet LAN (RJ-45) ports: 2
Audio
Feature: Built-in speaker(s)
Number of built-in speakers: 2
RMS rated power: 16 W
Design
Product design: Interactive flat panel
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100,400 x 400 mm
Mounting type: Desk/Wall
Performance
Feature: On Screen Display (OSD)
Operating hours (hours/days): 24/7
Feature: HDCP
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 47 W
Power consumption (sleep): 1.43 W
Power consumption (off): 0.29 W
Energy consumption (SDR) per 1000 hours: 41 kWh
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Energy efficiency scale: A to G
Weight & dimensions
Display width: 1007.4 mm
Display depth: 55.6 mm
Display height: 595.7 mm
Display weight: 17.9 kg
Packaging data
Package width: 1150 mm
Package depth: 187 mm
Package height: 820 mm
Package weight: 23 kg
Packaging content
Cables included: Power, USB Type-C to USB Type-C
Feature: Tilt adjustment
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Certificates
Certification: UL 62368-1, FCC/CEC, cUL, IC, CB (International safety) (IEC/EN60950-1+IEC/EN62368-1), CE, VCCI, RCM, CCC/CEL, China RoHS, NOM Mexico, IK07, UL60950
Sensors
Feature: Ambient light sensor
Network
Feature: Ethernet LAN
Features
Feature: Wall mountable
Other features
Aspect ratio: 16:9
