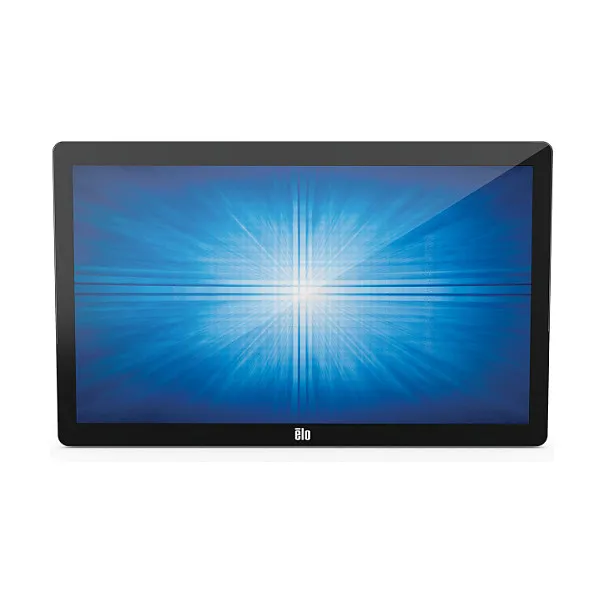

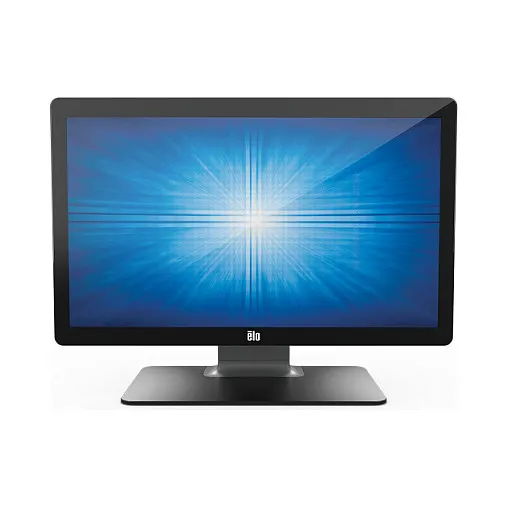

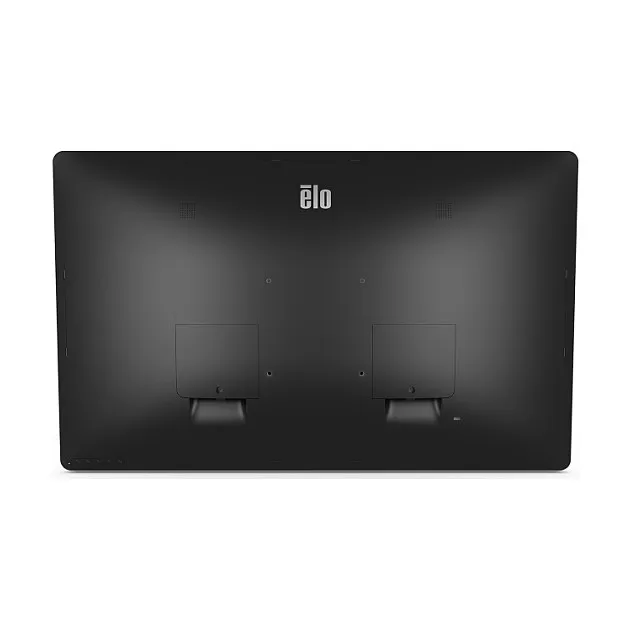

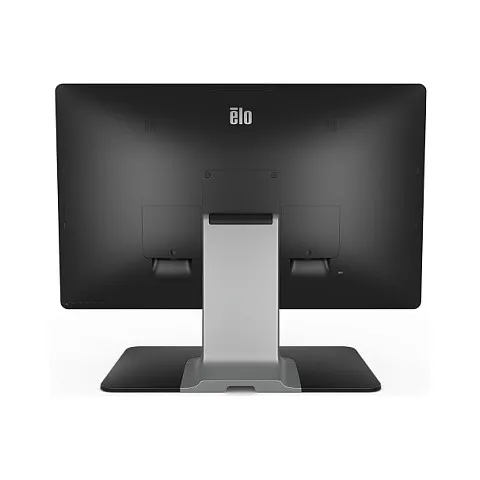

Elo Touch Solutions 2702L. Display diagonal: 68.6 cm (27"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 300 cd/m², HD type: Full HD, Touchscreen. Product colour: Black, Silver
The Elo 2702L 27-inch touchscreen monitor delivers a professional-grade interactive solution with Elo’s industry-leading TouchPro PCAP technology featuring edge-to-edge glass and enabling up to 10 simultaneous touches. The clear glass touchscreen provides exceptional image clarity, resolution, and light transmission for vivid images and details. Backed by a three-year warranty, the feature rich touchscreen monitor is equipped with dual built-in speakers and VGA and HDMI video connectors. With a compact form factor, clean design aesthetic and flexible mounting options, these touchscreens are well-suited for POS, interactive digital signage and self-service.
Designed for commercial use, the new Elo touchscreen monitor makes business operations easy delivering energy efficiency and versatile accessories. The 2702L accessories include MSR, barcode scanner, fingerprint reader, NFC, customer facing display, handles and privacy screens. Third party peripherals can be easily added as well with the integrated USB 2.0 hub.
Display
Panel type: TFT
Display diagonal: 68.6 cm (27″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 300 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Number of simultaneous touchpoints: 10
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Ports & interfaces
HDMI ports quantity: 1
Audio
Feature: Built-in speaker(s)
RMS rated power: 4 W
Design
Product colour: Black, Silver
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Performance
Number of OSD languages: 10
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 28 W
Power consumption (standby): 0.45 W
Power consumption (off): 0.38 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Width (with stand): 647.6 mm
Depth (with stand): 233 mm
Height (with stand): 450.9 mm
Weight (with stand): 10.5 kg
Packaging data
Package width: 764 mm
Package depth: 322 mm
Package height: 560 mm
Package weight: 14.3 kg
Packaging content
Cables included: AC, Audio (3.5mm), HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
Feature: Full HD
Other features
Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Feature: Quick start guide
Feature: AC adapter included
Aspect ratio: 16:9
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Headphone outputs: 1
Display viewable area (HxV): 597.88 x 336.31 mm
Weight (without stand): 7.24 kg
Dimensions (W x D x H) with stand: 647.6 x 233 x 450.9 mm
Panel type: TFT
Display diagonal: 68.6 cm (27″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 300 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Capacitive
Number of simultaneous touchpoints: 10
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Ports & interfaces
HDMI ports quantity: 1
Audio
Feature: Built-in speaker(s)
RMS rated power: 4 W
Design
Product colour: Black, Silver
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Performance
Number of OSD languages: 10
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 28 W
Power consumption (standby): 0.45 W
Power consumption (off): 0.38 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Weight & dimensions
Width (with stand): 647.6 mm
Depth (with stand): 233 mm
Height (with stand): 450.9 mm
Weight (with stand): 10.5 kg
Packaging data
Package width: 764 mm
Package depth: 322 mm
Package height: 560 mm
Package weight: 14.3 kg
Packaging content
Cables included: AC, Audio (3.5mm), HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
Feature: Full HD
Other features
Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Feature: Quick start guide
Feature: AC adapter included
Aspect ratio: 16:9
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Headphone outputs: 1
Display viewable area (HxV): 597.88 x 336.31 mm
Weight (without stand): 7.24 kg
Dimensions (W x D x H) with stand: 647.6 x 233 x 450.9 mm
