Elo Touch Solutions 2495L. Display diagonal: 60.5 cm (23.8"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 540 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Elo’s new interactive open frames deliver the sleek design the 90-Series is known for with outstanding brightness ranging from 400 to 1000 NITs. Available in sizes from 22 to 27 inches, the brilliant, interactive, TouchPro® PCAP displays offer edge-to-edge glass for ease of integration and up to 10 simultaneous touches for an enhanced, tablet-like experience. With proven Elo expertise and built-in reliability, the industrial-grade displays provide outstanding image clarity and light transmissivity, as well as stable drift-free operation for accurate touch responses. Elo’s brighter open frames offer the versatility needed for commercial kiosk applications from industrial automation and gaming to self-service and retail.
Enabling Partners to Build Smarter Kiosks
With EloView® and the Backpack, managing kiosks is EASY! The Elo Backpack is an Android powered compute engine capable of transforming Elo touchscreens into an affordable, scalable, single-architecture media platform. With its simplified content-delivery and remote-management capabilities via the EloView portal, the Backpack provides a low-power, solid-state, fan-less computing solution with the capability to simplify deployments and remotely manage kiosks out-of-the-box.
Flexibility for Your Install
Our commercial-grade open frames can be mounted in landscape, portrait and face-up orientations, providing optimal flexibility for mounting in any table, kiosk or cabinet design. Whether viewing straight on or at an angle, close-up or from a distance, our open frames offer what you need while maintaining optimal clarity and the viewing experience you want to deliver.
Touch Thru Glass Enabled with PCAP
Our TouchPro® PCAP technology supports touch thru functionality for installations requiring a front layer of glass up to 6 mm thick or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully encased behind glass, our robust PCAP open frames are purpose-built for durability in various applications and environments — from self-service kiosks or highly used gaming cabinets to industrial machines performing in harsh environments.
Panel type: TFT
Feature: LED backlight
Display diagonal: 60.5 cm (23.8″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 540 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 500, 800 x 600 (SVGA), 1024 x 768 (XGA), 1440 x 900 (WXGA+), 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Ports & interfaces
HDMI ports quantity: 1
HDMI version: 1.3a
DisplayPorts quantity: 1
DisplayPort version: 1.1a
Ethernet LAN (RJ-45) ports: 1
Design
Product colour: Black
Screen shape: Flat

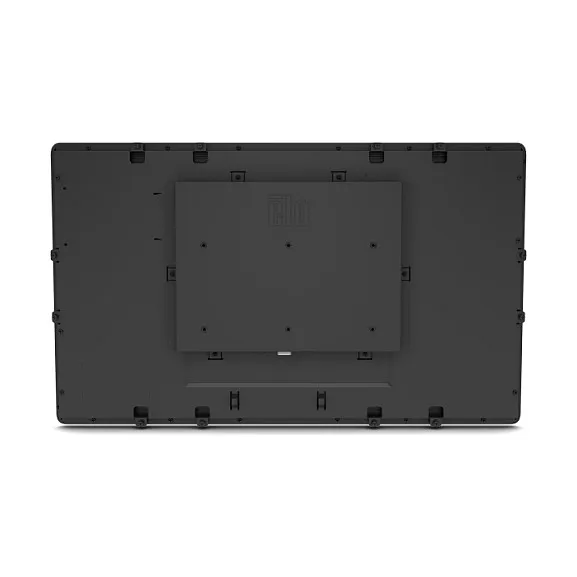

Feature: VESA mounting
Performance
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French
Mean time between failures (MTBF): 50000 h
Power
Power consumption (standby): 0.71 W
Power consumption (off): 0.2 W
Power consumption (max): 32.95 W
Energy efficiency class (SDR): G
Energy consumption (SDR) per 1000 hours: 39 kWh
Energy efficiency scale: A to G
Packaging data
Package width: 692 mm
Package depth: 190 mm
Package height: 452 mm
Package weight: 7.57 kg
Packaging content
Cables included: HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Features
Feature: Wall mountable
Technical details
Compliance certificates: RoHS
Other features
Maximum refresh rate: 60 Hz
Backlight type: LED
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Viewable size, horizontal: 52.7 cm
Viewable size, vertical: 29.6 cm
Display viewable area (HxV): 527.04 x 296.46 mm
Height (without stand): 341.1 mm
Weight (without stand): 5.65 kg
Depth (without stand): 37 mm
Power supply type: DC
