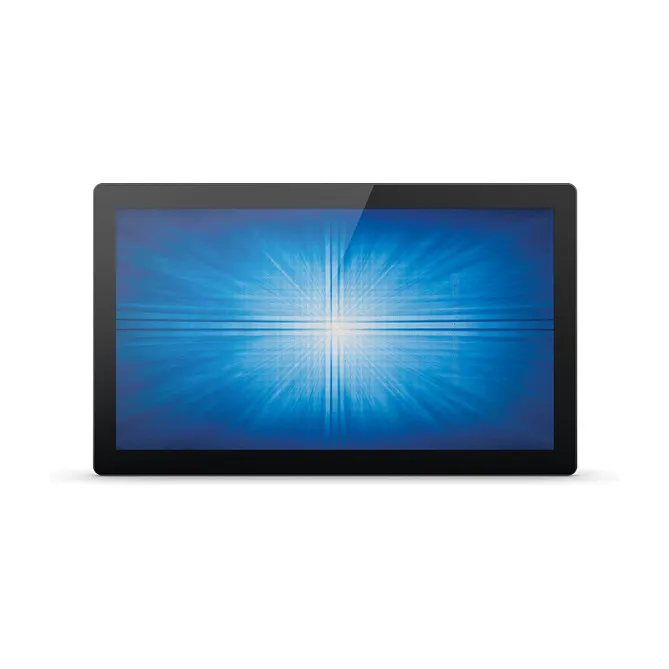

Elo Touch Solutions 2294L. Display diagonal: 54.6 cm (21.5"), Display technology: LCD/TFT, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single-, dual- or multi-touch technology, including IntelliTouch® single- and dual-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Feature: LED backlight
Display diagonal: 54.6 cm (21.5″)
Display technology: LCD/TFT
Display resolution: 1920 x 1080 pixels
Display brightness: 225 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Horizontal scan range: 30 – 82 kHz
Vertical scan range: 50 – 75 Hz
Ports & interfaces
HDMI ports quantity: 1
DisplayPorts quantity: 1
Design
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Performance
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 25 W
Power consumption (off): 0.5 W
Packaging data
Package width: 620 mm
Package depth: 190 mm
Package height: 423 mm
Package weight: 8.2 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
Feature: Full HD
Compliance certificates: RoHS
Other features
Maximum refresh rate: 60 Hz
Aspect ratio: 16:9
Backlight type: LED
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Display viewable area (HxV): 476.64 x 268.11 mm
Weight (without stand): 5.1 kg
Power supply type: DC
