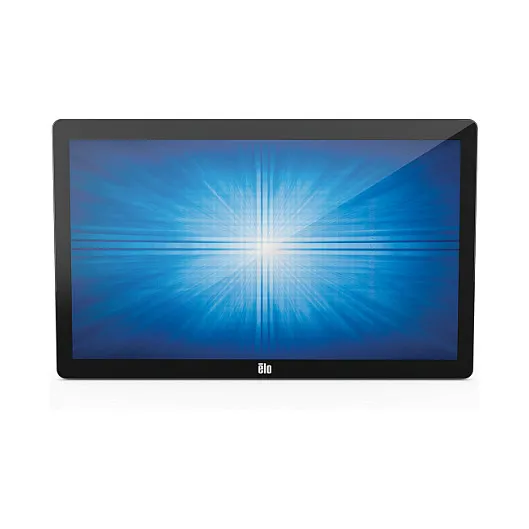

Elo Touch Solutions 2202L. Display diagonal: 54.6 cm (21.5"), Display technology: LCD, Display resolution: 1920 x 1080 pixels, Display brightness: 250 cd/m², HD type: Full HD, Touchscreen. Product colour: Black
Brilliant Displays from 19 to 27-inches
The clear glass touchscreens with Elo’s industry-leading TouchPro® PCAP technology offer wide viewing angles with impeccable image clarity, resolution, and light transmission for accurate touch response and vivid images. With up to 10 touches enabled, the 02-Series Monitors, provide a tablet-like experience.
Well-Suited for…
Not all businesses have the same needs. Whether you need a touchscreen at the point of sale to process a transaction or in a restaurant to enable self-service for guests to view your menu and submit their order, the line of 02-Series monitors can support the installation needs with ease while maintaining a modern, sleek aesthetic.
Elo Edge Connect™ Lets You do More!
Built with versatility in mind, the Elo Edge Connect system offers a wide assortment of peripheral options. Whether for endless aisle, self-order or collaboration applications, you can seamlessly attach any combination of up to four peripherals to the edge of the touchscreen creating a bespoke solution. And, you can add or move them later as your needs change!
One for You
One for Your Customers.Offer your customers a point of interaction by adding a touchscreen for them to review their transactions, participate in loyalty programs or see the latest promotion.
Mount with Flexibility
Customers demand a seamless shopping experience from first step into the store through check-out. From the stands that come with the monitors to pole mounts, shelf mounts, wall mounts and 3rd party VESA mounts, the touchscreens can be integrated with ease.
Built-to-Last
The 02-Series Touchscreen Monitors deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 5-years. We design, build and are responsible for the complete solution,with touch integrated from the start.
Panel type: TFT
Feature: LED backlight
Display diagonal: 54.6 cm (21.5″)
Display technology: LCD
Display resolution: 1920 x 1080 pixels
Display brightness: 250 cd/m²
HD type: Full HD
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 16:9
Response time: 25 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Display diagonal (metric): 54.61 cm
Ports & interfaces
HDMI ports quantity: 1
Audio
Feature: Built-in speaker(s)
RMS rated power: 4 W
Design
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Performance
Number of OSD languages: 10
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese, Korean, Russian
International Protection (IP) code: IPX1
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 22.5 W
Power consumption (standby): 0.8 W
Power consumption (off): 0.35 W
AC input voltage: 100 – 240 V
AC input frequency: 50 – 60 Hz
Packaging data
Package width: 633 mm
Package depth: 196 mm
Package height: 450 mm
Package weight: 7.2 kg
Packaging content
Cables included: AC, Audio (3.5mm), HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Operating altitude: 0 – 3.048 m
Non-operating altitude: 0 – 12.192 m
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Other features
Micro-USB ports quantity: 4
Maximum refresh rate: 60 Hz
Feature: Quick start guide
Feature: AC adapter included
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Headphone outputs: 1
Display viewable area (HxV): 467.06 x 267.78 mm
Height (without stand): 326.9 mm
Weight (without stand): 5.2 kg
Depth (without stand): 42.7 mm
Power supply type: AC/DC
