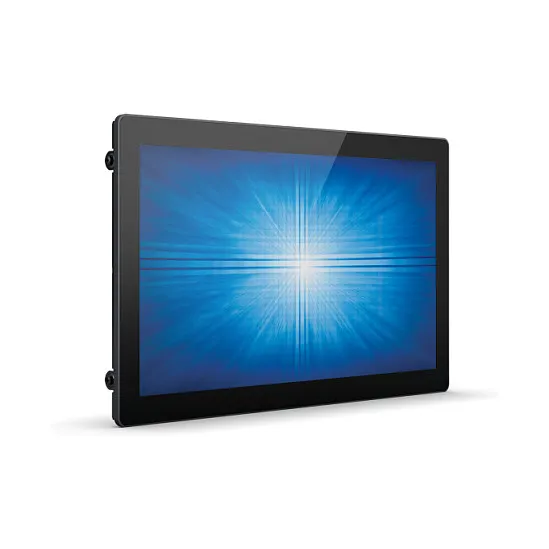

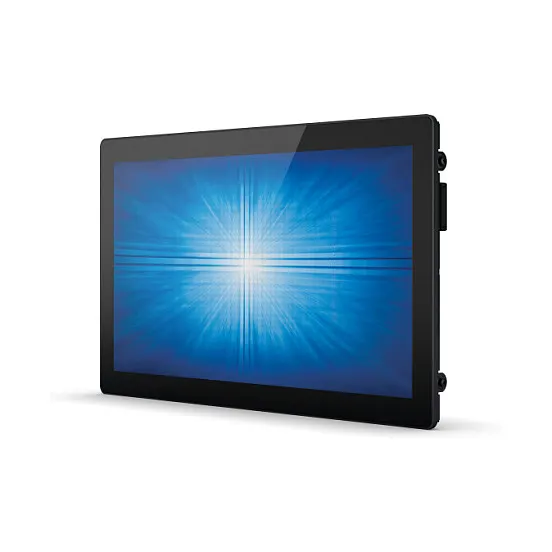

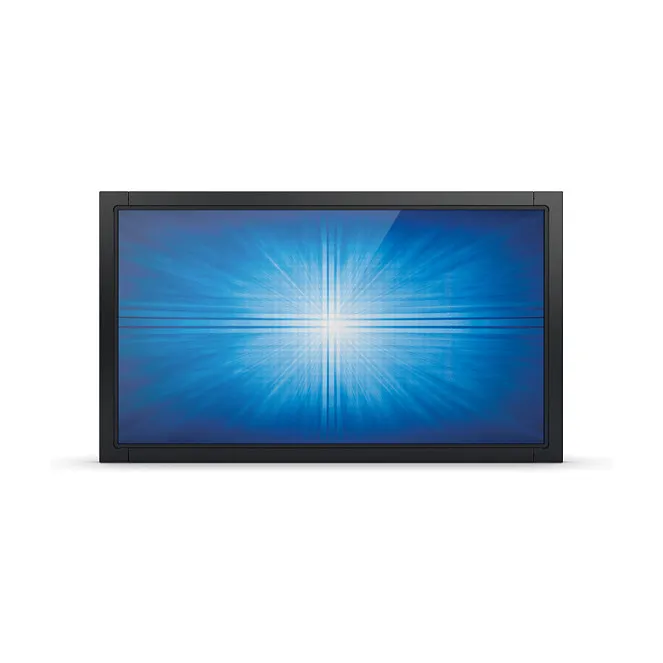

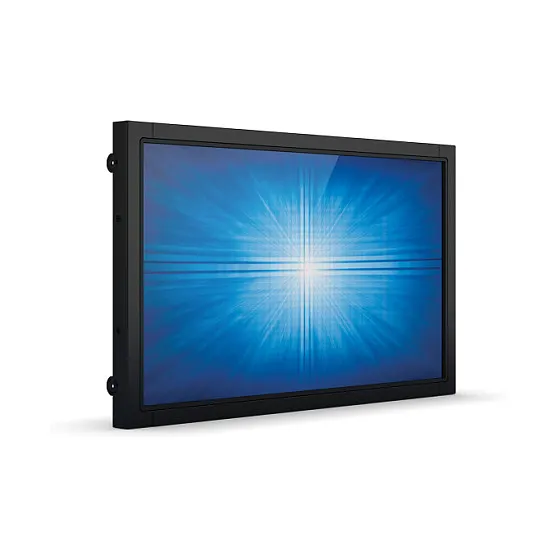

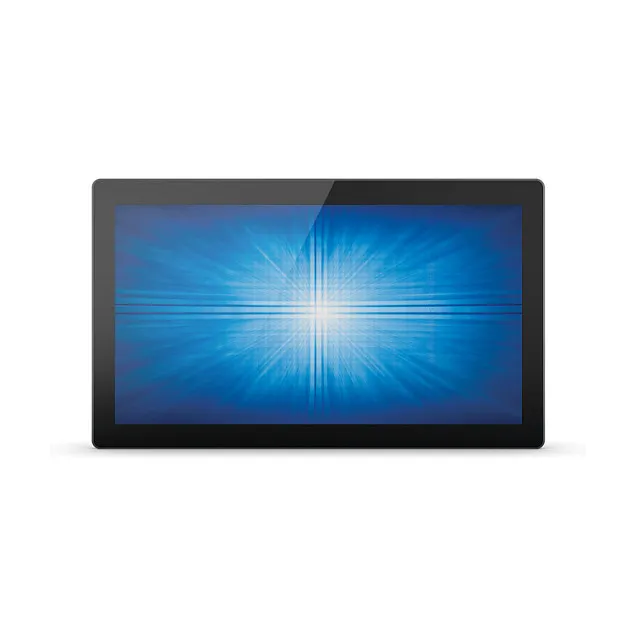

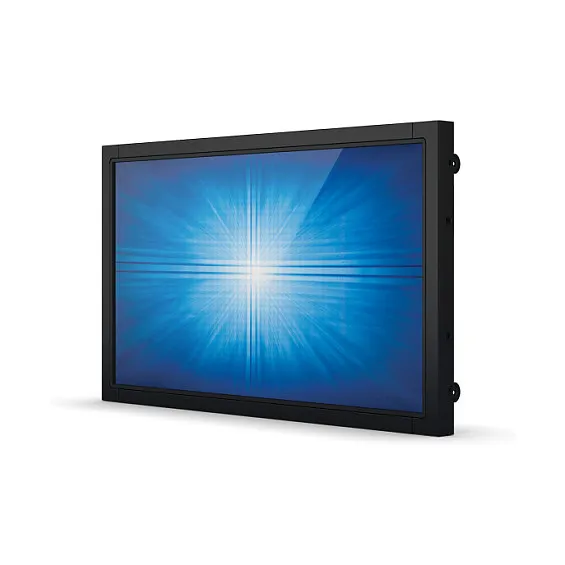

Elo Touch Solutions 2094L. Display diagonal: 49.5 cm (19.5"), Display technology: LED, Display resolution: 1920 x 1080 pixels, Display brightness: 225 cd/m², Touchscreen. Product colour: Black
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
– Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
– Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
– 10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
– Display Port and VGA video interfaces
Display diagonal: 49.5 cm (19.5″)
Display technology: LED
Display resolution: 1920 x 1080 pixels
Display brightness: 225 cd/m²
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Response time: 20 ms
Contrast ratio (typical): 3000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Horizontal scan range: 30 – 82 kHz
Supported graphics resolutions: 640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1366 x 768, 1440 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
Ports & interfaces
HDMI ports quantity: 1
DisplayPorts quantity: 1
Design
Product colour: Black
Screen shape: Flat
Feature: VESA mounting

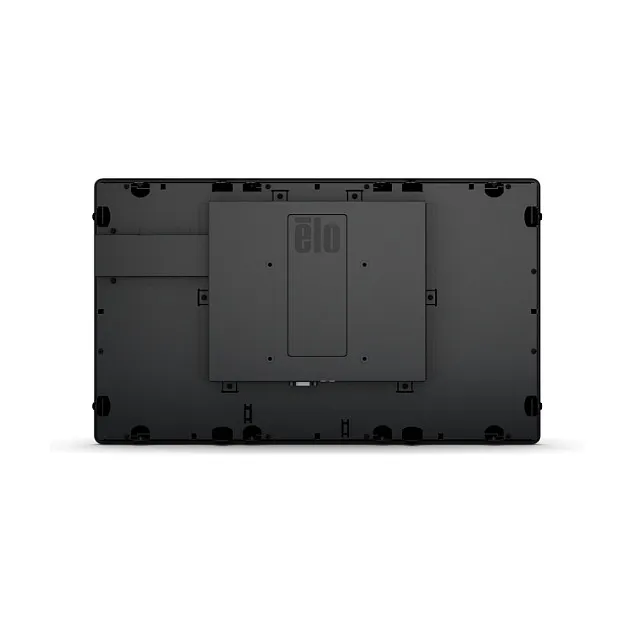

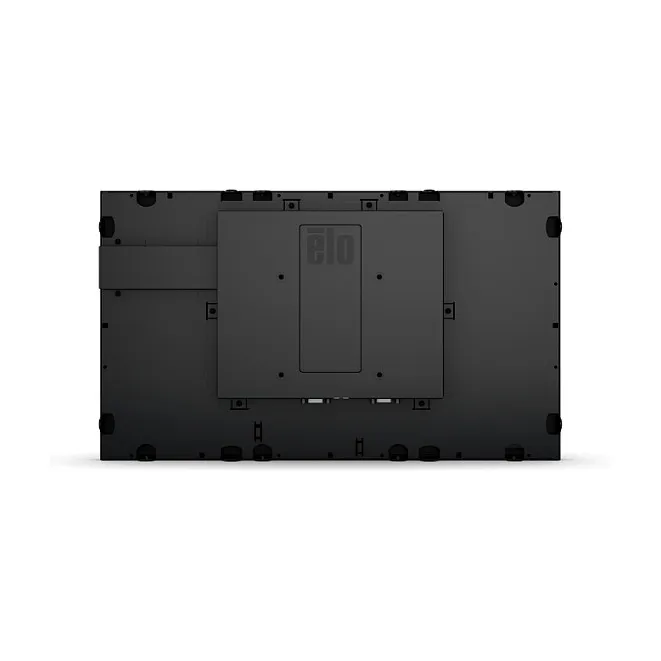

Panel mounting interface: 100 x 100 mm
Performance
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 17.6 W
Power consumption (standby): 1.5 W
Power consumption (off): 0.5 W
AC input voltage: 230 V
AC input frequency: 50 Hz
Weight & dimensions
Width (with stand): 476 mm
Depth (with stand): 280.1 mm
Height (with stand): 43.4 mm
Packaging data
Package width: 575 mm
Package depth: 185 mm
Package height: 376 mm
Package weight: 6.4 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Operating altitude: 0 – 3.048 m
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Other features
Aspect ratio: 16:9
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
Display viewable area (HxV): 434.88 x 238.68 mm
Height (without stand): 285 mm
Weight (without stand): 4.7 kg
Depth (without stand): 40.5 mm
Dimensions (W x D x H) with stand: 476 x 280.1 x 43.4 mm
Power supply type: DC
