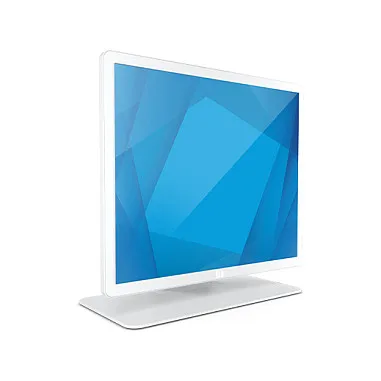

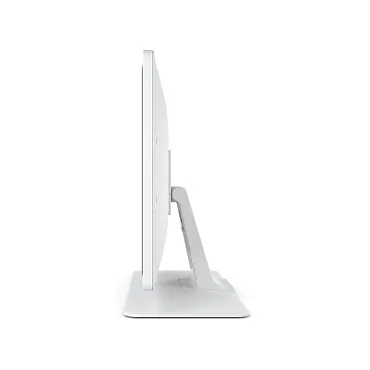

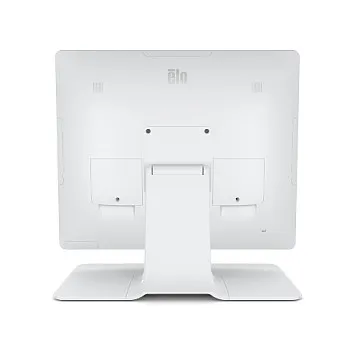

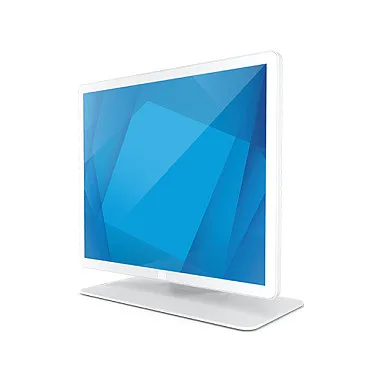

Elo Touch Solutions 1903LM. Display diagonal: 48.3 cm (19"), Display technology: LCD, Display resolution: 1280 x 1024 pixels, Display brightness: 225 cd/m², HD type: SVGA, Touchscreen. Product colour: White
The 03-Series Medical Grade Touchscreen Monitors merge best-in-class touchscreen technology with DICOM Part 14 functionality to help enhance clinical review for healthcare providers while increasing patient engagement. With a compact form factor and sleek design, the touchscreen monitors are well-suited for EMR documentation, image viewing, clinical collaboration, deployment within the laboratory and pharmacy and for integration into medical devices.
DICOM 14 -Designed for Consistent Image Review
Get the image accuracy you need during clinical review with the 03-Series medical grade touch screen monitors. To help ensure healthcare providers and patients can view clear, accurate and consistent medical images, the displays are pre-calibrated from the factory per AAPM secondary display guidelines in compliance with the DICOM 14 GSDF curve.
Enhancing Clinical Workflow with Touch
From analyzing X-rays and scans to reviewing vitals, lab results and medical history, adding touchscreens into the clinical workflow creates efficiencies while improving the patient and provider experience.
Purpose-built for Healthcare
The 03-Series medical grade touch screen monitors offer flexibility for installation in a variety of healthcare environments to support increased communication among patients and healthcare providers.
Medical Device Ready
With a full line of touch technologies and display solutions, Elo can help develop and customize products for almost any medical device including ventilator monitors, anesthesia monitors, patient monitors and medication dispensers. From operating rooms to patient rooms, laboratories and anywhere healthcare is provided, Elo products are well-suited for medical applications where consistent and long-lasting quality and touch performance are critical.
Panel type: TFT
Display diagonal: 48.3 cm (19″)
Display technology: LCD
Display resolution: 1280 x 1024 pixels
Display brightness: 225 cd/m²
HD type: SVGA
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Number of simultaneous touchpoints: 10
Native aspect ratio: 5:4
Response time: 14 ms
Contrast ratio (typical): 1000:1
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.78 million colours
Display diagonal (metric): 48 cm
Ports & interfaces
HDMI ports quantity: 1
Audio
Feature: Built-in speaker(s)
RMS rated power: 2 W
Design
Product colour: White
Screen shape: Flat
Feature: VESA mounting
Feature: Anti-glare screen
Performance
Feature: On Screen Display (OSD)
Number of OSD languages: 8
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
International Protection (IP) code: IP54
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 14.53 W
Power consumption (standby): 0.79 W
Power consumption (off): 0.37 W
Power consumption (max): 16.36 W
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 14 kWh
Energy efficiency scale: A to G
Weight & dimensions
Width (with stand): 429.6 mm
Depth (with stand): 193.4 mm
Height (with stand): 429.6 mm
Weight (with stand): 6.3 kg
Packaging data
Package width: 527 mm
Package depth: 260 mm
Package height: 482 mm
Package weight: 9.8 kg
Packaging content
Cables included: HDMI, USB, VGA
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Features
Feature: Wall mountable
Technical details
Compliance certificates: RoHS
Other features
Maximum refresh rate: 70 Hz
Digital horizontal frequency: 30 – 82 kHz
Digital vertical frequency: 50 – 75 Hz
LED indicators: Power
Viewable size, horizontal: 37.5 cm
Viewable size, vertical: 30 cm
Display viewable area (HxV): 374.78 x 299.83 mm
Weight (without stand): 4.3 kg
Power supply type: DC
