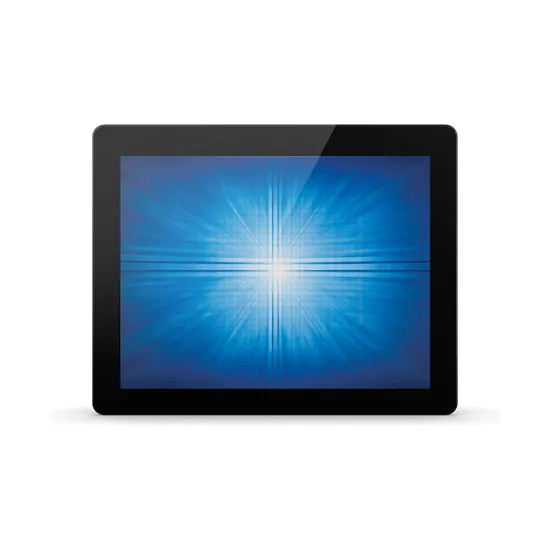

Elo Touch Solutions 1590L. Display diagonal: 38.1 cm (15"), Display technology: LCD, Display resolution: 1024 x 768 pixels, Display brightness: 240 cd/m², Touchscreen. Product colour: Black
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected.
Touch ready.
The 1590L is available with a choice of industry-leading single-touch or multi-touch technologies. The seamless zero-bezel 15-inch multi-touch display is available with our latest TouchPro™ PCAP two-glass solution (2GS) technology that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality—both modes support single or dual latex gloves as well as cloth gloves. Standard bezel, single-touch display options include AccuTouch® five-wire resistive, IntelliTouch® SAW or SecureTouch® anti-vandal SAW.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution, with touch integrated from the start. Using our touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life-testing processes. All our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Feature: LED backlight
Display diagonal: 38.1 cm (15″)
Display technology: LCD
Display resolution: 1024 x 768 pixels
Display brightness: 240 cd/m²
Feature: Touchscreen
Touchscreen technology: Projected capacitive system
Response time: 16 ms
Contrast ratio (typical): 800:1
Viewing angle, horizontal: 160°
Viewing angle, vertical: 150°
Display number of colours: 16.2 million colours
Horizontal scan range: 30 – 60 kHz
Vertical scan range: 50 – 75 Hz
Native refresh rate: 60 Hz
Ports & interfaces
HDMI ports quantity: 1
DisplayPorts quantity: 1
Design
Product colour: Black
Screen shape: Flat
Feature: VESA mounting
Panel mounting interface: 75 x 75,100 x 100 mm
Performance
On Screen Display (OSD) languages: Simplified Chinese, Traditional Chinese, German, English, Spanish, French, Italian, Japanese
Mean time between failures (MTBF): 50000 h
Power
Power consumption (typical): 12.5 W
Power consumption (off): 0.5 W
Energy efficiency class (SDR): F
Energy consumption (SDR) per 1000 hours: 15 kWh
Energy efficiency scale: A to G
Packaging data
Package width: 434 mm
Package depth: 175 mm
Package height: 375 mm
Package weight: 4.7 kg
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 20 – 80%
Storage temperature (T-T): -20 – 60 °C
Storage relative humidity (H-H): 10 – 95%
Logistics data
Harmonized System (HS) code: 85285210
Features
Feature: Wall mountable
Technical details
Compliance certificates: RoHS
Other features
Aspect ratio: 4:3
Backlight type: LED
Digital horizontal frequency: 30 – 60 kHz
Digital vertical frequency: 50 – 75 Hz
Display viewable area (HxV): 304.1 x 228.1 mm
Height (without stand): 284.9 mm
Weight (without stand): 2.9 kg
Depth (without stand): 35.6 mm
Power supply type: DC
