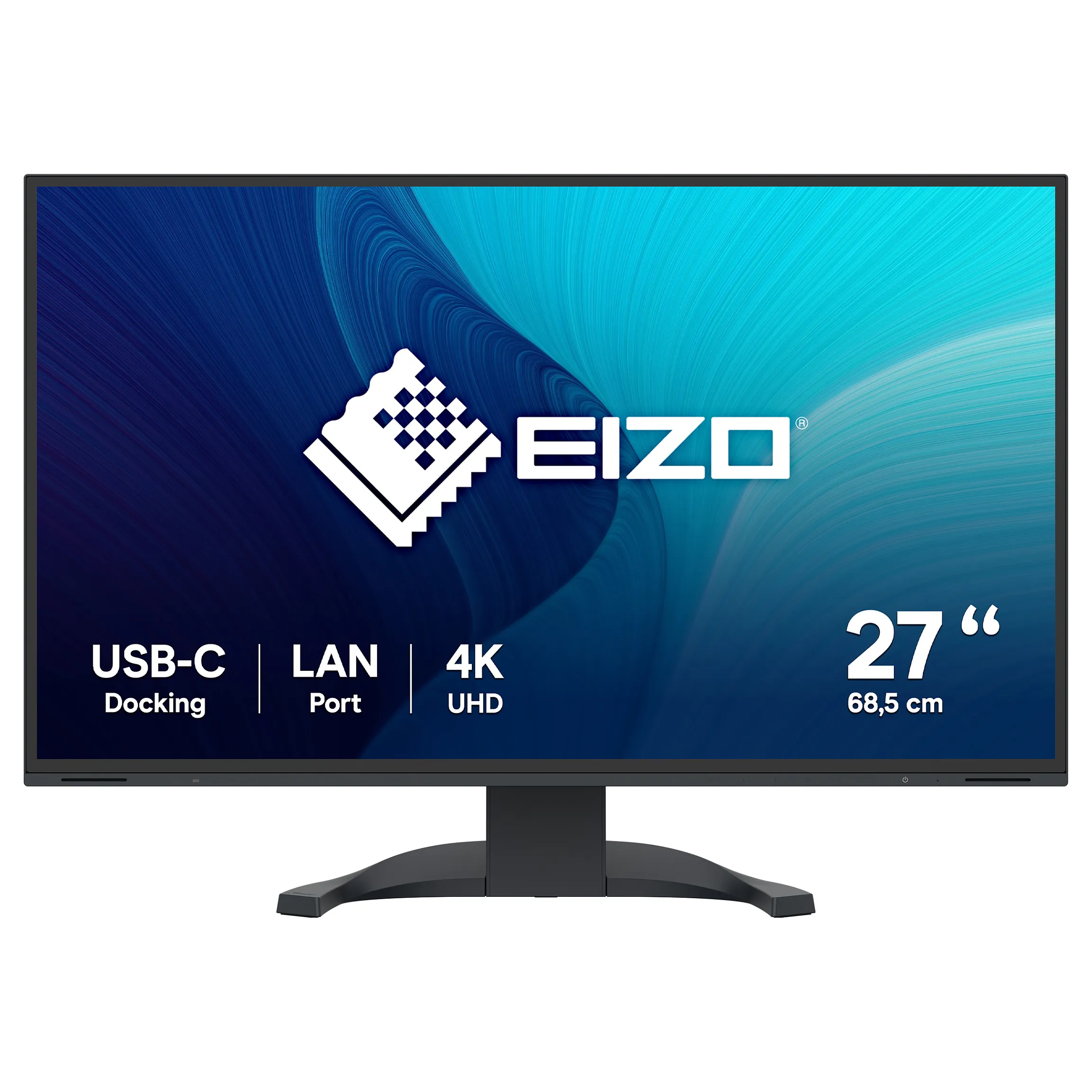

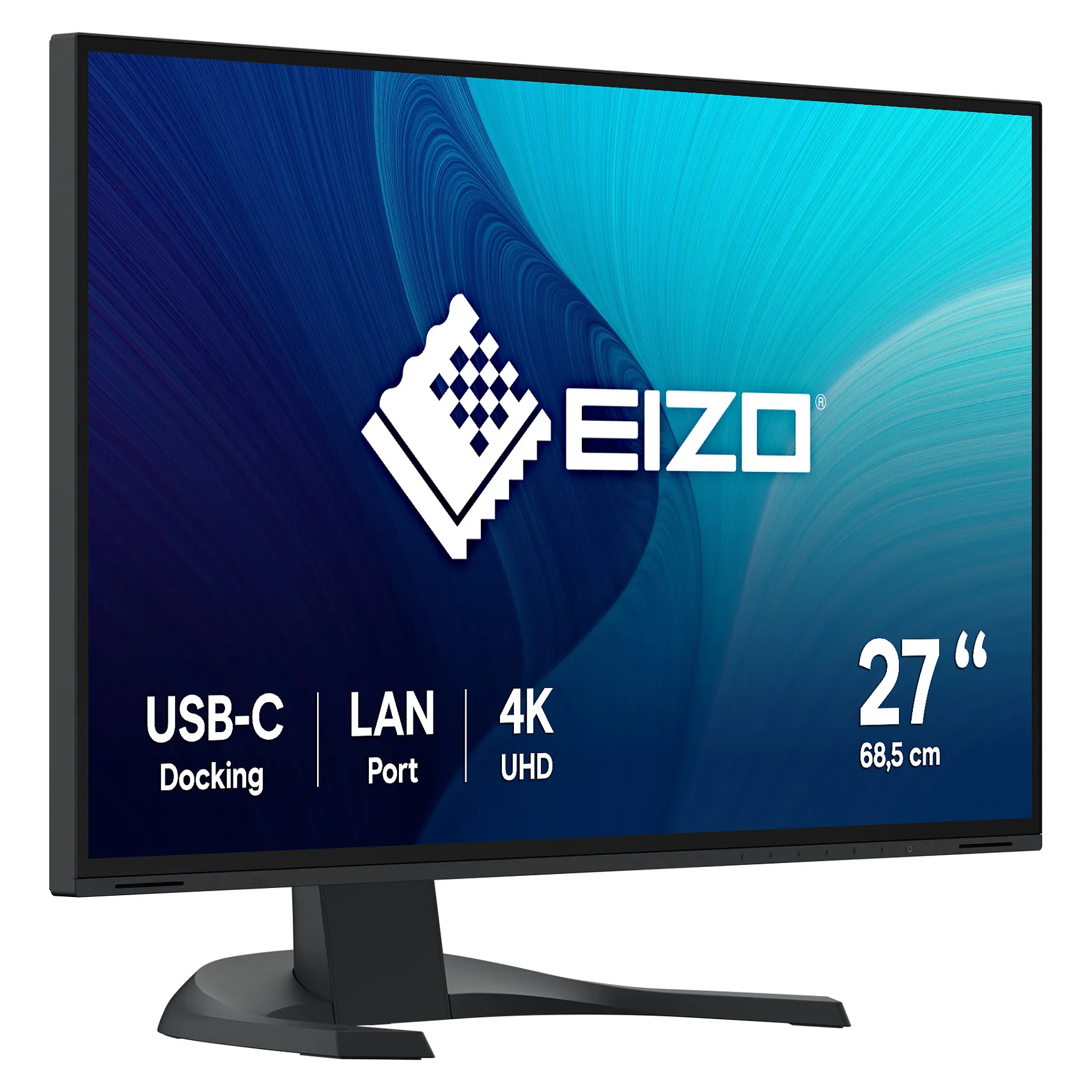

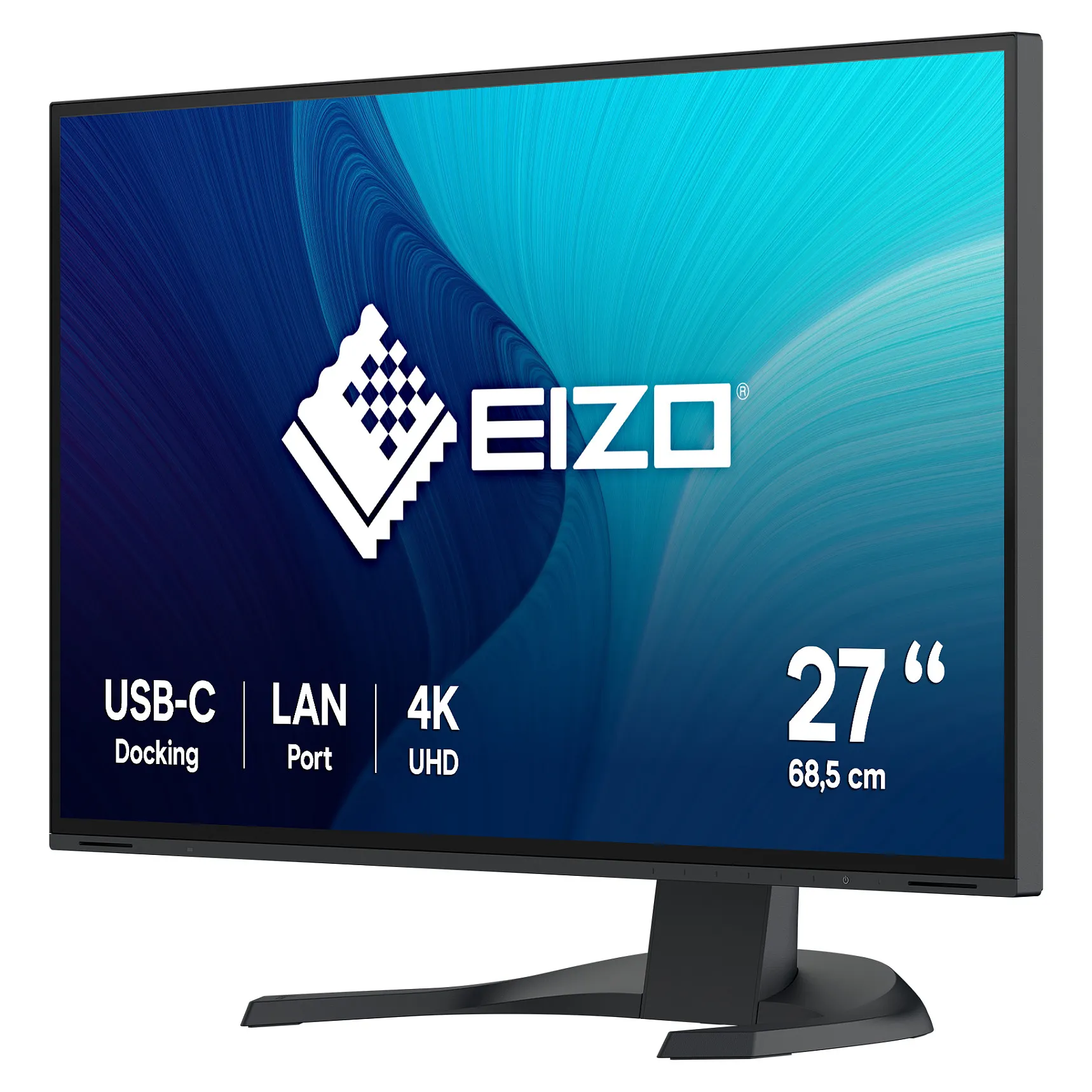

EIZO FlexScan EV2740X-BK. Display diagonal: 68.6 cm (27"), Display resolution: 3840 x 2160 pixels, HD type: 4K Ultra HD, Display technology: LCD, Response time: 5 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in speaker(s). Built-in USB hub, USB hub version: 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The EV2740X makes a clear statement for performance. 4K UHD resolution, USB-C docking and 94 W Power Delivery are convincing. Its 163 dpi display quality ensures crisp graphics and text. Docking convenience via its USB-C interface makes the FlexScan EV2740X the ideal display solution for professional office or CAD applications. Switching smoothly between office and home office is a breeze thanks to the USB-C port. Especially notebook and tablet users benefit from this. A single connection to the computer is sufficient for charging power, video signal, audio and USB data including network. The casing is available in black or white; even the cables are color-coordinated. The monitor is equipped with two HDMI ports as well as one DisplayPort and USB-C port each. With its two USB upstream ports, the EV2740X can be used as a keyboard/mouse switcher. For example, if both a home PC and a company computer are connected to the monitor in the home office, both computers can be operated with a single keyboard and mouse. When using its Picture-by-Picture function, it even displays two signal sources simultaneously.
Display
Display diagonal: 68.6 cm (27″)
Display resolution: 3840 x 2160 pixels
HD type: 4K Ultra HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 350 cd/m²
Response time: 5 ms
Feature: Anti-glare screen
Screen shape: Flat
Contrast ratio (typical): 2000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 16.7 million colours
Pixel pitch: 0.155 x 0.155 mm
Pixel density: 163 ppi
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital horizontal frequency: 31 – 135 kHz
Digital vertical frequency: 29 – 61 Hz
Display diagonal (metric): 68.5 cm
Colour gamut standard: sRGB
Performance
Feature: Flicker-free technology
Feature: Low Blue Light technology
Multimedia
Number of speakers: 2
RMS rated power: 4 W
Feature: Built-in speaker(s)
Design
Market positioning: Office
Product colour: Black
Feet colour: Black

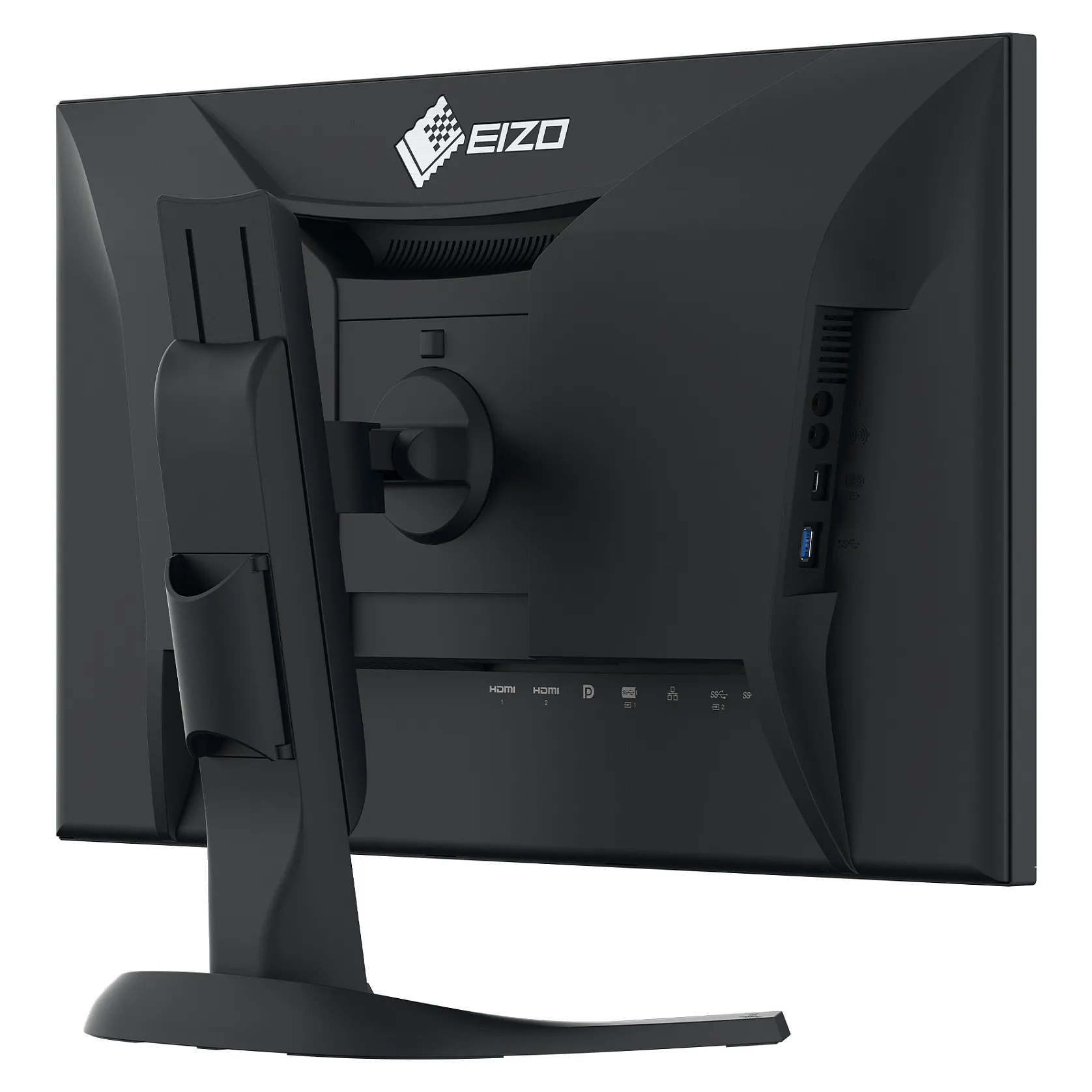

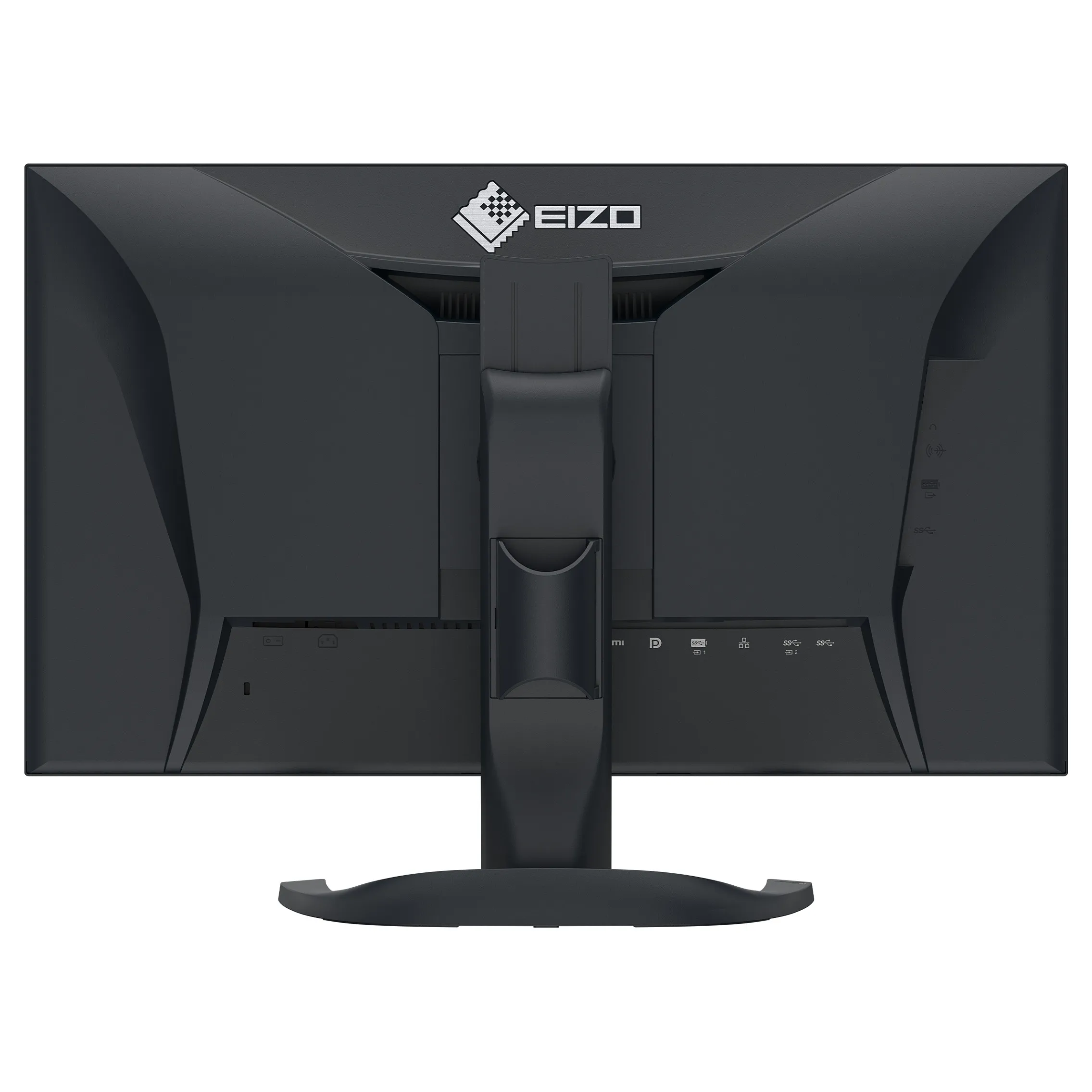

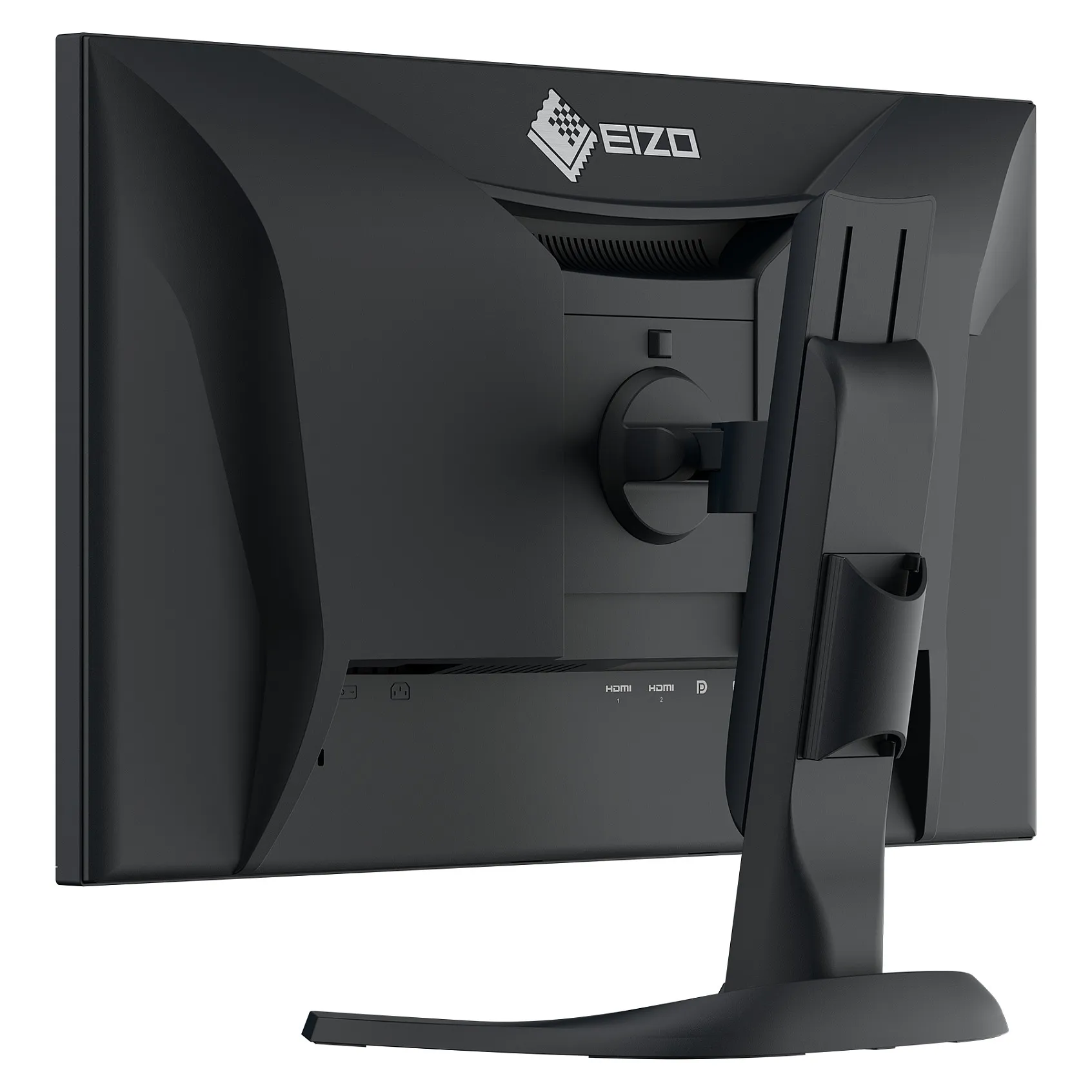

Ports & interfaces
Feature: Built-in USB hub
USB hub version: 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 3
USB Type-C downstream ports quantity: 1
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 94 W
Feature: HDMI
HDMI ports quantity: 2
DisplayPorts quantity: 1
Feature: Headphone out
Headphone outputs: 2
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
HDCP version: 1.4/2.3
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington

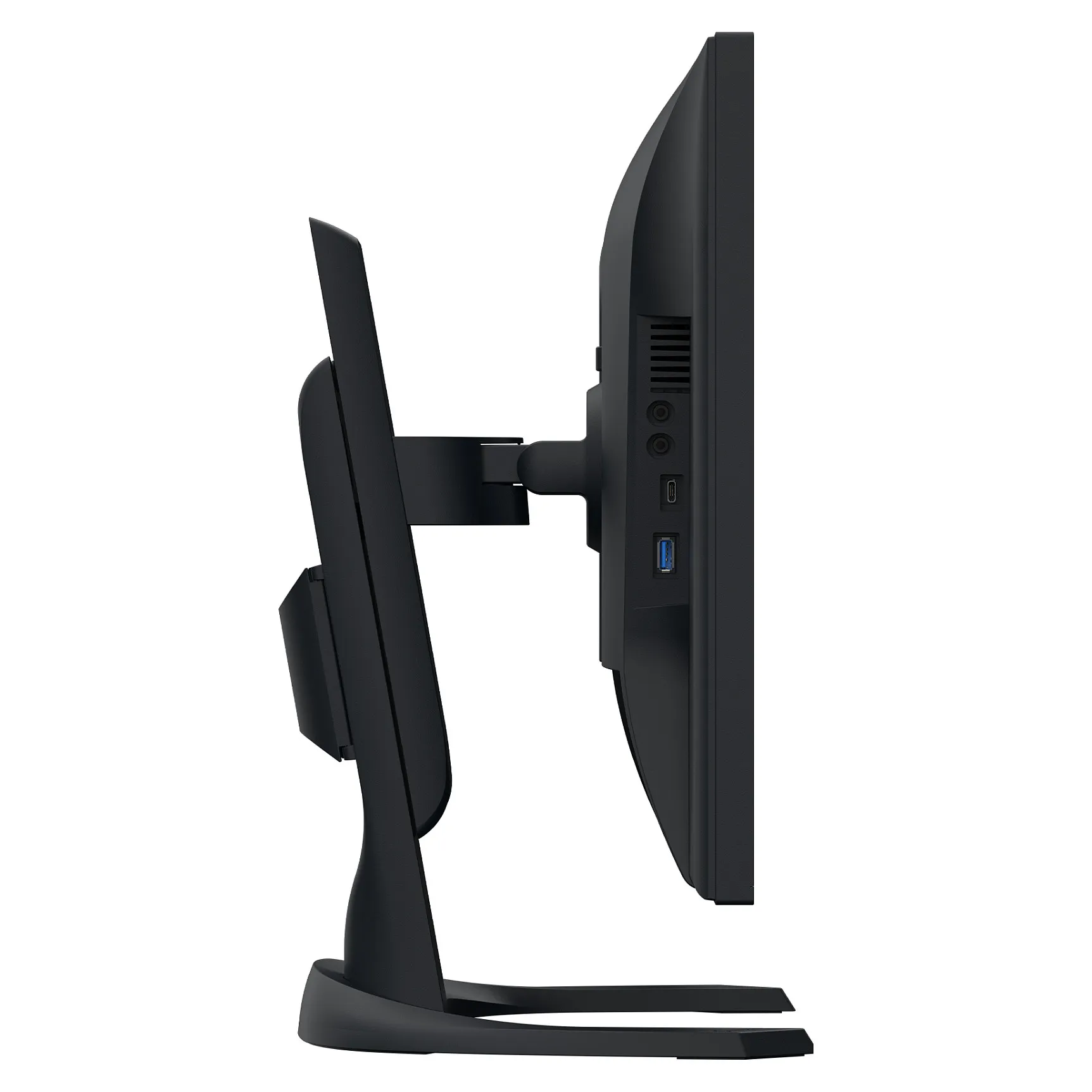

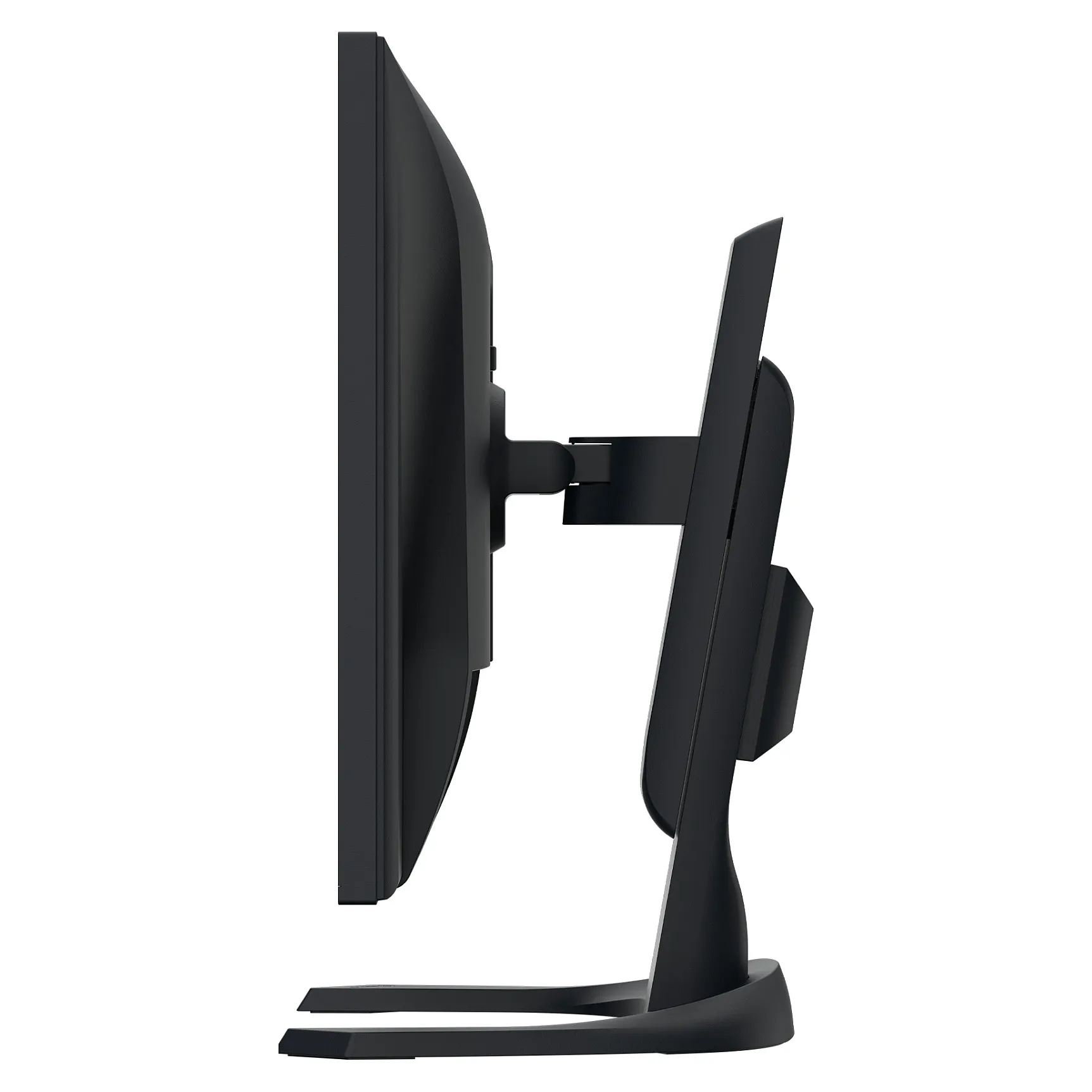

Feature: Height adjustment
Adjustable height (max): 19.5 cm
Feature: Pivot
Pivot angle: 0 – 90°
Feature: Swivelling
Swivel angle range: -90 – 90°
Feature: Tilt adjustment
Tilt angle range: -5 – 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish
Power
Energy efficiency class (SDR): D
Energy consumption (SDR) per 1000 hours: 18 kWh
Power consumption (typical): 16 W
Power consumption (standby): 0.35 W
Power consumption (max): 186 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 5 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 612 mm
Depth (with stand): 242 mm
Height (with stand): 565 mm
Weight (with stand): 8.2 kg
Width (without stand): 612 mm
Depth (without stand): 61 mm
Height (without stand): 359 mm
Weight (without stand): 5.5 kg
Packaging content
Feature: Stand included
Cables included: AC, USB Type-C to USB Type-C
Feature: Quick start guide
Sustainability
Feature: Sustainability compliance
Sustainability certificates: ENERGY STAR, EPEAT Climate +, EPEAT Gold, TCO
Other features
Feature: Picture-by-Picture (PbP)
Feature: Automatic brightness control
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 14
Compliance certificates: CB, CCC, CE, China RoHS, Federal Communications Commission (FCC), GS mark, ICES, PSE, RCM, RoHS, cTUVus, UKCA, VCCI, WEEE
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Logistics data
Harmonized System (HS) code: 85285210
