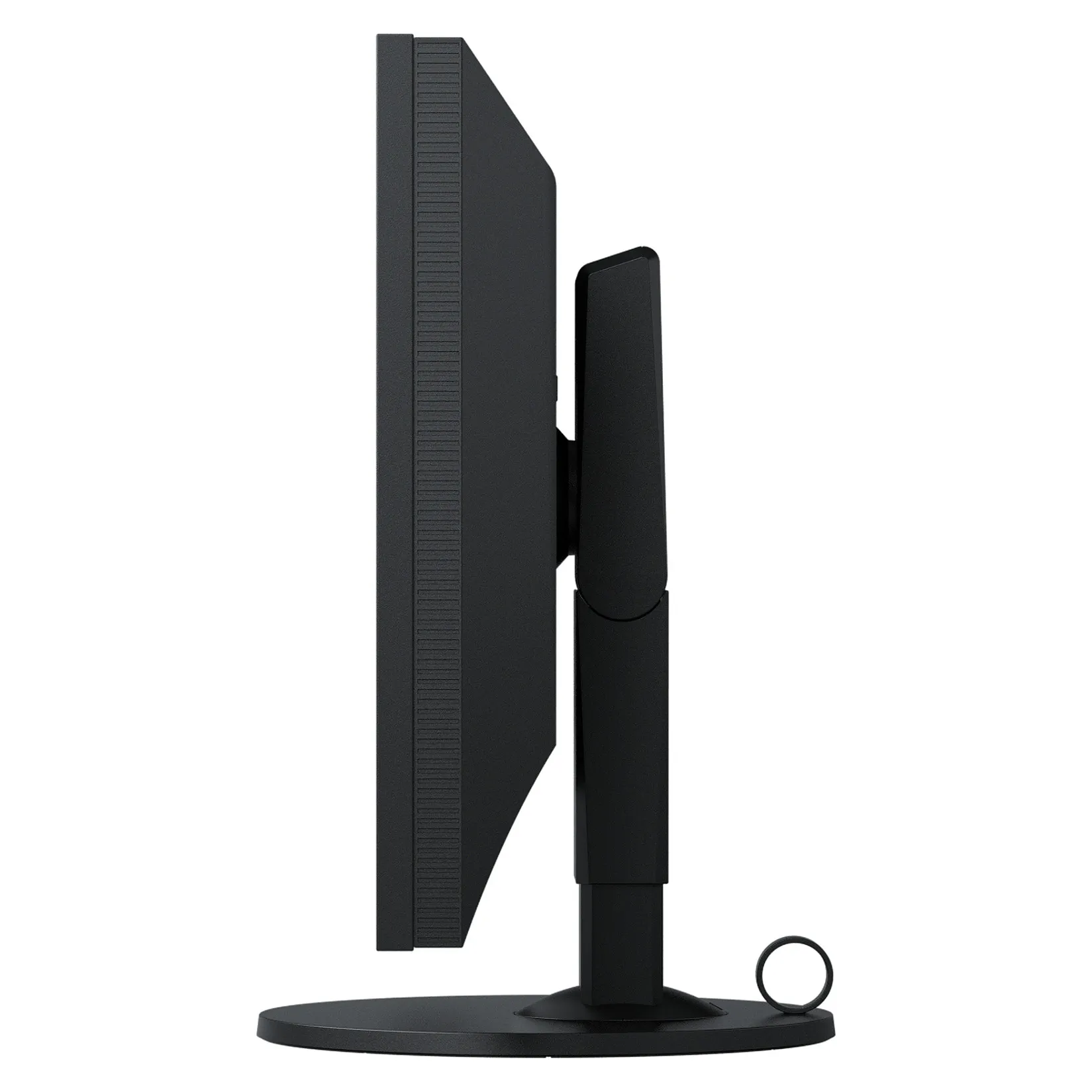

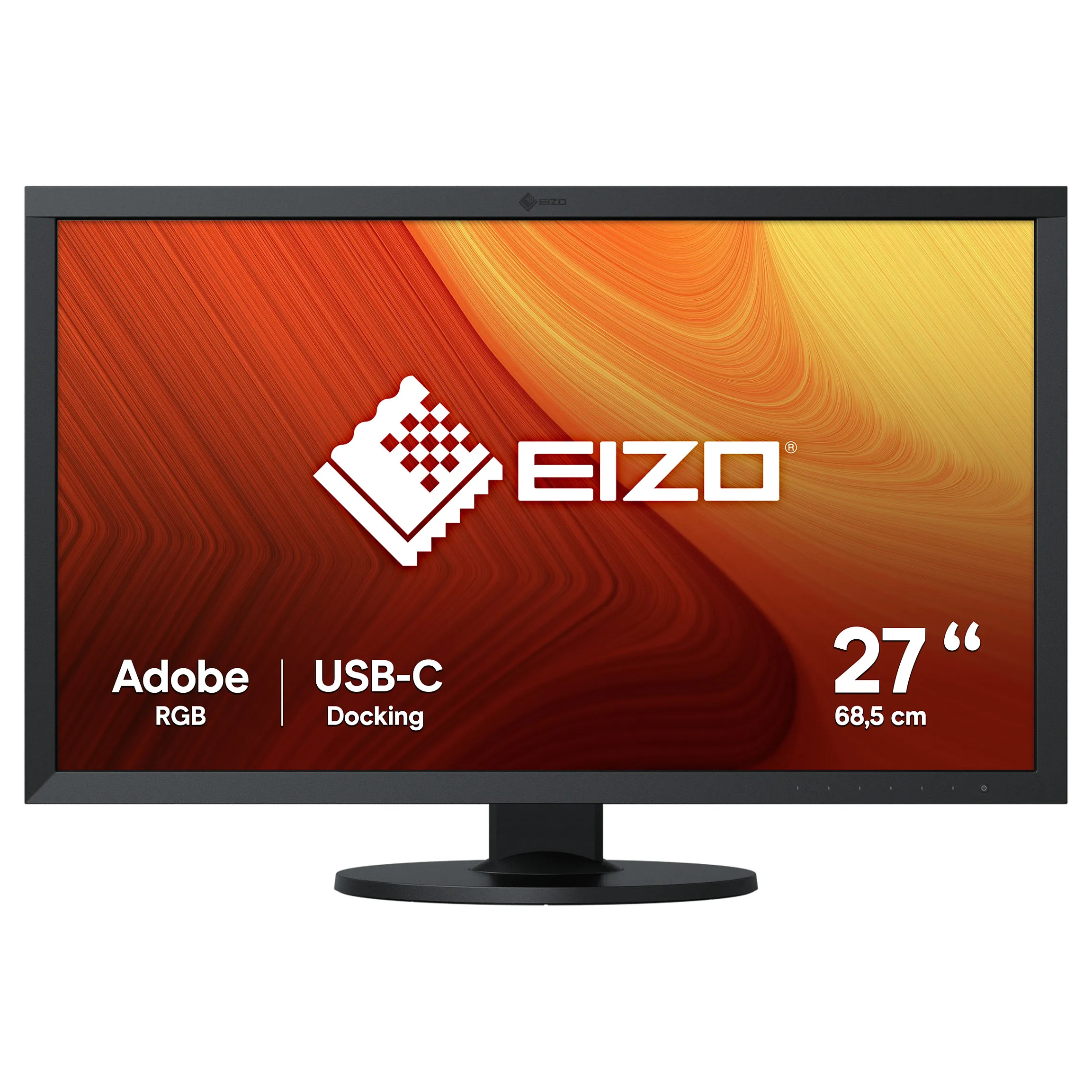

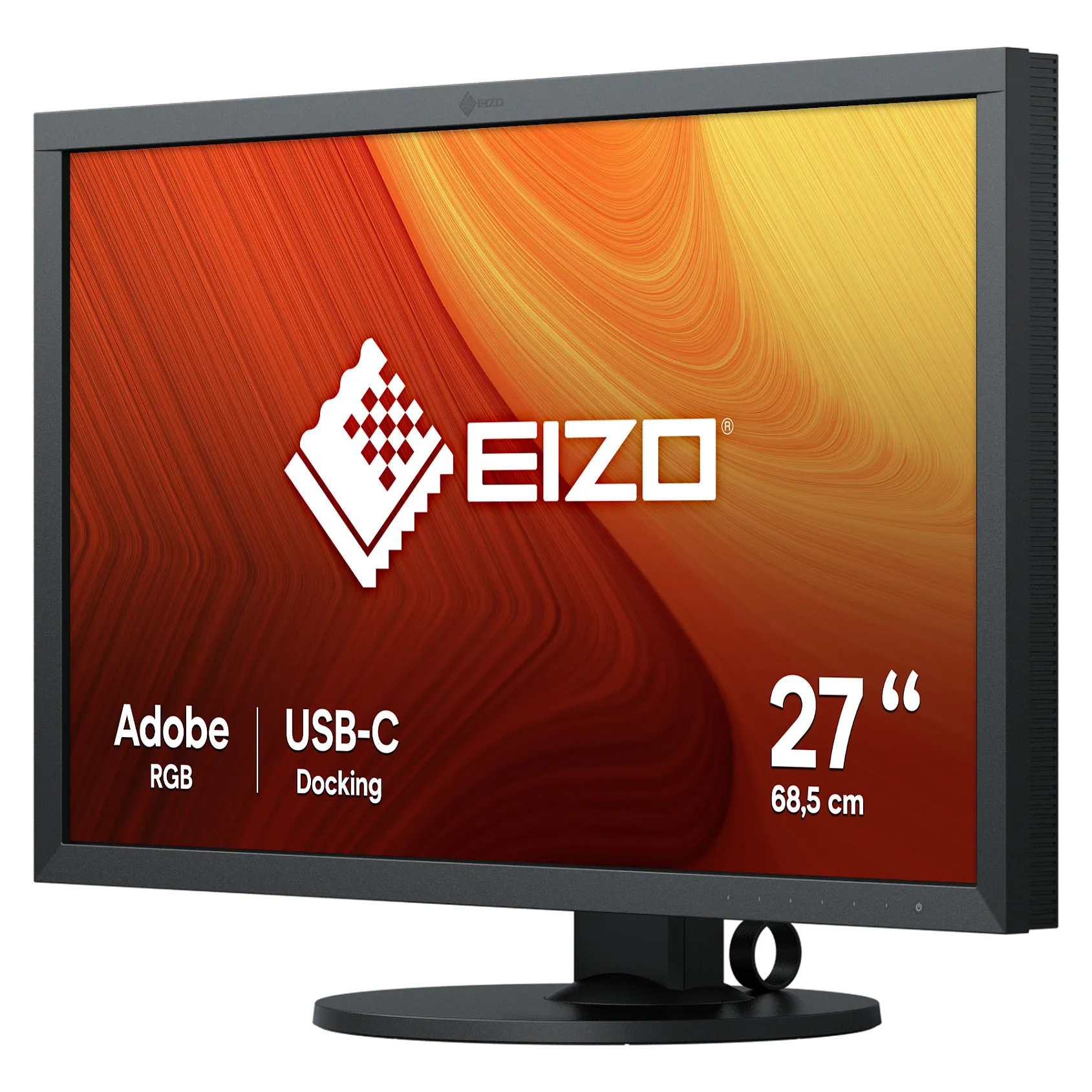

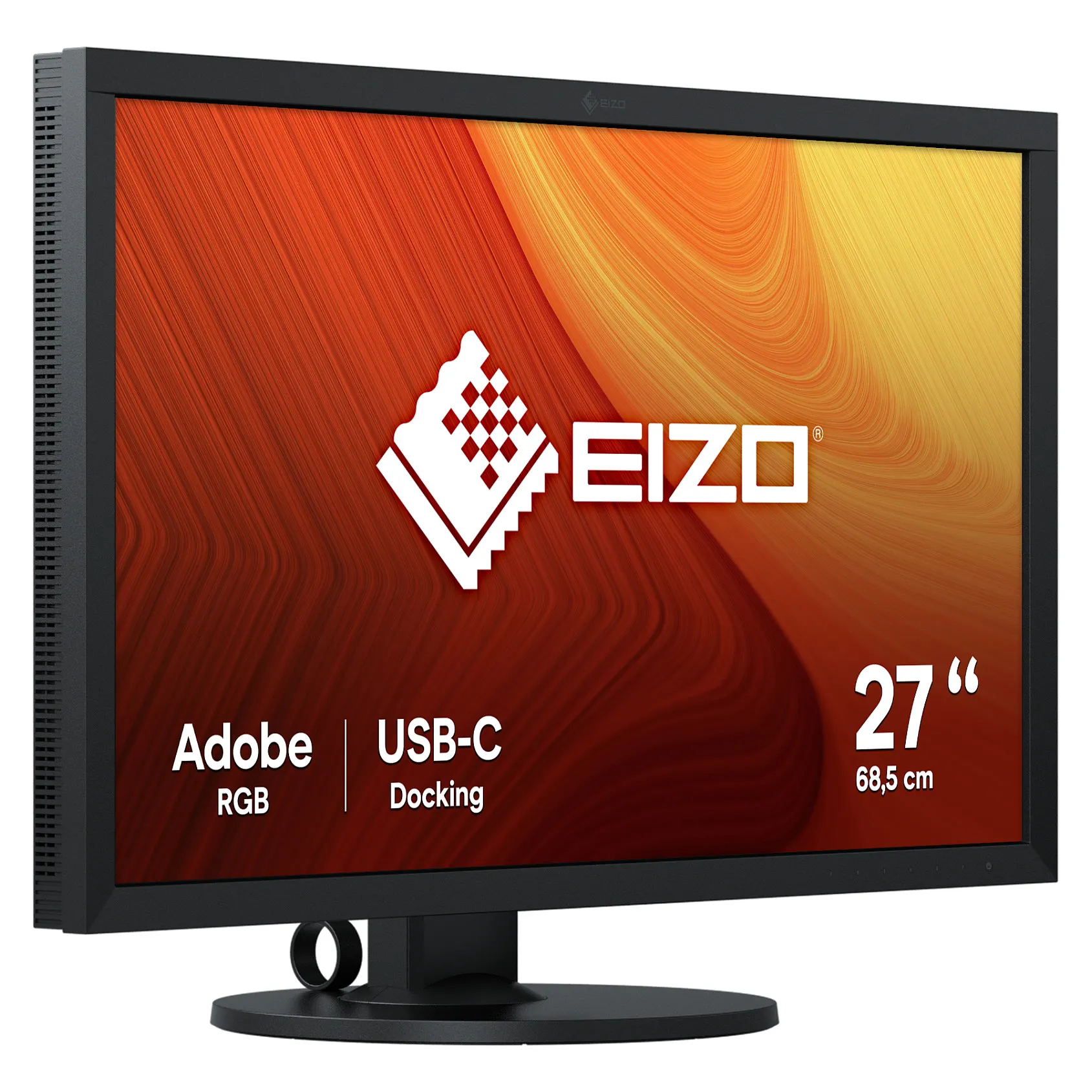

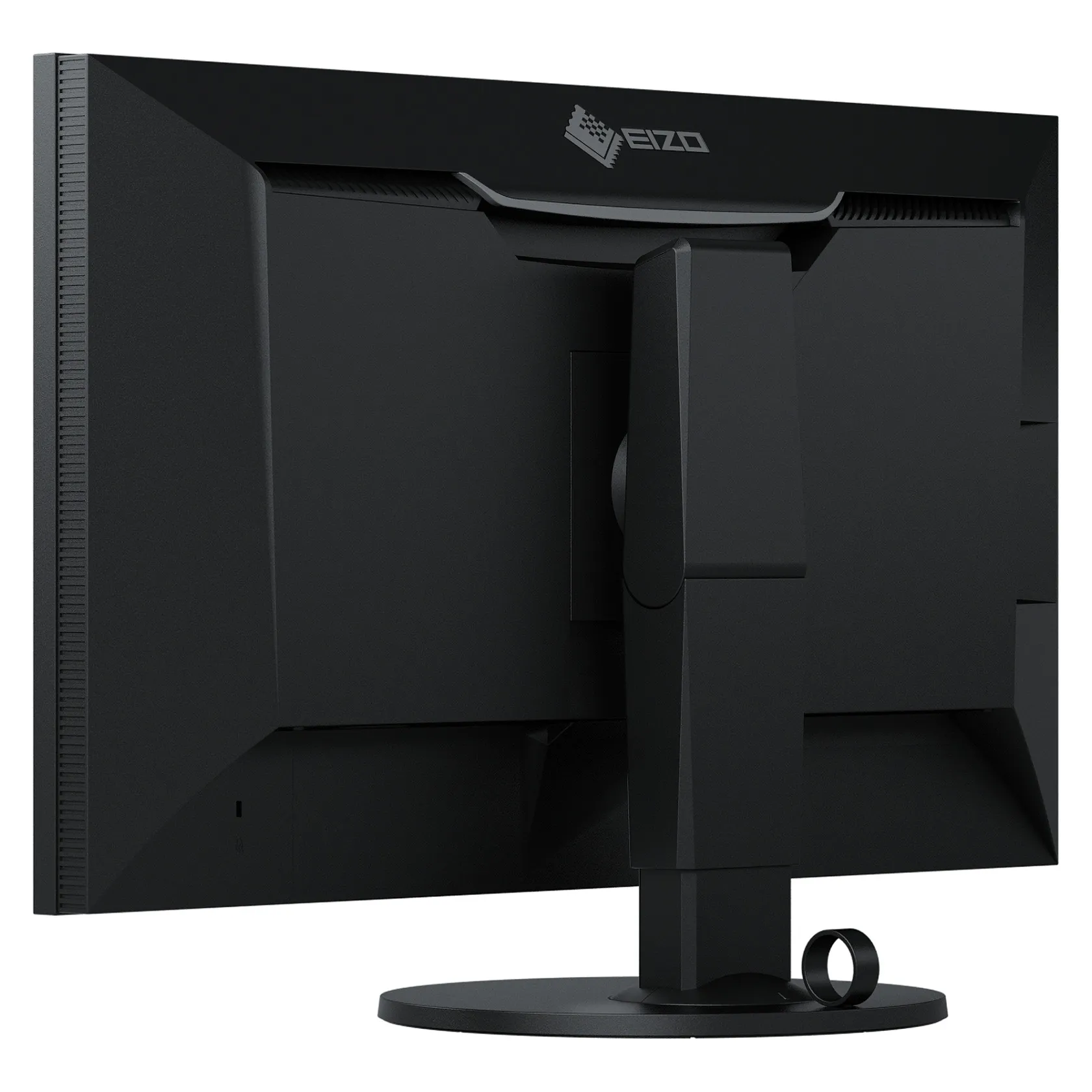

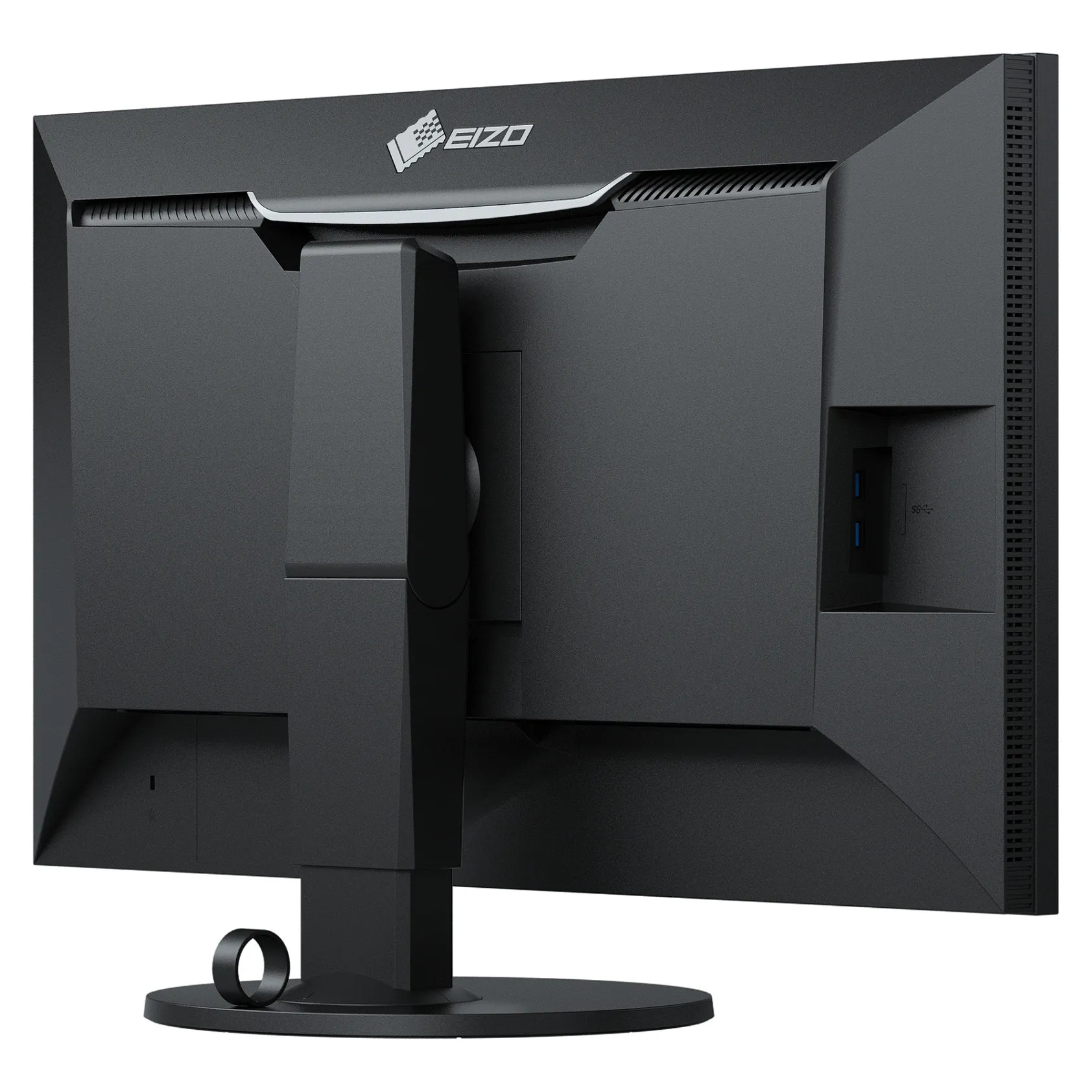

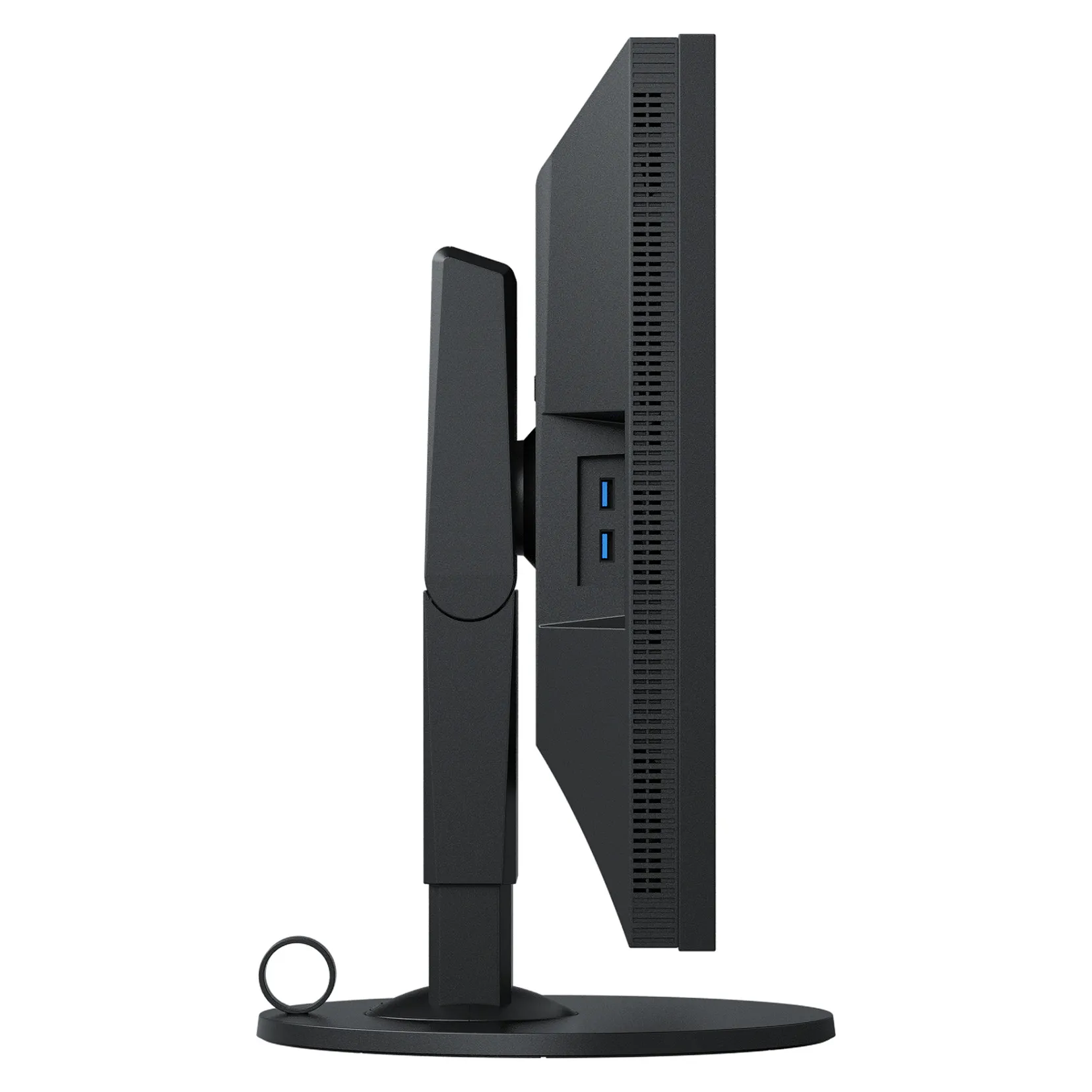

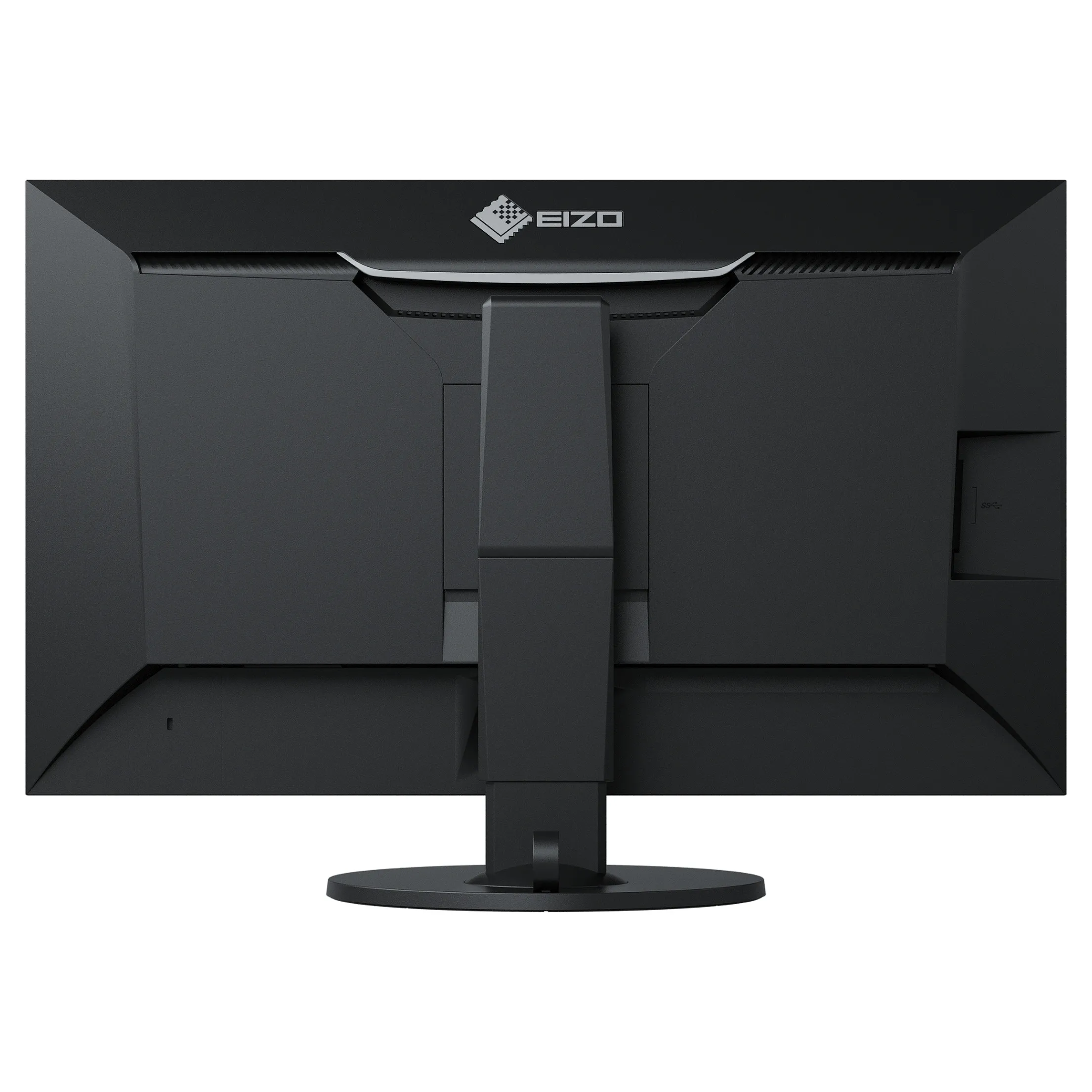

EIZO ColorEdge CS2731. Display diagonal: 68.6 cm (27"), Display resolution: 2560 x 1440 pixels, HD type: Quad HD, Display technology: LCD, Response time: 16 ms, Native aspect ratio: 16:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The CS2731 unites precision, colour fidelity and cutting-edge connectivity thanks to its USB-C port. This makes the monitor the central interface for the graphic workflow of sophisticated creatives with high standards. The wide gamut, 16-bit look-up-table and precise factory calibration of the CS2731 allows you to enjoy an unadulterated look at your image files in creative workflows requiring high colour accuracy. Convenient functionalities such as monitor signal transmission, rapid data transfer and the power supply feature for connected devices are enabled with just one USB-C port.
Display
Display diagonal: 68.6 cm (27″)
Display resolution: 2560 x 1440 pixels
HD type: Quad HD
Native aspect ratio: 16:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 350 cd/m²
Response time: 16 ms
Feature: Anti-glare screen
Screen shape: Flat
Supported graphics resolutions: 2560 x 1440, 1920 x 1200 (WUXGA)
Supported video modes: 1080p, 1080i, 720p, 576p, 576i, 480p, 480i
Contrast ratio (typical): 1000:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.073 billion colours
Pixel pitch: 0.233 x 0.233 mm
Pixel density: 109 ppi
Viewable size, horizontal: 59.7 cm
Viewable size, vertical: 33.6 cm
Digital horizontal frequency: 15 – 89 kHz
Digital vertical frequency: 23 – 61 Hz
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 99%
DCI-P3 coverage: 95%
Performance
Feature: Flicker-free technology
Design
Market positioning: Photo editing
Product colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 60 W
Feature: DVI port
DVI-D ports quantity: 1
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Built-in KVM switch
Feature: HDCP
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Pivot
Pivot angle: -90 – 90°
Feature: Swivelling
Swivel angle range: 0 – 344°
Feature: Tilt adjustment
Tilt angle range: -5 – 35°
Feature: On Screen Display (OSD)
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 35.7 kWh
Power consumption (typical): 35.7 W
Power consumption (standby): 0.5 W
Power consumption (max): 159 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 638 mm
Depth (with stand): 265 mm
Height (with stand): 404.1 mm
Weight (with stand): 10.1 kg
Width (without stand): 638 mm
Depth (without stand): 75 mm
Height (without stand): 378.2 mm
Weight (without stand): 6.5 kg
Packaging content
Feature: Stand included
Cables included: AC, HDMI, USB Type-C to USB Type-C
Feature: Quick start guide
Other features
Feature: Hardware calibration
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 16
Compliance certificates: RoHS
Certification: CE, CB, TÜV/GS, TÜV/Ergonomics (including ISO 9241-307), cTÜVus, TÜV/S, EAC, PSE, FCC-B, CAN ICES-3(B), RCM, VCCI-B, CCC, RoHS, China RoHS, WEEE
Technical details
Native refresh rate: 60 Hz
Logistics data
Harmonized System (HS) code: 85285210
