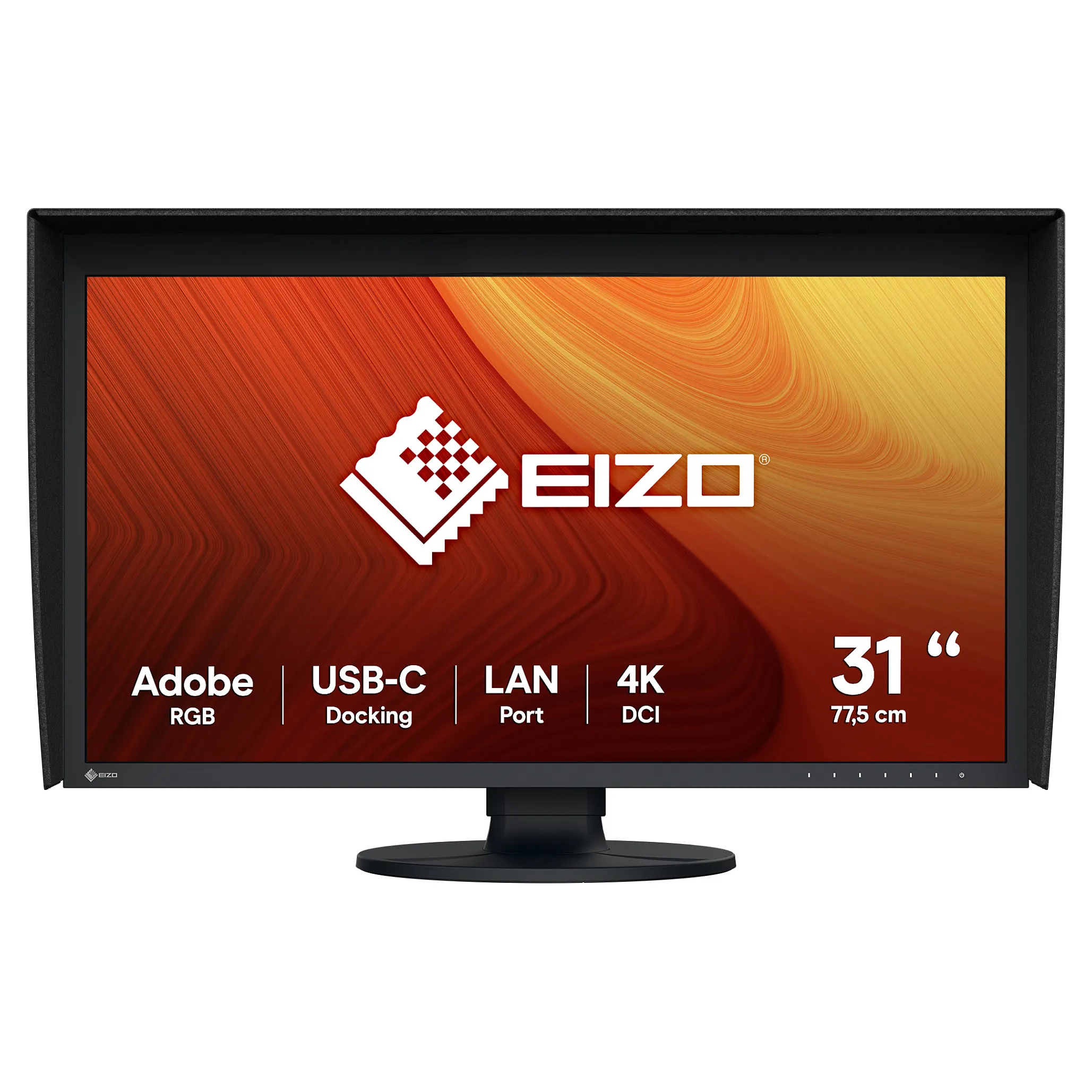

EIZO ColorEdge CG3100X. Display diagonal: 77.5 cm (30.5"), Display resolution: 4096 x 2160 pixels, HD type: 4K DCI, Display technology: LCD, Response time: 15 ms, Native aspect ratio: 17:9, Viewing angle, horizontal: 178°, Viewing angle, vertical: 178°. Built-in USB hub, USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1). VESA mounting, Height adjustment. Product colour: Black
The ColorEdge CG3100X is the top model in the ColorEdge series. With a generous screen diagonal of 30.5 inches and DCI-4K resolution (4096 × 2160 pixels), it meets all the requirements of professional users in film post-production, color grading, and image editing. Thanks to pre-installed PQ and HLG HDR presets and a maximum brightness of 500 cd/m², the CG3100X can be seamlessly integrated into modern HDR workflows. Photographers, content creators, and digital artists benefit from the generous 17:9 format, which offers plenty of space for creative expression with a razor-sharp detail resolution of 152 ppi. The wide color gamut coverage of common standard color spaces such as Rec709, Rec2020, DCI-P3, and AdobeRGB, as well as the 24-bit 3D LUT, ensure realistic and high-contrast color reproduction with maximum precision. The CG3100X also impresses in terms of connectivity: Notebooks can be connected via USB-C with just one cable – including image and data transfer as well as power supply with up to 94 watts. In addition to a DisplayPort connection, there is also a powerful HDMI connection that even supports uncompressed DCI 4K (4:4:4) material in 12 bits at up to 60 Hz – ideal for HDMI-based production environments. An integrated calibration sensor enables effortless, automatic self-calibration, while the RJ45 LAN port, USB hub, and included light shield round out the CG3100X’s professional features.
Display
Display diagonal: 77.5 cm (30.5″)
Display resolution: 4096 x 2160 pixels
HD type: 4K DCI
Native aspect ratio: 17:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 500 cd/m²
Response time: 15 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Supported video modes: 1080i, 1080p, 720p, 576p, 480i
Contrast ratio (typical): 1800:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.167 x 0.167 mm
Pixel density: 152 ppi
Horizontal scan range: 15 – 136 kHz
Vertical scan range: 23 – 61 Hz
Viewable size, horizontal: 68.6 cm
Viewable size, vertical: 36.2 cm
Digital horizontal frequency: 25 – 137 kHz
Digital vertical frequency: 23 – 61 Hz
Display diagonal (metric): 77.5 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 97%
DCI-P3 coverage: 99%
Performance
Feature: Flicker-free technology
Design
Market positioning: Photo editing
Product colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 94 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Headphone out
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
HDCP version: 2.3
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Swivelling
Swivel angle range: 0 – 344°
Feature: Tilt adjustment
Tilt angle range: -5 – 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish
Power

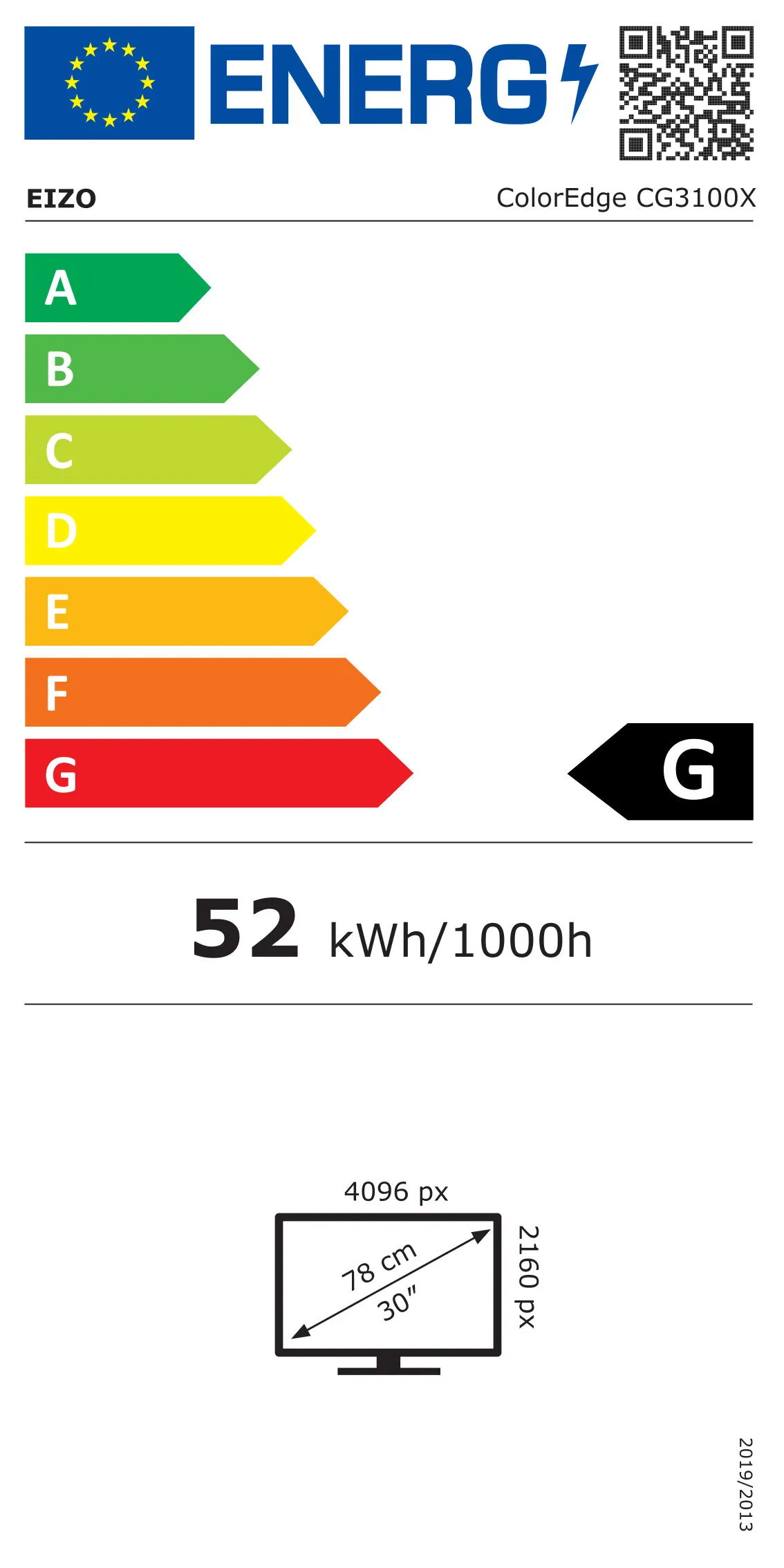

Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 51.9 kWh
Power consumption (typical): 86 W
Power consumption (standby): 0.5 W
Power consumption (max): 270 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 721 mm
Depth (with stand): 290 mm
Height (with stand): 428.1 mm
Weight (with stand): 12.3 kg
Width (without stand): 721 mm
Depth (without stand): 87.2 mm
Height (without stand): 413.9 mm
Weight (without stand): 8.9 kg
Packaging content
Feature: Stand included
Cables included: HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC

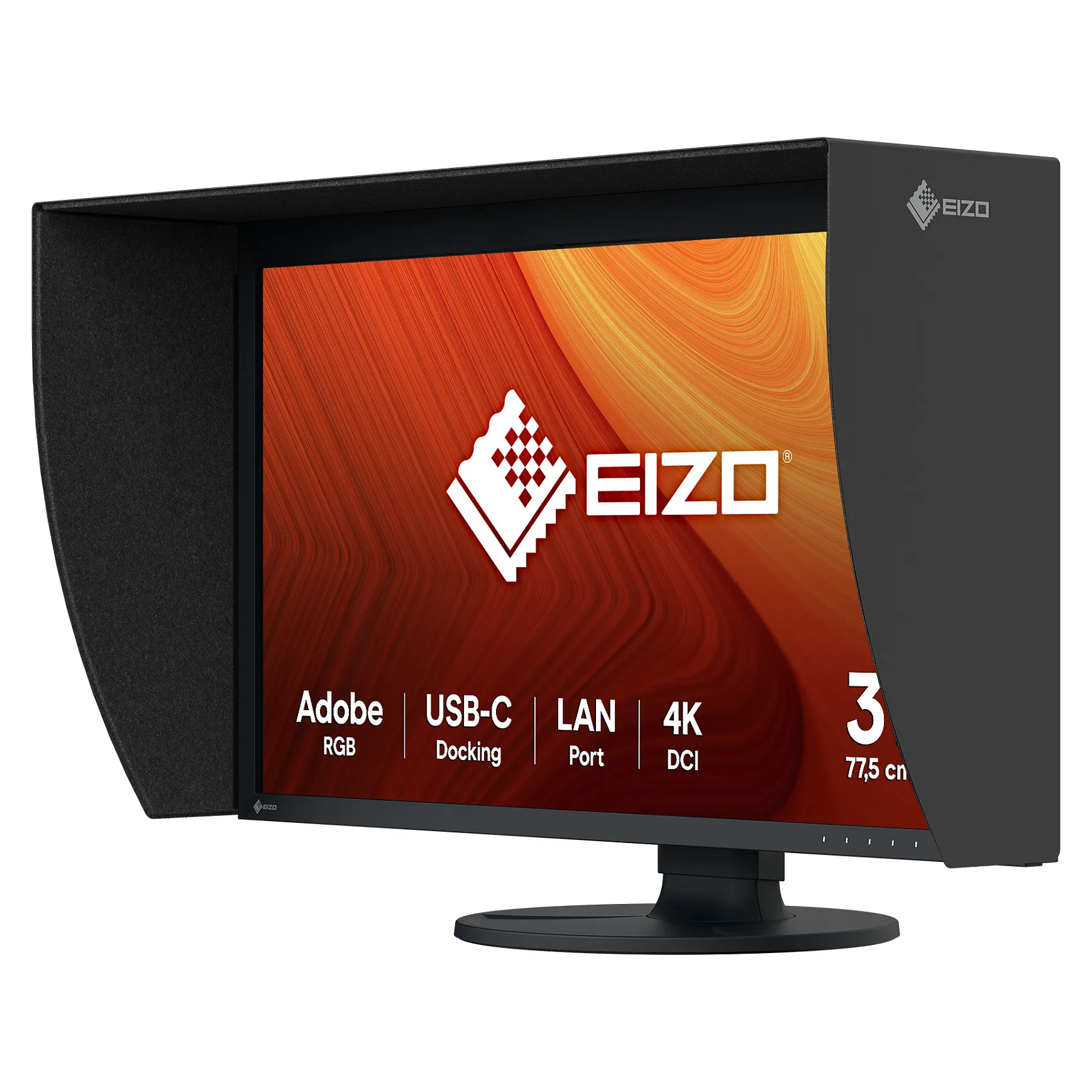

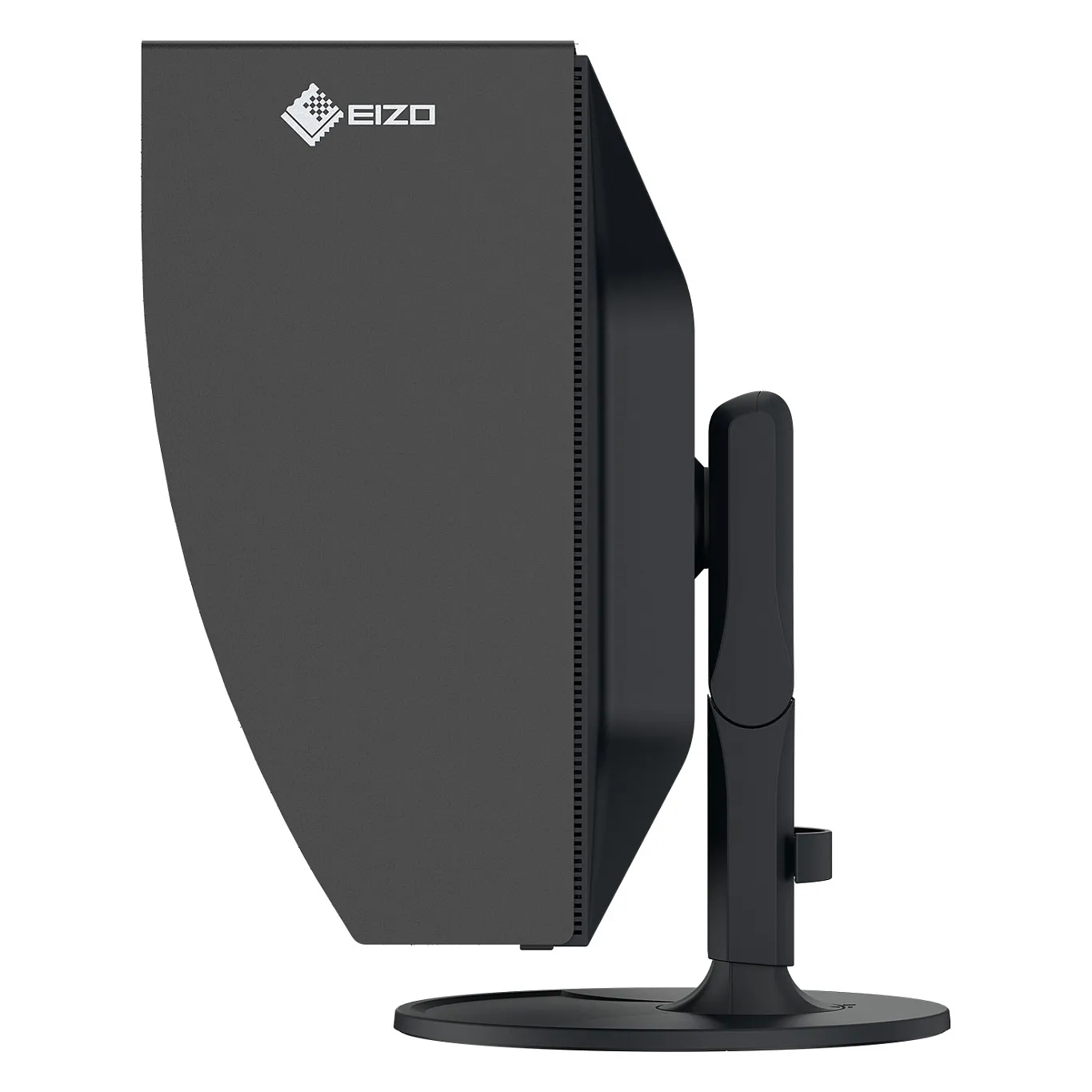

Feature: Sun hood included
Feature: Quick start guide
Other features
Feature: Hardware calibration
Feature: Built-in calibration sensor
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 24
Compliance certificates: CB, CE, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Technical details
Native refresh rate: 60 Hz
Logistics data
Harmonized System (HS) code: 85285210
Display diagonal: 77.5 cm (30.5″)
Display resolution: 4096 x 2160 pixels
HD type: 4K DCI
Native aspect ratio: 17:9
Display technology: LCD
Panel type: IPS
Feature: LED backlight
Backlight type: W-LED
Display brightness (typical): 500 cd/m²
Response time: 15 ms
Response time measurement type: GTG (Gray to Gray)
Feature: Anti-glare screen
Screen shape: Flat
Supported video modes: 1080i, 1080p, 720p, 576p, 480i
Contrast ratio (typical): 1800:1
Maximum refresh rate: 60 Hz
Viewing angle, horizontal: 178°
Viewing angle, vertical: 178°
Display number of colours: 1.07 billion colours
Pixel pitch: 0.167 x 0.167 mm
Pixel density: 152 ppi
Horizontal scan range: 15 – 136 kHz
Vertical scan range: 23 – 61 Hz
Viewable size, horizontal: 68.6 cm
Viewable size, vertical: 36.2 cm
Digital horizontal frequency: 25 – 137 kHz
Digital vertical frequency: 23 – 61 Hz
Display diagonal (metric): 77.5 cm
Feature: High Dynamic Range (HDR) supported
High Dynamic Range (HDR) technology: Hybrid Log-Gamma (HLG)
Colour depth: 10 bit
Colour gamut standard: Adobe RGB, DCI-P3, EBU, Rec. 709, sRGB
sRGB coverage (typical): 100%
Adobe RGB coverage: 97%
DCI-P3 coverage: 99%
Performance
Feature: Flicker-free technology
Design
Market positioning: Photo editing
Product colour: Black
Feet colour: Black
Ports & interfaces
Feature: Built-in USB hub
USB hub version: 2.0 / 3.2 Gen 1 (3.1 Gen 1)
USB upstream port type: USB Type-B, USB Type-C
Number of upstream ports: 2
Number of USB Type-B upstream ports quantity: 1
Number of USB Type-C upstream ports quantity: 1
USB Type-A downstream ports quantity: 4
Feature: USB Type-C DisplayPort Alternate Mode
Feature: USB Power Delivery (USB PD)
USB Power Delivery up to: 94 W
Feature: HDMI
HDMI ports quantity: 1
DisplayPorts quantity: 1
Feature: Headphone out
Headphone connectivity: 3.5 mm
Feature: Built-in KVM switch
Feature: HDCP
HDCP version: 2.3
Network
Feature: Ethernet LAN
Ergonomics
Feature: VESA mounting
Panel mounting interface: 100 x 100 mm
Feature: Cable lock slot
Cable lock slot type: Kensington
Feature: Height adjustment
Adjustable height (max): 15.5 cm
Feature: Swivelling
Swivel angle range: 0 – 344°
Feature: Tilt adjustment
Tilt angle range: -5 – 35°
Feature: On Screen Display (OSD)
On Screen Display (OSD) languages: German, English, Spanish, French, Italian, Swedish
Power
Energy efficiency class (SDR): G
Energy efficiency class (HDR): Not available
Energy consumption (SDR) per 1000 hours: 51.9 kWh
Power consumption (typical): 86 W
Power consumption (standby): 0.5 W
Power consumption (max): 270 W
Power consumption (off): 0.3 W
AC input voltage: 100 – 240 V
AC input frequency: 50/60 Hz
Power supply type: Internal
Energy efficiency scale: A to G
Operational conditions
Operating temperature (T-T): 0 – 35 °C
Storage temperature (T-T): -20 – 60 °C
Operating relative humidity (H-H): 20 – 80%
Storage relative humidity (H-H): 10 – 90%
Weight & dimensions
Width (with stand): 721 mm
Depth (with stand): 290 mm
Height (with stand): 428.1 mm
Weight (with stand): 12.3 kg
Width (without stand): 721 mm
Depth (without stand): 87.2 mm
Height (without stand): 413.9 mm
Weight (without stand): 8.9 kg
Packaging content
Feature: Stand included
Cables included: HDMI, USB Type-A to USB Type-B, USB Type-C to USB Type-C, AC
Feature: Sun hood included
Feature: Quick start guide
Other features
Feature: Hardware calibration
Feature: Built-in calibration sensor
Warranty period: 5 year(s)
Look-up table (LUT) bit depth: 24
Compliance certificates: CB, CE, Federal Communications Commission (FCC), PSE, RCM, RoHS, TÜV mark, UKCA, VCCI, WEEE
Ethernet LAN data rates: 10,100,1000 Mbit/s
Ethernet LAN (RJ-45) ports: 1
Technical details
Native refresh rate: 60 Hz
Logistics data
Harmonized System (HS) code: 85285210
