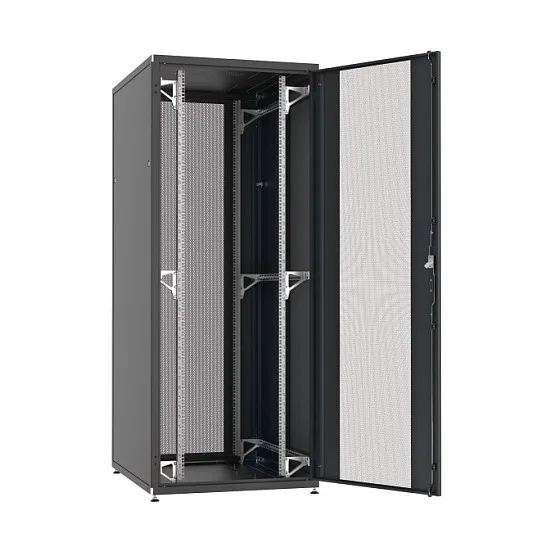

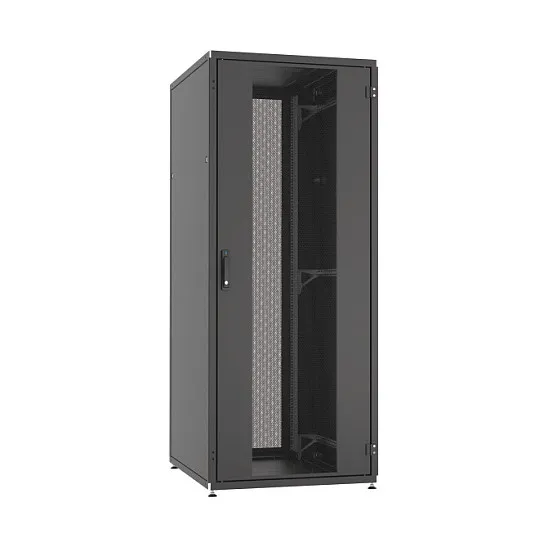

EFB Elektronik PRO-4282TS.P2 rack cabinet

– 19″ server cabinet according to DIN41494
– Steel sheet housing with screwed frame, completely pre-assembled, self-ventilated, detachable
– Inside front and rear 4 x 19″profiles (2 front, 2 rear-sided), galvanised, step-less depth-adjustable
– Contrariwise numbering of rack units at the 19″ profiles
– Front and rear door with 3-point turning handle (up to 24U 1-point), lockable, incl. profile half-cylinder acc. to DIN18252 / EN 1303
– Profile half-cylinder exchangeable by customer (30/10 mm)
– Door stop for front and rear door possible left- or right-sided
– Detachable side walls with 2 x latch locking (lock equal to the door lock)
– Cabinets stackable side-by-side with and without removal of the side walls, baying set (Art.-No. PRO-ANR0X), otherwise screwable via screw set M6

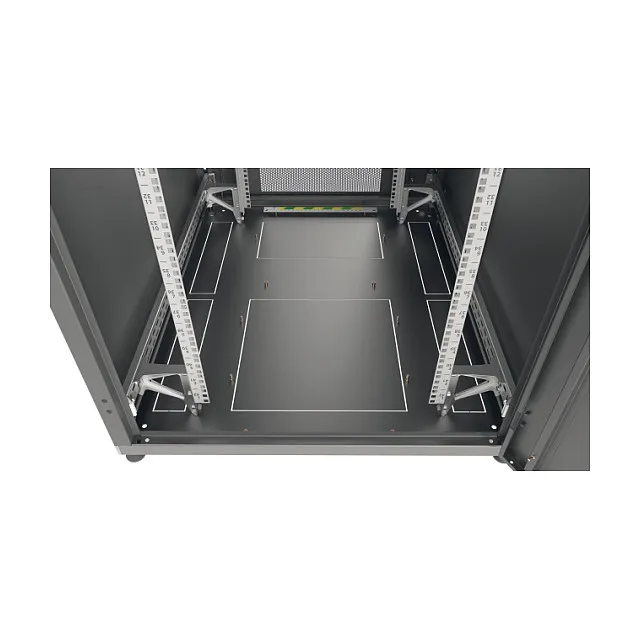

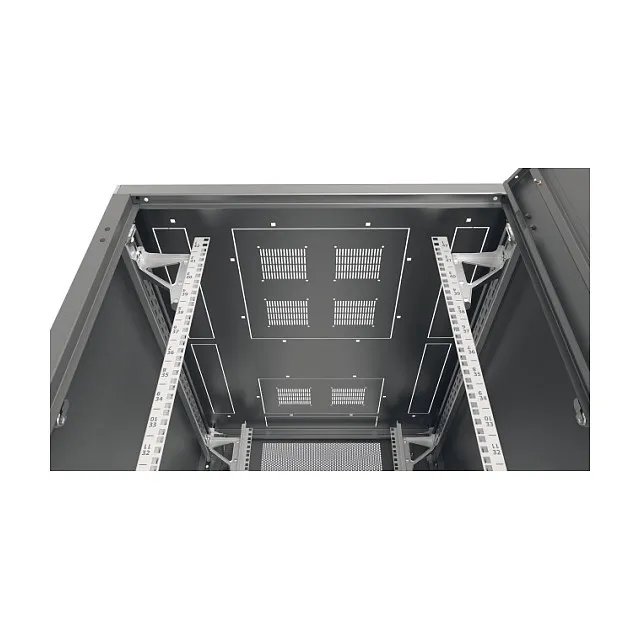

– Roof and bottom with 4/6 pre-punched openings for cable entry (450 x 90 mm) and for accommodation of fan units, for 600 mm cabinet width cable entry only rear
– Internal earthing of all cabinet sections
– Pre-assembled earthing bar rear-sided in the middle of the cabinet
