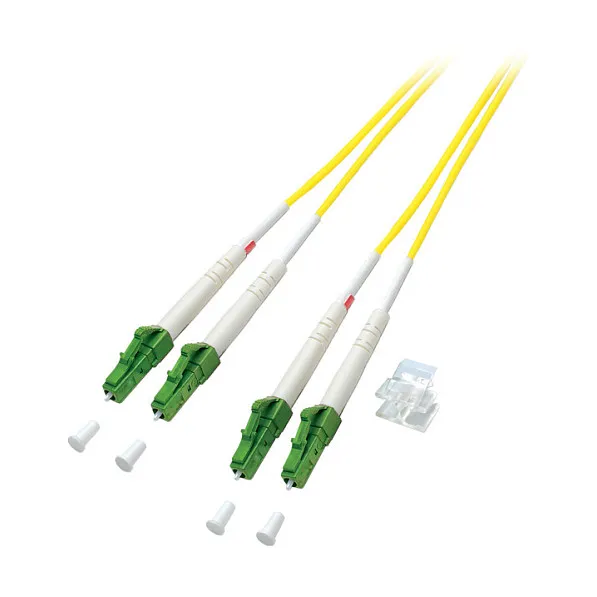

EFB Elektronik O0381.10. Cable length: 10 m, Fibre optic type: OS2, Connector 1: 2x LC, Connector 2: 2x LC, Core diameter: 9 µm, Full duplex
Features
Cable length: 10 m
Fibre optic type: OS2
Connector 1: 2x LC
Connector 2: 2x LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Insertion loss: 0.3 dB
Return loss: 60 dB
Jacket material: Low smoke zero halogen (LSZH)
Certificates
Compliance certificates: RoHS
Certification: ISO / IEC11801, IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-1, IEC 61753-222-2, 50265-2-1
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 3 mm
Cable weight: 3.2 kg/km
Logistics data
Harmonized System (HS) code: 85447000
Cable length: 10 m
Fibre optic type: OS2
Connector 1: 2x LC
Connector 2: 2x LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Yellow
Feature: Full duplex
Core diameter: 9 µm
Cladding diameter: 125 µm
Fiber mode structure: Single-mode
Insertion loss: 0.3 dB
Return loss: 60 dB
Jacket material: Low smoke zero halogen (LSZH)
Certificates
Compliance certificates: RoHS
Certification: ISO / IEC11801, IEC-60754-2, IEC-60332-1, IEC-61034, IEC-61753-1, IEC 61753-222-2, 50265-2-1
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 3 mm
Cable weight: 3.2 kg/km
Logistics data
Harmonized System (HS) code: 85447000
