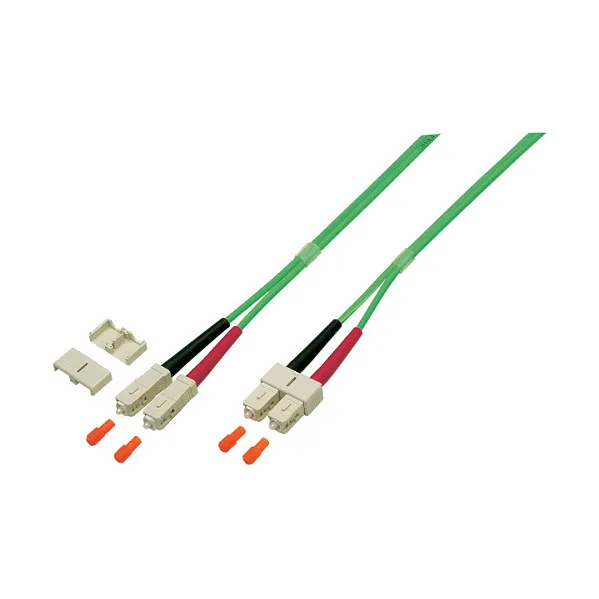

EFB Elektronik O0318.5OM5. Cable length: 5 m, Fibre optic type: OM5, Connector 1: 2x SC, Connector 2: 2x SC, Core diameter: 50 µm, Full duplex
Features
Cable length: 5 m
Fibre optic type: OM5
Connector 1: 2x SC
Connector 2: 2x SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Green
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.2 dB
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Doesn’t contain: Halogen
Certificates
Compliance certificates: RoHS
Certification: IEC-60754-2, IEC-60332-1, IEC-61034, IEC 61753-222-2, EN 50265-2-1, EN 61754-4, EN 60793-2
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 3 mm
Cable weight: 13.2 kg/km
Logistics data
Harmonized System (HS) code: 85447000
Cable length: 5 m
Fibre optic type: OM5
Connector 1: 2x SC
Connector 2: 2x SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Green
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.2 dB
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Doesn’t contain: Halogen
Certificates
Compliance certificates: RoHS
Certification: IEC-60754-2, IEC-60332-1, IEC-61034, IEC 61753-222-2, EN 50265-2-1, EN 61754-4, EN 60793-2
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 3 mm
Cable weight: 13.2 kg/km
Logistics data
Harmonized System (HS) code: 85447000
