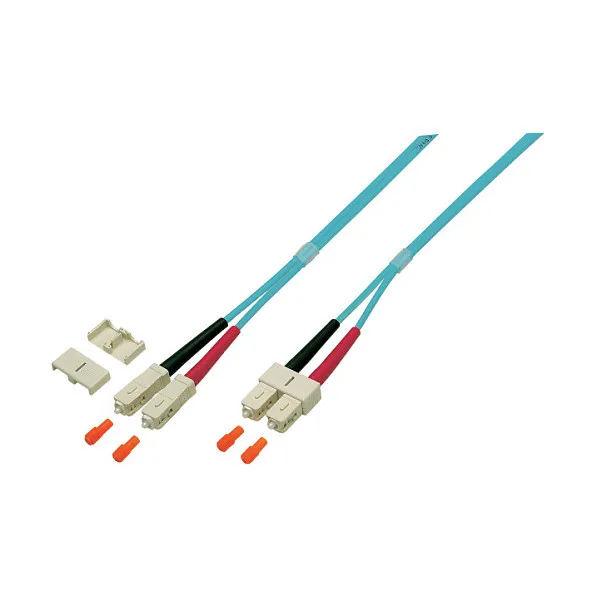

EFB Elektronik O0318.20. Cable length: 20 m, Fibre optic type: OM4, Connector 1: SC, Connector 2: SC, Core diameter: 62.5 µm
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed.
Some of them are still important today: LC, SC, E2000®, MPO/MTP
Fiber jumper(patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard.
Rating of performance, known as category, as well as performance of total transmission channel, known as link class, makes differantiation of quality concerning RJ45 patchcords possible.
Characterstics of EFB Fiber Optic Patch Cords
With aramid yarn reinforced for better tension resistance and long term stability
Halogen free and flame retardant LSZH sheath according to IEC-60754-2, IEC-60332-1 and IEC-61034
Fiber Optic connector comply to qualitiy grades B/2 according to IEC-61753-1 for Singlemode and grade A/1 for Multimode according to IEC- 61753-222-2 (Draft)
100% checked and with individual test protocol
Cable length: 20 m
Fibre optic type: OM4
Connector 1: SC
Connector 2: SC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Turquoise
Core diameter: 62.5 µm
Cladding diameter: 125 µm
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Logistics data
Harmonized System (HS) code: 85447000
