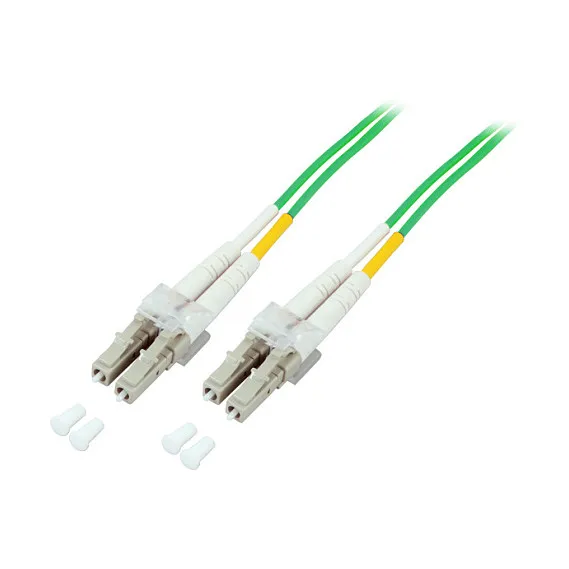

EFB Elektronik Duplex LC-LC 50/125µ OM5 0.5m. Cable length: 0.5 m, Fibre optic type: OM5, Connector 1: LC, Connector 2: LC, Core diameter: 50 µm, Full duplex
Fiber jumper are well defined components in international standard of structured cabling ISO/IEC11801.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Due to many different network protocols created in the last 25 years , also a wide range of connectors had been developed. Some of them are still important today: LC, SC, E2000®, MPO/MTP.
Fiber jumper (patchcord) are defined as shortest connection between passive interface and active deviceport, regarding structured cabling standard. Rating of performance, known as category, as well as performance of total transmission channel, known as link class. Similar descriptions for patchcords: Connection cable, drop cable, adapter cable, interconnecting cord, Jumper
Features
Cable length: 0.5 m
Fibre optic type: OM5
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Green
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.2 dB
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Doesn’t contain: Halogen
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 2 mm
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85447000
Cable length: 0.5 m
Fibre optic type: OM5
Connector 1: LC
Connector 2: LC
Connector 1 gender: Male
Connector 2 gender: Male
Product colour: Green
Feature: Full duplex
Core diameter: 50 µm
Cladding diameter: 125 µm
Fiber mode structure: Multi-mode
Insertion loss: 0.2 dB
Jacket material: Low smoke zero halogen (LSZH)
Sustainability
Doesn’t contain: Halogen
Operational conditions
Operating temperature (T-T): -20 – 70 °C
Storage temperature (T-T): -20 – 85 °C
Weight & dimensions
Cable diameter: 2 mm
Packaging content
Quantity per pack: 1 pc(s)
Logistics data
Harmonized System (HS) code: 85447000
