EFB Elektronik 88035P8.1. Connector(s): RJ-45, Product colour: Silver, Connector gender: Male. Outer diameter: 9 mm, Width: 61.2 mm, Depth: 14.3 mm. Quantity per pack: 1 pc(s)

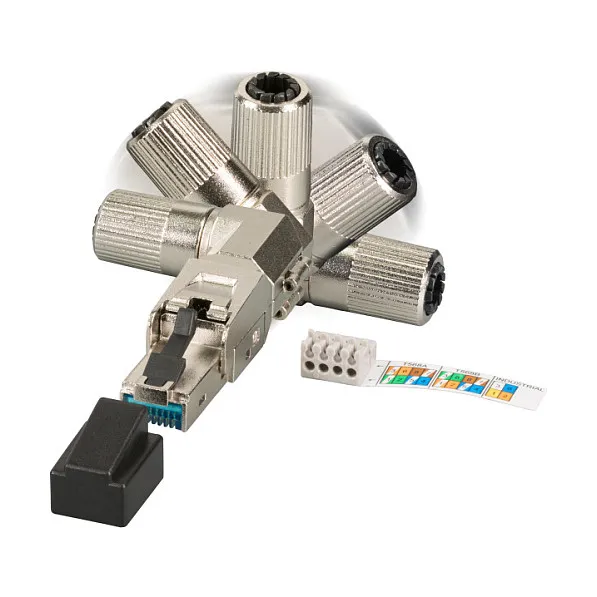

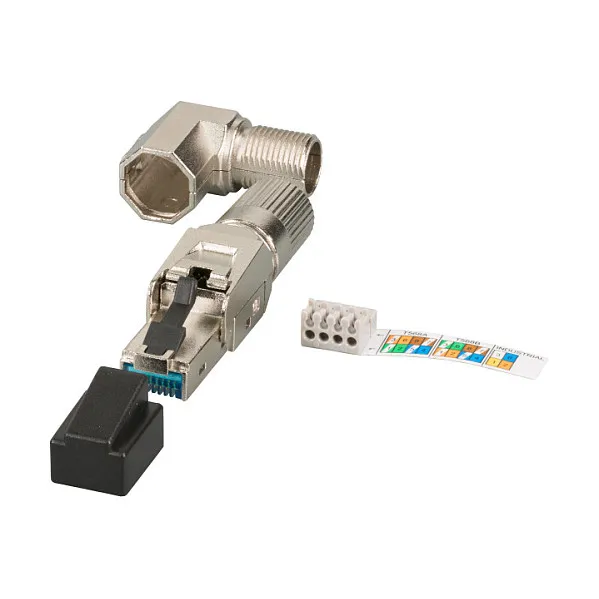

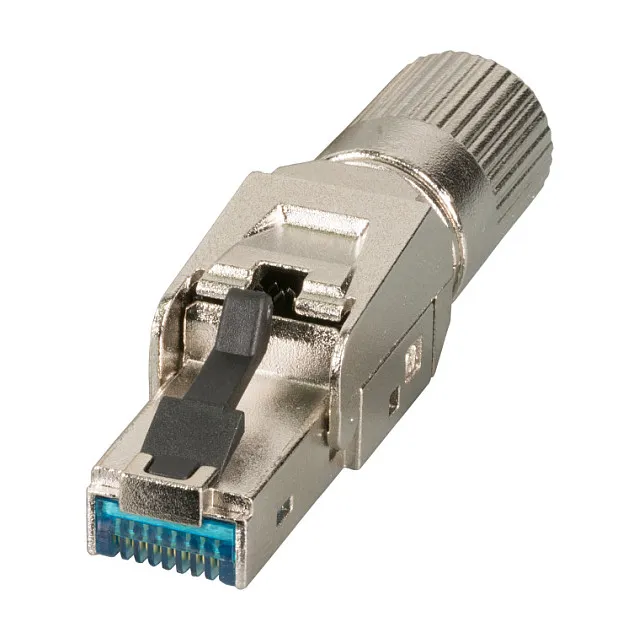

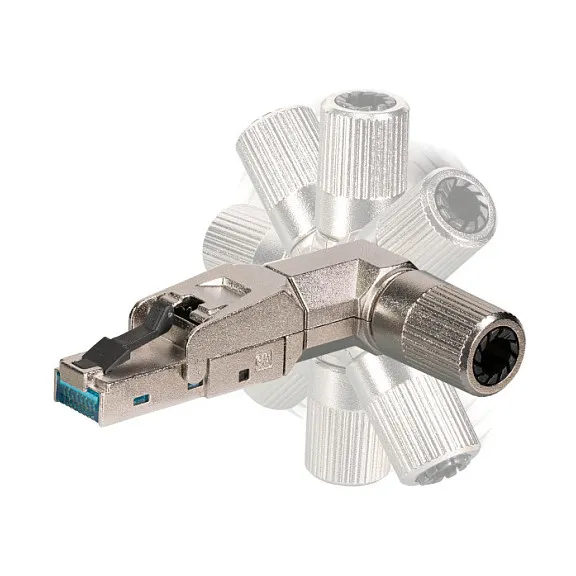

The Cat. 6A Premium RJ45 is a highlight in the chain of further development of RJ45 connectors for field assembly. An extraordinarily robust full metal housing made of zinc die-casting paired with the unique variable cable feed opens up a wide range of application possibilities. Installation can be done in 9 different positions: 8 different angled positions and a 180° straight cable entry. The conical metal cable gland allows cable diameters from 6.0mm to 9.0mm. The connector meets the requirements of transmission class Cat. 6A/Class EA and supports the Ethernet protocol up to 10 Gigabit per second.
Features
Connector(s): RJ-45
Connector gender: Male
Product colour: Silver
Material: Zinc
Cable standard: Cat6
AWG wire size: 22/26
Dielectric strength: 1000 V
Lifetime (cycles): 750
Certification: 4PPOE
Weight & dimensions
Outer diameter: 9 mm
Width: 61.2 mm
Depth: 14.3 mm
Height: 15.1 mm
Packaging data
Quantity per pack: 1 pc(s)
Connector(s): RJ-45
Connector gender: Male
Product colour: Silver
Material: Zinc
Cable standard: Cat6
AWG wire size: 22/26
Dielectric strength: 1000 V
Lifetime (cycles): 750
Certification: 4PPOE
Weight & dimensions
Outer diameter: 9 mm
Width: 61.2 mm
Depth: 14.3 mm
Height: 15.1 mm
Packaging data
Quantity per pack: 1 pc(s)
