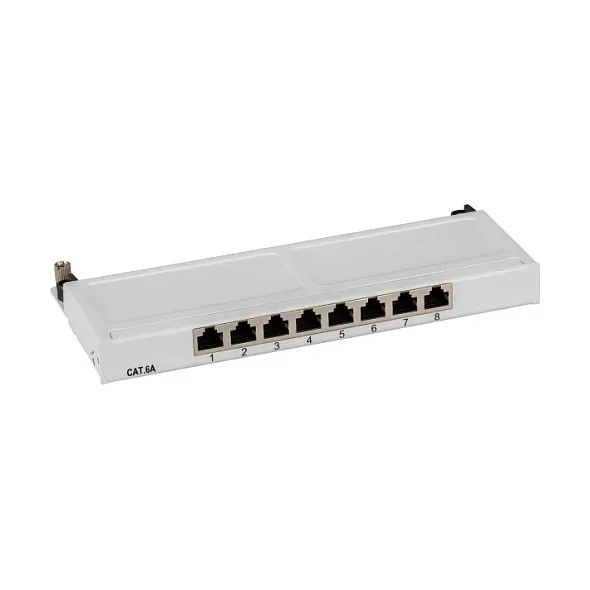

EFB Elektronik 37738.8. Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet, Maximum data transfer rate: 10000 Mbit/s, Connector(s): RJ-45. Mounting: Rack mounting, Rack capacity: 0.5U, Product colour: Grey. Width: 254.6 mm, Height: 22 mm, Depth: 108 mm
The high quality of the shielded Cat.6A RJ45 mini patch panel ensures excellent performance for 10 Gigabit Ethernet applications. The 10″ patch panel offers a high port density with 8 ports at 0.5 U. In addition, the mini patch panel is characterized by its versatile mounting options. It is suitable for installation in a 10 „plane, for attachment to the wall or in conjunction with the DIN rail clamp set (Part No. H83030.1) for DIN rail mounting.
Network
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate: 10000 Mbit/s
Ports quantity: 8
Connector(s): RJ-45
Cable types supported: Cat6a
Cable shielding: S/UTP (STP)
AWG wire size: 22/24
Plug/connector retention force: 50 N
Design
Product colour: Grey
Material: Steel
Mounting: Rack mounting
Rack capacity: 0.5U
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): -40 – 70%
Weight & dimensions
Width: 254.6 mm
Height: 22 mm
Depth: 108 mm
Logistics data
Harmonized System (HS) code: 85371098
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Maximum data transfer rate: 10000 Mbit/s
Ports quantity: 8
Connector(s): RJ-45
Cable types supported: Cat6a
Cable shielding: S/UTP (STP)
AWG wire size: 22/24
Plug/connector retention force: 50 N
Design
Product colour: Grey
Material: Steel
Mounting: Rack mounting
Rack capacity: 0.5U
Operational conditions
Operating temperature (T-T): -10 – 60 °C
Operating relative humidity (H-H): -40 – 70%
Weight & dimensions
Width: 254.6 mm
Height: 22 mm
Depth: 108 mm
Logistics data
Harmonized System (HS) code: 85371098
