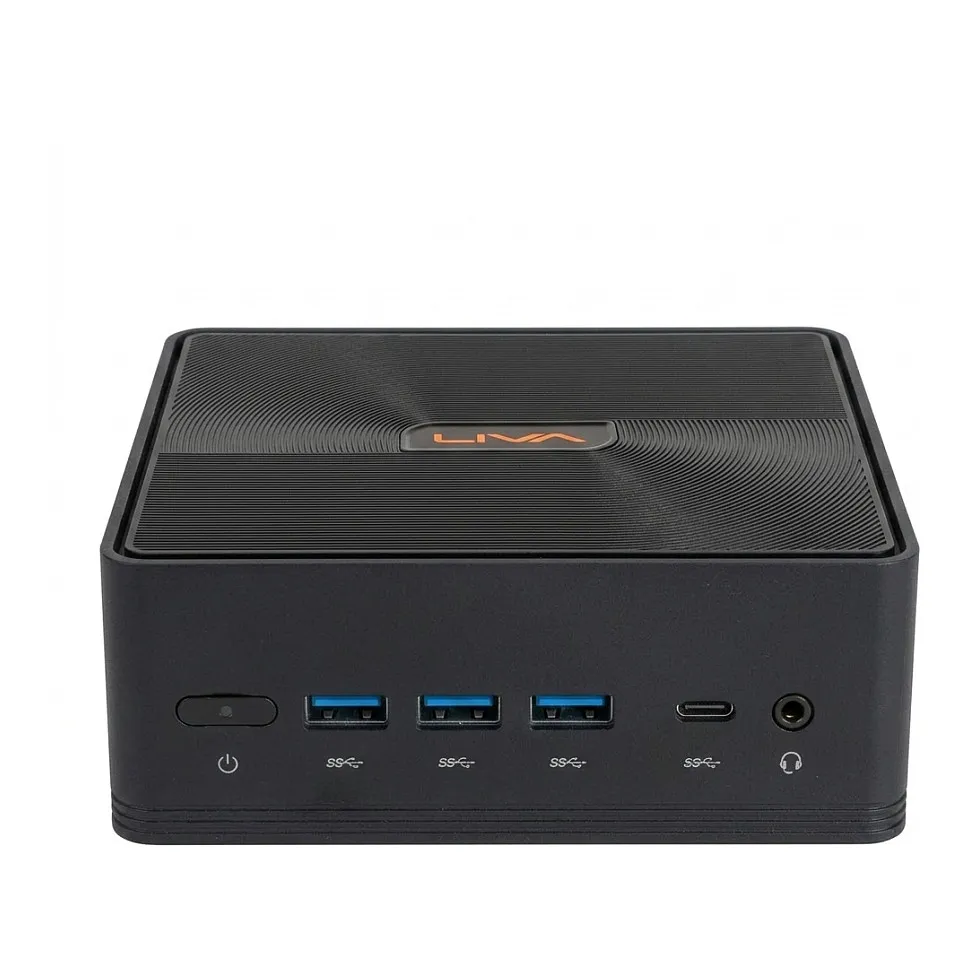

ECS LIVA Z2. Processor frequency: 1.1 GHz, Processor family: Intel® Pentium® Silver, Processor model: N5030. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 64 GB, Storage media: Flash. On-board graphics card model: Intel® UHD Graphics 605. Wi-Fi. Chassis type: Mini PC. Product type: Mini PC. Product colour: Black
Smaller than a lunchbox and less volume than a large soda can, it is the smallest mini PC in its kind. With 0.8 liter case that still provides all the elements of a desktop-worthy PC
Quiet Operation with Fanless Design
With completely cool, fanless design. It prevents the attraction of dust preventing overheating issues and also reduces malfunctions and increases the life-cycle of your mini PC.
Energy Efficient for Power Saving
We keeps the environment in mind, and delivers incredible energy efficiency thanks to an ultra-low power design that draws as little as 6W at idle– as much as an light bulb.
For All Your Devices with Type-C Connect
It delivers data transfer speeds up to 5x faster than older USB 2.0 connections! With reversible USB Type-C™ connector design that makes connecting devices simple and quick.
Easily connect to a wide variety of devices
With complete I/O design ,especially features five easily accessible USB ports, including one reversible USB 3.1 Gen1 Type-C port. It also has variety video output HDMI 1.4 and HDMI 2.0 option. In addition, it has the latest 802.11ac Wi-Fi and a Kensington lock.
Ultra-compact PC with dual-storage design
With features 64GB eMMC + 2.5” HDD dual storage design. It offers eMMC 5.1 & high-capacity HDD support. And with Windows 10 built-in OneDrive, it’s easy to connect the local storage and cloud backup to have the best of both worlds.
The Best 4K Visuals with HDMI 2.0
Featuring Intel HD 600 series integrated graphic, it supports revised video engine, playing 4K video smoothly and give you ultra-realistic visuals with HDMI 2.0 video output.
Easy to Upgrade
If you want to upgrade your mini PC ,all need you have to is remove 4 screws at the bottom cover to gain access and replace the M.2 WiFi, memory modules and 2.5” HDD storage slots. It’s just that simple.
Fill Out the Inquiry Form
Thank you for your interest in our product. Please fill out the form below and let us know your needs. Our sales representatives will contact you as soon as possible. thanks.
Processor manufacturer: Intel
Processor family: Intel® Pentium® Silver
Processor model: N5030
Processor cores: 4
Processor threads: 4
Processor frequency: 1.1 GHz
Processor cache: 4 MB
Number of processors installed: 1
Memory
Internal memory: 4 GB
Maximum internal memory: 8 GB
Internal memory type: DDR4-SDRAM
Memory layout (slots x size): 1 x 4 GB
Memory slots: 2x SO-DIMM
Storage
Total storage capacity: 64 GB
Storage media: Flash
Optical drive type: No
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board GPU manufacturer: Intel
On-board graphics card model: Intel® UHD Graphics 605
Performance
Product type: Mini PC
Network
Feature: Ethernet LAN
Ethernet LAN data rates: 10,100,1000 Mbit/s
Cabling technology: 10/100/1000Base-T(X)
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Ports & interfaces
USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
HDMI ports quantity: 2
HDMI version: 1.4/2.0
Ethernet LAN (RJ-45) ports: 1
Headphone outputs: 1
Feature: Microphone in
Power
Power supply input voltage: 100 – 240 V
Design
Chassis type: Mini PC
Placement supported: Horizontal/Vertical
Feature: VESA mounting
Product colour: Black
Processor special features
Feature: Intel 64
Feature: Enhanced Intel SpeedStep Technology
Feature: Intel VT-x with Extended Page Tables (EPT)
Feature: Idle States
Feature: Execute Disable Bit
Feature: Intel Software Guard Extensions (Intel SGX)
CPU configuration (max): 1
Feature: Intel Virtualization Technology for Directed I/O (VT-d)
Feature: Intel Virtualization Technology (VT-x)
Weight & dimensions
Width: 132 mm
Depth: 118 mm
Height: 56.4 mm
Packaging content
Feature: VESA mount included
Feature: AC adapter included
