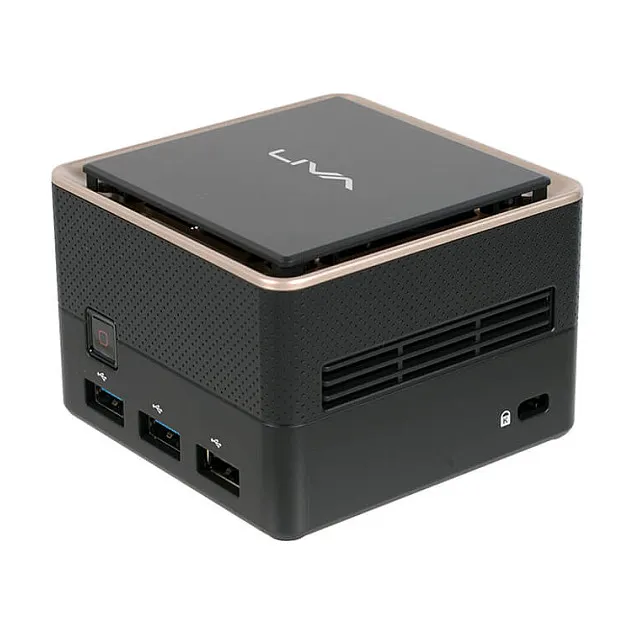

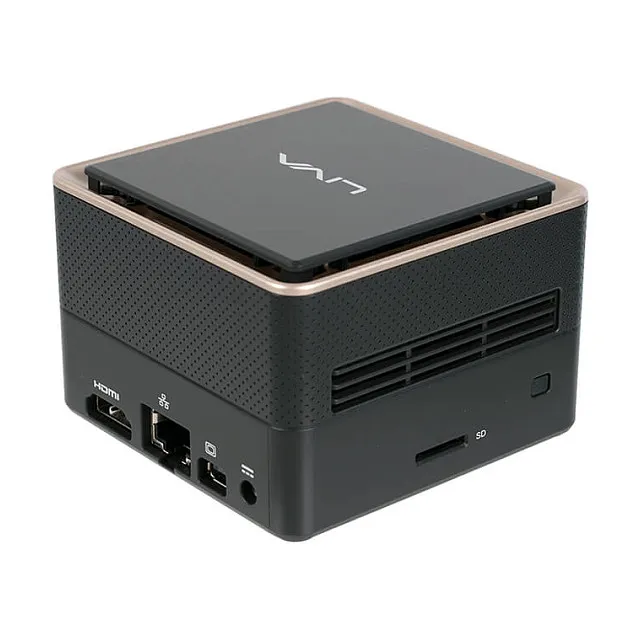

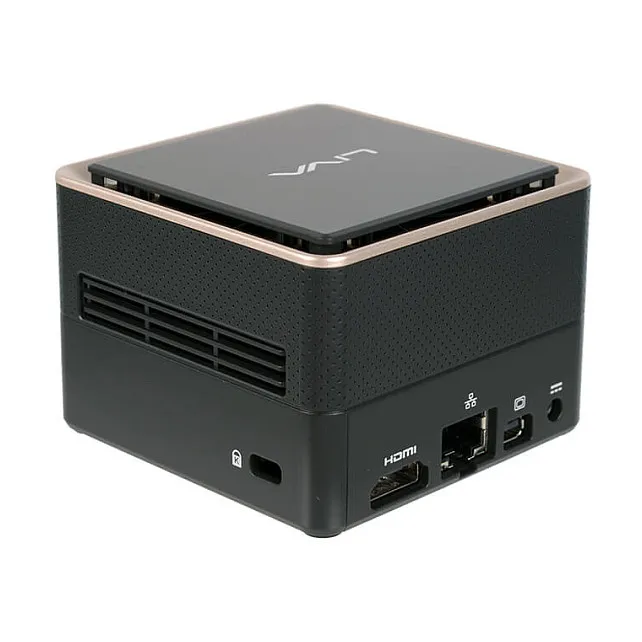

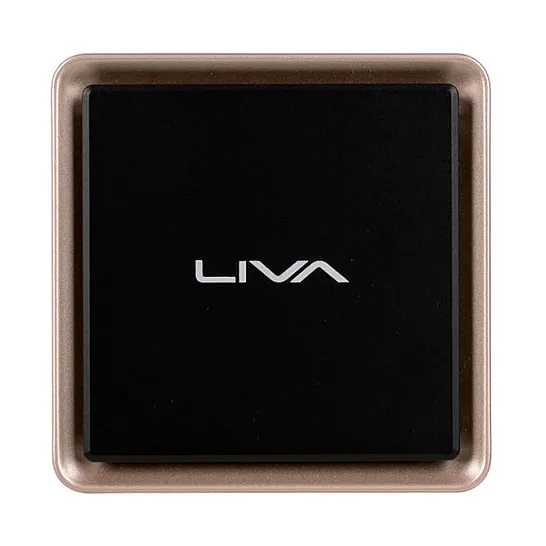

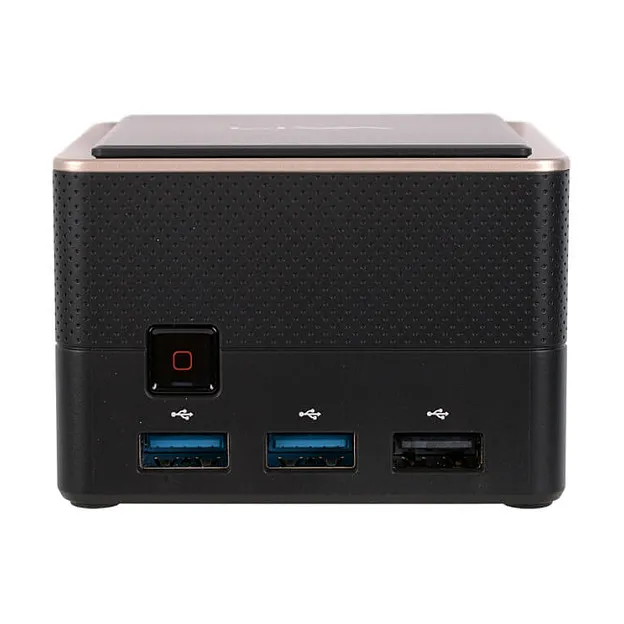

ECS LIVA Q3 Plus. Processor frequency: 2.4 GHz, Processor family: AMD Ryzen, Processor model: R1505G. Internal memory: 4 GB, Internal memory type: DDR4-SDRAM. Total storage capacity: 64 GB, Storage media: eMMC, Card reader integrated. On-board graphics card model: AMD Radeon Vega 3. Wi-Fi. Product type: Mini PC. Weight: 359 g. Product colour: Black
Smaller than a mouse, LIVA Q3 Plus features the AMD Ryzen Embedded V1605B APU. The V1605B is a 4-core/8-thread SoC with 15W thermal design power (TDP) and incredible performance that sets a new standard in processing power for next-generation embedded designs. The internal GPU can offer up to 47% performance improvement compared to competitors’ product.
See More, Do MoreLIVA Q3 Plus

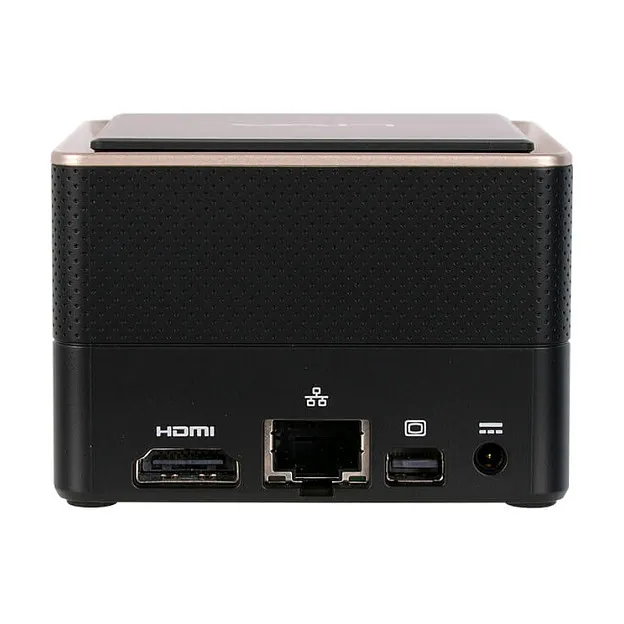

LIVA Q3 Plus supports up to 2 independent displays through its HDMI/ mini DisplayPort. Giving you the flexibility to expand the desktop workspace and multitask on two displays without any limitation.

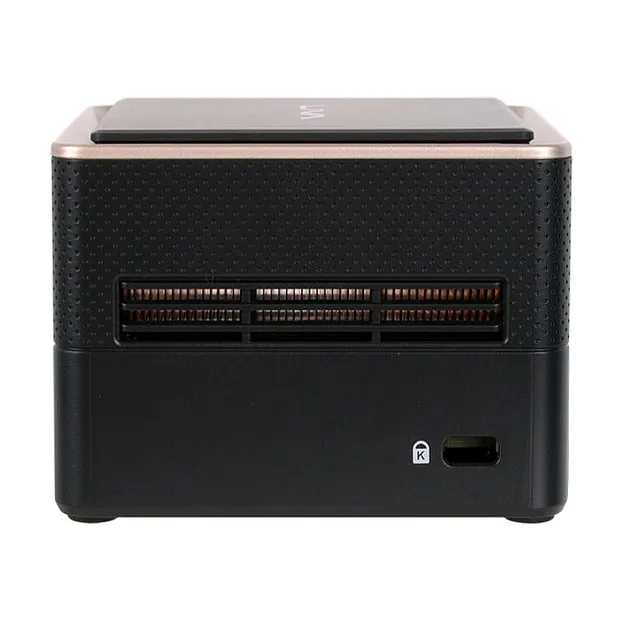

Stay Cool and ReliableLIVA Q3 Plus
In spite of its compact dimensions, LIVA Q3 Plus designs to feature an internal cooling fan to prevent overheating. It can keep your system stay cool and more reliable.

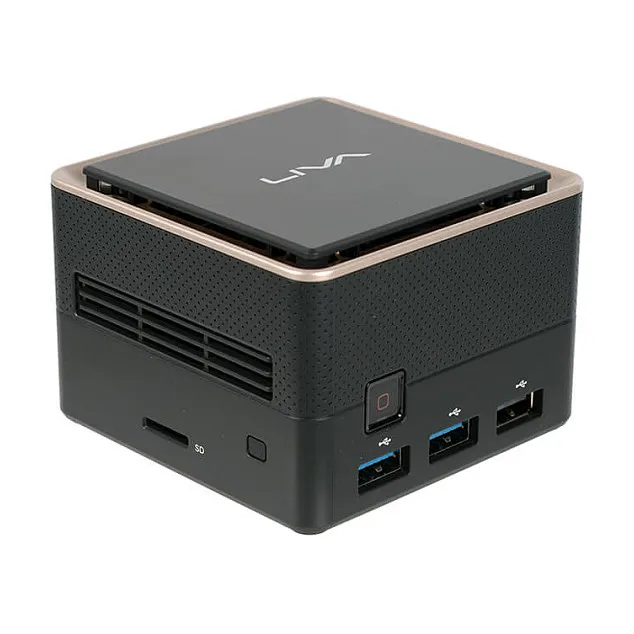

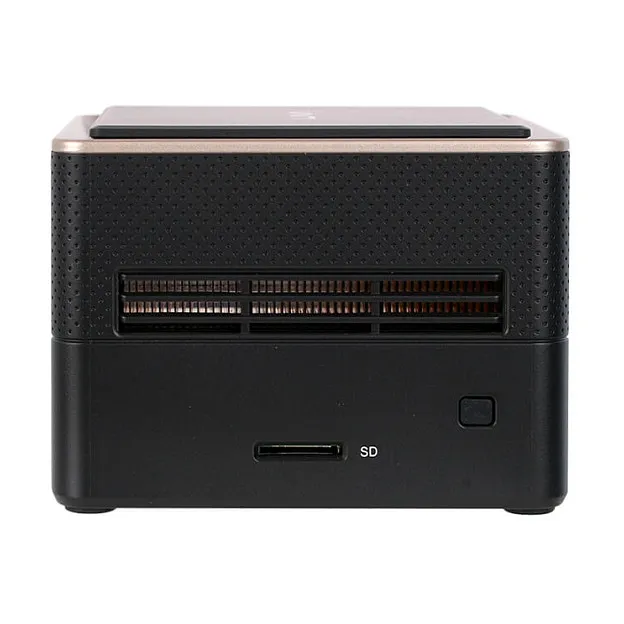

Micro SD Slot for Extend StorageLIVA Q3 Plus
LIVA Q3 Plus offers best C/P Micro SD extend storage solution, you can easily have big space to storage your treasure photos and movies.
Processor manufacturer: AMD
Processor family: AMD Ryzen
Processor model: R1505G
Processor cores: 2
Processor frequency: 2.4 GHz
Performance cores: 3.3
Memory
Internal memory: 4 GB
Maximum internal memory: 4 GB
Internal memory type: DDR4-SDRAM
Storage
Total storage capacity: 64 GB
Storage media: eMMC
Optical drive type: No
Feature: Card reader integrated
Compatible memory cards: MicroSD (TransFlash)
Graphics
Feature: On-board graphics card
Discrete graphics card model: Not available
On-board graphics card model: AMD Radeon Vega 3
Performance
Product type: Mini PC
Network
Feature: Ethernet LAN
Feature: Wi-Fi
Top Wi-Fi standard: Wi-Fi 5 (802.11ac)
Wi-Fi standards: Wi-Fi 5 (802.11ac)
Ports & interfaces
USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
HDMI ports quantity: 1
HDMI version: 2.0
Ethernet LAN (RJ-45) ports: 1
Mini DisplayPorts quantity: 1
Design
Placement supported: Horizontal/Vertical
Feature: VESA mounting
Product colour: Black
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Storage temperature (T-T): -20 – 80 °C
Operating relative humidity (H-H): 10 – 95%
Storage relative humidity (H-H): 10 – 95%
Weight & dimensions
Width: 74 mm
Depth: 74 mm
Height: 52.1 mm
Weight: 359 g
