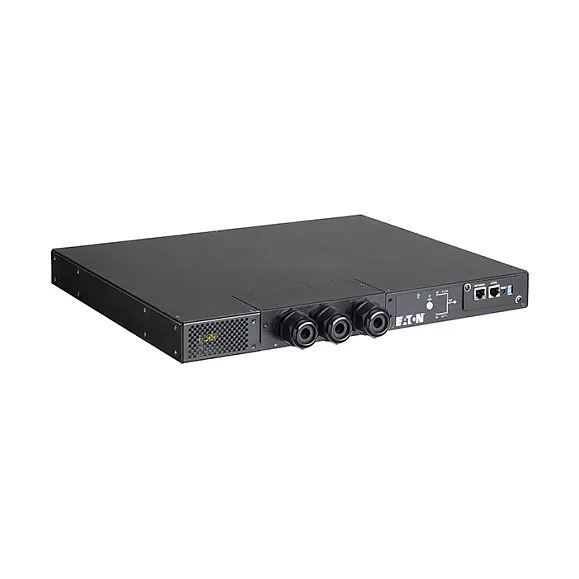

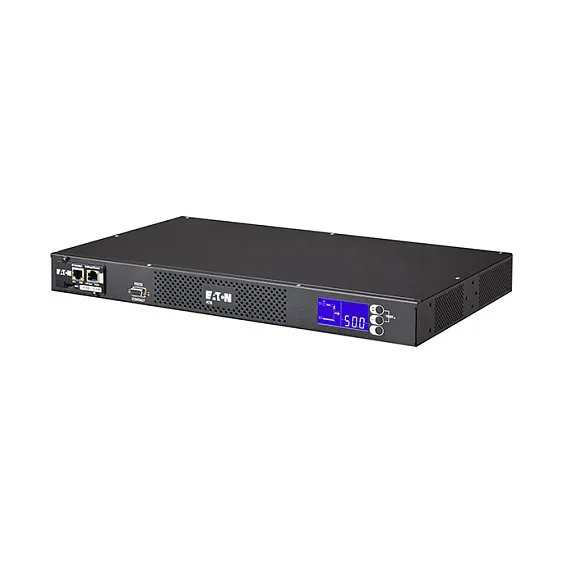

Eaton ATS16N. Rack capacity: 1U, Form factor: Rackmount, Mounting: Horizontal. AC outlets quantity: 9 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: C20 coupler. Nominal input voltage: 230 V, Maximum current: 16 A. Certification: CE. Width: 440 mm, Depth: 250 mm, Height: 43 mm
The Eaton ATS offers an affordable solution for customers willing to add power redundancy to networking equipment like switches and routers. This automatic transfer switch will power them from 2 different sources. Should one power source fail, the alternate one will switch over with no interruption to the connected equipment. Eaton ATS can be connected to multiple devices at the same time while saving the cost of expensive redundant power supplies.
Features
– Provides power redundancy to IT equipment
– Alternative to expensive redundant power supplies available from networking equipment vendors
– Compact, 1U rack form factor
– Seamlessly switches from one power source to the other
– Network management on ATS 30 and ATS 16 Netpack versions

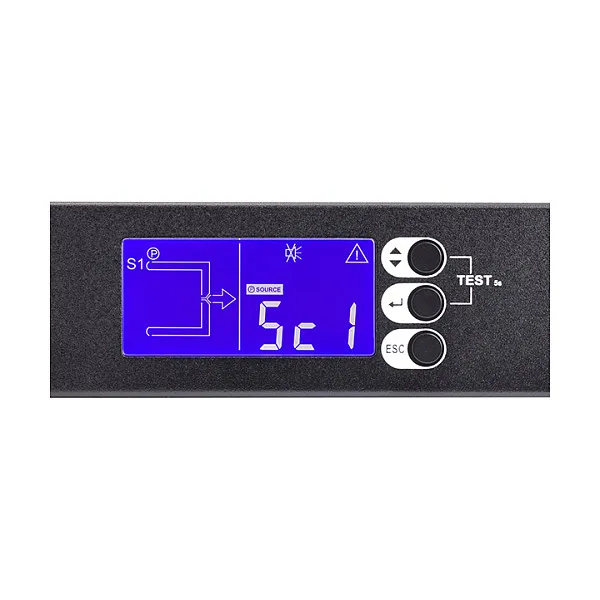

– LCD with metering and basic configuration capabilities
Design
Form factor: Rackmount
Rack capacity: 1U
Mounting: Horizontal
Product colour: Black
Ports & interfaces
AC outlets quantity: 9 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports: 1
Features
LED indicators: Yes
Power
Nominal input voltage: 230 V
Maximum current: 16 A
Number of phases: 1
Certificates
Certification: CE
Weight & dimensions
Width: 440 mm
Depth: 250 mm
Height: 43 mm
Weight: 3.5 kg
Packaging content
Feature: Rack mount kit
Form factor: Rackmount
Rack capacity: 1U
Mounting: Horizontal
Product colour: Black
Ports & interfaces
AC outlets quantity: 9 AC outlet(s)
Power plug: C20 coupler
AC outlet types: C13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports: 1
Features
LED indicators: Yes
Power
Nominal input voltage: 230 V
Maximum current: 16 A
Number of phases: 1
Certificates
Certification: CE
Weight & dimensions
Width: 440 mm
Depth: 250 mm
Height: 43 mm
Weight: 3.5 kg
Packaging content
Feature: Rack mount kit
