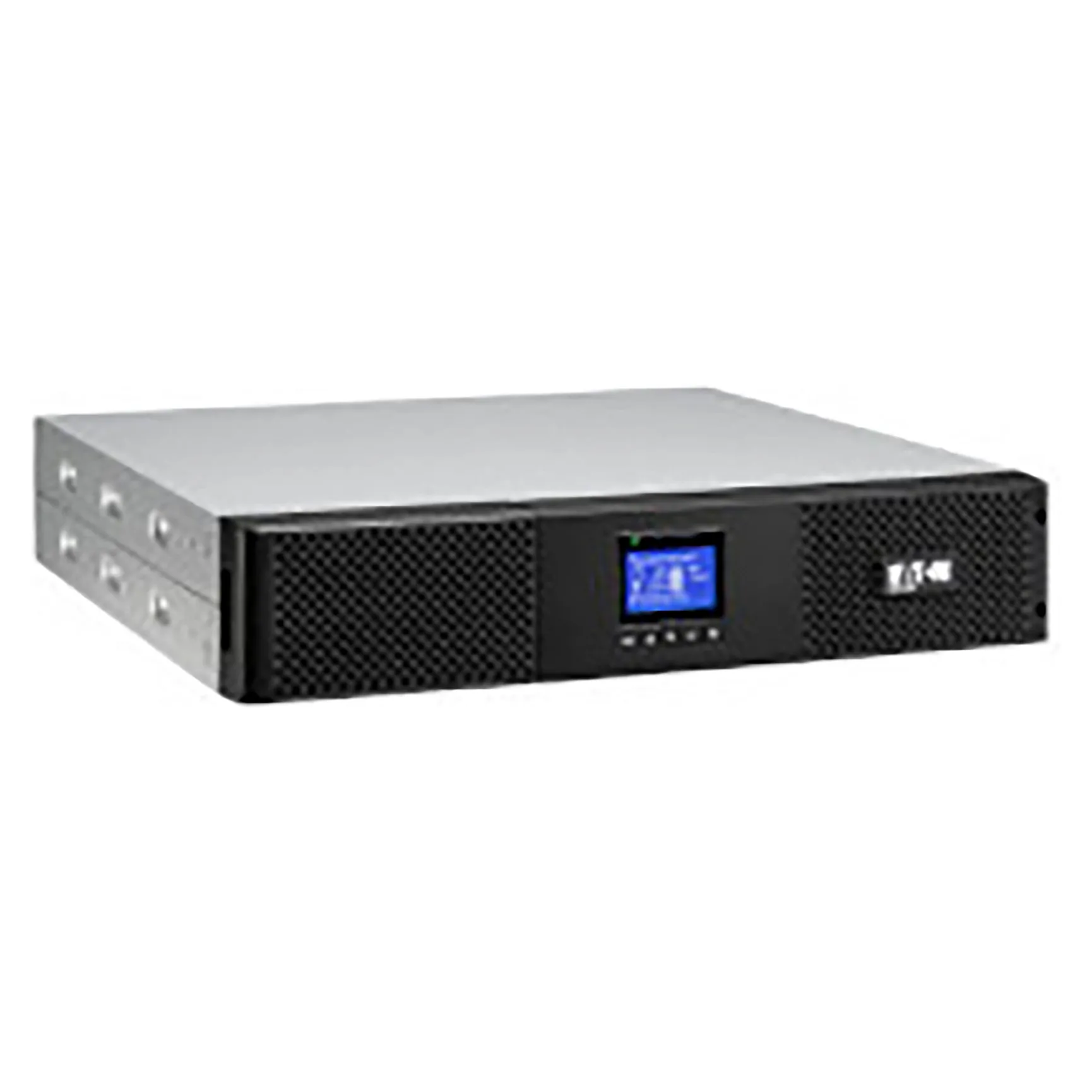

Eaton 9SX. UPS topology: Double-conversion (Online), Output power capacity: 2 kVA, Output power: 1800 W. AC outlet types: C13 coupler, C14 coupler, Power plug: C14 coupler, AC outlets quantity: 9 AC outlet(s). Form factor: Rackmount, Product colour: Black, Rack capacity: 2U. Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC. Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in versatile Rack/Tower format with up to 95% efficiency.
Features
UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 1800 W
Input operation voltage (min): 190 V
Input operation voltage (max): 276 V
Input frequency: 40 – 70 Hz
Output frequency: 50/60 Hz
Maximum current: 10 A
Noise level: 45 dB
Ports & interfaces
AC outlet types: C13 coupler, C14 coupler
Power plug: C14 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Design
Form factor: Rackmount
Rack capacity: 2U
Product colour: Black
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
Width: 438 mm
Depth: 608 mm
Height: 86.5 mm
Weight: 26.5 kg
UPS topology: Double-conversion (Online)
Output power capacity: 2 kVA
Output power: 1800 W
Input operation voltage (min): 190 V
Input operation voltage (max): 276 V
Input frequency: 40 – 70 Hz
Output frequency: 50/60 Hz
Maximum current: 10 A
Noise level: 45 dB
Ports & interfaces
AC outlet types: C13 coupler, C14 coupler
Power plug: C14 coupler
AC outlets quantity: 9 AC outlet(s)
Feature: USB port
USB 2.0 ports quantity: 1
Feature: Serial interface
Serial interface type: RS-232
Design
Form factor: Rackmount
Rack capacity: 2U
Product colour: Black
Display type: LCD
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Certificates
Certification: IEC/EN 62040 -2 , FCC B, CISPR22 B, CE /CB report (TUV) / cULus / EAC / RCM / BIS / KCC
Safety regulation & standards
Safety: IEC/EN 62040-1, UL 1778, CSA 22.2
Weight & dimensions
Width: 438 mm
Depth: 608 mm
Height: 86.5 mm
Weight: 26.5 kg
