Eaton 5P1550IRNG2. UPS topology: Line-Interactive, Output power capacity: 1.55 kVA, Output power: 1350 W. AC outlet types: C13 coupler, Power plug: C14 coupler, AC outlets quantity: 6 AC outlet(s). Battery technology: Sealed Lead Acid (VRLA), Battery capacity: 9 Ah, Battery voltage: 6 V. Form factor: Rackmount, Product colour: Black, Silver, Rack capacity: 1U. Compliance certificates: Low Voltage Directive (LVD), RoHS, Certification: EMC IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 UL 1778 CSA-C22.2 CE UKCA Cm Ukr KCC cTUVus BIS
Features
UPS topology: Line-Interactive
Output power capacity: 1.55 kVA
Output power: 1350 W
Waveform: Sine
Input operation voltage (min): 150 V
Input operation voltage (max): 294 V
Input frequency: 47/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Heat dissipation: 654 BTU/h
Number of input phases: 1
Number of output phases: 1
Efficiency: 98.2%
Power factor: 0.9
Noise level: 35 dB

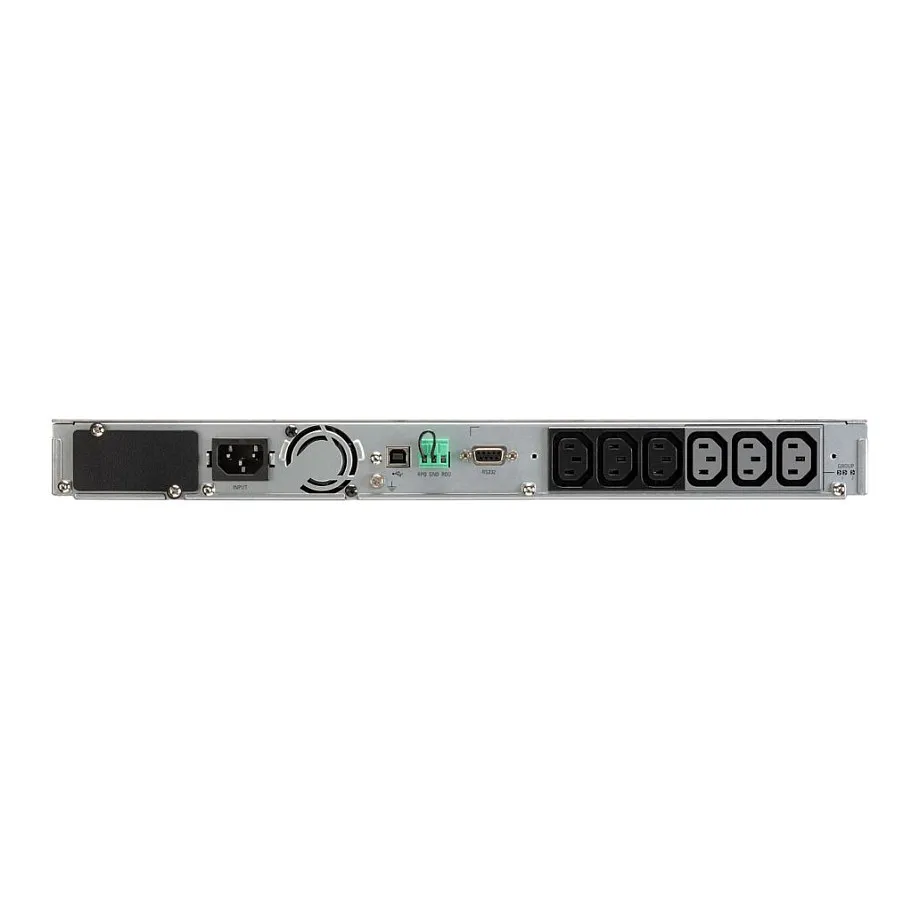

Ports & interfaces
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1

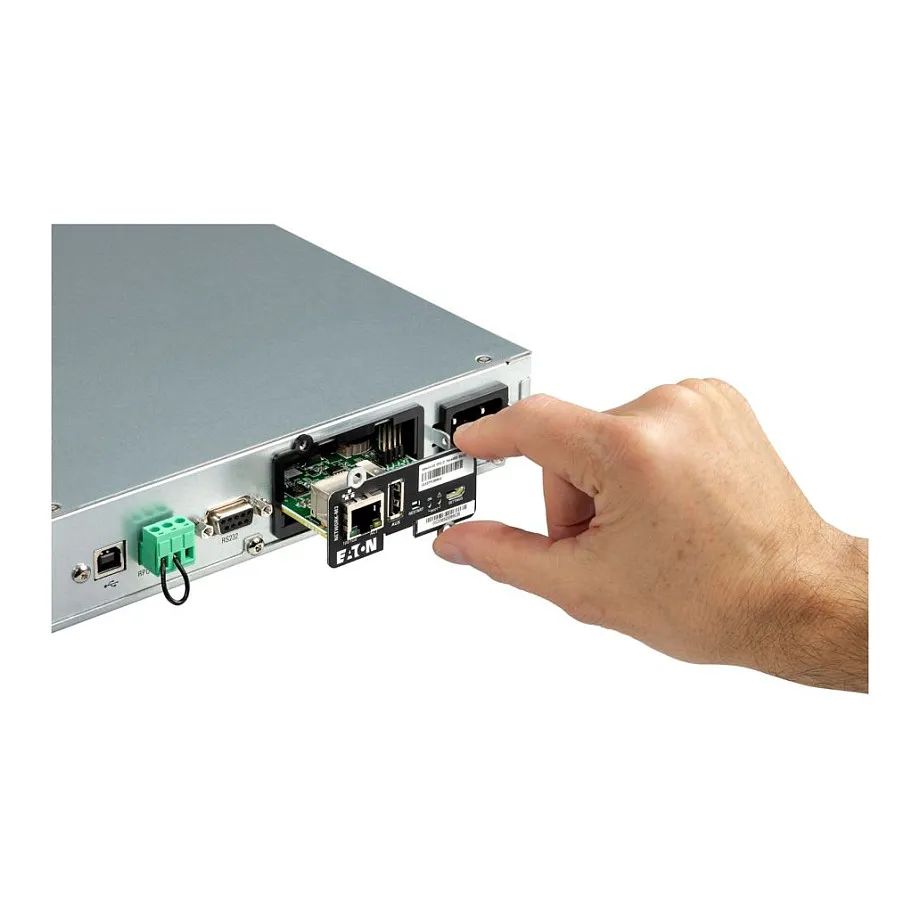

Feature: Network card slot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 6 V
Number of battery cells: 6
Typical backup time at half load: 13.5 min
Feature: Hot-swap battery
Design

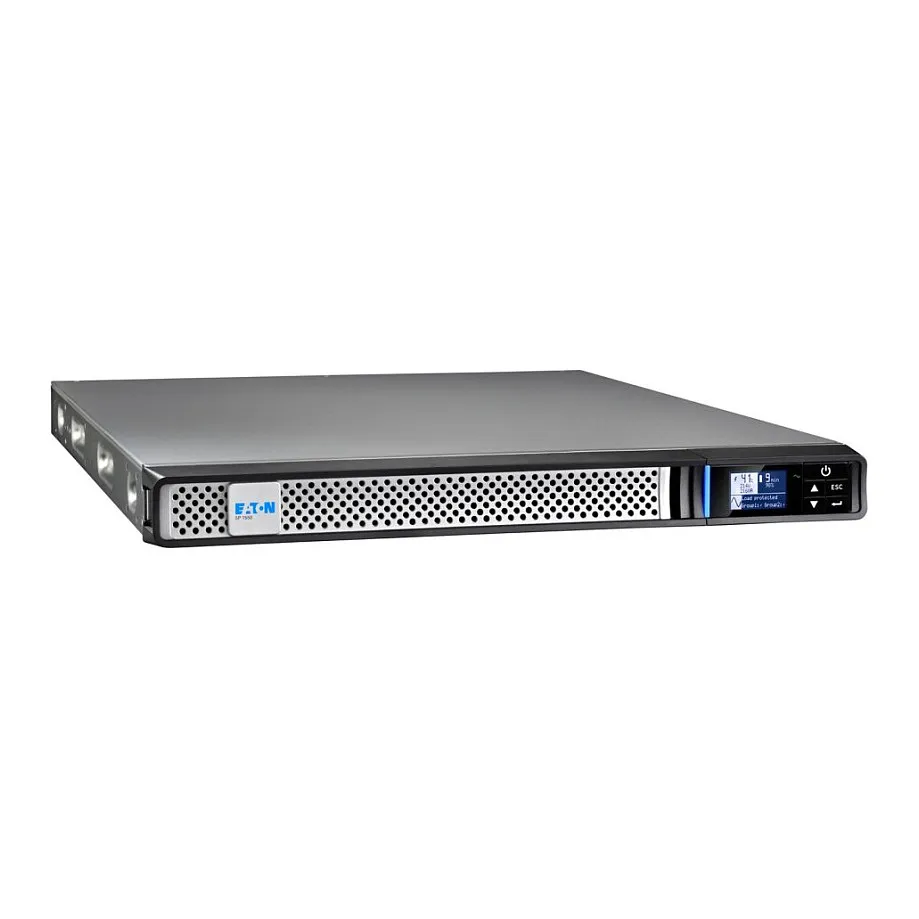

Form factor: Rackmount
Rack capacity: 1U
Product colour: Black, Silver

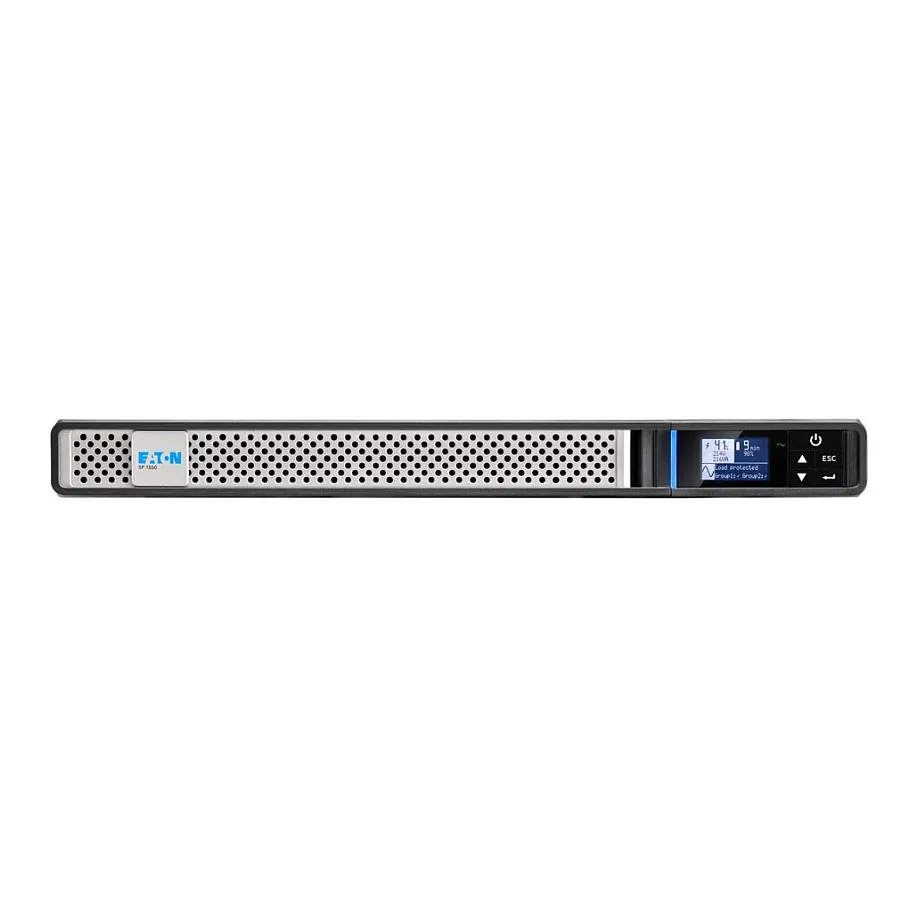

Display type: LCD
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Operating altitude: 0 – 3000 m
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: Low Voltage Directive (LVD), RoHS
Certification: EMCIEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS
Packaging content
Feature: Rack mount kit
Cables included: USB cable
Feature: Quick installation guide
Weight & dimensions
Width: 438 mm
Depth: 555 mm
Height: 43.2 mm
Weight: 18.8 kg
UPS topology: Line-Interactive
Output power capacity: 1.55 kVA
Output power: 1350 W
Waveform: Sine
Input operation voltage (min): 150 V
Input operation voltage (max): 294 V
Input frequency: 47/70 Hz
Output operation voltage (min): 200 V
Output operation voltage (max): 240 V
Output frequency: 50/60 Hz
Feature: Automatic Voltage Regulation (AVR)
Heat dissipation: 654 BTU/h
Number of input phases: 1
Number of output phases: 1
Efficiency: 98.2%
Power factor: 0.9
Noise level: 35 dB
Ports & interfaces
AC outlet types: C13 coupler
Power plug: C14 coupler
AC outlets quantity: 6 AC outlet(s)
Feature: USB port
USB port type: USB Type-B
Feature: Serial interface
Serial interface type: RS-232
Serial ports quantity: 1
Feature: Network card slot
Battery
Battery technology: Sealed Lead Acid (VRLA)
Battery capacity: 9 Ah
Battery voltage: 6 V
Number of battery cells: 6
Typical backup time at half load: 13.5 min
Feature: Hot-swap battery
Design
Form factor: Rackmount
Rack capacity: 1U
Product colour: Black, Silver
Display type: LCD
LED indicators: Yes
Operational conditions
Operating temperature (T-T): 0 – 40 °C
Operating relative humidity (H-H): 0 – 90%
Operating altitude: 0 – 3000 m
Certificates
Feature: Waste Electrical and Electronic Equipment (WEEE) compliance
Compliance certificates: Low Voltage Directive (LVD), RoHS
Certification: EMCIEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS
Packaging content
Feature: Rack mount kit
Cables included: USB cable
Feature: Quick installation guide
Weight & dimensions
Width: 438 mm
Depth: 555 mm
Height: 43.2 mm
Weight: 18.8 kg
